VIDEO
SPLITTER
(VS -812)
1In2Out
( (VS-814)
1In4Out
(VS-818)
1In8Out
(VS-8116)
1 In 16 Out
USER MANUAL
VS-812 / VS-814 / VS-818
/ VS-8116
Package Contents-
1 Smart View VS-812 or VS-814 or VS-818 or
VS-8116 Video Splitter
1 user manual
1 power adapter DC 9V 600mAfor VS-812, 814, 818
or 1 DC 7.5V 1.5A for VS-8116
2 rack rails, 8 screws for VS-8116 only
Any thing missed, please contact with your vendor.
Introduction
Through the video splitter VS-812, VS-814, VS-818,
VS-8116, you can use one PC to display identical image
on 2,4,8,16 monitors or even more.
Video splitter is ideal for:
Test bench facilities
Data Center
Help desks
Video broadcasting:
Presentation
Stock quotes
Timetables
Educational facilities
Features
With 250 MHz pixel frequency.
Extends the video signal up to 65 meter (213”).
Supports the DDC, DDC2, DDC2B. (For video out port
1)
Can be cascaded.
1U rack design for VS-8116.
The output is compatible with standard VGA card.
Specifications
Function VS-812 VS-814 VS-818 VS-8116
Video Input Connector
(HD-15 Male) 1 1 1 1
Video Output Connector
(HD-15 Female) 2 4 8 16
Max. Resolution 1920 x 1440 60 Hz
Pixel Frequency 250 MHz
Cable Distance
(Device to Monitor) 65 m (213 ”) Max.
Signal Type VGA, SVGA, XGA, Multisync
Power Adapter (Min.) DC 9V 600mA DC 7.5V
1.5A
Housing Metal
Weight 420 g 455 g 680 g 1480 g
Dimensions (LxWxH)MM 130x75x42 200x75
x42 343x105
x42
-1-
Technical Specifications
Input/Output Signal
Pin # Signal Pin # Signal
1 Red video 9 NC
2 Green video 10 Ground
3 Blue video 11 ID0
4 ID2 12 ID1
5 Ground 13 Horizontal Sync
6 Analog Ground 14 Vertical Sync
7 Analog Ground 15 ID3
8 Analog Ground
FRONT VIEW
1. Power LED
REAR VIEW
1. Input Power Jack
2. “Video In” Port
3. “Video Out” Port
*There are 2/4/8/16 out ports for VS-812 / VS-814
/ VS-818/ VS-8116.
-2-
Installation
1. Turn off the PC and monitors.
2. Connect the HD-15 video extension cable between the
PC and the “video in” port of splitter.
3. Connect the HD-15 video extension cables between the
monitors and the “video out” ports of splitter.
4. Connect the power cord and turn on the splitter.
5. Turn on the PC and monitors.
Note:
If you install the DDC monitor for the splitter, the rest of
monitors must be the same resolution as the DDC
monitor.
Available monitors include the VGA, SVGA, XGA,
Multisync, and exclude the CGA, EGA, Mono.
Operation for cascade:
1. The function to display identical image on more monitors,
you request to attach another splitter.
2. Connect the HD-15 male/male video extension cable
between the “video out” port of the former splitter and
the “video in” port of the latter splitter.
Note:
Even though you are allowed to cascade the splitter with
varied ports, the image might become unstable if cascade
too many tiers of splitters.
-3-

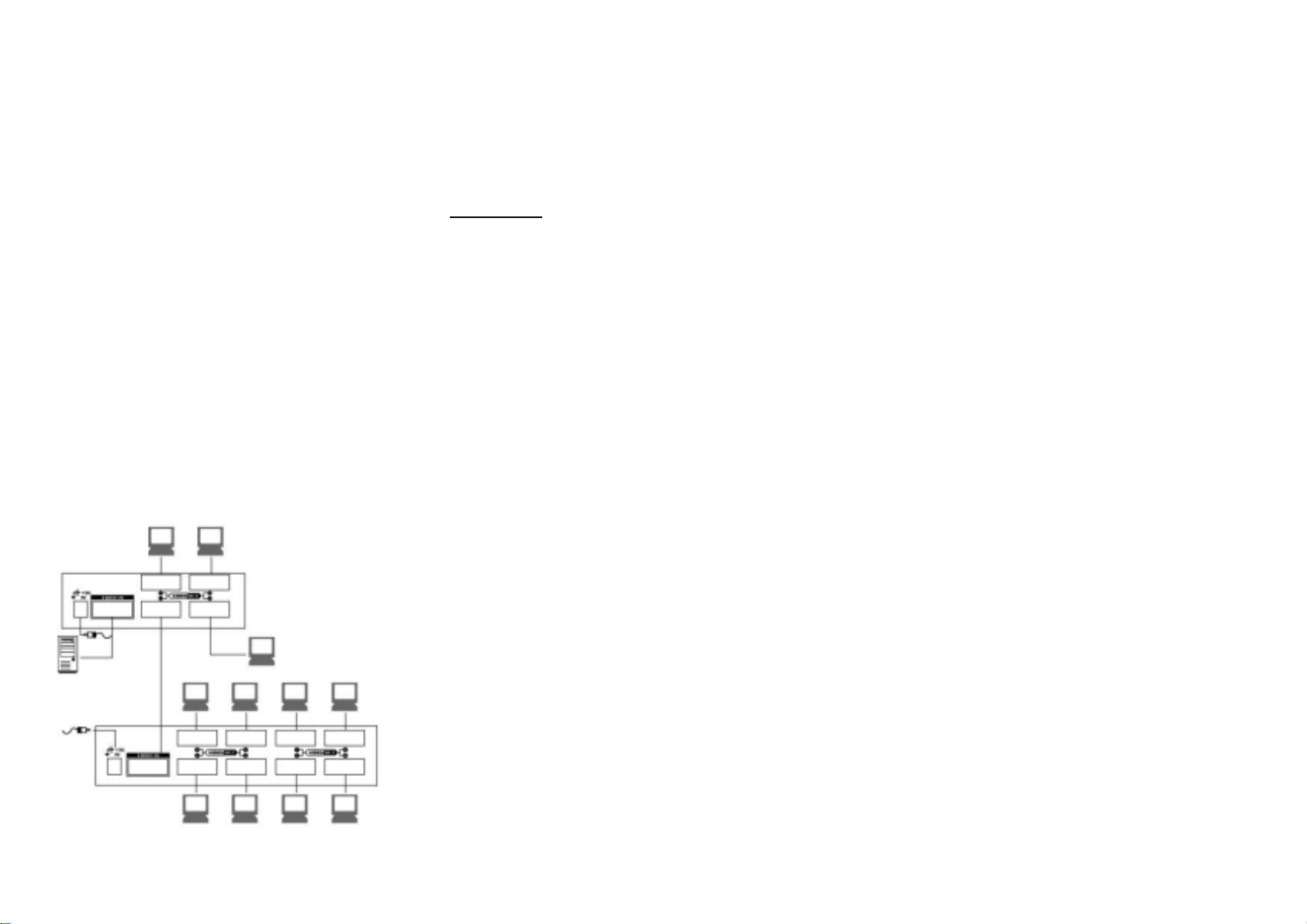

P.S.: The example cascades the 4 and 8 ports splitters;
however, you can cascade the video splitter with
demanded port.
Trademarks:
All the companies, brand names, product names are
referred to this manual, are the trademarks or registered
trademarks belonging to their respective companies.
