INSTALLATION INSTRUCTIONS
CITIE
NOTE: FOR OPTIMUM QUIETNESS, FULLY ASSEMBLE FAN AND RUN FOR 24 HOURS
QUESTIONS OR CONCERNS CONTACT CANARM AT:
1-800-265-1833 (ENGLISH)
1-800-567-2513 (FRENCH)
Monday through Friday 8:00 a.m. to 5:00 p.m. EST
IMPORTANT
FOR YOUR RECORDS, RECORD AND KEEP
THE FOLLOWING INFORMATION
Date of purchase:
Place of purchase:
Model on carton:
I.D.# (bottom of carton):
UPC (bottom of carton):
1. Turn off power at main electrical service box before starting installation.
2. Electrical connections must comply with local code ordinances or
national electrical codes.
3. Make sure the installation site you choose allows the fan blades to rotate
freely without any obstructions.
4. When mounting the fan on a ceiling outlet box, use a metal octagon box.
The outlet box and its support must be able to withstand the moving
weight of the fan (minimum of 35 lbs.).
SAFETY PRECAUTIONS
TOOLS AND MATERIALS REQUIRED
Adjustable wrench
Phillips screwdriver
Blade screw driver
Step ladder
Wire cutters
Wiring supplies as required
• to reduce the risk of personal injury DO NOT bend the blade brackets
when installing the brackets, balancing the blades or cleaning the fan.
Also, DO NOT insert foreign objects in between rotating fan blades.
• mount only to an outlet box marked acceptable for fan support
• mount with the lowest moving parts at least 2.1 meters (6.9 feet) above
floor grade level.
• DO NOT operate reversing switch while fan blades are in motion. Fan
must be turned off and rotating blades stopped, reverse chain pull, the
speed chain pulled again to start in the opposite direction.
WARNING
pg. 1
pg. 2
ASSEMBLY DRAWING
1. wooden joist
2. metal outlet box (not provided)
3. ceiling
4. mounting bracket
5. outlet box screws
6. wood screws & flat washers
7. downrod
8. canopy
9. canopy cover
10. yoke cover
11. bolt
12. cotter pin
13. motor
14. blade screw
15. fiber washer
16. blade
17. light kit plate
18. light kit
19. 75W E11 bulb
20. glass shade
21. receiver
22. remote control
12
11
10
9
5
17
18
19
20
21
22
16
14
15
13
4
2
6
3
1
7
8
WITH DOWNROD
pg. 3
• obtain fan motor
• remove cotter pin and bolt from yoke
• loosen jam screw in yoke until it is flush with the inside surface
• obtain dowrod, canopy, canopy cover and yoke cover
• place downrod inside canopy, canopy cover and yoke cover
• route wires and safety cable exiting motor through canopy and downrod
• insert bolt through hole in shaft and downrod
*be careful not to damage or cut the fan wires
• secure bolt with cotter pin
• secure downrod in position by tightening jam screws and lock nut
• place glass motor housing onto motor top
• slide yoke cover (optional) over yoke
1. MOUNTING
*NOTE: all set screws must be checked and re-tightened where
necessary after installation.
INSTALLATION
DOWNROD MOUNT
jam screw
lock nut
motor
jam screw
yokecotter pin bolt
yoke
jam
screw
pg. 4
• secure rubber gasket and mounting bracket to metal outlet box using
outlet box screws
• secure once more by placing two wood screws and flat washers (supplied)
through outer slots of mounting bracket and into the wood joist. Leave one
of the wood screws sufficiently loose to allow the safety cable to be looped
around before final tightening.
2. INSTALL MOUNTING BRACKET
INSTALLATION
wood screws &
flat washers
outlet box
screws
mounting
bracket
metal outlet box
wood joist
ceiling
pg. 5
• obtain fan and place hemisphere of downrod into mounting bracket
• rotate fan until the slot in the hemisphere locks into the tab of the
mounting bracket
• place looped end of safety cable over the wood screw and flat washer
not previously tightened (in Step 3)
• tighten above wood screw securing the safety cable
3. HOOKING UP SAFETY CABLE (DOWNROD MOUNT)
safety
cable
hemisphere
mounting
bracket
tab
slot
hemisphere
safety
cable
mounting
bracket
INSTALLATION
pg. 6
This remote control unit is equipped with 16 code combinations to prevent
possible interference from or to other remote units. The frequency switches on
your receiver and remote control have been preset at the factory. Please
recheck to make sure the switches on the remote control and the receiver are
set to the same position. Any combination of settings will operate the fan as long
as the remote control and receiver are set to the same position.
Insert the receiver into the mounting bracket with the flat side of the receiver
facing the ceiling.
4. PREPARING THE RECEIVER AND REMOTE CONTROL
INSTALLATION
remote control
receiver
receiver
ON
mounting
bracket
pg. 7
There are several different wiring combinations that can be used in controlling
After connecting the wires, spread them apart so that the green and white
wires are on one side of the outlet box and the black and blue wires are on
the other side. Carefully tuck the wire connections up into the outlet box.
your ceiling fan to meet your specific requirements. Should the following method
not meet your requirements call or visit your nearest Canarm distributor for a full
list of fan accessories.
5. MAKING THE ELECTRICAL CONNECTIONS
INSTALLATION
receiver
outlet box
Wire nuts (x6)
Black White
Black White
Green
Black Blue White
Black Blue White
Green
mounting bracket
pg. 8
INSTALLATION
6. SECURING THE FAN MOTOR ASSEMBLY TO
THE MOUNTING BRACKET
screw
screw
canopy
canopy
cover
Remove one screw from the mounting bracket and loosen the other screw
approximately 1/4 turn.
Carefully raise the canopy up to the mounting bracket, and ensure the
loosened screw is inserted into the key hole on the canopy. Rotate the canopy
clockwise.
Secure the canopy by replacing the screw previously removed and tightening
the screw previously loosened.
Place the canopy cover on the canopy, and rotate the canopy cover
clockwise until it locks into position.
pg. 9
INSTALLATION

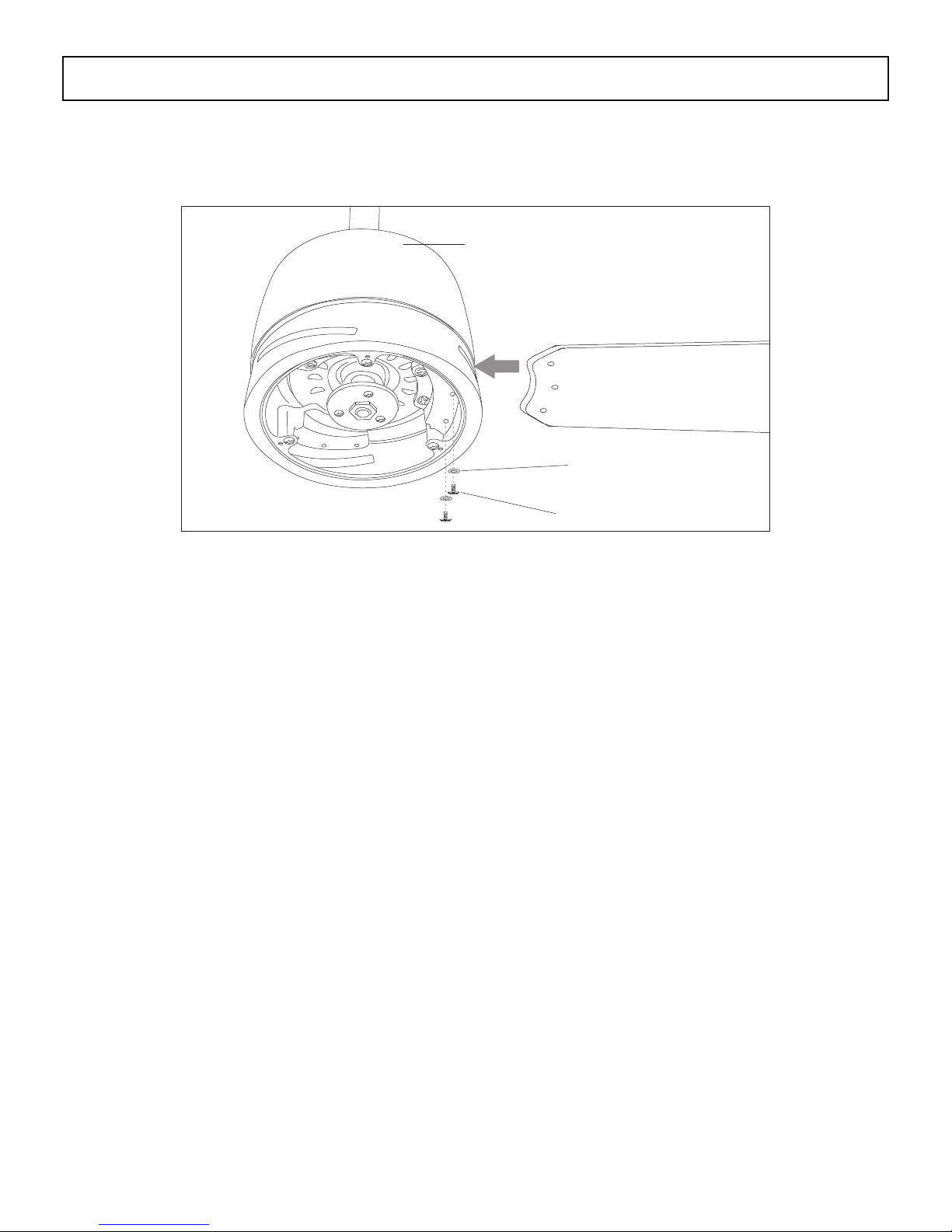

7. BLADE INSTALLATION
Fan motor assembly
Blade screw
Fiber washer
Blade
Insert the blades through the slots on the fan motor assembly.
Attach the fan blades to the fan motor assembly using the blade screws and
fiber washer and tighten them securely.
Repeat this step for the other blades.
