ANDES DC

SOLAR HOME SYSTEM

MODEL: CSFDC-20-1218A1

CSFDC-30-1224A1/CSFDC-30-1224A2

CSFDC-50-1233A1/CSFDC-50-1233A2

WARNING

To ensure that you use the system correctly

and safely, please read the following warnings

carefully.

Do not place the main unit in rainy,

humid or similar conditions.

Do not expose the system to explosive or

ammable conditions.

Do not disassemble the main system unit;

this could cause partial system failure or

damage the system.

· This is a DC system. Using non-original power for

charging purposes is not allowed.

· Keep the system clean and well ventilated.

· Do not cover or jam the main unit in any way.

· Consistently overcast and rainy weather will result

in an insucient amount of system power. In this

case, please reduce the load or reduce the electricity

load time.

Please contact your retailer for advice on using

non-original electrical devices.

· The battery must be fully charged before using

the Andes for the rst time. Remove the fuse if

the solar module has been disconnected from the

main unit for more than 1 months. Otherwise, the

amount of electric energy will decrease, and the

Andes may not work properly.

· Reduce the USB load to minimize the interference

when you are playing radio.

· The system output would be automatically shut

down when the battery is over-discharge.

1.0

INTRODUCTION

2.0

FUNCTIONS

3.0

SYSTEM COMPONENTS

4.0

SPECIFICATIONS

(INCLUDING OPTIONAL PARTS)

Andes Solar Home System (SHS) is an off-grid solar

system. The system consists of PV module, control-

ler, battery and LED lamps. It transforms sunlight

into DC electricity and stores energy into the battery.

The battery can be used for LED lamp or other small

DC devices. The system is designed for rural areas

where no grid exists and can also be adapted to

emergency, camping, RV and other outdoor activi-

ties.

> Lighting function

> USB power for small DC devices

> Built-in digital AM / FM radio (optional)

Rated 12V Output: 12 V / 2.5 A

Rated USB Output: 5 V / 2 A, 5 V / 1 A

Solar Module: DC 17.5 V 20 Wp / 30 Wp / 50 Wp

Battery: DC 12 V 18 Ah / 24 Ah / 33 Ah

Lamp: DC 12 V 3 W

Radio: Digital AM / FM radio (Optional)

Operating Condition: 0~45 ℃, 0~85%

Site Altitude: < 1000 m

IP Grade: Indoor use, IP 20

Dimensions (L*W*H) (mm): Main unit 483*338*321

Net Weight (kg): CSFDC-20-1218A1, 12.6 kg;

CSFDC-30-1224A1, CSFDC-30-1224A2 14.5 kg;

CSFDC-50-1233A1, CSFDC-50-1233A2 19.2 kg

5.0

INSTALLATION AND OPERATION

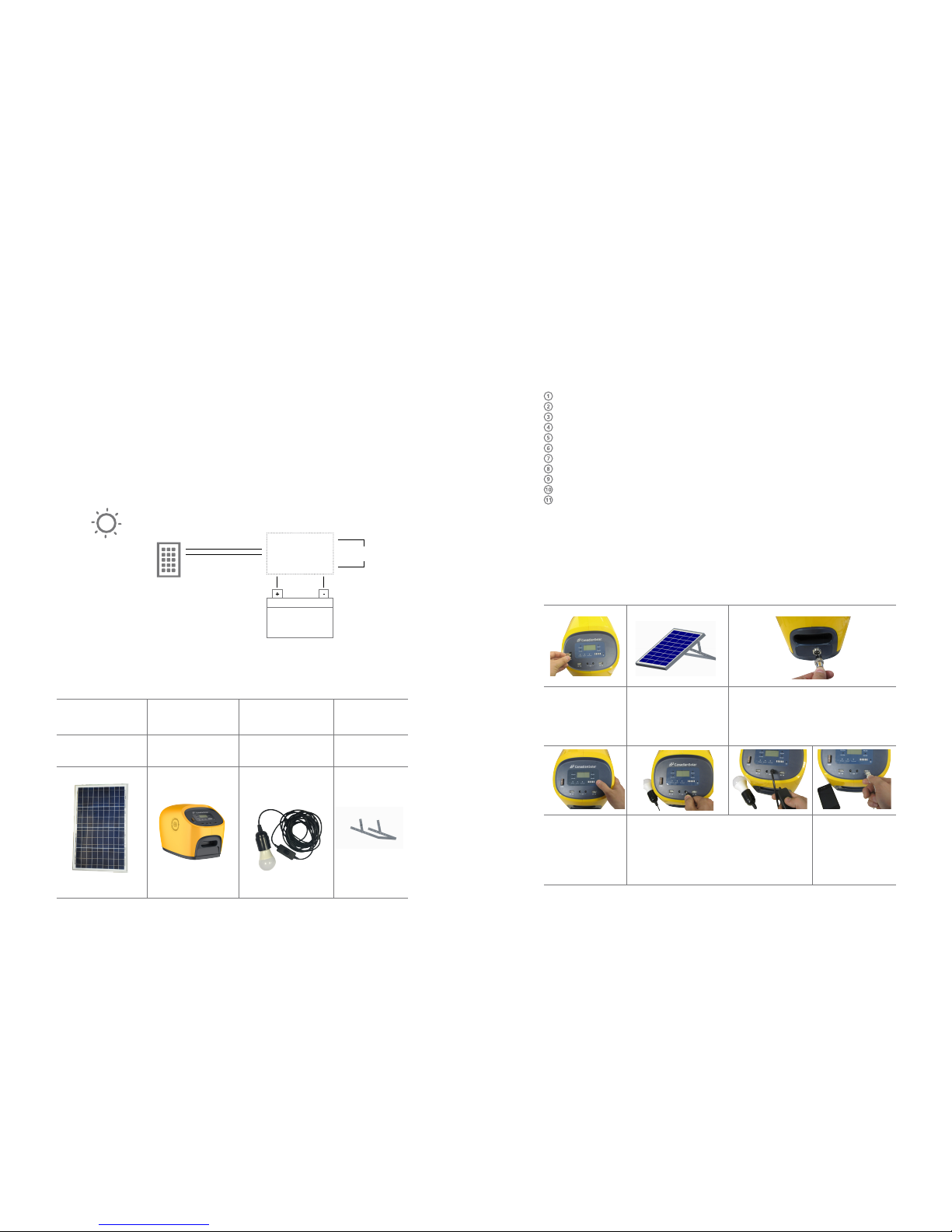

Step 1

Install fuse

Step 2 (Support rack optional)

Install the support rack to PV

module and adjust the angle

to make the PV module

toward the sun

Step 3

Connect the PV cable to the PV socket and lock

the connector

Step 4

Check battery capacity

Press the button to

check battery capacity

Step5-1

Lighting the lamp

Connect the lamps to 12 V DC socket and turn on the

switch on the lamp cable

Step5-2

Power the USB devices

Connect the USB cable

to USB socket

*Short press to check the capacity of battery before power the USB devices

Load

Controller

Battery

Solar Module

Solar module Main unit LED lamp & cable Support Rack

(Optional)

1PCS 1PCS 2 PCS 1 PCS

7.0

WARRANTIES

· The system comes with a one-year limited warranty.

The PV modules come with a ten-year warranty

for 90 % of the minimum rated power output.

The warranty shall be effective from the date of

installation or 90 (ninety) days after delivery

by Canadian Solar, whichever comes rst.

· The limited warranties do not cover normal wear

and tear, misuse or damage as a result of abusing,

altering, improperly installing or using the system,

unauthorized servicing, modifying, storing, or

transporting of the system, or damage caused by

power failures, natural disasters or other events

that lie beyond Canadian Solar’s control.

DISPLAY & OPERATION

1. CHARGE

Lighting: battery is charging.

2. OUTPUT

Lighting: Output power.

3. OVERLOAD

Flashing: Overload or short circuit.

4. BATTERY CAPACITY DISPLAY

Each lighting LED means 20% available capacity. The

rst LED ashing on the left means the system is in

low voltage protection. No Power is output.

5. CAPACITY CHECK BUTTON

Short press to check the capacity of battery.

SOCKET

6. PV Input Socket

7. 12 V DC Socket

8. USB Socket

9. Fuse

RADIO OPERATION

10. ON/OFF

Press the button to turn on or off the radio

11. FM/AM

Short press for AM/FM mode switching ,long press

for scanning.

12. CH/Vol+

Short press for next channel ,long press to increase

the volume.

13. CH/Vol-

Short press for previous channel , long press to

decrease the volume.

6.0

MAIN UNIT INTRODUCTION

CANADIAN SOLAR INC.

545 Speedvale Avenue West, Guelph, Ontario, Canada N1K 1E6

www.canadiansolar.com
