Campbell Hausfeld PW1950 Guide d'application

Replacement Parts List Model PW1950

CAMPBELL

HAUSFELD

IN199500AV 4/95

Gasoline Powered

Pressure Washers

910

1 Handle PM003100AV 1

2 Wand rack kit [incl. (2) ea. items 3 & 4] PW070300SV 1

3 Washer AL101600AV 2

4 1/4-20 Elastic stop nut

✽

5 Rubber foot PM003000AV 2

6 1/4-20 x 1 1/4” Hex bolt

✽

7 1/4” Black flat washer

✽

8 Wheel PM030300AV 2

9 Base plate PM000100AV 1

10 Hex lock nut ST033500AV 2

11 Axle bolt ST033400AV 2

12 Gun PM021600AV 1

13 Lance/Nozzle PM021500AV 1

14 High pressure hose PM021700AV 1

Ref.

No. Description Part Number Qty.

Cart Assembly for Model PW1950

✽

Indicates Std. hardware

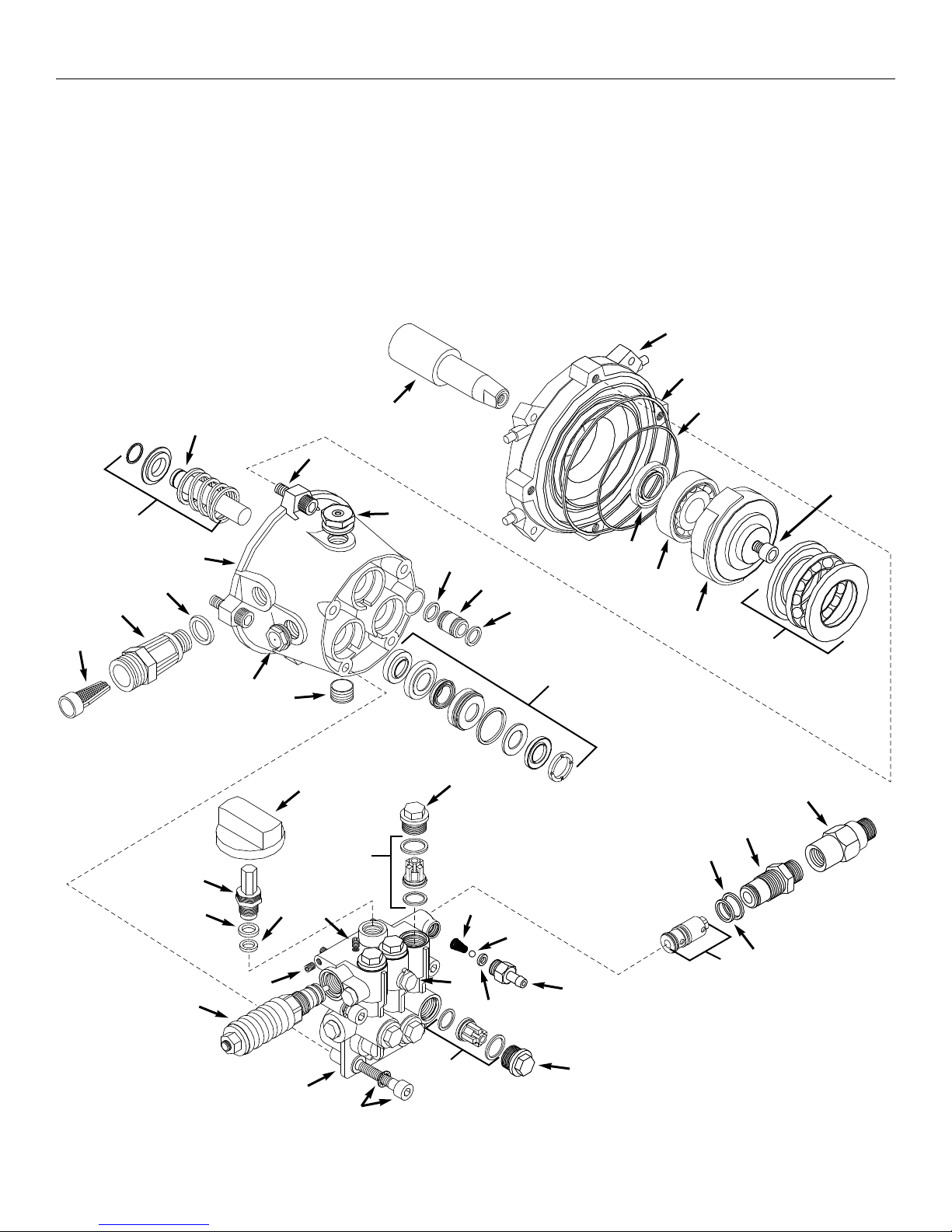

Pump Assembly for

Gasoline Powered

Pressure Washers

*10

24 25 26

31 32

38 39

*Item 10 not included with item 11

Parts Breakdown Models PW1950 and PW2250

For Replacement Parts, call 1-800-330-0712

Please provide following information:

-Model number

-Serial number (if any)

-Part descriptions and number as shown in parts list

Address parts correspondence to:

Campbell Hausfeld

100 Production Drive

Harrison, OH 45030

Ref.

No. Description Part Number Qty

▲Must be replaced only by authorized service center

Replacement Parts List Models PW1950 and PW2250

1Engine connector shaft ▲1

2 Front motor flange ▲1

3 Outer flange o-ring PM011600AV 1

4 Inner flange o-ring PM008600SV 1

5 Seal ring ▲1

6 Oblique ball bearing ▲1

7 Incline plate PM017900AV 1

8 M8 x 25 Screw PM022700AV 5

9 Thrust ball bearing assembly PM025700AV 1

10 Piston PM026000AV 3

11 Piston spring kit (does not include #10) PM027700SV 3

12 Piston guide body PM026300AV 1

13 Vented oil cap PM009900SV 1

14 O-ring PM006900SV 2

15 Head body connective sleeve PM026500AV 1

16 Water seal kit (incl. set of 3) PM029700SV 1

17 3/8” Setscrew PM027400AV 1

18 Oil level sight glass PM029400AV 1

19 O-ring PM029500AV 1

20 Inlet fitting PM029600AV 1

21 Inlet filter PM002500AV 1

22 Pressure regulator knob PM027600AV 1

23 Pressure regulator PM024700AV 1

24 Regulation rod seat PM026900AV 1

25 O-ring PM026800AV 1

26 M6 x 8 Setscrew PM026700AV 2

27 M5 x 5 Setscrew PM026600AV 2

28 Regulation rod PM028600AV 1

29 Brass head PM028500AV 1

30 M8 x 40 screw and lockwasher PM028400AV 4

31 Inlet/Outlet valve kit (incl. set of 6) PM028000SV 1

32 Valve cap PM027300AV 6

33 Bleeder screw PM028300AV 1

34 Chemical suction spring PM024400AV 1

35 Stainless steel ball PM008100SV 1

36 Detergent fitting o-ring PM027500AV 1

37 Detergent hose fitting PM008200SV 1

38 Unloader for Model PW1950 PM028200AV 1

Unloader for Model PW2250 PM028201SV 1

39 O-ring PM028100AV 1

40 O-ring PM007700SV 1

41 Unloader support PM027900AV 1

42 High pressure hose fitting PM027800AV 1

43 Complete pump assembly for Model PW1950 PM021400AV 1

44 Complete pump assembly for Model PW2250 PM021401SV 1

1 Cart base PM000100AV 1

2 Iso mount PM003700AV 4

3 5/16-18 Nut

✽

4 Short handle assy. [incl. nuts, bolts, & washers] PW071200SV 1

5 Wheel WA120100AV 2

6 Pal nut kit [incl. (2) pal nuts] PW070000SV 1

7 Axle assy. [incl. (2) pal nuts, bolts & nuts] PW071100SV 1

8 Right leg assy. [incl. nuts, bolts, washers & shock absorber] PW070900SV 1

9 Shock absorber kit [incl. (2) 1/4-20 x 1 1/2” bolts & nuts] PW070100SV 1

10 Left leg assy. [incl. nuts, bolts, washers & shock absorber] PW071000SV 1

11 Hose rack assy. [incl. (4) #10 sheet metal screws] PW070200SV 1

12 Long handle assy. [incl. nuts, bolts & washers] PW070800SV 1

13 Gun PM021600AV 1

14 Lance/nozzle PM021500AV 1

15 High pressure hose PM021700AV 1

16 Hardware kit - Not Shown [ incl. all nuts & bolts] PW070400SV 1

Gasoline Powered

Pressure Washers

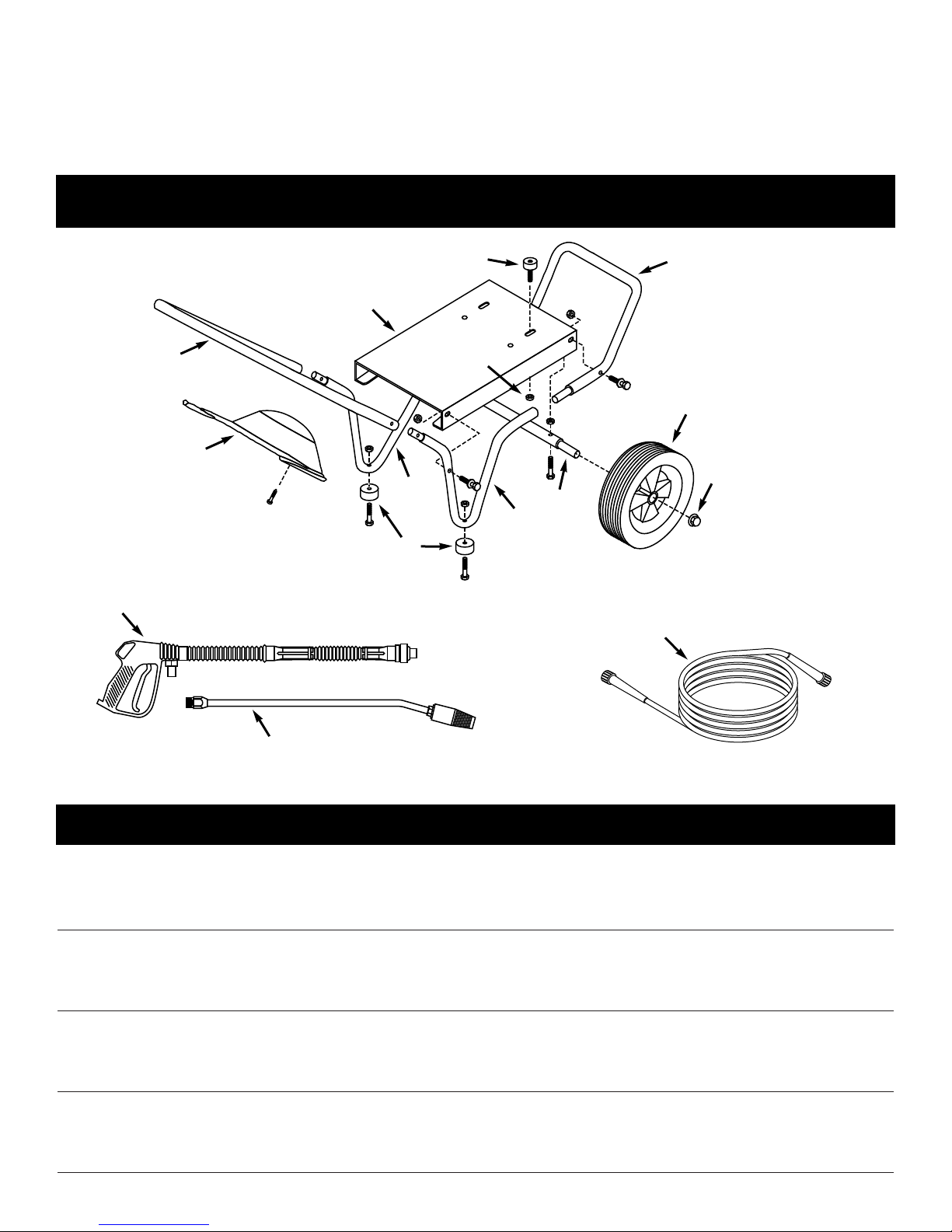

Cart Assembly for Model PW2250

●All nuts are 1/4-20 and all bolts are 1/4-20 x 1 3/4 unless specified otherwise

Replacement Parts List Model PW2250

Ref.

No. Description Part Number Qty.

✽

Indicates Std. hardware
