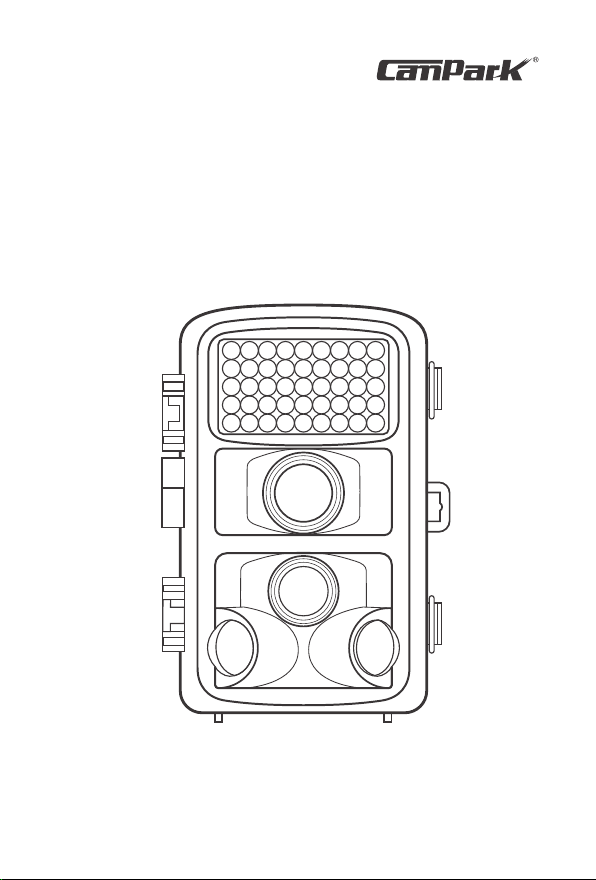

CAMPARK T45A Manuel utilisateur

T45A Trail Camera

Instruction Manual

IFYOUHAVEANYQUESTIONSORPROBLEMS.

Pleasecontactusby

Wewilloﬀerpromptandauthoritativereplywithin24hours,andtryour

besttoresolveyourproblemASAPMoreSafeGuaranteewithCampark!

Ifyouarenotsatisﬁedwithourproduct.Pleasetellusaboutyourthought.

Thatwillbemuchappreciated.

SIVOUSAVEZDESQUESTIONSOUDESPROBLÈMES.

S'ilvousplaîtnouscontacterpar:

Nousvousrépondronsrapidementetavecautoritédansles24heureset

feronsdenotremieuxpourrésoudrevotreproblèmedèsquepossible

aveclagarantieplussûredeCampark!Sivousn'êtespassatisfaitdenotre

produit,dites-lenouss'ilvousplaît.Ceseratrèsapprécié.

SolltenSieFragenoderProblemehaben:

SokontaktierenSieunsuntereinerderfolgendeneMailadressen.

Wirwerdenunsinnerhalbvon24Stundenumgehendundverbindlichbei

Ihnenmelden.WirwerdendiebesteLösungfürIhrProblemﬁnden.Und

dasSOSCHNELLWIEMÖGLICH.SichereGarantiemitCampark!

SolltenSieSiemitunseremProduktnichtzufriedensein,soteilenSiedies

unsbitteauchmit.WirwerdeneineLösungﬁnden.

support@campark.net

For UK / DE / FR / IT / ES TEXT manual, please feel free to contact our

support email.

1.PACKING LIST

2.INSTRODUCTION

3.STRUCTURE

4.PREPARING THE CAMERA

5.USING THE CAMERA AND SETUP MENU

5.1 Using the camera

5.2 Setup menu

6.ENTERING AUTOMATIC MONITORING

6.1 Adjusting and installing the camera

6.2 Setting up the live mode

7.CONNECTION TO COMPUTER

8.TECHINCAL SPECIFICATION

9.SIMPLE TROUBLE SHOOTING

9.1Care

9.2Storage

Contents

..............................................................................0 1

........................................................................0 1

...............................................................................02

...................................06

........................................................04

...........................................................................07

.....................................................................06

.....................................1 3

.............................................1 3

.............................................................1 5

..................................................1 6

....................................................1 7

...................................................1 8

......................................................................................1 9

........................................................................................1 9

V2020 12 23

1. PACKING LIST

Please carefully unpack camera and check that below accessories are

contained in the box.

1.Wildlife Camera x 1

2.USB Cable x 1

3.Instruction Manual x 1

4.Mounting Belt x 1

5.Wall Mount x 1

6.Screws x 3

1 2 3 4

5 6

2. INTRODUCTION

The Wildlife Camera is a wildlife and surveillance camera with an infrared

sensor. The sensor can detect sudden changes to the ambient

temperature within an evaluation area. The signals of the highly sensitive

infrared sensor (PIR, passive infrared sensor) switch on the camera,

activating picture of video mode.

2.1 Features Of Wildlife Camera

1. CMOS sensor.

2. 20 Megapixels photo and 4K lite video.

3. 6.1 cm (2.4’)’ color TFT LCD: 320x240 pixels

4. 42 pcs IR LEDs.

E N

5.Full automatic IR filter.

6.Trigger speed: Approx. 0.3 second.

7.Setup Serial No. to record the position.

8.Time, date, temperature, phase and Serial No. will be stamped on the

photo.

9.Password protection.

10.Power indicating.

11.Built-in test function about environmental temperature.

12.Built-in microphone and speaker.

13.Mini USB 2.0 interface.

14.Waterproof standard IP56.

15.Working temperature: -20°C to 60°C.

16.Extremely low power consumption in standby operation providing

extremely long operating time, lasts 8 months with 8 pcs batteries

when taking 50 photos every day.

2.2 Features Of Wildlife Camera

1.Camera trap for hunting

2.Animal or incident observation.

3.Motion triggered security camera for domestic, office or public use.

4.Any internal and external surveillance.

3. STRUCTURE

Understanding the camera structure helps to use this product more skillfully.

3.1

1-Infrared LEDs

2-Lens

3.1-Front motion sensor

3.2-Left motion sensor

3.3-Right motion sensor

3.2

3.3

E N

4.Display screen

5.Up button

6.Menu button

7.Left button

8.Replay button

9.Shot button

10.Right button

11.OK button

12.Down button

13.TF Slot

14.AV jack

15.USB jack

16.ON

17.SETUP

18.OFF

19.Battery compartment

20.Seal ring

21.DC connection 6V/1.5A

22.1/4" Tripod thread

E N

23.Locking brackets

24.Slot for mounting belt

▲ 1.The monitor is only switched on in the SETUP mode for changing

menu settings or viewing existing photos and videos.

2.A micro SD memory card must have been inserted into the memory

card slot to save photos and videos.

3.Using the mini USB connection (USB 2.0), the camera can be

connected to a computer to download photos and videos.

4.Using the mode switch, the three operating modes:OFF,SETUP and

ON can be selected.

4. PREPARING THE CAMERA

Note :

1.Micro SD memory cards up to a capacity of 32 GB are supported.

E N
