CAME AGT A Manuel utilisateur

Internal Audio Receiver

AGT A - AGT A EVO

USER MANUAL EN En

FA01371-EN

Page 2- Manual FA01371-EN - 12/2019 - © CAME S.p.A. -The contents of this manual may be changed, at any time, and without notice. - Translation of the original instructions

Function of buttons

Door release button / Open-gate command if pressed for > 3 seconds.

Door release LED: ﬂashing when calling/ ﬁxed when the open-gate function is active.

Auxiliary 2 / Porter call

AUX2 LED: Porter missed call alert.

Intercom 1: if the second function is activated, the key function becomes “Intercom

4”. Prolonged operation enables/disables the “automatic door release” function.

Intercom 2: if the second function is activated, the key function becomes “Intercom 5”.

Intercom 3: if the second function is activated, the key function becomes “Intercom 6”.

Press and hold for < 2 seconds (the white LED ﬂashes) to enable intercom calls

from 4 to 6.

Press and hold for > 2 seconds (the white LED ﬂashes) to send a panic signal to the

porter (where present).

LED functions:

Flashing light with second function and PANIC active. Fixed light with automatic

door-release function active.

Setting the ringtone

Press repeatedly to adjust the ringtone volume: low, high, o (red LED on).

Activating this button during a conversation excludes the microphone until it is

activated again or the communication ends.

☞Only use soft, dry or slightly damp cloths for cleaning; do not use any chemical

products.

Page 3- Manual FA01371-EN - 12/2019 - © CAME S.p.A. -The contents of this manual may be changed, at any time, and without notice. - Translation of the original instructions

AGT A - AGT A EVO basic functions

Calling. Answering a call.

Opening the door for the calling entry panel. Ending the call.

> 2s

AUX3 INT.1 INT.4 AUTO

AUX4 INT.2 INT.5 –

AUX5 INT.3 INT.6 –

AUX6

Second function

(INT. 4-5-6)

Exclude

second function

PANIC

LED 4 Turned o Turned o Flashing On ( )

Flashing ( )

Functions of buttons 1-4 available for the EVO version

Int. 1

Page 4- Manual FA01371-EN - 12/2019 - © CAME S.p.A. -The contents of this manual may be changed, at any time, and without notice. - Translation of the original instructions

AGT A EVO intercommunication

To call an internal receiver, pick up the

handset and press the button for the receiver

you want.

During a conversation between internal

receivers, a call from an entry panel is

signalled to the receivers by a beep that

repeats every 5 seconds.

3 successive beeps indicate that the line is

busy and a call cannot be made.

Open-gate function

Where allowed by the system and correctly conﬁgured, you can send an operator opening/

closing command by pressing and holding the key (> 3s). The door release LED

indicates the status of the operator.

☞The function must be activated on the receiver when the call is being associated

during system programming.

Door status function

Where allowed by the system, the door release LED indicates the current status of the door.

The function is active during the steps that involve communicating with the entry panel and

the signal refers to the entrance associated with the entry panel.

Int. 1 Int. 2

Page 5- Manual FA01371-EN - 12/2019 - © CAME S.p.A. -The contents of this manual may be changed, at any time, and without notice. - Translation of the original instructions

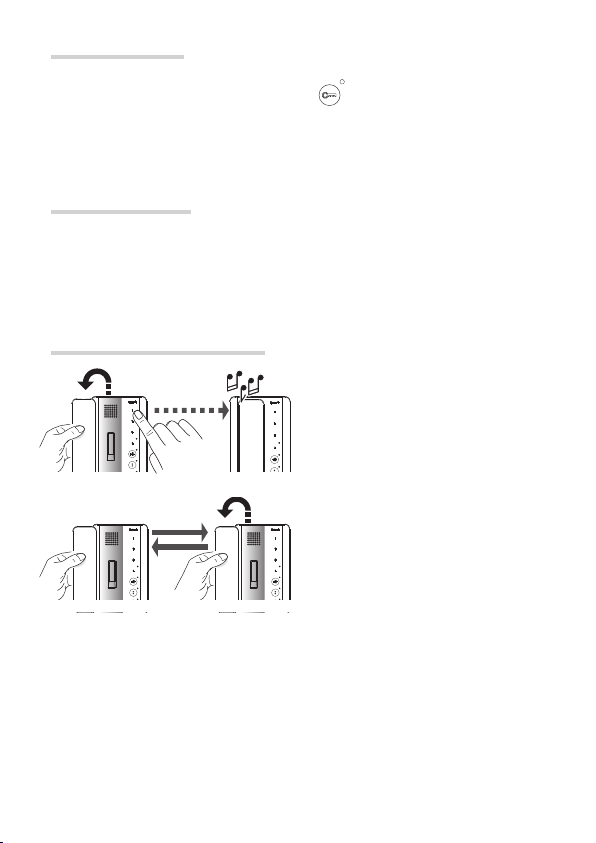

AGT A EVO transferring a call

With a call active, select the internal receiver

to which the call is to be transferred.

As soon as the handset at the internal receiver

which has been called is picked up, the call is

active between the two receivers; the entry

panel remains on hold.

To connect internal receiver 2 with the entry

panel, internal receiver 1 must put the

handset down.

The receiver that receives the call can also

transfer it.

The receiver that receives the call can also

transfer it.

PANIC!

AGT 2

> 2 sec.

> 2s

Page 6- Manual FA01371-EN - 12/2019 - © CAME S.p.A. -The contents of this manual may be changed, at any time, and without notice. - Translation of the original instructions

Alarm signals

If an alarm device has been connected at the receiver entrance, a signal is sent to the porter

when the alarm is activated and the receiver beeps intermittently for about 10 seconds.

AGT A EVO porter functions

The functions described in this chapter are only available for systems with a porter

desk.

Function of the Panic button

Press and hold the ( ) button for at least 2

seconds; the receiver beeps and the white

LED turns on to conﬁrm that the Panic

signal has been sent to the porter, together

with the caller’s number. The receiver LED

continues to ﬂash until the porter calls the

user back.

The Panic warning has priority over all

calls.

Automatic door-release function

This function is especially useful for

businesses as it allows you to open the

entrance automatically once the call button

has been pressed on the entry panel.

☞No communication is activated and the call ends automatically.

Page 7- Manual FA01371-EN - 12/2019 - © CAME S.p.A. -The contents of this manual may be changed, at any time, and without notice. - Translation of the original instructions

Dismantling and disposal. Dispose of the packaging and the device responsibly at the end

of its life cycle, in compliance with the laws in force in the country where the product is used.

The recyclable components are marked with a symbol and the material ID marker.

THESE INSTRUCTIONS MUST BE SUPPLIED WITH THE DEVICE. THE DATA AND INFORMATION CONTAINED IN THEM ARE TO BE

CONSIDERED AS SUBJECT TO CHANGE AT ANY TIME AND WITHOUT THE NEED FOR ANY ADVANCE WARNING.

CAME S.p.A.

Via Martiri Della Libertà, 15

31030 Dosson di Casier - Treviso - Italy

tel. (+39) 0422 4940 - fax. (+39) 0422 4941

Page 8- Manual FA01371-EN - 12/2019 - © CAME S.p.A. -The contents of this manual may be changed, at any time, and without notice. - Translation of the original instructions
