Cambium Networks CnPilot E500 Manuel utilisateur

cnPilot™ E500

All E500 Models

Quick Start Guide Introduction

This sheet details assembly and

installation of cnPilot E500.

Package Contents

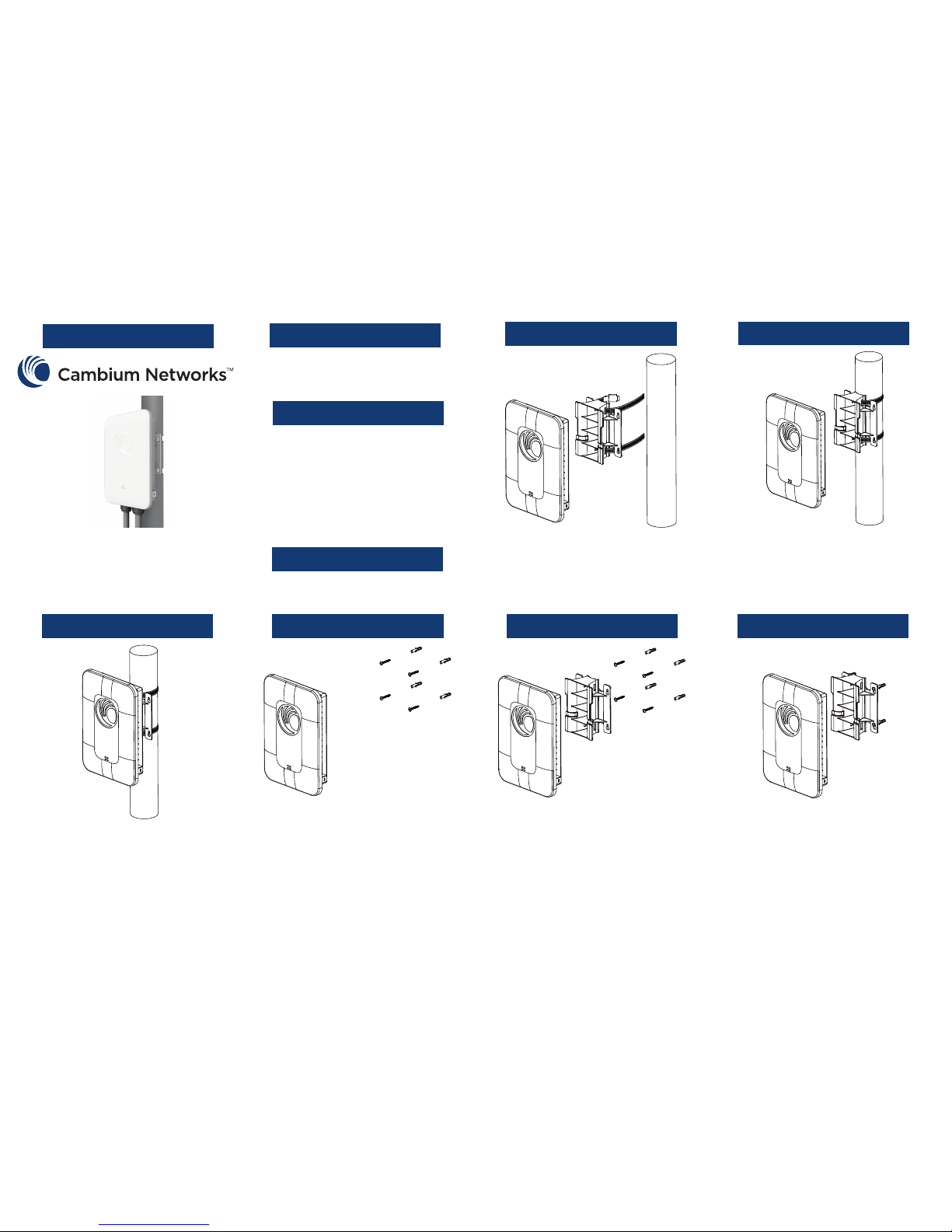

Step 1 (Pole Mount) Step 2 (Pole Mount)

Tools Required

- Phillips screwdriver (Wall mount)

- Flat-head screwdriver (Pole mount)

Step 3 (Pole Mount) Wall Mount (No Bracket) Step 1 (Wall Mount w/bracket) Step 2 (Wall Mount w/bracket)

Turn sheet over to continue.

Insert the mounting straps through the

mounting bracket.

Tighten the mounting straps around the

pole using a at-head screwdriver.

Attach the cnPilot E500 to the mounting

bracket.

Attach the mounting bracket to the screws.

Insert the wall anchors into the wall using

the mounting bracket as a template and

insert the screws. Attach the cnPilot E500 to

the screws.

Insert the wall anchors into the wall using

the mounting bracket as a template and

insert the screws.

- E500 access point - x1

- E500 pole/wall mount bracket - x1

- 56V/30W gigabit passive PoE

power injector - x1

- Wall-mounting screw kit - x1

- RJ45 IP67 gland connectors - x2

- AC power cord (not for RoW SKU) - x1

Step 3 (Wall Mount w/bracket) Reset Procedure RoHS Compliance WEEE Statement

Powering LEDs Default Conﬁguration

Join the conversation

community.cambiumnetworks.com

To reset cnPilot E500:

- Press the reset button. The cnPilot E500 will

reboot.

- Hold the button for 10 seconds. The cnPilot

E500 conguration will be reset to factory

default settings.

Attach the cnPilot E500 to the mounting

bracket.

To power cnPilot E500:

- Connect the provided 56V/30W gigabit

passive PoE power injector provided to the

Eth1 port.

To power another device

using cnPilot E500:

- Connect the device to the Eth2 port .

- Congure cnPilot E500 to output power

on the Eth2 port by using the webpage

management interface.

System LED

When amber the system is powering up,

and when green the system is fully powered.

Network LED

When amber, the cnPilot E500 is not con-

nected to cnMaestro, and when green,

cnPilot E500 is connected to cnMaestro.

Default IP address:

- Received via DHCP.

- cnPilot E500 will use a default static IP

address of 192.168.0.1 if there is no DHCP

server.

Default login information:

- Username: admin

- Password: admin

Management protocols enabled by default:

- HTTP, HTTPS (webpage management

interface access), SSH (CLI management

interface access).

cnMaestro

Ready

™

cnMaestro

Ready

™

cnPilot E500 is cnMaestro ready

Cambium Networks is committed to meeting the

requirements of the European Union (EU) Waste Electri-

cal and Electronic Equipment (WEEE) Directive. This

Directive requires producers of electrical and electronic

equipment to nance the takeback, for reuse or recy-

cling, of their products placed on the EU market after

August 13, 2005. Cambium Networks products that are

within the scope of the Directive are labelled with a

crossed-out "wheelie-bin" symbol, as required by the

Directive. It indicates that the product was placed on the

market after August 13, 2005 and that end users should

segregate the product from other waste at end-of- life.

The WEEE Directive is being implemented in each of the

27 EU countries through national legislation. Norway

and Switzerland have also implemented similar pieces of

legislation. As a result, the detailed requirements vary

considerably throughout the EU, and the Cambium

Networks WEEE compliance approach varies among

countries. In each country aected by the WEEE

legislation.

Eth1 Eth2

cambiumnetworks.com/support

System LED

Network LED
