Cam Scan CS-IRV7700 Manuel utilisateur
P/N : 388028373
PRINTED IN KOREA
INSTRUCTION MANUAL
Professional IR 7000 Series
V/F Lens Day&Night IR Bullet Camera
SUPREME IMAGE
Video Surveillance Camera
SUPREME IMAGE
Video Surveillance Camera
CS-IRV7700
CS-IRV7800
CS-IRV7950
C
02
INFORMATION FOR USER
03
CONTENTS
1. Information for user
2. Contents
3. Composition
4. Features
5. Dimensions
6. Parts Name
7. Connection
8. Adjustments
9. Setup Menu
CS-IRV7700
CS-IRV7800
CS-IRV7950
10. Specifications
CS-IRV7700
CS-IRV7800
CS-IRV7950
11. Troubleshooting
2p
3p
4p
5p
6p
7p
8P
9P
10p
22p
34p
49p
43p
45p
47p
04
L-Wrench: Unscrew and tighten bracket screws for pan&tilt adjustment
of the camera.
Screws: Firmly attach the bracket to the wall or ceiling.
Bolt: Fix the sun-shield to the camera.
Driver: Unscrew the service port cap. Adjust the zoom/Focus screws.
Service monitor and control cable:
Monitors the display screen and set up OSD menu externally.

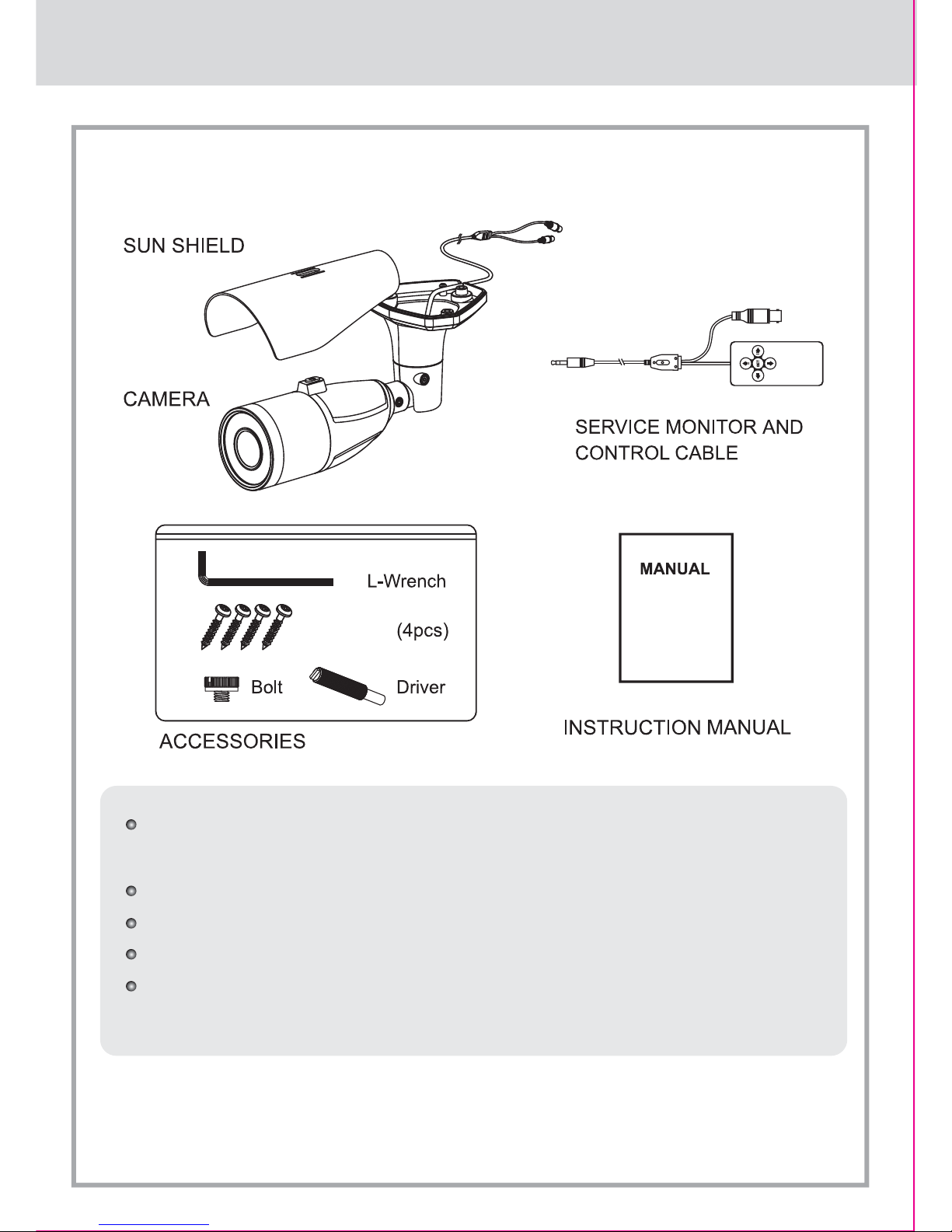

Confirm that the following parts are included:
T1 5x26
Composition
05
Features
- True WDR with model CS-IRV7800
- 2D + 3D Digital Noise Reduction
- Digital Slow Shutter
- High Light Compensation
- Intelligent Detection, Privacy Mask Function
- Horizontal, Vertical Mirror Supports
- Externally adjustable Focal length & Focus
- Built-in Service Monitor & OSD Control Port
- Cable managed bracket
- Weatherproof Housing (IP-66)
- DC 12V Operation (AC24V/DC12V option)
CS-IRV7700 CS-IRV7800 CS-IRV7950
Resolution
Lens
700 TV Lines 2.2 mega-pixel
2.8~12mm 2.8~11mm 2.8~10mm
Special function Defog Digital Image
Stabilizer
Defog,
Dead pixel
Compensation
WDR Digital WDR True WDR WDR
06
191.5
176
105
106
Ø29
140
Ø80
Ø101
118.5
Dimensions
07
1. Sun-shield Bolt
2. Sun-shield
3. Front Case
4. External Adjustment Screws
(Zoom/Focus Screws)
5. Rear Case
6. Service Monitor Output Cap
7. Bracket
8. Video/Power Cable
67
5
3
4
2
1
8
- Focus: Near(N) to Infinity( )
- Field of View: Wide(W) to Tele(T)
4 4
f=6.0~50mmf=2.8~11mm
Parts Name
08
Service Monitor and Control Cable
Follow the diagram below to make proper connections to the monitor or
the service monitor.
Power Connection:
- DC12V type: Requires DC12V. (Polatity)
This camera is equipped with a service monitor output port.
To setup the OSD menu, connect the OSD controller and service cable
to the service monitor output port located at the base of the camera unit.
Connection
09
ROTATION : Adjusting screen view
TILT : Adjusting view angle
PAN : Adjusting view directions
Loosen the corresponding screws before attempting to make Pan, Tilt and
Rotation adjustments. (Using the supplied wrench)
- Check a picture position through the service monitor and adjust a viewing
angle and focus of the camera.
- After adjustment, tighten the cap back to protect water entering.
- To widen the viewing angle turn the Zoom screw to “W”(Wide) to obtain
a closer view turn it to “T”(Tele).
- Turn the Focus screw to “N”(Near) or “ ”(Far) until the sharpest focus
is made.
Bracket (Cable Managed Bracket)
Using Service Monitor
Zoom / Focus Adjustment
Adjustments
