■Package Contents
①Main unit NO.1. P/N_ CT-HDBASET-330
②Operating instructions. P/N_INS_CT-HDBASET-330.
③1x 12VDC power supply P/N_VDC1202.
④1x IR TX unit. (IR emitter cable)
⑤1x IR RX unit. (Broadband IR receiver cable)
⑥2x mounting ears.
NOTE: PART NUMBER (Abbreviation as P/N)

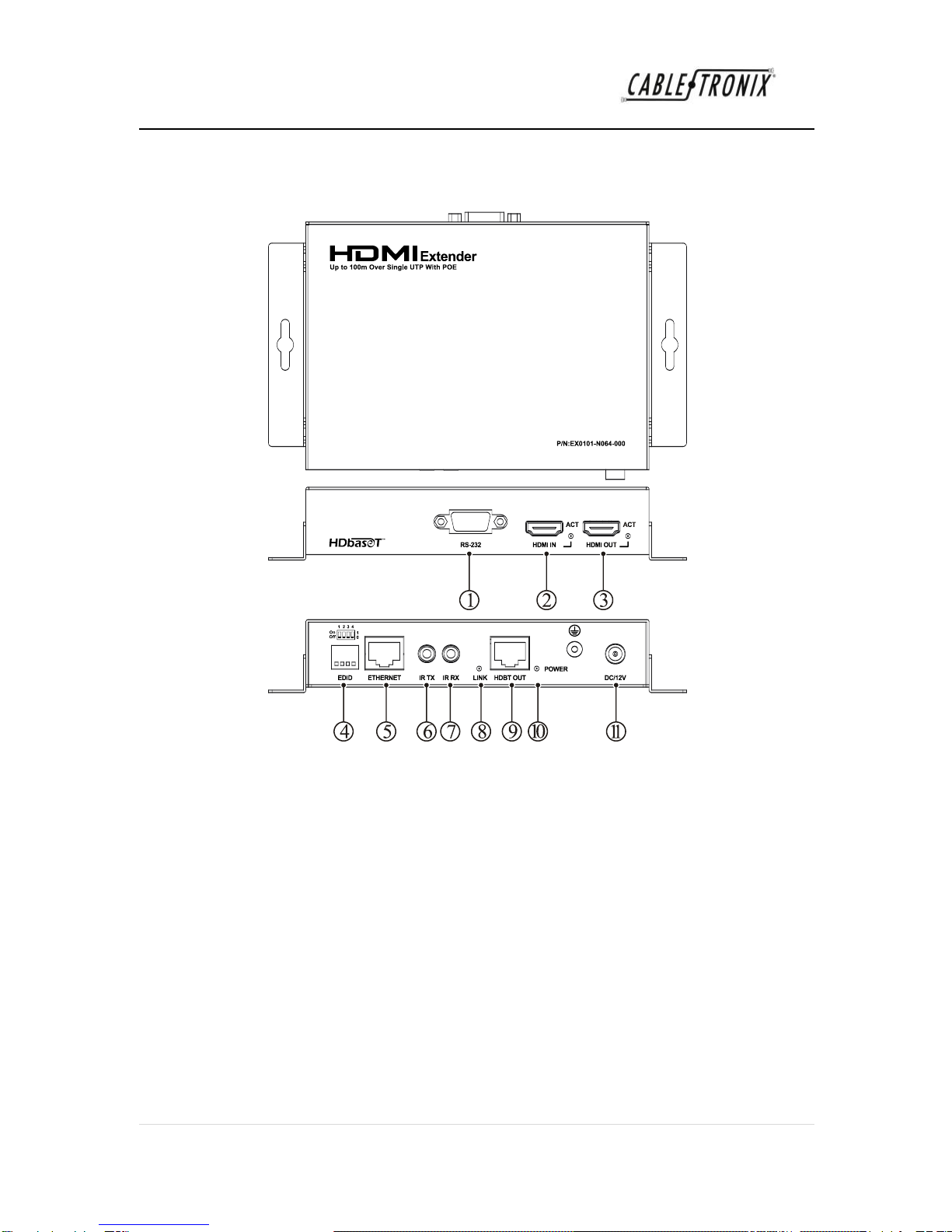

■Connections and Operations
1) Connect the HDMI Source ( such as HD-DVD、video game unit、NVR,
STB etc.) to HDMI Input of CT-HDBASET-330.
2) Connect a CAT-5E/6E cable from CAT6/STP Output of CT-HDBASET-330
to CAT6/STP Input of CT-HDBASET-330.
3) Connect the HDMI Display ( such as HD-LCD TV、HD-Projector, etc.) to
the HDMI Output of CT-HDBASET-330 (And to HDMI Pass Through of
CT-HDBASET-330 if necessary).
4) Connect the IR TX UNIT into CT-HDBASET-330 IR TX; Connect the IR RX
UNIT into CT-HDBASET-330 IR RX.
5) Connect the IR RX UNIT into CT-HDBASET-330 IR RX; Connect the IR TX
UNIT into CT-HDBASET-330 IR TX.
6) Power on CT-HDBASET-330

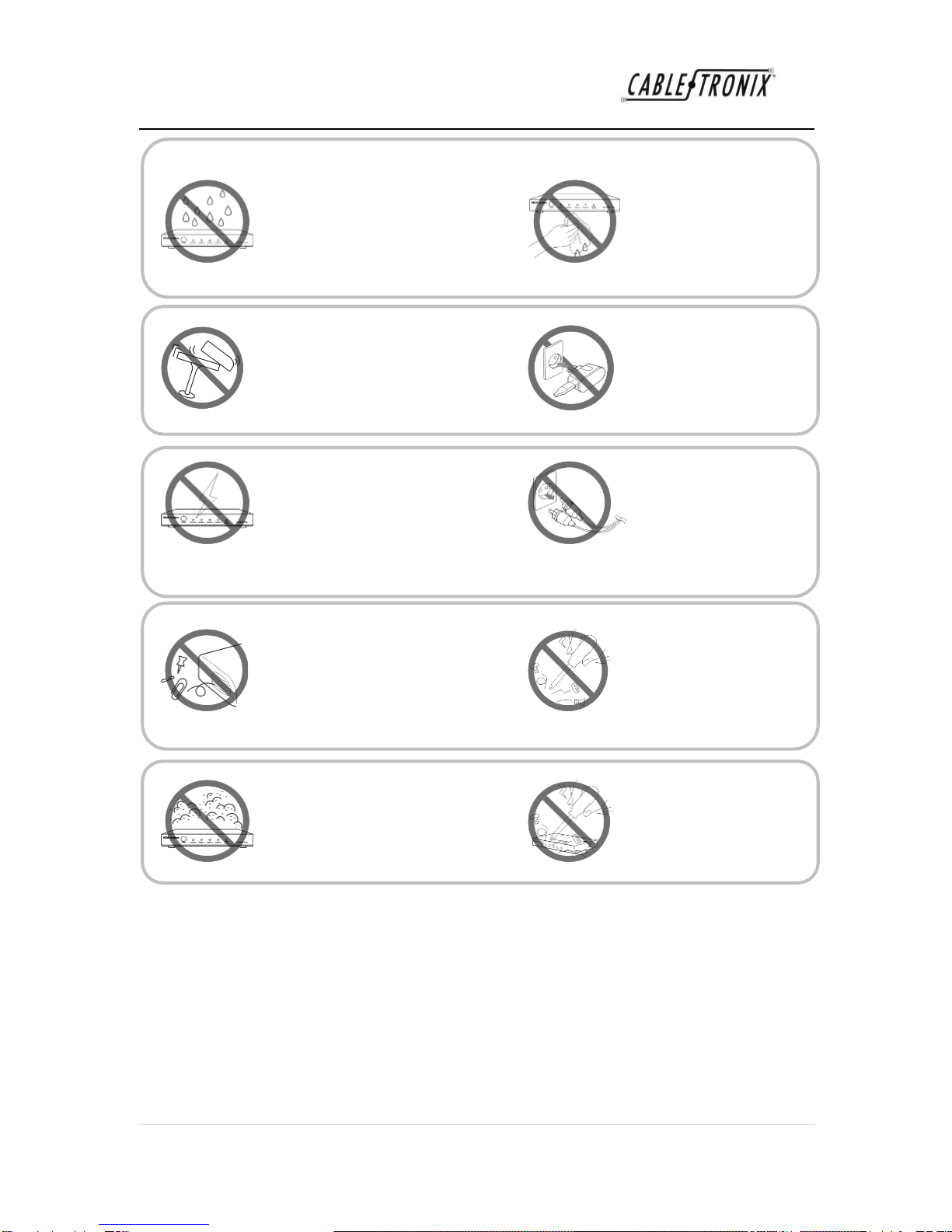

Attention: Please insert and disconnect cables gently.
