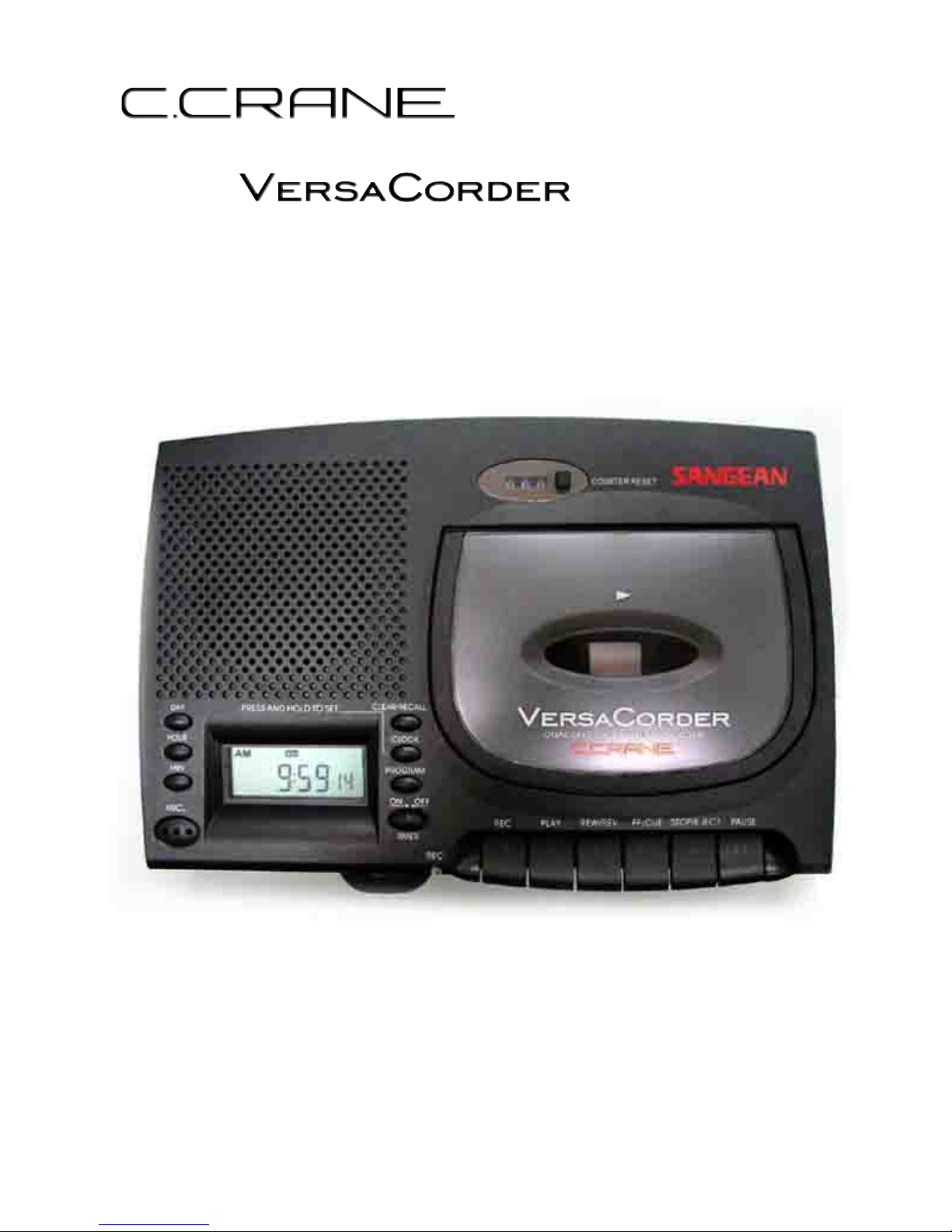

C. Crane VersaCorder Manuel utilisateur
Dual Speed Recorder
Operating Instructions
PLEASE READ ALL THE INSTRUCTIONS COMPLETELY BEFORE USE
AND SAVE THIS MANUAL FOR FUTURE REFERENCE.
Before Use
Please read IMPORTANT SAFETY
INSTRUCTIONS on pages 20 - 23
before use. It is important to read
and understand all instructions.
For your future reference:
Serial No. Date of purchase
(found inside battery compartment)
Name and address of dealer
Included Accessories:
AC Adapter (p. ?)
Item Code: VCA
Audio Patchcord (p. ?)
Item Code: VPC
Copyright © 2001 by C. Crane Company, Inc., Fortuna, CA 95540
All rights reserved. No part of this booklet may be reproduced, in any form or
means whatsoever, without permission in writing from C. Crane Company, Inc.
versacordermanual.qxd Rev 6/01
(4) “C” Cell Batteries
Item Code: CAL
Optional Accessories:
Table of Contents
Location of Controls ---------------------------------------------------------- 4-5
Connection to Power ----------------------------------------------------------5-6
Battery Installation -------------------------------------------------------------- 6
Setting the Clock ----------------------------------------------------------------- 7
Cassette Tapes --------------------------------------------------------------------- 8
Inserting Cassette Tapes --------------------------------------------------------- 8
Recording Instructions
How to Record From a Radio ----------------------------------------------- 9
Recording Using the Timer ----------------------------------------------- 10
Tips and Notes ------------------------------------------------------------- 11
Quick Check List for Recording------------------------------------------ 11
Using Voice Activated Recording---------------------------------------- 12
Recording a Telephone Call ---------------------------------------------- 13
Remote Switch Operation
For use with the CCRadio plus--------------------------------------------14
Playback Instructions------------------------------------------------------------ 15
Troubleshooting Guide ------------------------------------------------------ 16-18
Audio Sources ------------------------------------------------------------------ 19
Safety Instructions----------------------------------------------------------- 20-23
Location of Controls
Control ldentification
1) Day 14) Voice Activation Switch
2) Hour (See page 12)
3) Minute 15) Record
4) Built-In Microphone 16) Play
5) Record or Status Light 17) Voice Activation Switch
6) Clearor or Recall time (ON/OFF)
7) Clock 18) Rewind/Review
8) Program 19) Fast Forward/Cue
9) Timer ON/OFF 20) Stop/Eject
10) Headphone Jack 21) Normal/Quarter Speed
11) Telephone Beep 22) Pause
12) Microphome Imput 23) Tape Counter Reset
13) Volume Kuob 24) Tape Counter Display
Page 4 VersaCorder
66
410
24
23
1
11 12
13
14
9
88
77
66
2
3
17
15
16
18 19 20
21
22
Location of Controls
Control ldentification
1) LINE IN
2) Timer Activation
Switch
3) LINE OUT
4) DC Power In
To access the handle: Put
fingers in the well undeneath
the VersaCorder and pull
gently.
Connection to Power
The VersaCorder will run on the included AC adapter . it will also run on
(4) "C" size Alkaline or NiCad batteries. The batteries are necessary to
keep the clock time and program memories if the power cord is
removed from the recorder for more than 3 minutes.
VersaCorder Page 5

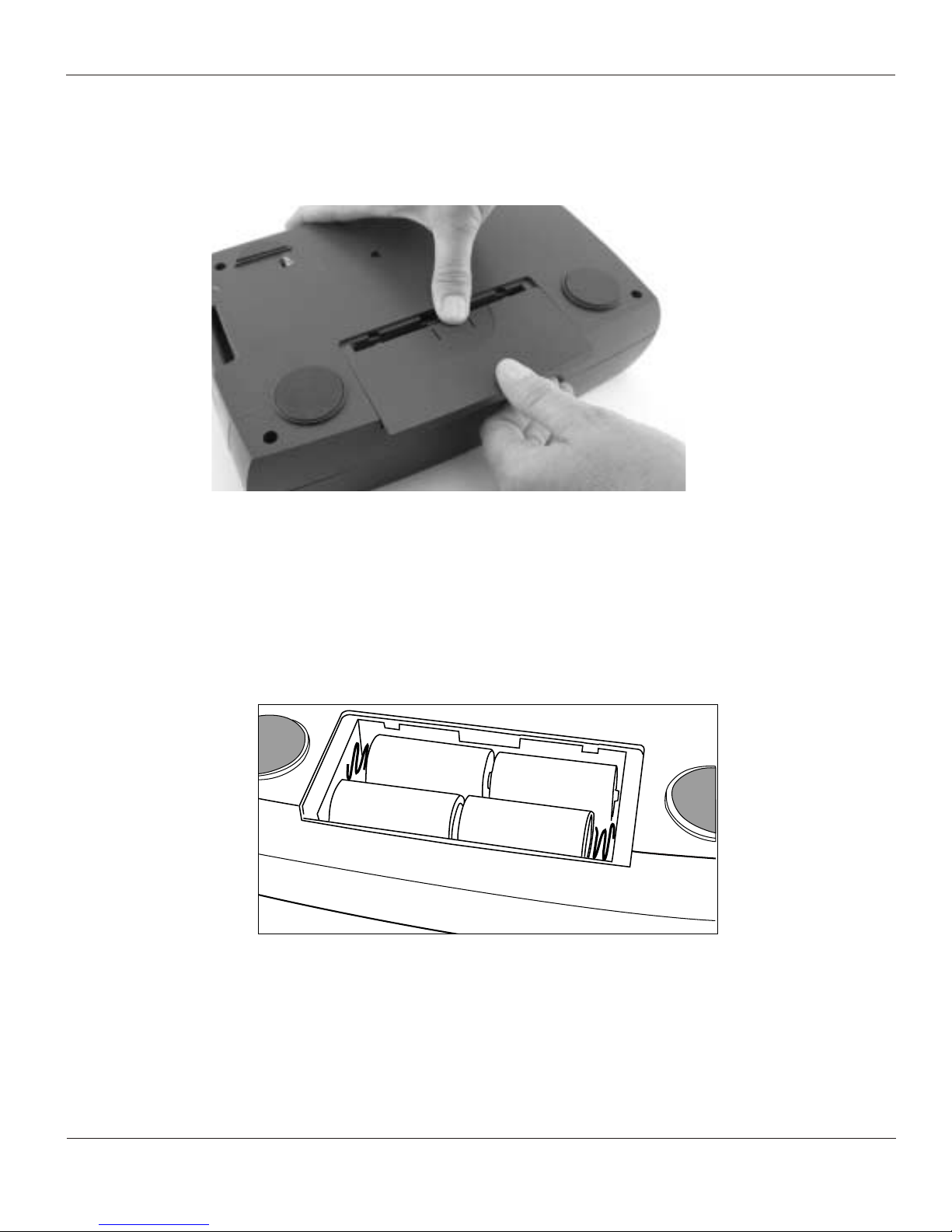

Battery lmstallation
1) Open the cover by pushing the ribbed tab down firmly and
pulling the cover off toward the back of the unit.
2) lnsert the (4) "C" cell batteries into the compartment as indicated in
the drawing below. Be sure negative (-) end is against the
spring. Refer to the drawing below to insure correct installation of
your batteries.
3) Gently slide the cover back on to close .
Page 6 VersaCorder
++
+
+
Setting the Clock and Day
1) Press and hold the CLOCK Button while settihg the time.
2) While holding the CLOCK Button, press the DAY Button and select
the corresponding day as shown on the display.
3) While holding the CLOCK Button, press the HOUR Button until the
Appropriate hour and AM/PM is indicated on the display.
4) While holding the CLOCK Button down, press the MIN Button and
Select the appropriate minute setting. Each time you press the MIN
Button the seconds reset to "0" .
VersaCorder Page 7
HOUR
CLOCK
DAY
MIN
DAY Settings
AM/PM
Indicator
Current
Time
Seconds
Counter
Cassette Tapes
High quality 110-minute tapes are recommended for use in the
VersaCorder.ln tests, these tapes provide a balance between maximum
play/recording time and prolonged tape life. Audio cassette tapes are
available up to 150 minutes ,however ,the tape material is thin and may
stretch or break during recording or playback. With the extra long tapes,
any cassette machine is more likely to "eat" the tape.

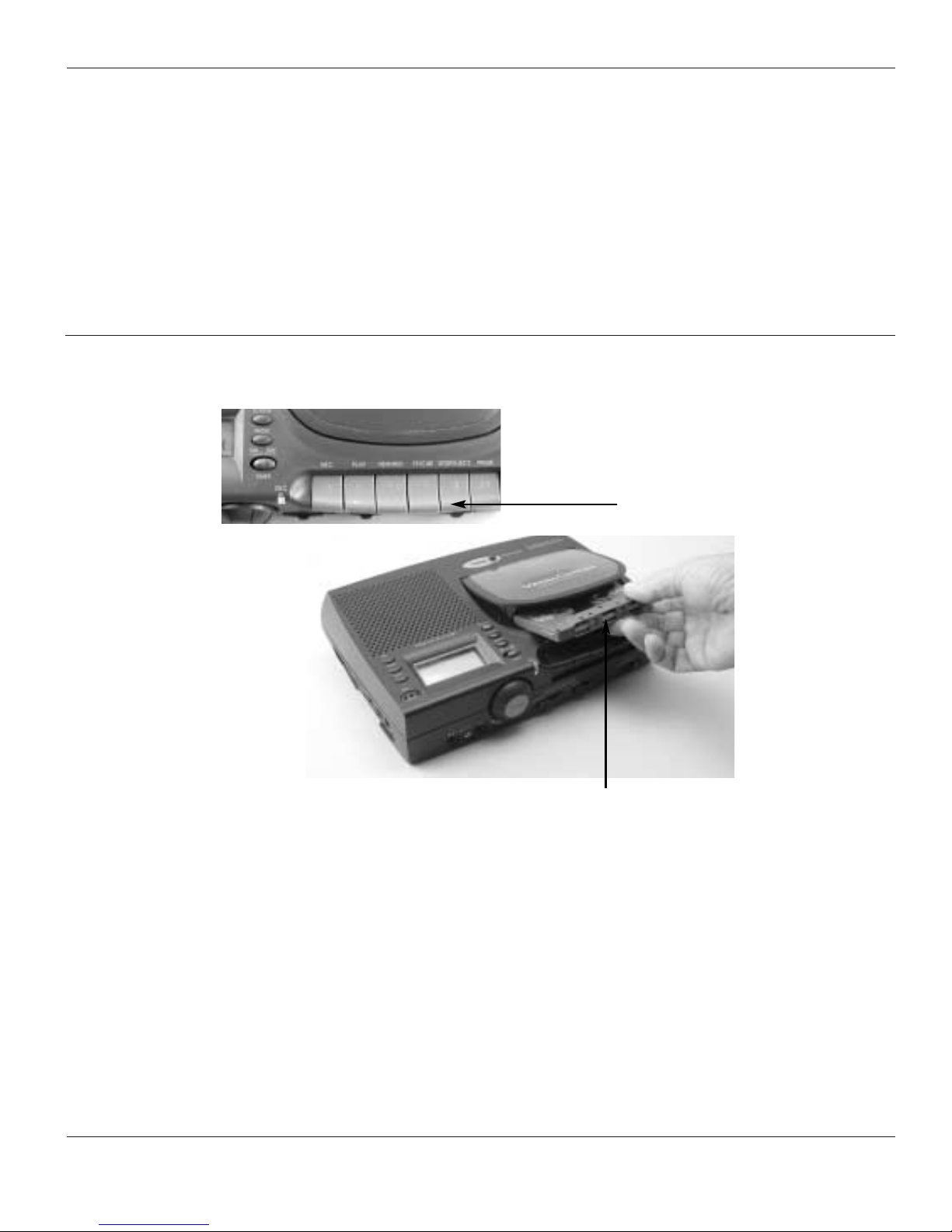

Inserting Cassette Tapes
1) Press the EJECT Button to open the lid.
2) lnsert the casette.
3) Once the tape is insertd correctly, close the cassette door gently.
The VersaCorder has the ability to record in NORMAL speed for best
audio quality.When extened recordings of talk radio, speeches and
lectures, telephone conversations, or any format that does not require a
high-fidelety recording is desired ,the VersaCorder can be switched into
QUARTER speed mode.This mode will record 4times longer than
NORMAL speed , however,record quality for music is reduced.lf a
rdcording is made in QUARTER speed ,it can only be played back in a
QUARTER speed player (unless you want it to sound like a chipmunk).
Page 8 VersaCorder
Ribbon end out.
EJECT
Recording lnstructios

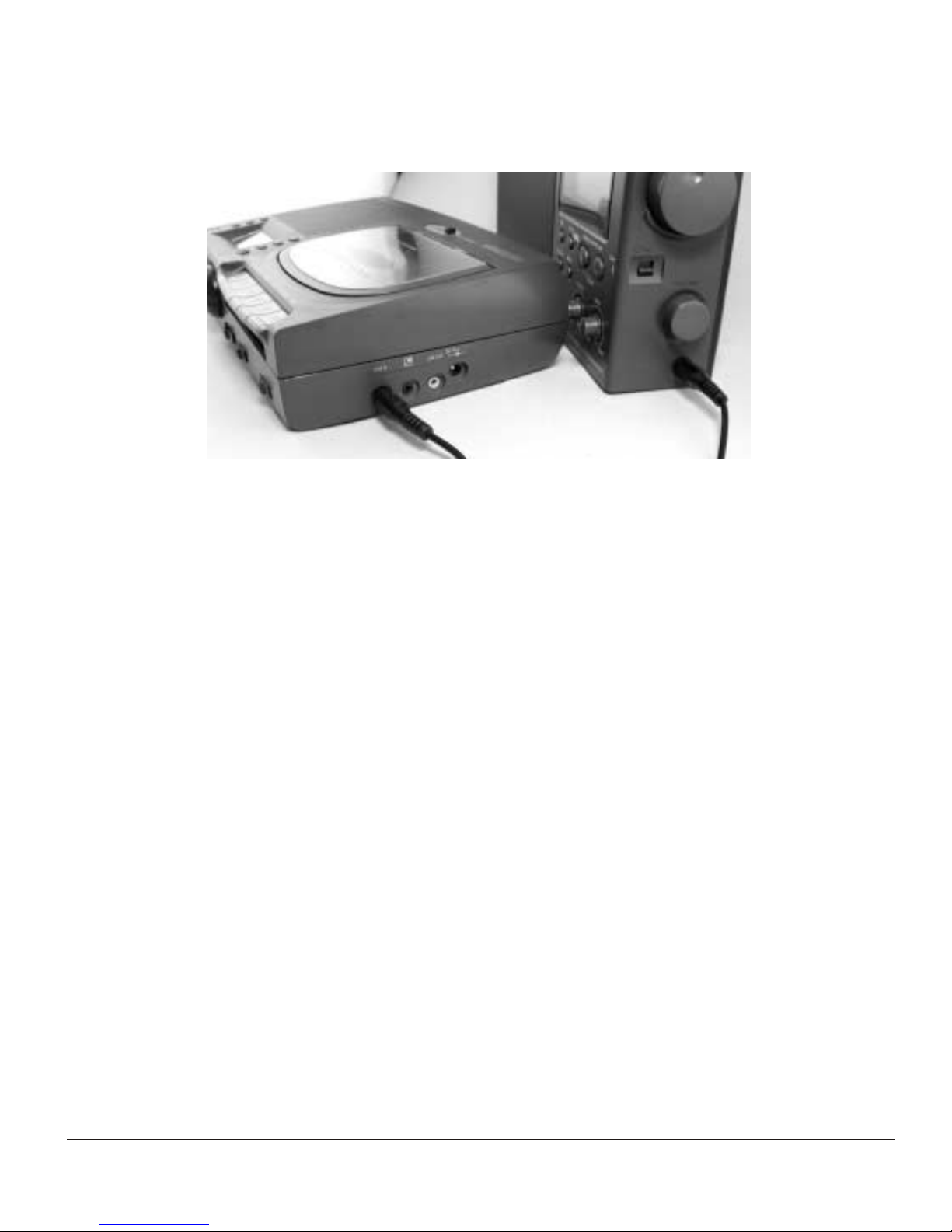

How to Record From ARadio
The VersaCorder can be used with any radio that has a headphone jack
or LINE OUT .With the VersaCorder you can listen while recording.
1) Turn the radio volume up to a gentle listening level.lf the volume of
the radio is set too loud,the playback sound may be distorted.
2) Put a tape in and select the speed you want to record at .
3) Plug the 1/8" stereo patch cord into your radio LINE OUT or
Headphone jack and the LINE IN of the VersaCorder.You can use
the red plugs of the included patchcord.
4) Press the RECORD and PLAY Buttons at the same time. The red
light will flash .
Adjust the volume on the VersaCorder to the level you want or turn the
volume off if you wish .
Note:lf the Timer Switch is ON ,normal recording won't work.Make
sure the Timer Switch is OFF.
VersaCorder Page 9
Recording lmstructions
Recording Using the Timer
1) To set the ON time, press the PR OGR A M B utton once. T he number
"1" and "ON" will appear in the display.
2) Press the DAYB utton until the desired day appears in the display.
Note: T he VersaCorder can record any single day, weekends,
weekdays or everyday.
3) Select the appropriate hour by pressing the HOUR B utton until the
Desiredhour appeare in the display and AM or PM is correct.
4) Selectthe appropriate minute by pressing the MIN B utton until the
Desiredminute appears in the display.
5) To set the OF F time, press the PR OGR A M B utton once and OFF
Will be displayed.Follow steps 2-4 above to set the appropriate OFF
time.lf you are recording a four hour talk show that starts at 11:00 PM
on Monday, be sure to change the OFF time DAY to T uesday.
6) Setthe T imer Switch to On and press the PL AY and R E COR D B uttons.
Make sure the Voice Activationis "Off" .
L f you wish to program another event, you can press the PR OGR A M
B utton again and event number "2" and "ON" will appear. Follow steps
2-4 to program your ON and OFF times.
A fter you have set the timer, you can press the CL OCK B utton to return
Tothe clock display.
Page 10 VersaCorder
Minutes
PROGRAM #
DAY
Programmed
AM/PM
Setting
Hour
HOUR
DAY
MIN
PROGRAM
