BZB Gear FMS-88H2A Manuel utilisateur

8x8 Seamless UHD Matrix

Model No. FMS-88H2A

Warning

Do not expose this device to Rain, Moisture, and Dripping

Only use accessories specified by the manufacture

Unplug this device during Lightning Storms

Product specifications may be subject to technical upgrades without further

notice

1. Introduction

FMS-88H2A is a high-performance seamless UHD matrix switcher with 8x HDMI inputs and 8x

HDMI outputs. Audio extract or insert can also be enabled on this device. IR matrix routing on

this video matrix is followed with video routing

FMS-88H2A key features:

Support HDMI 2.0/HDCP 2.2

Support seamless switching

Support IR matrix

Support HDMI audio extract

Support external LR audio insert on HDMI stream

Support EDID management

HDMI video output resolution:

3840x2160@60, 3840x2160@30,1920x1080@60,1280x720@60,

1920x1200@60,1360x768@60,1280x1024@60, 1024x768@60

Front panel,RS232,TCP/IP (LAN 10M/100M) control

2. Front Panel Control

OUTPUT/INPUT buttons

Press buttons OUTPUT n + INPUT m+ TAKE by sequence, user can switch matrix routing

Press button POWER , to make the matrix enter or release standby state. When standby,

the power LED will be lighted

Press button LOCK, to lock or un-lock front buttons. When locked, the Lock LED will be

lighted

Press buttons ALL + INPUT m + TAKE by sequence, to switch input m to all the outputs

Press button SAVE + OUTPUT n to save current routing scene as scene n. The maximum

allowable scene No. is 8

Press button RECALL + OUTPUT n to recall routing scene n as current routing

Press buttons RES + OUTPUT n + NEXT + TAKE, to change output resolution of OUTPUT n

port

Resolution option :

3840x2160@60, 3840x2160@30,1920x1080@60,1280x720@60,

1920x1200@60,1360x768@60,1280x1024@60, 1024x768@60

Press buttons EDID + INPUT m + NEXT + TAKE, change the EDID mode of port INPUT m

EDID option: Manual,3840x2160@60, 3840x2160@30, 1280x1024@60

1920x1080@60,1280x720@60,1920x1200@60

3. Back Panel

LAN(10M/100M), RS232 are for PC control

Analog Audio IN/OUT ports are bond with corresponding HDMI ports .

For example, if INPUT HDMI 1 signal is DVI, matrix will use analog AUDIO IN 1 as HDMI 1

audio source

Note, Analog AUDIO IN is only available when the corresponding video input is DVI

signal.

Analog AUDIO OUT n will always output the same audio content with HDMI OUTPUT n

Analog Audio IN/OUT connection

IR IN and IR OUT

IR IN/OUT is for remote control routing, and followed with video routing,

For example, if input HDMI m is routed to output HDMI n1 and n2 ports, then

IR IN n1 and n2 ports will be routed to IR OUT m port. Please refer to bellow

illustration.

Relationship between video and IR routing

Analog Audio

IR extender connectors (not as accessories)

4.PC Tool and RS232/LAN Control

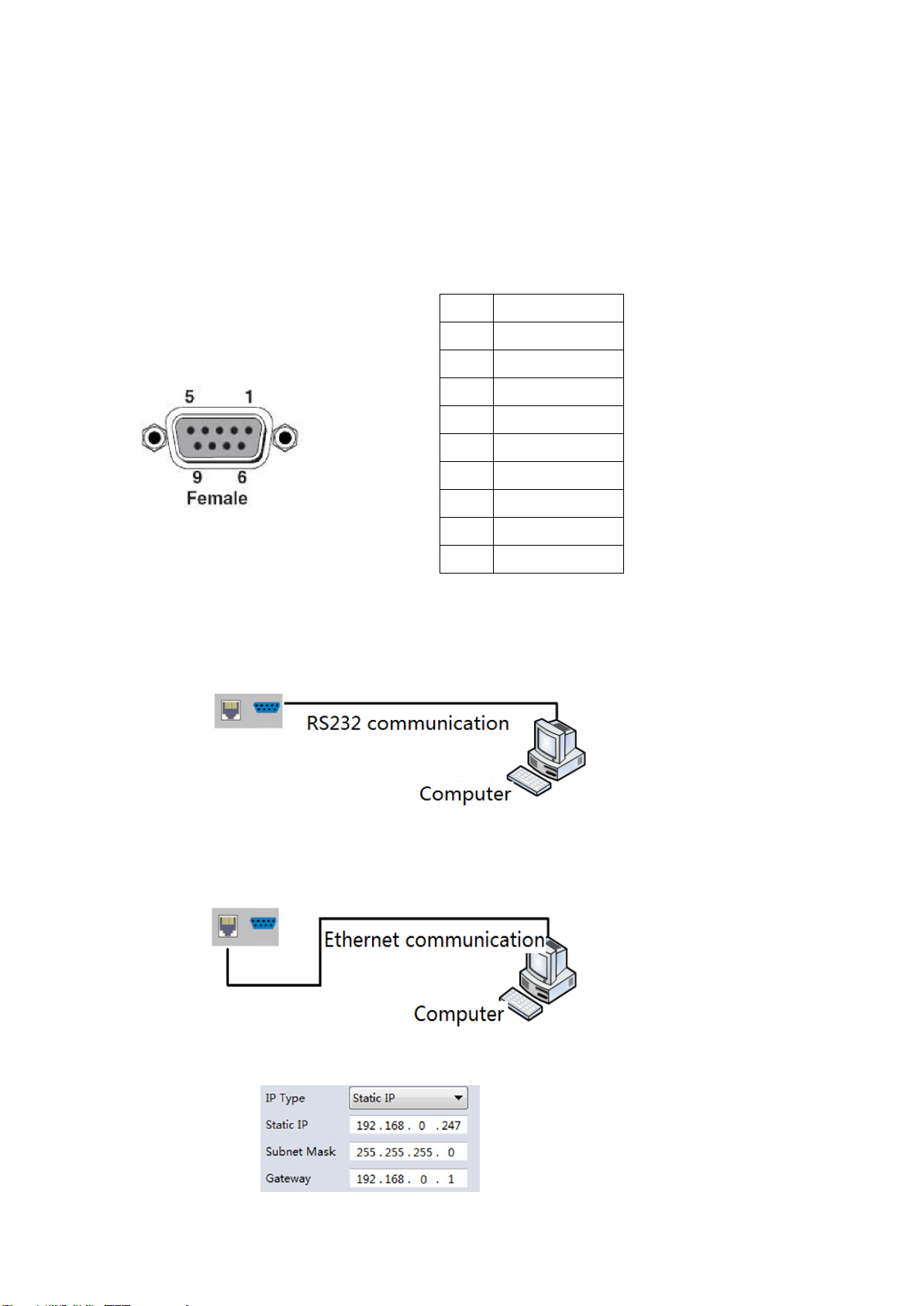

4.1 RS232 connector

RS-232 control, baud rate 9600, DB9 connector

Pins configuration as bellow. User need use the corresponding cable, directly link cable

Baud rate 9600

4.2 Ethernet control and connection

Note：Factory default network setting：

Index

N/u

Tx( Matrix →PC )

Rx( Matrix ←PC )

N/u

Gnd

N/u

4.3 PC Tool

The PC tool needs no installation, support serial control and network control.

Please note, Fine Tune/OSD CTRL/TV Wall pages are reserved for future used

4.3.1 UART Control

Control steps as follows:

1. Connect PC and device with a straight serial port cable

2. Run PC control tool and switch to "Matrix Switch" page

3. Click to switch "Ctrl Mode" to "UART"

4. Click the combo box which is right to the "Port", select the right COM port (There may be

some COM ports connected to the PC)

5. Click the “Disconnected”button (which is right to "Status") to connect to the device

6. If connected successfully, the "Disconnected" button will show "Connected"

The UI after connected successfully will be as follows:

4.3.2 Network Control

Direct connection via Ethernet cable

Control steps as follows:

1. Connect the PC and device directly via an Ethernet cable

2. Manually setting up the IP address of the PC, and the IP address of the PC and the device

should be in a same network segment (The default IP address of the device is

192.168.0.247, and the default network mask of the device is 255.255.255.0). The

screenshots of setting up the IP address are as follows:

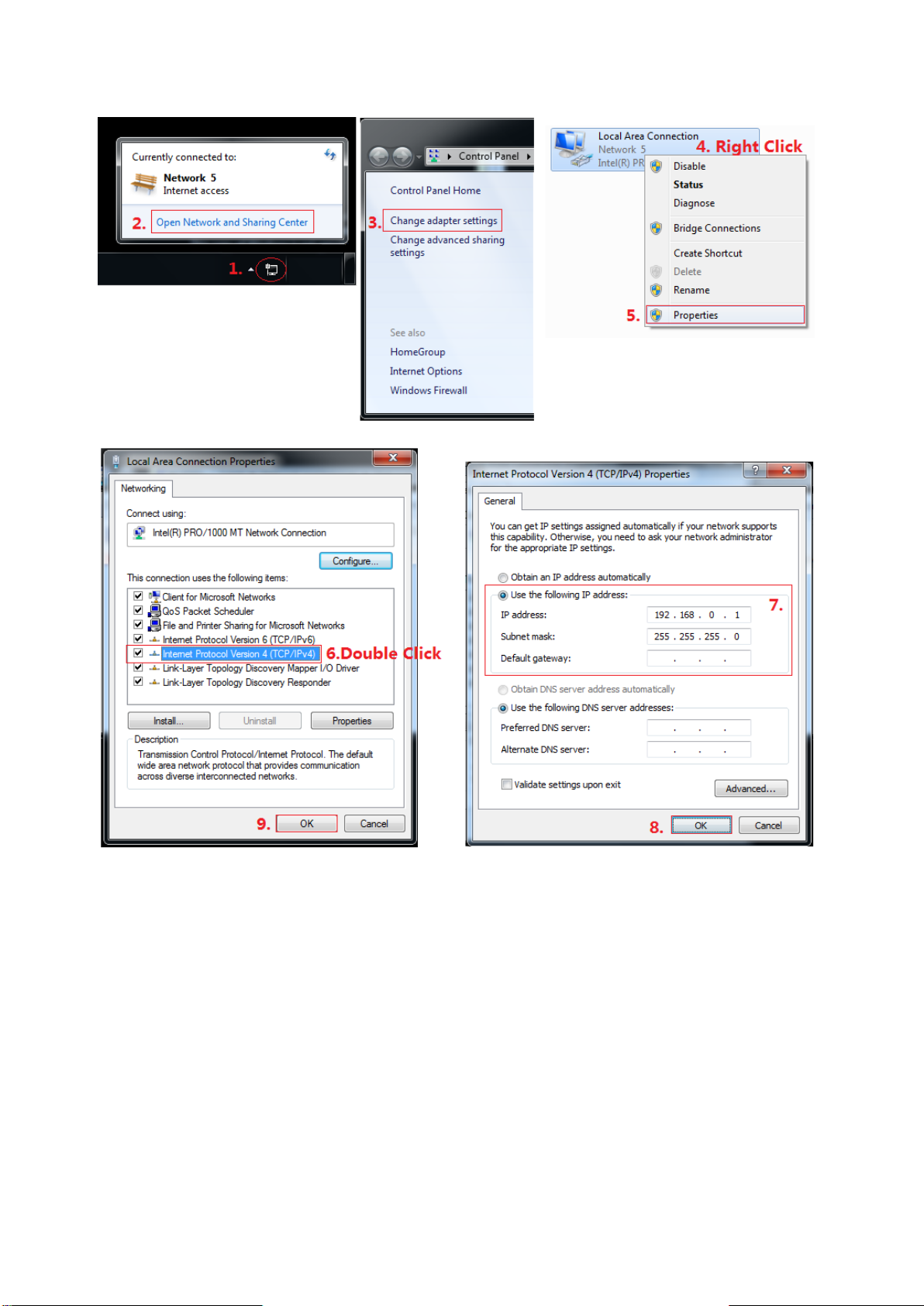

Manually setting up the IP address of the PC

3. Run the PC control software (If the IP address of the PC changed after running the

software, you should close it and run it again)

4. Click to switch "Ctrl Mode" to "Network"

5. Click the "Search Device" button

6. Click the device you want to control in the result list (When you click it, the software will

read the network configuration such as network port and so on of the device

automatically)

7. Click the ‘Disconnected’ button (which is right to "Status") to connect to the device

8. If connected successfully, "Disconnected" button will show "Connected"

The UI after connected successfully will be as follows:

Connection via LAN

Control steps as follows:

1. Connect the PC and the device to a same network router

2. Setting up the IP address of the PC. Either manual(Static) mode or automatic (DHCP) mode

is ok. Just make sure the IP address of the PC and the device are in a same network

segment（When the IP type is obtain automatically, the network router that PC and device

connected to should support HDCP function）
