BWI Eagle AIR-EAGLE XLT Manuel

PRODUCT INFORMATION

BULLETIN

105 Bonnie Drive

Butler, PA 16002

724-283-4681

724-283-5939 (fax)

www.bwieagle.com

AIR-EAGLE®XLT

900MHz RF Receiver

MODEL 44UL-20800-DC

DESCRIPTION

The AIR-EAGLE XLTis aUL/CSA approved RF system designedfor

medium to long range wireless remote control of electrical apparatus in a

variety of industrial applications. Systems canconsist of any number of

receivers and handheld or contact input transmitters working together.

This receiver is equipped with 8 independent relays that can switch 5

amps @ 120VAC or 30VDC. The relays are user programmablefor

momentary or toggle/latching operation and can be directly interfaced with

the customer's equipment or P.L.C. Seven user selectable frequencies

allowmultiple systems to be used in the same area. Capable of receiving

remote signals transmitted from up to 2500 feet away (with the handheld

transmitter) or up to 4 miles away (with thecontact input transmitter),the

Air-Eagle XLT utilizes spread-spectrum technology and provides the

utmost security and reliability even in the noisiest RF environments.

Please read through this document in its entirety before proceeding

with installation.

INSTALLATION

DISCONNECT DC Power from all equipment before installation.

1. Mount the control unit in a suitablelocation that allows the user to

easily remove the lid ofthe enclosure for wiring access. When

possible select a locationthat is not directlybeside high energy

transformers or large inductive relay housings. It is recommended to

allow for a minimum of 2.0” clearance on all sides of the unit’s

housing& mounting plate. The power andcontrol wiring exiting thru

the provided cord grips should have ample room to bend without

excessive stress. It is also important that any coax cable connected

to the TNC connector have room to bend without “kinking”.

2. Install relay wiring to terminal strip (TER2).

3. Attach supplied rubber duck antenna to TNC connector on the right

side ofthe unit.

4. Connect DC power to the proper terminals in your control circuit.

Note 1: (4) 1/4-20 thru holes are provided on the mounting feet to secure

the unit)

Note 2: The recommended power/control wire sizes to the terminalstrip

ranges from 24 AWG (0.205mm2) (min) to 18 AWG (0.823mm2) (max).

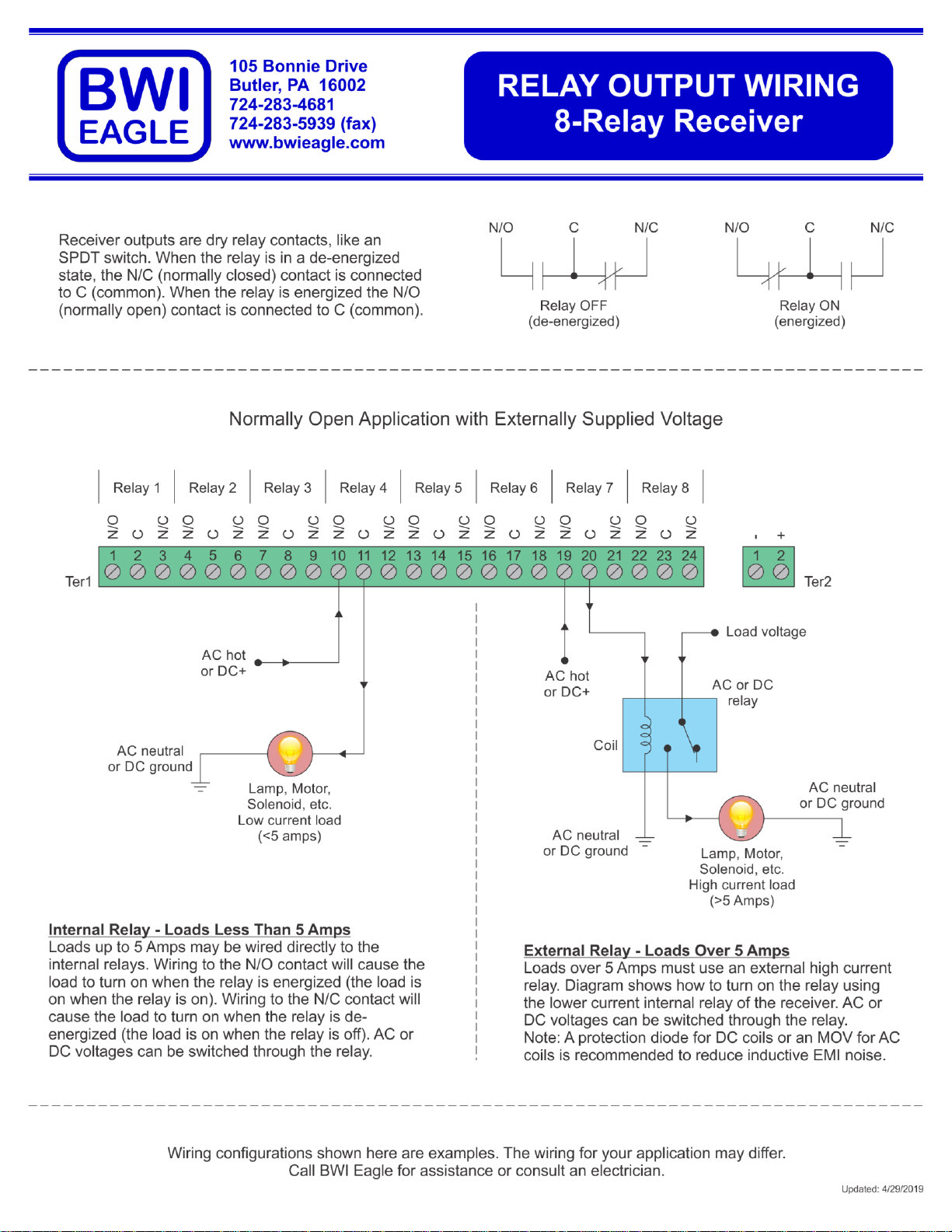

TERMINAL STRIP WIRING (TER2)

N/O Relay #1

N/O Relay #4

N/O Relay #7

C Relay #1

C Relay #4

C Relay #7

N/C Relay #1

N/C Relay #4

N/C Relay #7

N/O Relay #2

N/O Relay #5

N/O Relay #8

C Relay #2

C Relay #5

C Relay #8

N/C Relay #2

N/C Relay #5

N/C Relay #8

N/O Relay #3

N/O Relay #6

C Relay #3

C Relay #6

N/C Relay #3

N/C Relay #6

DC INPUT (TER1)

Terminal #1

Negative (-) 10 –24 VDC INPUT

Terminal #2

Positive (+) 10 –24 VDC INPUT

Page 1

AIR-EAGLE®XLT

900MHz RF Receiver

MODEL 44UL-20800-DC

CONTROLS & INDICATORS

POWER LED

Dualcolor LED. Illuminates red while receiver is

booting up; changes to green when boot-up is

successful and unit is readyto operate. If this LED

fails to turn green, power unit off for 15-20 seconds,

then reapply power.

RELAY LEDS

Illuminated green while relay is energized

DIP SWITCHES

Switches used to set user-selectable options and/or

network frequency

EEPROM CHIP

Socket mounted integrated circuit that holds unit’s

program

RF MODULE

RF Module that sends/receives data from our

transmitters/receivers

RELAY MODES OF OPERATION

Auto Reset (Maintained Momentary)

When signal is received from an authorized transmitter, the relay will

energize. The relay will maintain the energized state as long as the

transmitter is sending the signal. The relay de-energizes when the

transmitted signal stops.

Toggle Reset (Toggle Latch)

When a signal is received from an authorized transmitter, the relay will

energize and latch.The relaystays energized until the same signal is

received again, at which time it unlatches and de-energizes.

Latching Reset (True Latch)

When a signal is received from an authorized transmitter, the relay will

energize and latch.The relaystays energized until a different signal is

received from the transmitter, at whichtime it unlatches and de-energizes.

i.e. –Transmissionfrom Input 1 of authorized transmitter energizes and

latches relay 1. Transmission from Input 2 of an authorized transmitter de-

energizes relay 1.

RELAY & FREQUENCY SET-UP

This unit is shipped from the factory with the SEL1 switches in the open

positions. All eight relays will operate in a maintained momentary manner,

and unit is receivingcommands on frequencyone. If you wish to change

these defaultsettings, follow the instructions on thetable below.

1) Remove power from unit.

2) Remove top cover.

3) Select desired relay operation and/or networkfrequency using table

below.

4) Reattach cover and apply power.

5) Programming is now complete.

RELAY CONFIGURATION

SEL1

SWITCH

NUMBER

OPEN

CLOSED

SW1

Relays #1 thru #8 maintained

momentary (default)

Relays #1 thru #8

toggle/latch

SW2

Not used on this model

SW3

Vibrating Feedback OFF

(default)

Vibrating Feedback ON

SW4

Not used on this model

FREQUENCY SET-UP

SEL1

(SW5-7)

Network

Frequency

SW5

SW6

SW7

1 (default)

OPEN

CLOSED

OPEN

CLOSED

OPEN

CLOSED

OPEN

CLOSED

OPEN

CLOSED

OPEN

CLOSED

UL SPECIFICATIONS & CLASSIFICATIONS

SPECIFICATIONS

DC Input

10 –24 VDC @ 10 Watts

Relay Contacts

SPDT 5 amp @ 120VACor 30VDC

Fuse Protected

1 amp

Receiver Frequency

900 MHz Spread Spectrum

Receiver Range

Approximately 2500 feet (Up to 4 miles

with external high gain antenna)

Receiver Channels

Eight independent network frequencies

Operating Temperature

-10oC to +55oC

Altitude

Under 2000 meters

Enclosure

Polycarbonate, IP66 Approved

Weight

Approx 2 lbs.

CLASSIFICATIONS

Automatic Control and Electrically Operated Control

Incorporated Control and an Independently Mounted Control

Type 1.C Action; Micro-Interruption

PTI of Materials Used for Insulation: Material Group IIIb

Electrical Shock Risk: Class II Control

Period ofElectrical Stress Across InsulatingParts Supporting Live

Parts: Long Period

Pollution Degree 2

Number of Cycles of Activation: 30,000 (Relay)

Page 2

AIR-EAGLE®XLT

900MHz RF Receiver

MODEL 44UL-20800-DC

DIMENSIONS

REPLACEMENT PARTS & ACCESSORIES

PC Board (Main)

44UL-20802-DC

Standard Antenna (Included):

900MHz Portable Antenna (For distances up

to 2500 feet*)

49-1103

Optional Antennas and Accessories:

900MHz Omni Directional Antenna (For

distances up to 2 miles*)

49-3101

900MHz 13dB Yagi Antenna

Long Range Operation (For distances up to

4 miles*)

49-3102

Flex Coax Cable w/Connectors

49-4000-XX

(XX = # of Feet)

* = Line of Sight

APPROVALS

UL/CSA Approved

United States (FCC)

MCQ-XB900HP

Canada (IC)

1846A-XB900HP

REPAIR STATEMENT

NO USER SERVICEABLE PARTS! RETURN TO THE

MANUFACTURER FOR SERVICE.

LIMITED WARRANTY STATEMENT

BWI Eagle Inc. warrants the Air-Eagle XLT Remote Control System, if

properly used and installed, will be free from defects in material and

workmanship for a period of 1 year after date of purchase. Said warranty

to include the repair or replacement of defective equipment. This

warranty does notcover damage due to external causes, including

accident, problems with electrical power, usage not in accordance with

product instructions, misuse, neglect, alteration, repair, improper

installation, or improper testing. This limited warranty, and any implied

warranties that may exist under state law, apply onlyto the original

purchaser of the equipment, and last only for as long as such purchaser

continues to owntheequipment. This warranty replaces all other

warranties, express orimplied including, but not limitedto, the implied

warranties or merchantability and fitness for a particular purpose. BWI

Eagle makes no express warranties beyond thosestated here. BWI

disclaims without limitation, impliedwarranties of merchantability and

fitness for a particular purpose. Some jurisdictions do not allow the

exclusion of implied warranties so this limitation may not apply to you. To

obtain warrantyservice, contact BWI Eagle for a return material

authorization. When returning equipment to BWI Eagle, the customer

assumes the risk of damage or loss duringshipping and is responsiblefor

the shipping costs incurred.

DOCUMENT DATE: 11/9/18 / PRODUCT REV.4

105 Bonnie Drive

Butler, PA 16002

(724) 283-4681

Fax (724) 283-5939

www.bwieagle.com

Page 3
