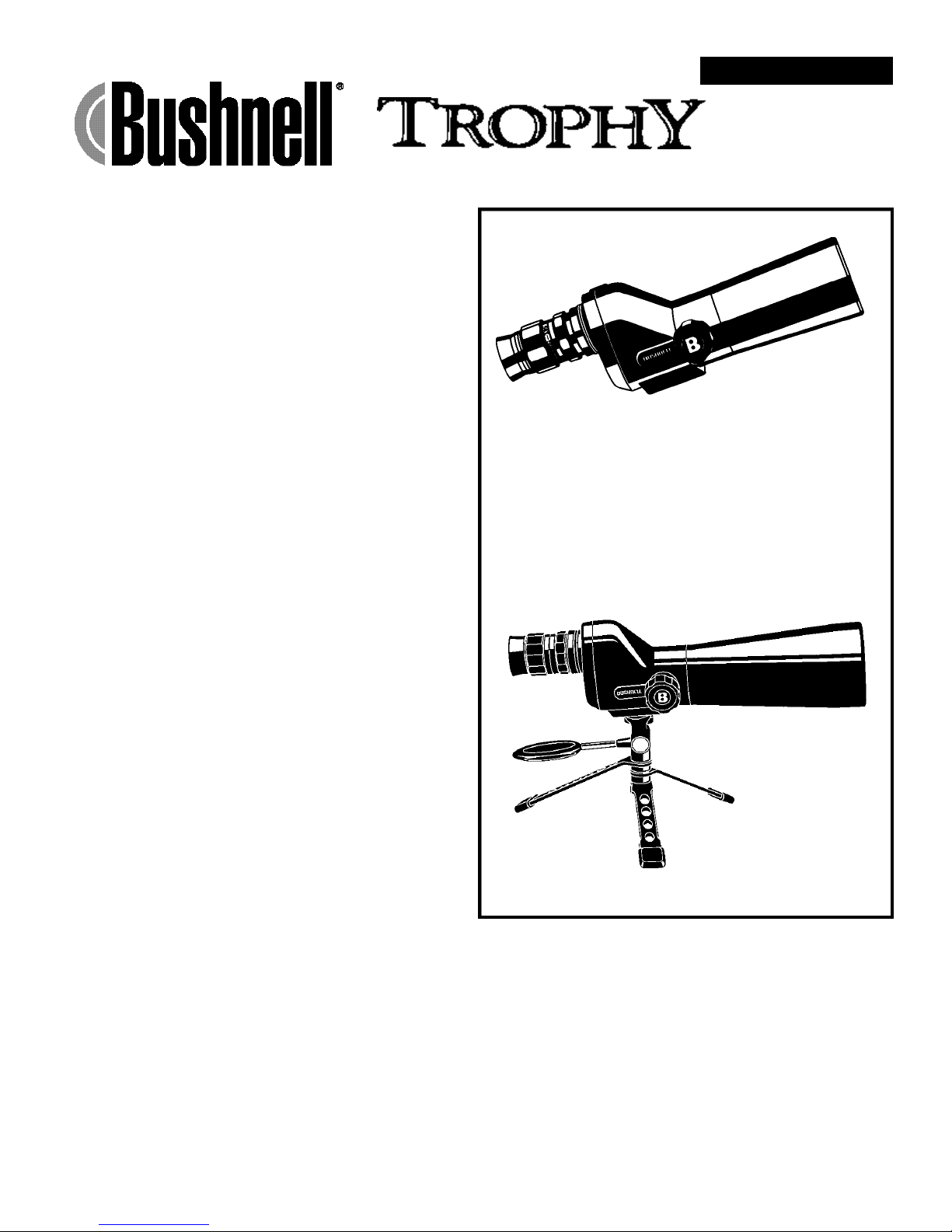

Bushnell Trophy 78-7325 Manuel utilisateur

CONGRATULATIONS,

you have one of the lightest and versatile spotting/field

telescopes in the world. the Trophy has a 50mm. diameter

objective lens and has magnesium fluoride coated optics

for an exceptionally clear and crisp view. the amber

coating helps improve contrast in low light.

FOCUSING:

The focusing system is easy and accurate. Rotate the

Focusing Knob until the image seems to be in sharp, crisp

focus. This is all there is to it. There is no need to

overshoot or hunt for the correct focus. Once the image

appears sharp, stop focusing – the image is in the best

focus with minimum eye strain.

SIGHTING:

Your Trophy spotting scope is equipped with a Sighting

Line above the eyepiece. Simply aim the line at the object

and look through the eyepiece – there it is!

ZOOM EYEPIECE

The Trophy comes with a zoom eyepiece which gives a

magnification range of 20 to 50 power. To change

Magnification, grasp and rotate the “rubber” Knurled

Ring in the middle of the eyepiece. The magnification will

be indicated on the scale next to the index dot. It may be

necessary to refocus the telescope after changing

magnification.

TRIPOD ATTACHMENT:

To attach your Trophy spotting scope to the tripod, simply

tighten the hand attachment screw on the tripod into the

integral Tripod Mount hole on the base of the scope.

MAINTENANCE:

Your Trophy does not require any maintenance beyond

the occasional cleaning. With a cloth, brush off the

outside of the telescope to remove any dirt or dust. You

can use a mild household cleaner – sparingly – to remove

any stubborn dirt. Keep the optics clean; do now allow

dust or water to stay on the glass. We recommend using

a lens cleaner kit for camera lens to clean the outside of

the objective lens, the eyepiece window, or the eyepiece

lenses. Follow the directions with the kit.

Do not disassemble the telescope. Unauthorized

disassembly not only voids the warranty but may cause

damage from the lack of special tools and techniques.

Lit. #: 95-0008/03-01

78-7325

78-7363

Trophy Spotting Scope

SIGHTING LINE

OBJECTIVE LENS

FOCUS KNOB

TRIPOD MOUNT

EYEPIECE

SPOTTING SCOPE LIFETIME LIMITED WARRANTY

Your spotting scope is warranted to be free of defects in materials and

workmanship for the lifetime of the original owner. The Lifetime Limited

Warranty is an expression of our confidence in the materials and mechanical

workmanship of our products and is your assurance of a lifetime of

dependable service. In the event of a defect under this warranty, we will, at

our option, repair or replace the product, provided that you return the

product postage prepaid. This warranty does not cover damages caused by

misuse or improper handling, installation or maintenance of the product.

Any return made under this warranty

must be accompanied by the items listed below:

1)A check in the amount of $10.00 to cover the cost of handling

2)Name and address for product return

3)An explanation of the defect

4)Product should be well packed in a sturdy outside shipping carton to

prevent damage in transit and return postage prepaid to the

address listed below:

IN U.S.A. Send To:

Bushnell Performance Optics

8500 Marshall Drive

Lenexa, Kansas 66214

For products purchased outside the United States and Canada please contact

your local dealer for applicable warranty information. This warranty gives you

specific legal rights. You may have other rights which vary from country

to country.

IN CANADA Send To:

Bushnell Performance Optics

25A East Pearce Street, Unit 1

Richmond Hill, Ontario L4B 2M9

WARRANTY/REPAIR
