Bushnell Discoverer 78-1600 Manuel

Installing Discoverer and NatureView Spotting Scope On Camera

What You Will Need

• Discoverer (781600) or NatureView (781645) Spotting Scope

• Discoverer Telephoto Adapter (223030)

• Camera Body Adapter (200003, 200004, 200005, 200007, 200010 or

200051)

• 35mm Camera with interchangeable lens

• Hex head or screwdriver

How to Install

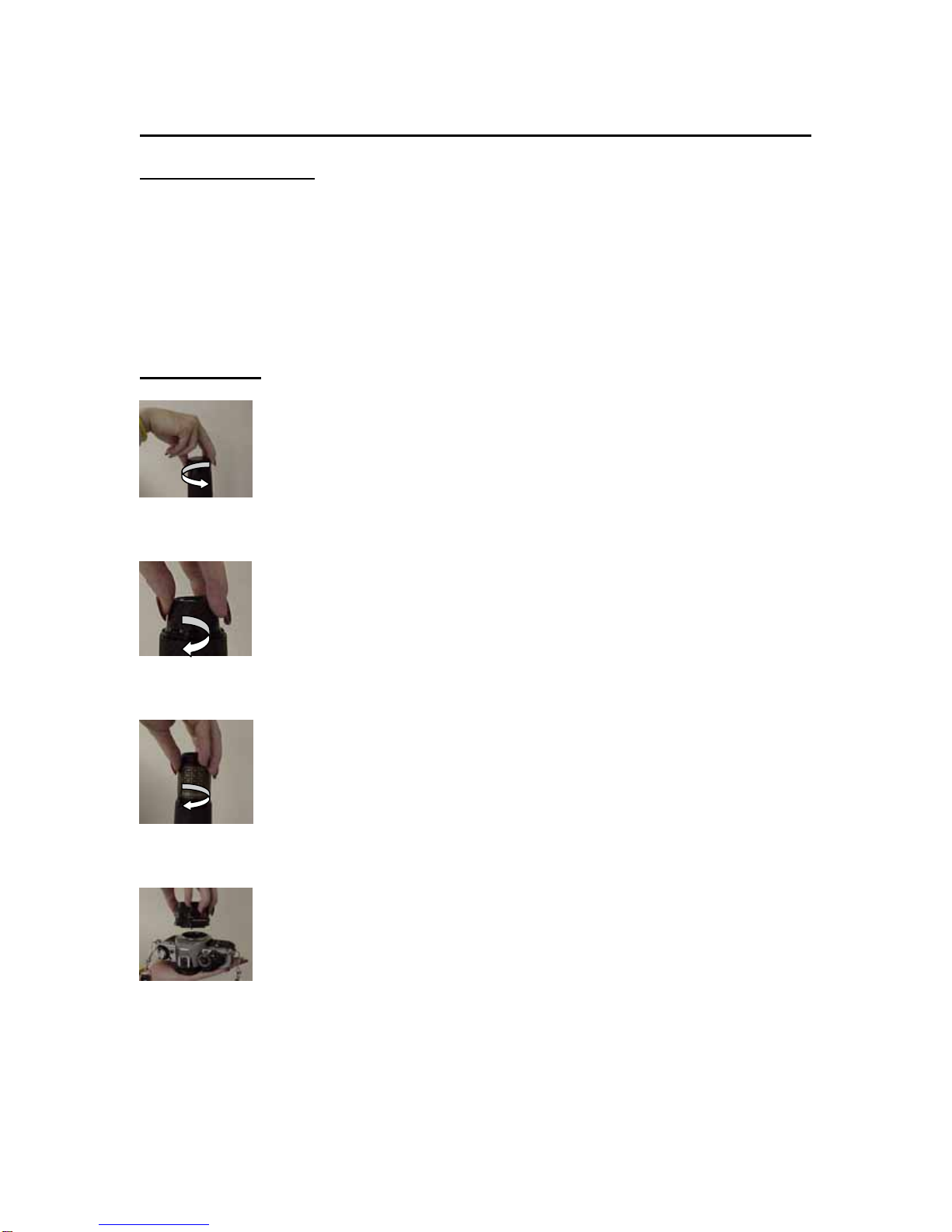

Turning counter-clockwise, remove the ocular dust cap from the spotting scope

(781600 or 781645).

With your fingertips, grip the rubber eye guard and turning clockwise, fully extend

the eyepiece.

Setting the female end of the Discoverer Telephoto Adapter (223030) on the

eyepiece end of the spotting scope, turn clockwise until snug.

Following manufacture instructions, remove the camera lens from the camera

body.

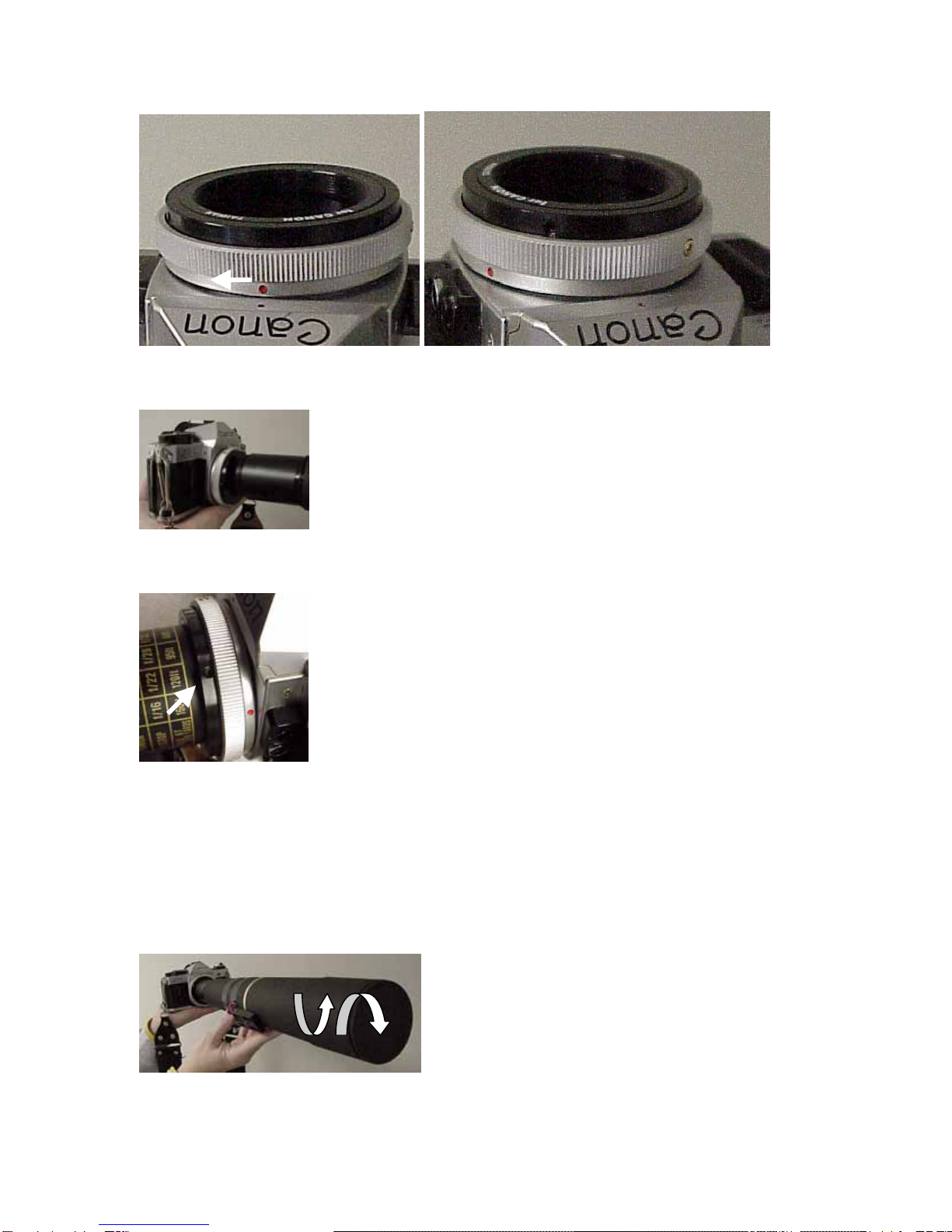

Align the red dot of the appropriate Camera Body Adapter to the red dot on the

camera housing and turn clockwise until snug.

Attach Telephoto Adapter (that is attached to spotting scope) to Camera Body

Adapter (this is attached to camera housing) by screwing in clockwise until snug.

When tightened, if the tripod-mounting plate is not on the same side as the

bottom of the camera for landscape photos or side of the camera for portrait

pictures, adjustments can me made. While the camera and spotting scope are

laying securely on a flat surface, using either a hex head or screwdriver (look at

adapter to determine which tool needed), barely loosen the three retainer screws

(see white arrow on picture above for location) and swivel the spotting scope to

the desired position. Tighten down the retainer screws. You are now ready to

use.

(Arrows show how spotting scope can be swiveled when retainer screws are loosened so that

tripod-mounting plate will be in position with desired camera portrait/landscape choice.)
