Bushnell Aggressor 119774C Manuel utilisateur

Model#s: 119774C / 119775C / 119776C / 119777C

INSTRUCTION MANUAL

01-15

IMPORTANT NOTE

Congratulations on your purchase of one of the best trail cameras on

the market! Bushnell is very proud of this little unit and we are sure you

will be pleased with it as well. We appreciate your business and want to

earn your trust. Please refer to the notes below and the instructions in

this manual to ensure that you are completely satisﬁed with this product.

If your Bushnell Trophy Cam HD Aggressor does not seem to be

functioning properly or if you are having photo/video quality issues,

please check the Troubleshooting/FAQ section on pages 31-35.

Problems are often due to something simple that was overlooked,

or require only changing one setting to solve.

If your problem continues after trying the solutions in the

Troubleshooting/FAQ section, please call Bushnell Customer

Service at (800) 423-3537. In Canada, call (800) 361-5702.

Bushnell recommends using a full set of eight Energizer®Lithium

AA batteries in these Trophy Cam HD Aggressor models to obtain

maximum battery life

Do not mix old and new batteries

Do not mix battery types-use ALL lithium or ALL alkaline

Bushnell recommends using SanDisk®class 6 or faster SDHC

Cards (up to 32GB capacity) in your Trophy Cam HD Aggressor

INTRODUCTION

About the Trophy Cam HD Aggressor

The Bushnell Trophy Cam HD Aggressor is a digital scouting camera. It can be

triggered by any movement of game in a location, detected by a highly sensitive

Passive Infra-Red (PIR) motion sensor, and then take high quality pictures (up to

14MP still photos), or video clips.

The Trophy Cam HD Aggressor consumes very little power (less than 0.25 mA) in

a stand-by (surveillance) state. This means it can deliver up to six months stand-by

operation time when the device is powered by the full capacity of AA alkaline batteries,

and up to twelve months utilizing lithium AA batteries. Once motion in the monitored

area is detected, the digital camera unit will be triggered at once (typically within

one second) and then automatically take photos or videos according to previously

programmed settings. The Trophy Cam HD Aggressor is equipped with built-in

infrared LEDs that function as a ﬂash, so that it delivers clear photos or videos (in

black & white) even in the dark, and it can take color photos or videos under sufﬁcient

daylight. The Trophy Cam HD Aggressor HD is designed for outdoor use and is

resistant against water and snow.

Your trail camera is one of the latest generation of Bushnell Trophy Cam HD

Aggressor HDs, and includes many new or improved features, including:

• Auto PIR Sensitivity-the camera monitors ambient temperature conditions and

automatically adjusts the sensor/trigger signal to be more sensitive to slight

variations in temperature on hot days, less sensitive on cold days.

• Hyper NightVision-The IR LED Flash array now has increased range, brighter

output and better coverage for improved nighttime images. Models 119776C &

119777C feature "No-Glow" Black LEDs, invisible to game and other hunters.

• Field Scan 2x with Live Trigger-This “time lapse” feature includes the option

for a second block of recording with its own start/stop times. Trigger signals

generated by nearby wildlife activity will still generate additional photos/videos

as they normally would, independently of the Field Scan operation.

• GPS Geotag Capability-allows the user to input the longitude and latitude of

the camera’s position, which will be embedded in each photo ﬁle. This enables

Google Earth, Picassa and other geotag enabled software to automatically

show a map pinpointing each camera’s location when a group of photos are

reviewed on a computer. Especially useful for those who setup multiple Trophy

Cam HD Aggressors to monitor large or widely separated areas.

• Multi Flash Mode (LED Control)- prevents overexposed ﬂash photos in close

range applications

• Hybrid Capture Mode-allows both still photos and videos to be captured at each

trigger, up to highest resolution settings for each.

• NV Shutter-user can select shutter speed for images captured at night allowing

control over brightness vs. ability to stop motion

• Camera Operating Mode can be limited to Day only, Night only, or 24 HRs

And many more features such as 1080p HD Video with Audio, 0.2 second trigger

speed and 1 second recover time (still photos), widescreen or fullscreen format

still photos, imprintable camera name (user set) along with current data including

temperature and moon phase.

Applications

The Trophy Cam HD Aggressor can be used as a trail camera for hunting or

scouting game. It is also suitable for surveillance usage.

PARTS AND CONTROLS

The Trophy Cam HD Aggressor provides the following connections for external

devices: USB port, SD card slot and external DC power in (pg 7, Fig. 1).

A 3-way power switch is used to select the main operating modes: OFF, SETUP,

and ON (pg 7, Fig. 2).

A control key interface with six keys is primarily used in SETUP mode to select

operational functions and parameters. As shown on the next page, these keys are: UP,

DOWN, LEFT, RIGHT, OK and MENU. Three of the keys can also perform a second

function (shortcut operations in SETUP mode) in addition to their main function: The

DOWN key can be used to set the camera to Photo mode (still camera icon), and

the UP key can set the camera to Video mode (movie camera icon). The RIGHT key

also serves as the manual shutter (“SHOT”) button of the camera. These secondary

functions are indicated by icons or text above the key as shown on the next page.

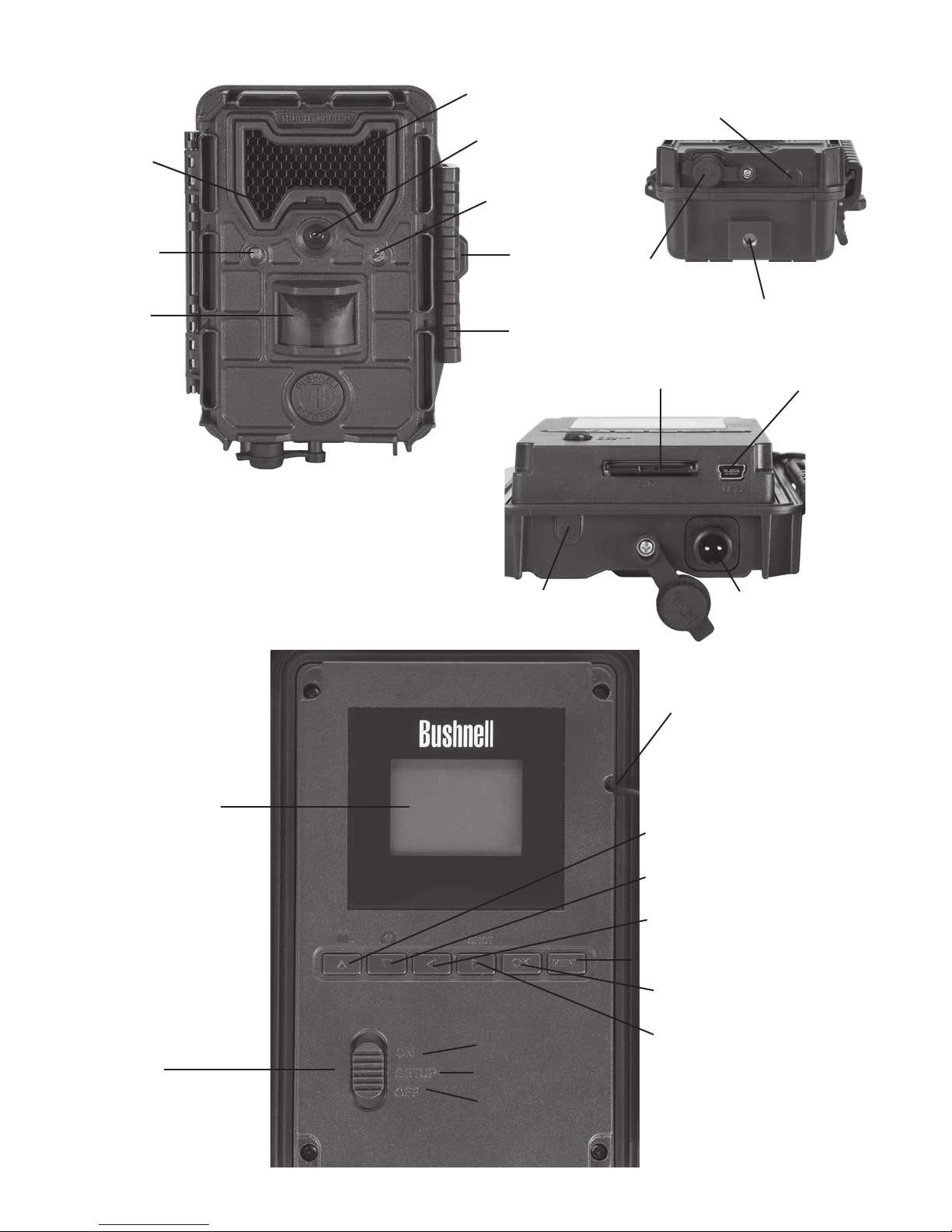

INSIDE VIEW

Fig. 2: Button and

Switch Guide

SETUP

OFF

LCD Screen

Power/Mode

Switch

UP/Video

DOWN/Photo

LEFT

RIGHT/Shot

Cable to Battery

Compartment

Tripod Socket

DC in

Cover Plug

Video Mic

Fig. 1: Connections

FRONT VIEW

LED IR

Flash Motion/ Low

Battery Indicator

Lens

Lock

Hole

PIR

Sensor Latch

Light

Sensor

ARD

USB Port

SD Card Slot

DC In

Video Mic

INSTALLING THE BATTERIES AND SD CARD

Before you begin learning how to use your Trophy Cam HD Aggressor, you will ﬁrst

need to install a set of batteries and insert an SD card. Although that may only take

you a minute, there are some important notes about both batteries and SD cards you

should be aware of, so please take the time to read the following directions and

cautions:

Loading Batteries

After opening the two latches on the right side of the Trophy Cam

HD Aggressor, you will see that the Trophy Cam HD Aggressor

has eight battery slots. For maximum battery life, you should install

a full set of batteries. The Trophy Cam HD Aggressor may also

be operated by just four batteries installed in the ﬁrst slots only

(starting on the top or left-see photos). Battery life will be shorter

with 4 batteries, but the camera will operate normally. Whether you

use 4 or a full set, be sure to insert each battery with correct polarity

(negative or “ﬂat” end against the long spring of each battery slot).

Bushnell recommends using a full set of new lithium AA (Energizer®

brand) or alkaline AA batteries. NiMh Rechargeable batteries are not recommended,

as the lower voltage they produce can cause operational issues.

You can also connect an optional Solar Panel accessory (model# 119756C -please

visit www.bushnell.com for more information) to the “DC In” jack at the bottom of the

Trophy Cam HD Aggressor (other external power supplies should not be used, as

the camera and/or display may not function correctly). If the solar panel is connected

and AA batteries are installed, the Trophy Cam HD Aggressor will be powered by

the solar panel's rechargeable lith-ion battery, as long as it provides adequate voltage

(if not, the camera will switch to battery power). The solar panel's battery will power

the camera at night.

When the batteries become weak (or a device with insufﬁcient power is connected

to DC In), the low-battery indicator LED will glow blue, indicating the batteries should

be changed (pg 7, Front View).

Inserting the SD Card

The Trophy Cam HD Aggressor has 32MB of internal memory, which can hold only

about 18 photos (@ 8MP resolution). This is handy for testing and getting familiar

with the camera, but you will no doubt want to leave the camera unattended for longer

than a day, so using an SD card is recommended for all models. Insert the SD card

(with the camera’s power switch in the OFF position) before beginning to operate

the camera. Don’t insert or remove the SD card when the power switch is in the ON

position.

The Trophy Cam HD Aggressor uses a standard SD (Secure Digital) memory

card to save photos (in .jpg format) and/or videos (in .avi format). SD and SDHC

(High Capacity) cards up to a maximum 32GB capacity are supported. Using high

speed SD cards (SanDisk®SDHC rated class 6 or higher) is recommended if you will

use the 1280x720 or 1920x1080 HD video settings. Before inserting the SD card

into the card slot after opening the camera’s front cover, please make sure that the

write-protect switch on the side of the card is “off” (NOT in the “Lock” position). The

following describes how to insert and remove the SD card:

• Insert the SD card into the card slot with its label side upwards (see below). A

“click” sound indicates that the card is installed successfully. If the wrong side

of the card is facing up, you will not be able to insert it without force-there is

only one correct way to insert cards. If the SD card is not installed correctly,

the device will not display an SD card icon on the LCD in SETUP mode (the

SD card icon displayed after switching to SETUP mode will have a “lock” symbol

inside it in it if the card is locked). Formatting the SD card by using the Trophy

Cam HD Aggressor’s “Format” parameter before using it for the ﬁrst time is

recommended, especially when a card has been used in other devices (see pg.

23, “Format” for details).

• To take out the SD card, just gently push

in the card (do not try to pull it out without

pushing in ﬁrst). The card is released from the

slot and ready to be removed when you hear

the click. WARNING: Be sure the camera’s power is switched OFF

before inserting or removing SD cards or batteries.

USING THE Trophy Cam HD Aggressor

Once you’ve prepared your Trophy Cam HD Aggressor by properly installing

batteries and an SD card, you could simply take it outside, strap it to a tree, switch it

on and leave-and you might get some great photos that are exactly what you wanted.

However, we highly recommend that you ﬁrst spend some additional time indoors with

this manual and your camera until you know a bit more about what the 3-way switch

and those control keys do. If nothing else, you’ll probably want to at least set the date

and time so the camera will imprint them (or not-it’s your option) on your photos as

they are taken, learn how to set the camera to shoot video clips instead of still photos

if you like, and read some tips about mounting it on a tree.

THE OFF, ON, AND SETUP MODES

The Trophy Cam HD Aggressor has three basic operational modes:

• OFF mode: Power switch in the OFF position.

• ON mode: Power switch in the ON position (LCD screen is off.)

• SETUP mode: Power switch at SETUP position (LCD screen is on).

OFF MODE

The OFF mode is the “safe” mode when any actions must be taken, e.g., replacing

the SD card or batteries, or transporting the device. You will also use OFF mode if

you connect the camera to a computer’s USB port later to download your photos/

videos. And of course, when you are storing or not using the camera, you will switch it

to OFF. Please note that even in the OFF mode the Trophy Cam HD Aggressor still

consumes power at a very low level. Therefore, it’s a good idea to take the batteries

out of the battery compartment if the camera will not be used for a long time.

ON MODE

Anytime after the batteries and SD card have been inserted, you can switch on the

camera. When the power switch is moved to the top position, the camera will enter

into the ON (Live) mode. The motion indicator LED (pg. 7, “Front View”) will blink

red for about 10 seconds. This interval allows time for you to close the Trophy Cam

HD Aggressor’s front cover, lock it, and leave the monitored area. Once in the ON

mode, no manual controls are needed or possible (the control keys have no effect).

The Trophy Cam HD Aggressor will take photos or videos automatically (according

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Bushnell Caméra IP

Bushnell

Bushnell Impulse 119900A Manuel utilisateur

Manuels Caméra IP populaires d'autres marques

FLIR

FLIR Exx series Manuel utilisateur

Avigilon

Avigilon H4A-BO1-IR Manuel utilisateur

Digital Watchdog

Digital Watchdog DWCA-C128-64 Manuel utilisateur

ShareTech

ShareTech AV1 Manuel utilisateur

Ezviz

Ezviz C6C Manuel utilisateur

Melchioni

Melchioni UCAM 2015 Manuel utilisateur

Geutebruck

Geutebruck G-Cam/ESD-4630 Manuel utilisateur

Arecont Vision

Arecont Vision MegaBall AV3146DN-3310-D-LG Manuel utilisateur

Mitel

Mitel 6800i Series Manuel de service

Vitek

Vitek VTC-IR403-212NP Manuel utilisateur

THOMSON

THOMSON DSC - 323W Manuel utilisateur

AVer

AVer FB2027 Manuel utilisateur

ENFORCER

ENFORCER EV-T5105-N2SQ Manuel utilisateur

Wansview

Wansview NC543 Manuel utilisateur

Eneo

Eneo MCB-64A0003M0A Manuel utilisateur

deView electronics

deView electronics CBDNI36F Manuel utilisateur

Swann

Swann SwannEye Manuel utilisateur

LevelOne

LevelOne IP CamSecure Manuel utilisateur
