Customer service manual

BUSH WMNB Series Washing Machine 7,8,9,10 Kg

Contents

Precautions

Page 2

Tub Bellow Seal

Page 4

Detergent Drawer

Page 11

Door Lock

Page 12

Drain Pump

Page 14

Heater

Page 20

Door Hinge Handle

Page 26

Additional Support

Page 35

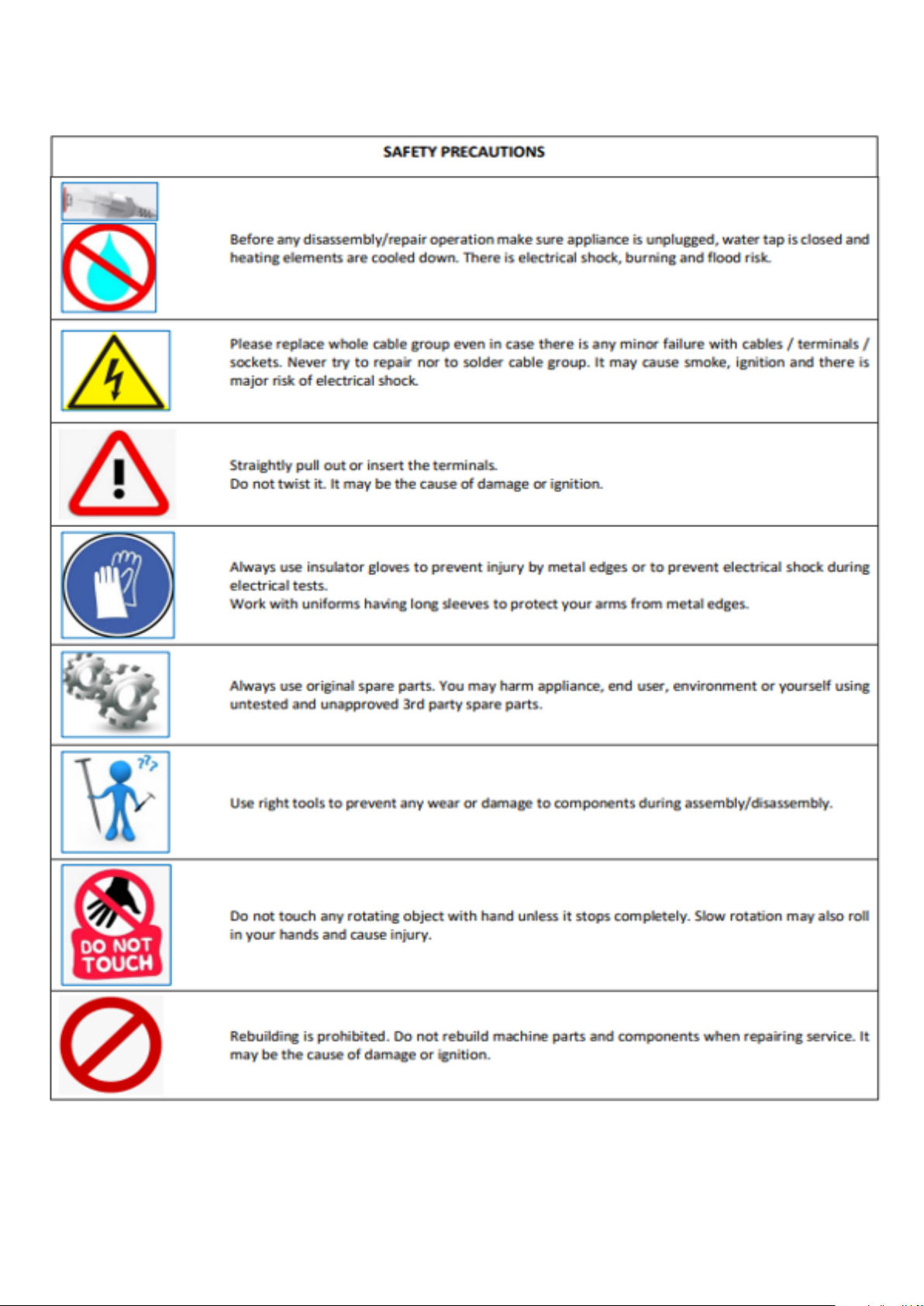

Precautions:

Always follow safety advice.

Always switch off and unplug the appliance before attempting to remove any part.

Always wear appropriate protective equipment when carrying out any work.

Always use the correct tools for carrying out any work.

Some repairs may not be suitable for unqualified users to carry out. If in doubt seek the advice of

a profession repairer.

REPLACEMENT PROCEDURE

Applicable models

General

Part name

Tub Bellow Seal

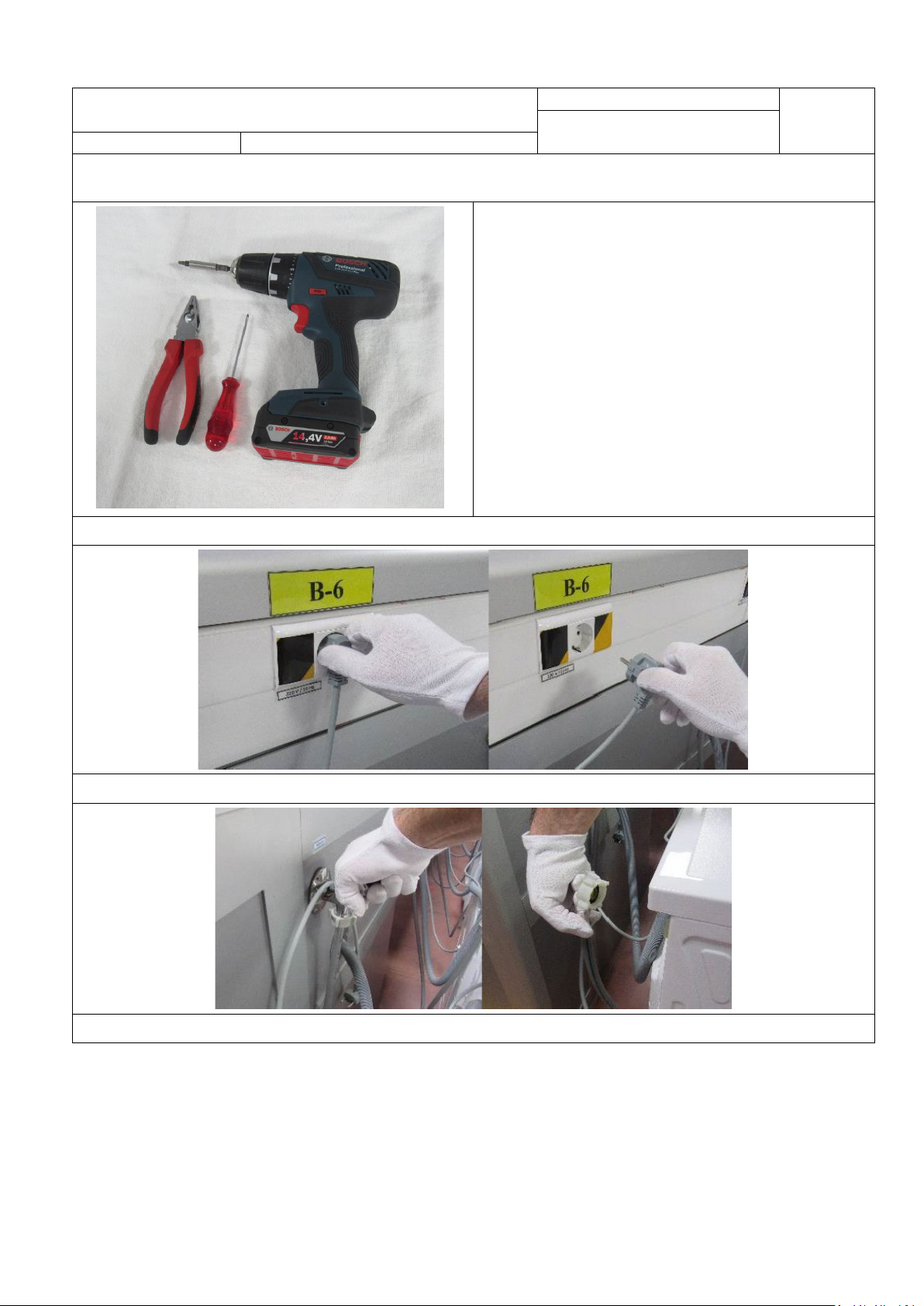

1. Necessary Tools

A. Pliers

B. Flat head thin screwdriver

C. Cordless screwdriver or classic screwdriver with

torx bits (T20)

2. Disconnection

2.1. Remove the plug

2.2. Turn off the tap and disconnect the hose from the valve

REPLACEMENT PROCEDURE

Applicable models

General

Part name

Tub Bellow Seal

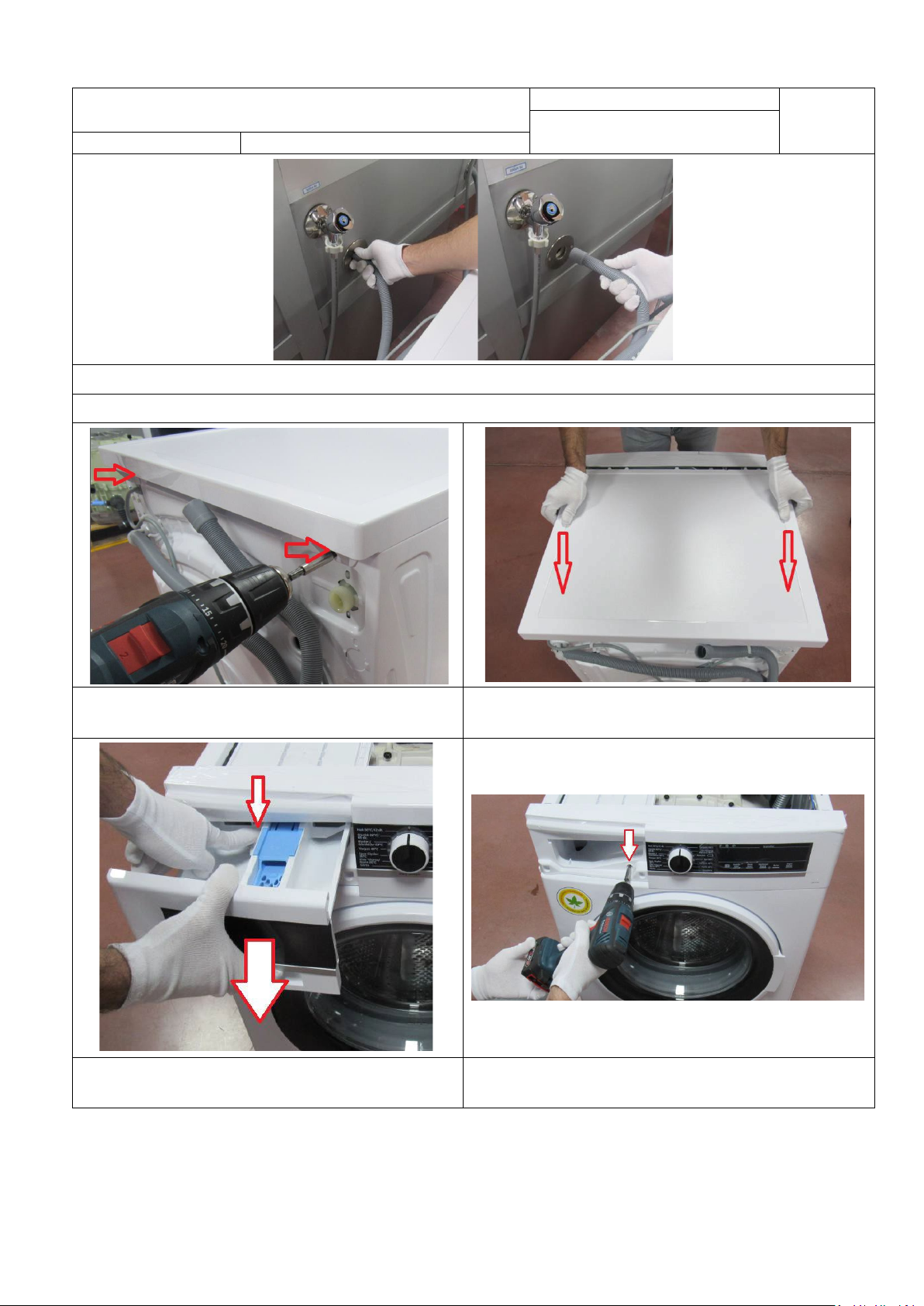

2.3. Turn off the tap and disconnect the hose from the valve

3. Disassembly Instructions

3.1. Turn off the tap and disconnect the hose from

the valve 3.2. Push the top-plate back and pull it up.

3.3. While pressing siphon cover keep pulling drawer

to remove it.

3.4 Remove the screw which fixes the control panel to the

front panel.

REPLACEMENT PROCEDURE

Applicable models

General

Part name

Tub Bellow Seal

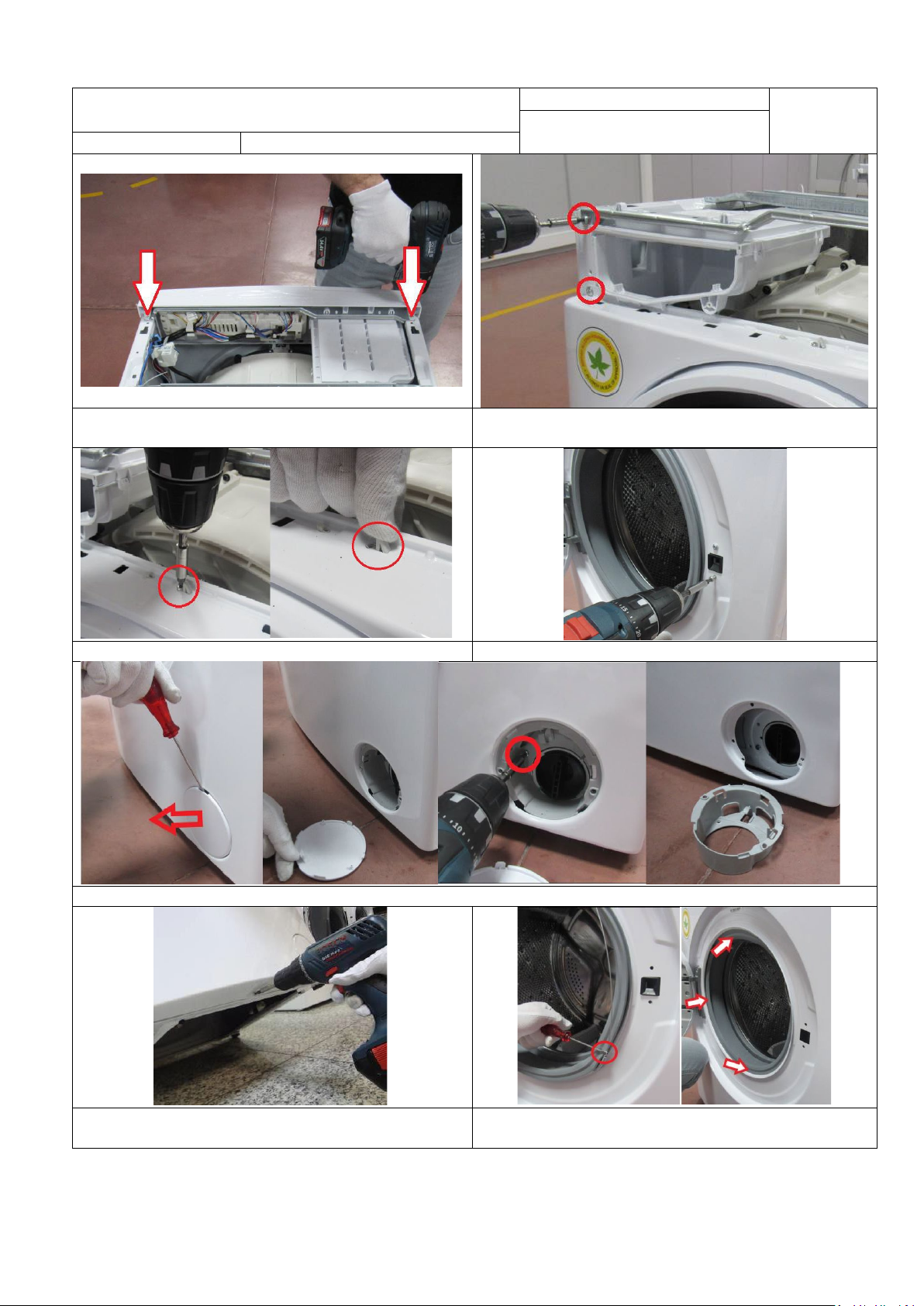

3.5 Remove two screws fixing control panel.

3.6 Remove the screw on support bracket and two

screws fixing front panel to body

3.7 Remove the screw fixing twinjet elbow.

3.8 Remove the screws fixing the door lock.

3.9 Remove the screw and plastic part located under the pump cover

3.10 Remove the screw fixing the front panel at

the bottom.

3.11 Remove the wire by using small screwdriver

and push the seal to the inside

REPLACEMENT PROCEDURE

Applicable models

General

Part name

Tub Bellow Seal

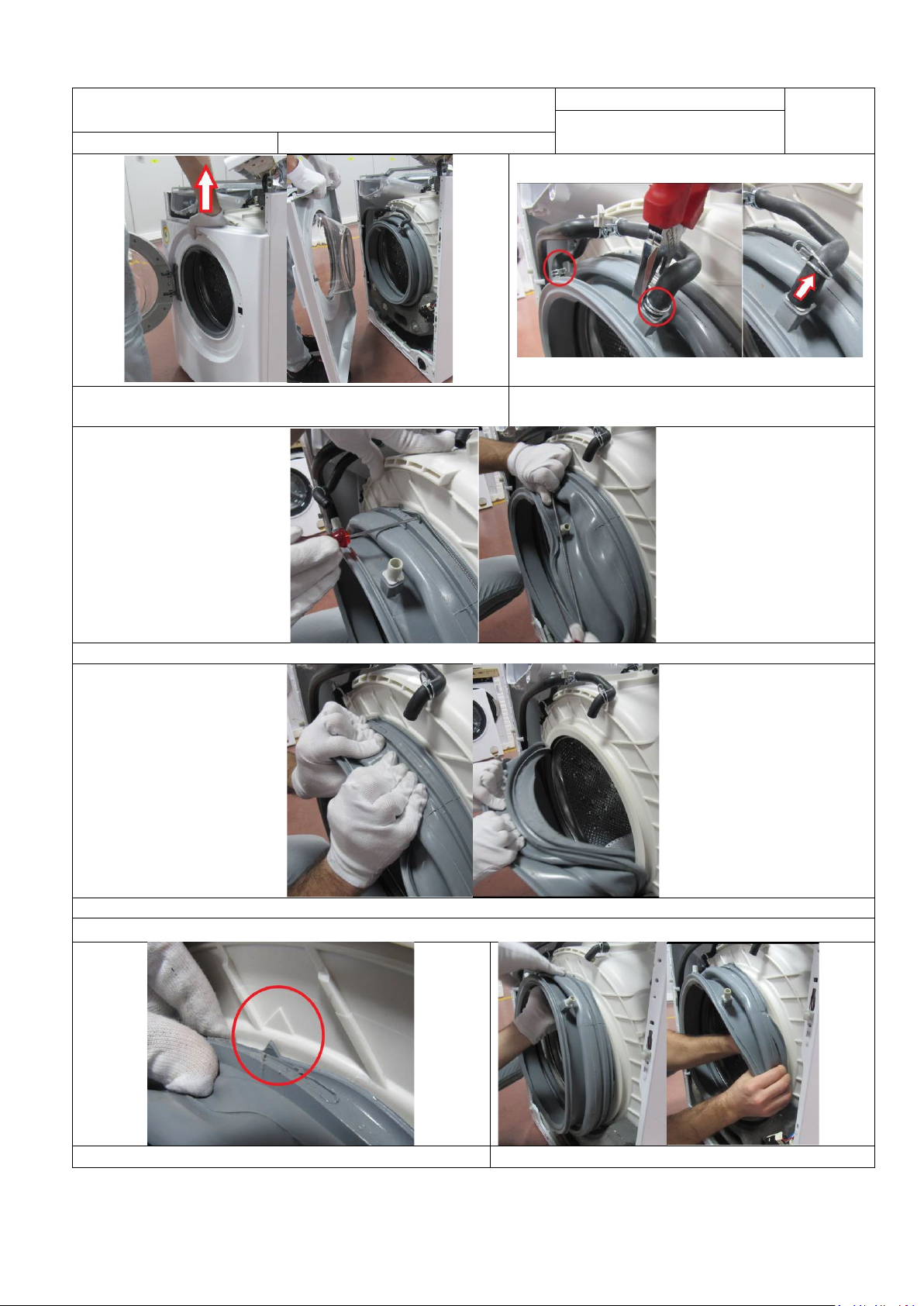

3.12 Pull up and remove the front panel.

3.13 Remove twinjet hoses from tub bellow seal

pulling them up.

3.14 Remove the tub gasket clip by using small screwdriver.

3.15 Hold the gasket bellows and the gasket body pull out in and out at the same time.

4. Assembly Instructions

4.1. Guides must be matched

4.2. Fit the tub bellow seal to the front tub

REPLACEMENT PROCEDURE

Applicable models

General

Part name

Tub Bellow Seal

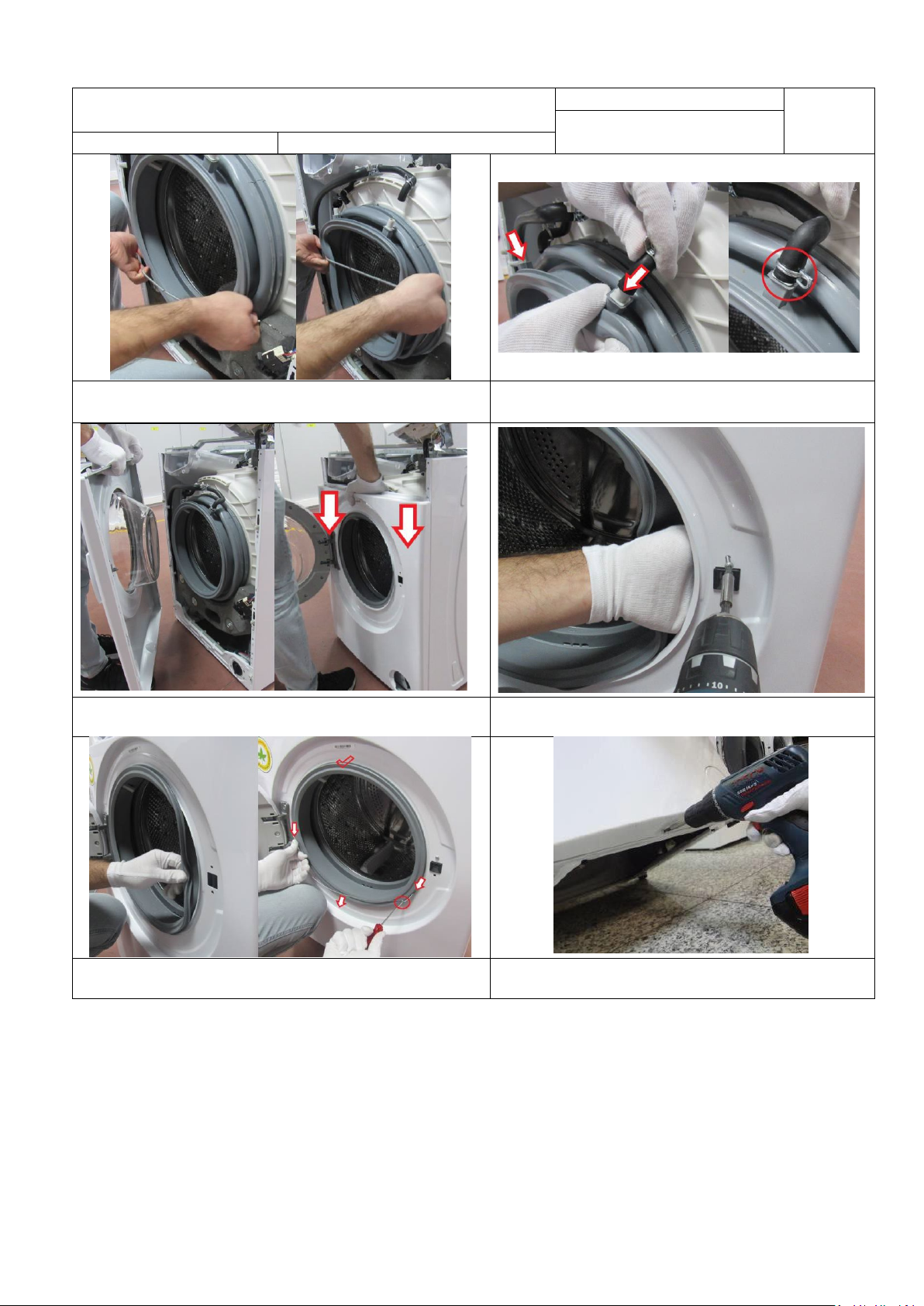

4.3. Pull the tub gasket clip to the up by hand and fit it

4.4. Assemble the twinjet nozes and tighten the

clips

4.5. Put the front panel to the cabinet and push down to

set it

4.6. Tighten the door lock screw

4.7. Pull the tub bellow seal to the outside and assemble

the wire by using small screwdriver

4.8. Tighten the screw fixing the front panel at the

bottom

REPLACEMENT PROCEDURE

Applicable models

General

Part name

Tub Bellow Seal

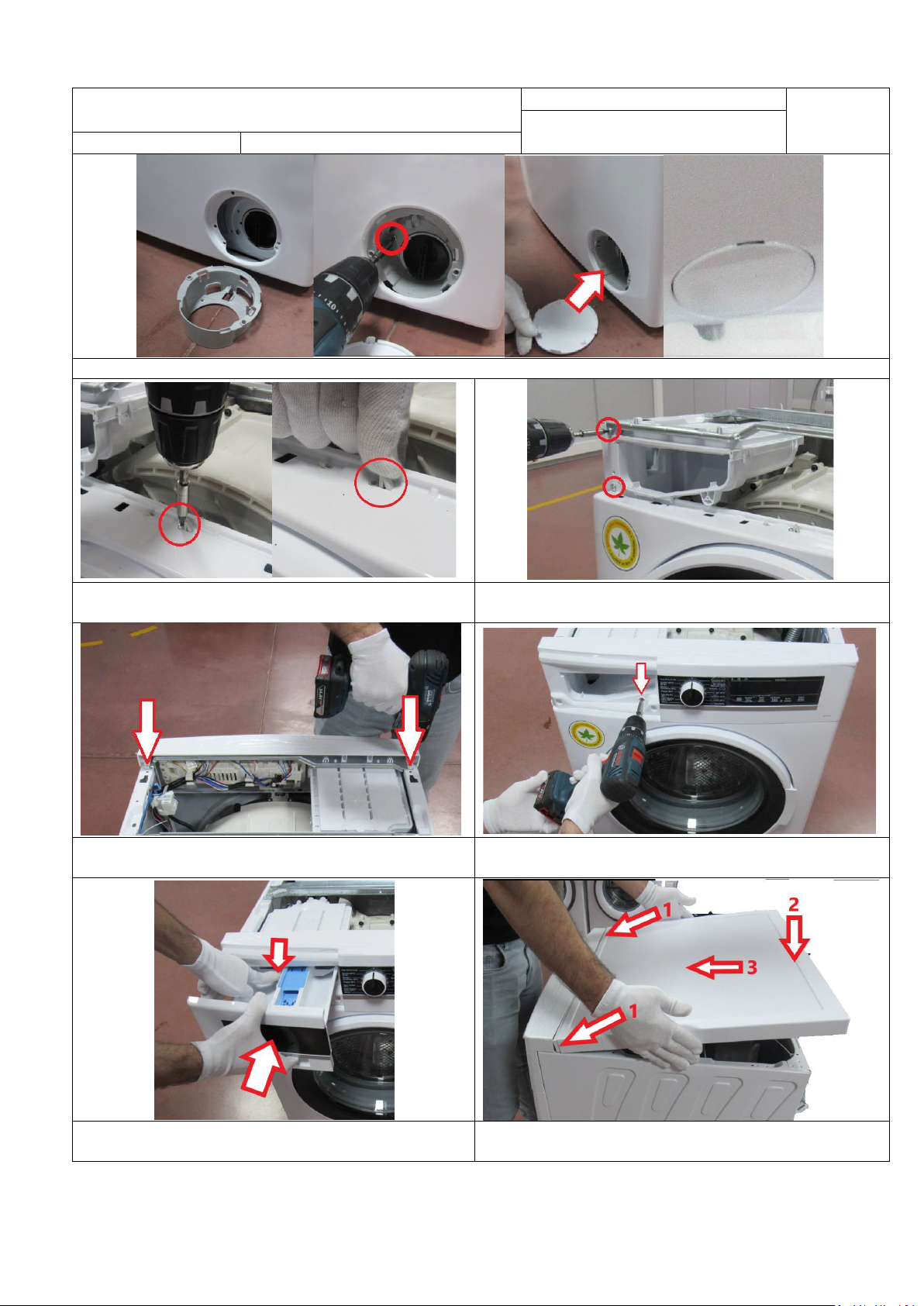

4.9. Fit the screw and plastic part located under the pump cover

4.10. Assemble the twinjet elbow to the front panel

4.11. Tighten the screw on support bracket and two

screws fixing front panel to body

4.12. Tighten two screws fixing control panel.

4.13. Tighten the screw which fixes the control panel to

the front panel.

4.14. While pressing siphon cover keep pushing

drawer to fit

4.15. Fit the upper tray according to movement above

REPLACEMENT PROCEDURE

Applicable models

General

Part name

Tub Bellow Seal

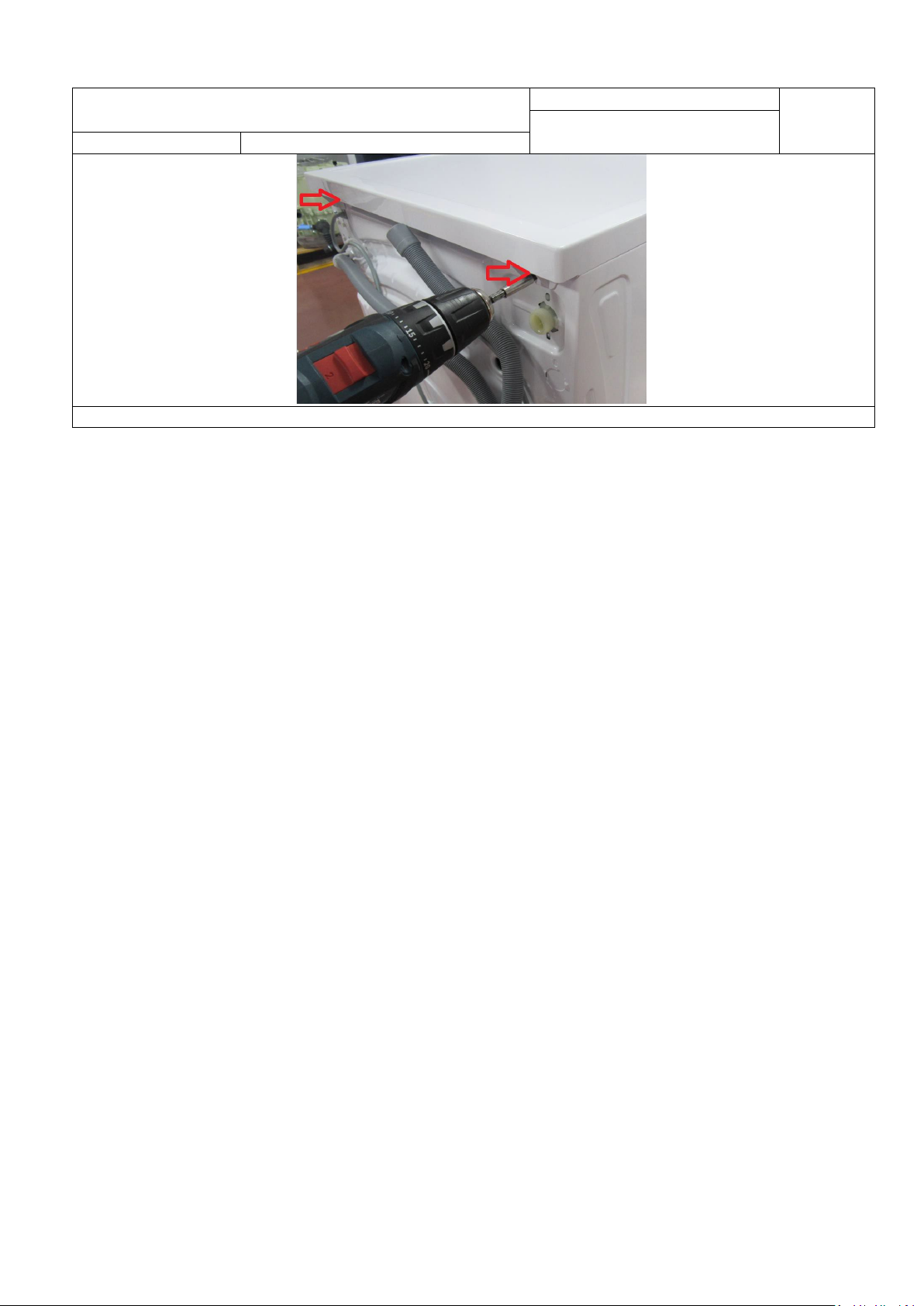

4.16. Tighten two screws that fix the top-plate at the back.
