WELCOME

Thanks for buying this 24" Full HD 1080p Digital LCD DVD Combi TV. This guide will help you set up and begin using

your TV.

First, check the contents of your box with the parts check list below:

24" Full HD 1080p Digital LCD DVD Combi TV.

Remote control

AAA ba x2

Instruction Manual

Quick start guide

Now you can get started!

IMPORTANT INFORMATION

READ ALL INSTRUCTIONS BEFORE USE AND KEEP FOR FUTURE REFERENCE.

CAUTION

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK).NO USER SERVICEABLE PARTS INSIDE.

FOR ANY PROBLEMS, REFER SERVICING TO THE CUSTOMER HELP LINE. THERE IS A LIGHTNING ARROW SYMBOL IN

THE TRIANGLE: THIS SYMBOL INDICATES HIGH VOLTAGE IS PRESENT INSIDE. IT IS DANGEROUS TO MAKE ANY KIND OF

CONTACT WITH ANYINSIDE PART OF THIS PRODUCT.

THERE IS A EXCLAMATION MARK IN THE TRIANGLE: THIS SYMBOL ALERTS YOU THAT IMPORTANT LITERATURE

CONCERNING OPERATION AND MAINTENANCE HAS BEEN INCLUDED WITH THIS PRODUCT.

CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK AND FIRE, DO NOT PUT THE TV SET NEAR

SOURCES OF HUMIDITY. DO NOT USE ANY ABRASIVE CLEANERS WHICH MAY SCRATCH OR DAMAGE

THE LCD SCREEN. AVOID CONTACT WITH OBJECTS THAT MAY SCRATCH THE LCD SCREEN.

NOTE: SERVICING THE UNIT YOURSELF IS UNAUTHORISED AND COULD LEAD TO INJURY OR PRODUCT

DAMAGE. REFER ALL SERVICING TO THE CUSTOMER HELPLINE.

Safety and Warnings

BUSH|Full HD 1080p LCD TV | User Manual | Helpline:0845 604 0105

P.02

Safety and warnings

ttery

For your protection,please read these instruction completely and keep this manual for future reference."

Please ensure that the set has adequate ventilation."

Do not place the set near a heat source or in direct sunlight."

Do not put the unit near water or oil as it may cause a fire."

During thunderstorms, unplug both the antenna and power plug to prevent damage."

Do not use a damaged power plug or put the power supply near a heat source as it may cause electric shock or

fire.

To prevent potential frie, do not overload an electrical outlet with too many plugs. "

Place the set on a level surface to prevent it from tipping and potential damage."

Do not remove the cover of the set or try to service your

TV.

This may result in electrical shock or fire. All service "

work must be completed by an authorised technician.

If there are any abnormal sounds or smells from the unit, unplug it immediately and contact an authorised "

service provider.

To prevent fire, do not use or store any flammable materials near the unit."

To prevent fire, do not place the unit near a damp wall."

To prevent electric shock, ensure that any external antenna connected to the set is clear of contact with any "

power lines.

Do not plug/unplug the unit while your hands are wet.

This may cause an electric shock."

Please ensure a solid connection with the AC wall socket in order to avoid shock and potential fire."

To prevent electric shock or fire, please prevent rain from entering the set along the wire connected to the outside "

antenna.

When cleaning, please unplug the unit. Use a soft cotton cloth. Do not use any abrasive cleansers, and prevent "

water from entering the set.

If any plugs or input wires are dirty, unplug the set and clean them.

This will prevent the risk of electric shock or "

fire.

If the set is not going to be used for an extended period, unplug the unit from the main power."

The apparatus should not be exposed to dripping or splashing and no objects filled with liquids, such as vases should

be placed on the apparatus.

The mains plug is used for disconnecting the device, make it easily accessible.

Do not use any accessories that are not reCommended by the manufacture.

SAF ETY NOTICE

P.03

Safety and warnings

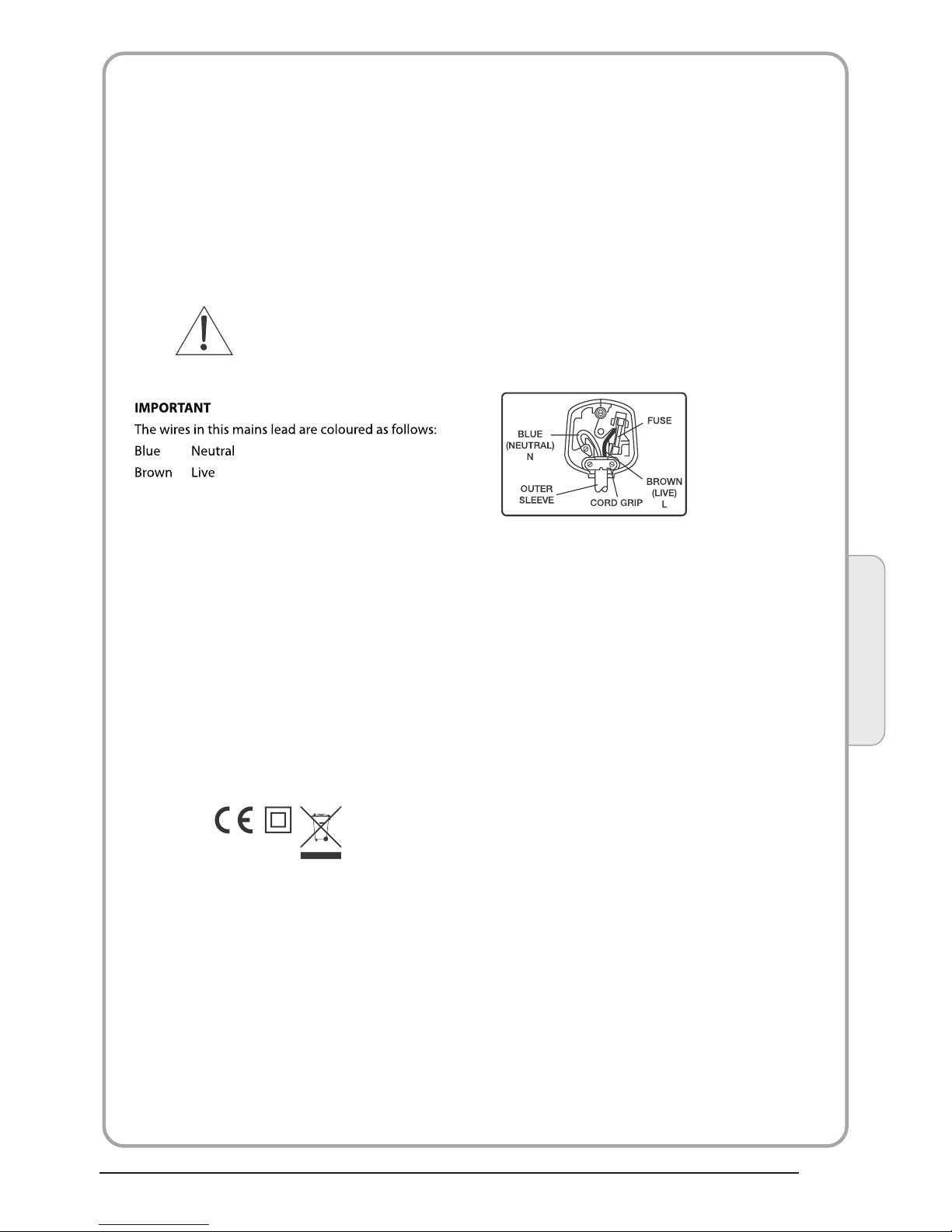

ELECTRICAL CONNECTIONS

CONNECTING TO POWER

Check that the voltage marked on the product corresponds with your supply voltage. This product is fitted with a

13A plug complying with BS1363. If this plug is unsuitable or needs to be replaced, please note the following:

PLUG REPLACEMENT

If you need to replace the fitted plug:

WARNING

Never connect live or neutral wires to the earth terminal of the

plug. Only fit an approved 13 Amp BS1363/A plug and the correct

rated fuse. If in doubt, consult a qualified electrician.

As the colours of the wires in the mains lead of this apparatus may not correspond

with the coloured markings identifying the terminals in your plug, proceed

as follows:

The wire which is coloured blue must be connected to the terminal, which is marked with N or coloured blue. The

wire which is coloured brown must be connected to the terminal which is marked L or coloured brown. The green

and yellow wire must be connecting to the terminal marked with the letter E or the earth symbol . Always ensure

that the plug cord grip is fastened correctly.

If a 13A (BS1363) fused plug is used it must be fitted with a 3A fuse conforming to BS1362 and be ASTA approved. If

in doubt contact a qualified electrician.

WASTE ELECTRICAL PRODUCTS SHOULD NOT BE DISPOSED OF WITH

HOUSEHOLD WASTE. PLEASE RECYCLE WHERE FACILITIES EXIST. CHECK

WITH YOUR LOCAL AUTHORITY FOR RECYCLING ADVICE.

BUSH|Full HD 1080p LCD TV | User Manual | Helpline:0845 604 0105

P.04

WARNINGS AND CAUTIONS

Warning

High voltages are used in the operation

of this television receiver. Do not remove

the cabinet back from your set. Refer

servicing to qualified service personnel.

Warning

To prevent fire or electrical shock

hazard, do not expose the television

receiver to rain or moisture.

Warning

Do not drop or push objects into the

television cabinet slots or openings.

Never spill any kind of liquid on the

television receiver.

Caution

Do not block the ventilation holes in the

back cover. Adequate ventilation is

essential to prevent failure of electrical

components.

Caution

Do not trap the power supply cord under

the television receiver.

Caution

Never stand on, lean on, or suddenly push

the television or its stand. You should pay

special attention to children. Serious injury

may result if it should fall.

Caution

Do not place your television on an unstable

cart, stand, shelf or table. Serious injury to

an individual , and damage to the

television, may result if it should fall.

Caution

When the television receiver is not

used for an extended period of time, it

is advisable to disconnect the AC power

cord from the AC outlet.

Dim:5 15*320m m(不包括底座）

Caution

If the television is to be built into a

compartment or similar enclosure, the

minimum distances must be maintained.

Heat build-up can reduce the service life of

your television, and can also be dangerous.

P.05

02 Introduction

Introduction

INSTALLATION

CAUTION

*Locate the TV in the room where light

does not strike the screen directly.

*Total darkness or a reflection on the

picture screen can cause eyestrain. Soft

and indirect lighting is recommended for

comfortable viewing.

*Allow enough space between the TV and

the wall to permit ventilation.

*Avoid excessively warm locations to

prevent possible damage to the cabinet or

premature component failure.

*This TV can be connected to AC 100-240

Volts. 50/60 Hz. Never connect to a DC

supply or any other power supply.

*Do not cover the ventilation openings

when using theTV.

Never tamper with any components inside

the TV, or any other adjustment controls

not mentioned in this manual. All LCD-TVs

are high voltage instruments. When you

clean up dust or water drops on the LCD

PANEL or CABINET, the power cord should

be pulled out from the receptacle, then

wipe the TV with a dry soft cloth. During

thunder and lighting, unplug the power cord

and antenna cord to prevent damage to

your TV. All repairs to this TV should only

be performed by qualified TV service

personnel.

Panel

TV System PAL-B/G、I、D/K

SECAM- B/G、D/K、L、 L

Video Signal System PAL/NTSC/SECAM

Input Power Voltage AC 100V-240V 50/60Hz

Power consumption

Audio Output Power （THD 7%）2x3W

Signal Input Analog RGB(PC)x1

High-Definition Multimedia Interface (HDMI)

Video INput x1

S-Video x1

Audio Input x2

Y、Pb Prx1

SCARTx1

Horizontal definition（TV line）Composite Video input >=350

Super Video Input >=400

YPbPr >=400

23.6

60W

Main parameter

Main features

① Used as Television, display

terminal,

PC display；

② High luminance, wide viewing

Angle；3 HDMI interface and SCART

Interface；

4 NICAM；

BUSH|Full HD 1080p LCD TV | User Manual | Helpline:0845 604 0105

P.06

PRESET MODE

640*480

800*600

1024*768

1280*1024

1440*900

31.47

37.88

48.36

63.98

55.93

RESOLUTION V.Freq.(Hz) H.Freq.(KHz)

P.07

02 Introduction

Front control panel

1HDMI IN

2VGAINPUT

input

3YPbPr input

4VGA AUDIO INPUT

input

5COMMON IN INTERFACE(CI) input

Remote control sensor.

Indicator LED:

GREEN:POWER ON. RED STAND BY.

Key board(see next page).

4AC power switch.

-5-

100-240V~ 50 /60Hz

AC-INPUT HDMI VGA IN PUT

L R SPDIF

YPb Pr

AUDIO

VGA INPUT ANT

SCART

CVBS

S-video

COMMON INTER FACE (CI )

REAR AV Connections

input

6SCART

input

7CVBS input

8L/R AUDIO

Intput

9SPDIF Output

10 ANT

Input

1SOURCE

Display the input source menu.

MENU Display main MENU.

CH+/CH- In TV mode,press CH+ or CH- to change

the channel up and down.

In MENU, press CH+ or CH- to select items .

In standby mode, it can Turn on the TV.

STANDBY

VOL+/VOL- Adjust sound level.

In MENU,adjust the item that you Selected.

2 3 4 5

8 9 10

11 S-VIDEO input

SOURCE

CH+

CH-

VOL+

VOL-

6 7

Remote Control

BUSH|Full HD 1080p LCD TV | User Manual | Helpline:0845 604 0105

P.08

USB

CONNECTING YOUR

ANTENNA CONNECTION

Connect your aerial to the back of the TV into the

ANT IN socket.

IMPROVE YOUR SIGNAL

To improve picture quality in a poor signal area, use a

signal amplifier (not supplied).

CONNECT YOUR PC TO THE TV

You can use your TV as a monitor for your personal

computer by connecting it with a VGA cable (not

supplied).

Read your computer user guide and check it has a

VGA connector.

Turn the power off on your TV and PC.

Connect a D type 15-pin VGA interface cable to

the VGA video interface connector on the PC.

Connect the other end of the cable to the PC

interface connector on the TV. Tighten the screws

on the VGA connectors and connect the audio

cable (not supplied) to the audio input socket on

the back of the TV.

Turn on the power of the TV firstly and then the

PC.

Press the button on the TV or TV remote control to

set the video input mode to VGA.

Once the image shows, if there is noise present,

change the VGA mode to another resolution,

change the refresh rate to another rate or adjust

the brightness and contrast on the menu until the

picture is clear.

CONNECT A DVD PLAYER TO YOUR

Connect the DVD video outputs (Y, Pb, Pr) to the

COMPONENT (Y, Pb, Pr) IN socket on your TV.

Turn on the DVD player and insert a DVD.

Press the button to select .

Refer to the DVD player user guide for operating

instructions.

DVD

CONNECT A DVD PLAYER OR VCR TO

YOUR TV

There are two ways in which you can connect a DVD

player or VCR to your TV. Make sure that both the TV and

DVD player or VCR are switched off before you connect

them.

Connect the AV DVD/VCR outputs to the AV IN

socket on your TV.

Press the SOURCE button on the TV to set the video

input mode to AV.

SCART INPUT

Connect the scart lead from the external device

(DVD player, Set-top box or games console) to the

TV scart socket.

Press the SOURCE button to select SCART mode.

Press the PLAY button on the external device.

HDMI input

Connect the cable from the HDMI device to the TV

HDMI socket.

Press the SOURCE button to select HDMI mode.

Refer to the HDMI device user guide for how to

operate.

Connect the AV audio L & R to the audio input (8)

P.09

Table des matières

Autres manuels Bush TV

Bush

Bush LED22134FHD Manuel

Bush

Bush LE-40GCL-A-T Manuel

Bush

Bush DLED49287HDCNTDFVP Manuel utilisateur

Bush

Bush LE-55GV350-B1 Manuel utilisateur

Bush

Bush HA32H4232LEKB Manuel utilisateur

Bush

Bush LE-28GX01 Manuel

Bush

Bush 39/401UHD Manuel utilisateur

Bush

Bush HA24H4212LEKB Manuel utilisateur

Bush

Bush DLED50UHDHDRSA Manuel utilisateur

Bush

Bush HA42U5232MEKB Manuel utilisateur

Bush

Bush SuperSLim LT19M4 Manuel utilisateur

Bush

Bush ELED24HDSDVDWB Manuel utilisateur

Bush

Bush LE-22GY14R+DVD Manuel

Bush

Bush L319LED Manuel utilisateur

Bush

Bush VL24HDLED Manuel utilisateur

Bush

Bush 40/233F Manuel

Bush

Bush LED24970FHDS Manuel

Bush

Bush LED19T3 Manuel utilisateur

Bush

Bush 40/402UHD Manuel utilisateur

Bush

Bush 24/207FDVD Manuel utilisateur

Bush

Bush LE-32GKA Manuel utilisateur

Bush

Bush DLED50UHDHDRS Manuel utilisateur

Bush

Bush DLED50UHDHDRSB Manuel utilisateur

Bush

Bush BMK40 Manuel

Manuels TV populaires d'autres marques

Philips

Philips Colour Television Manuel utilisateur

Toshiba

Toshiba 27A10 Manuel utilisateur

Philips

Philips 42PF9630A/37 Manuel utilisateur

Hitachi

Hitachi 32FX48B Manuel utilisateur

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manuel utilisateur

Changhong Electric

Changhong Electric uhd55b6000is Manuel utilisateur

Philips

Philips Matchline 21CE7551 Manuel utilisateur

Panasonic

Panasonic Genus TX-G10 Manuel utilisateur

Toshiba

Toshiba 19A20 Manuel utilisateur

Philips

Philips 25PT4523-16 Manuel utilisateur

Sony

Sony XBR-100Z9D Manuel utilisateur

Philips

Philips PR0930X3 Manuel utilisateur

Philips

Philips Brilliance 231P4QPY Manuel utilisateur

Samsung

Samsung 55S9 B Series Manuel utilisateur

Philips

Philips 32HF9385D Guide de dépannage

Sharp

Sharp LC-40FI5012E Manuel utilisateur

Loewe

Loewe Table Stand Reference 55 Manuel utilisateur

Philips

Philips 32PFH5300 Manuel utilisateur
