Bush A322D Manuel utilisateur
Customer helpline: 0845604 0105
19 /22 Digital LCD Television
INSTRUCTION MANUAL
P. 0 2
P.12
P.04
P.05
01 Safety Notice
02 About your LCD
03 Getting Started
04 Basic Operation
P.06
P.07
P.08
P.09
P.09
P.09
P.10
P.10
P.11
P.12
P.12
P.12
P.13
Safety Notice
Front Panel Control
Connection
Remote Control
Installing Batteries
Connection Instructions
External equipment connections
Antenna Connection
VGA Input
YPbPr Input
S-VIDEO Input
SCART Input
CI Card Input
HDMI Input
USB Input
Basic Operating Instructions
Turn on the LCD-TV
Inputs selection
V+/V-
Mute
Sound Mode
Select the TV Channel
Picture Mode
Q.VIEW
Sleep/ARC/Zoom
Menu Operations
Picture Menu Options
Contents
P.13
P.14
P.14
P.14
P.14
P.14
P.15
P.16
P.13
P.13
P.14
P.17
P.18
P.19
P.21
P.22
Sound Menu Options
Function Menu Options
Lock Menu Options.
Lock Menu OptionsContinued
Tuning Menu Options
Tuning Menu Options Continued
Time Menu Options
Time Menu Options Continued
P.23
P.25
P.26
P. 0 3
05 Using the features
06 Reference Sections
P.31
P.37
P.38
P.46
TELE TEXT
Basic Playback
Advanced Playback
Special Function Playback
DVD System Setup
Playable Discs
Disc Protection andDVD Characteristics
Streaming Media PlayingSystem
Troubleshooting Guide
Specifications P.47
P.32
P.30
P.29
P.27
P.36
P. 0 4
Safety Notice
Toprevent fire or electric shocks please read the instructionbefore
installing, using and cleaning the television.
Please read all the instructions before operation;
Please keep themanual for future reference ;
Do not useany accessories that are not recommended by the manufacturer:
Before operation, make sure the operating voltage of this unit is corresponds
with your houseelectrical supply;
Do not placethe unit on unstable or in dusty and humidplaces;
Never put theunit in direct sunlight or near heat sources;
Allow enough space for proper ventilation;
Please keep wateraway from the LCD-TV . If water comes into contact with
the LCD-TV, disconnect the power cord from the power source, then wipe the
set with a dry soft cloth;
Do not removethe back cover. If servicing is required , please referto
customer helpline.
P. 0 5

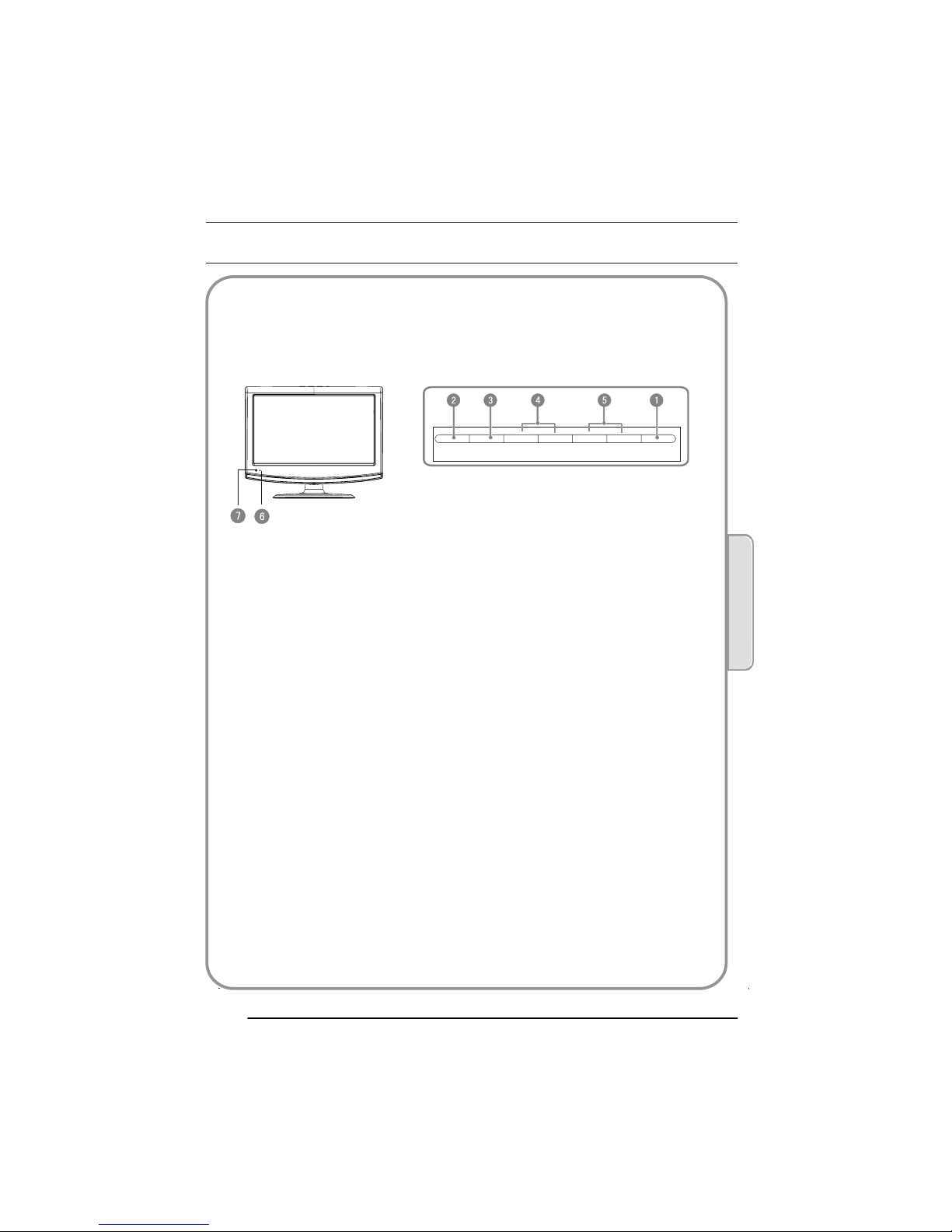

Front Panel Control
Control Panel Function
1. Standby switch
2. SOURCE Call the Input Source menu/Confirm button when operation
menu.
3. MENU Press to select the main menu
4. VOL- Volume down/ Left orientation to adjust the item in the OSD
VOL+ Volume up / Right orientation to adjust the item/Press to enter
5. CH- TV channel down / to select the item in the menu
CH+ TV channel up / to select the item in the menu
6. Power indicator
7. Remote Sensor
(The figure above and the description of the button may be different,
all picture in this manual is just for reference, please see the actual set.)
SOURCE MENU VOL- VOL+ CH- CH+ STANDBY
02 About your LCD
02 About your LCD TV
ANT IN COAXIAL S-VIDEO
VGA IN
PC AUDIOIN
Common Interface
Common Interface
R-AUDIO-L TV SCART
TV SCART
Pr Pb Y
HDMI USB
Connection
USB
HDMI
TV SCART
YPbPr
Common Interface
S-VIDEO
AUDIO IN
VGA IN
PC AUDIO IN
ANT IN
Connect to HDMI output of other equipment
Connect a component video/audiodevice to these jacks
Component/S-Video Audio Input
Earphone port
COAXIAL
Connect to the VGA 15PIN analog output connector of the Pc display card for PC
display purpose
Connect the PC outpu tconnec tor from a PC to the audio
Connect cable or antenna signals to the TV, either direc-tly or through your
cable box.
P. 0 6
02 About your LCD TV
Just take oneTV with DVDfor example,
please see thereal)
DVD insert
STOP
PLAY/PAUSE
OPEN/CLOSE
PREV
NEXT
(Please refer to actualproduct
of the DVD slotand buttons)
Remote Control
When using the remote control, aim it
towards the remotesensor on the TV
Stand By
DVD Menu
DVD open/close
Picture Mode
Sound Mode
Call Screen Display
Sleep button
DTV Audio/NICAM/DVD Audio
Aspect Ratio Control button(except for DVD&USB )
Channel list button
Subtitle button
Program Number Channel selection
Source Exchange
Q.VIEW
V+/V- :Volume selection
P+/P-:Channel selection
Mute
Menu button
GUIDE Button (only for DTV)
Favourite button
OK button
Cursor Mover Button
Back button (only for USB)
Exit Screen Display
REPEAT (only for USB)/CANCEL button
Zoom(only for DVD &USB)/Teletext index(only for TV)
Play/pause button(only for DVD &USB)
STOP(only for DVD &USB)
FAST REVERSE(only for DVD &USB)
FAST FORWARD(only for DVD &USB)
PREVIOUS(only for DVD &USB)
NEXT(only for DVD &USB)
DVD SET UP/ TEXT
DVD TITLE/TELETEXT MIX
DVD SEARCH/TELETEXT SUBCODE
DVD 10+/TELETEXT HOLD
DVD PROGRAM/TELETEXT REVEAL
DVD A-B REPEAT/TELETEXT SIZE
DVD ANGLE/TELETEXT TIME
DVD CALL/TELETEXT MODE
Buttons on the remote control
NOTE:Red button GREEN button
blue button andyellow button arefast
text button inanalog signal .Function
button in DVBT(just reference theOSD)
P. 0 7
SCREEN
STOP
.
Installing Batteries
Installing Batteries
1.Open the cover of the battery compartment at the back of the remote
control.
2.Insert two AAA alkaline batteries in the compartment. (plus and minus poles to
respective mark)
3.Replace the cover of the battery compartment.
Precautions
Make sure that there is no
obstacle between the remote
controller and television set.
As strong light may interfere the
signals, change your position to
operate the remote controller if
the television cannot be turned
on or off as you expect.
Keep the remote controller
away from heat source or
humid area to ensure
effective performance of
the remote controller.
Make sure that two AAA 1.5V alkaline
batteries are loaded. The batteries
must be of the same type. The batteries
must be located properly. The batteries
are not rechargeable. If your TV is to be
stored for a period of time, remove the
batteries from the remote control.
3
2
1
P. 0 8
02 About your LCD TV
Connection Instructions
External Equipment Connections
Antenna Connection
- Antenna or Cable Service with a Cable Box Connections
- For optimum picture quality, adjust antenna direction if needed.
Multi-family Dwellings/Apartments
(Connect to wall antenna socket)
wall antenna
socket
VHF antenna
UHF antenna
outdoor
antenna
Single-family Dwellings /Houses
(Connect to wall jack for outdoor antenna)
Be careful not to bend the bronze
wire when connecting the antenna.
To improve picture quality in a poor
signal area, purchase and install a
signal amplifier.
If the antenna needs to be split for two
TV s, install a 2-Way Signal Splitter
in the connections.
If the antenna is not installed properly,
contact your dealer for assistance.
NOTE: All cables shown are just for example.
RF coaxial wire (75 ohm)
ANT IN
ANT IN
P. 0 9
03 Getting Started
