Introduction

The Plus-X Dual IP-8 Adapter connects directly to existing ARC-16 IP-8 Interface Panels to allow a fast,

easy upgrade from the ARC-16 to the ARC Plus Remote Control. The Plus-X Dual IP-8 Adapter

communicates with the ARC Plus via LAN/WAN, allowing installation anywhere a network connection is

available.

The Plus-X Dual IP-8 Adapter is part of the Plus-X family of Ethernet I/O products designed for the ARC

Plus.

Installation Note

Even though you may operate the ARC Plus and Plus-X Dual IP-8 Adapter on different subnets, Burk

Technology strongly recommends installing the Plus-X Dual IP-8 Adapter on the same LAN as the ARC

Plus. In a network failure, an ARC Plus can only continue to monitor and control a Plus-X device on the

same LAN. If the network link between the units is not available, ARC Plus macros, alarm monitoring

and telephone control will be unavailable for the Plus-X device.

Before you Begin

Before installing the Plus-X Dual IP-8 Adapter, please have the following network settings ready:

A static IP address for the Plus-X Dual IP-8 Adapter

The IP address of your ARC Plus

The subnet mask and gateway address for your LAN

If you will be importing your ARC-16 settings, be sure to save your settings in AutoLoad 2 for the ARC-

16 (this will create a .a16 file). If you will be manually configuring your channels, make careful note of

the following for each channel:

Meter label

Calibration type

Decimal places

High limit

Low limit

Alarm delays (meter and status)

ESI meter label

ESI meter units label

ESI status message

Status inversion setting

Status alarm setting

Command duration

Plus-X Dual IP-8 Adapter Installation and Operation Manual Rev. B

Compatibility

Before installing the Plus-X Dual IP-8 Adapter, please verify that the ARC Plus firmware, AutoPilot

software and AutoLoad Plus software versions are current. Updates are available at www.burk.com.

The following are minimum software and firmware requirements

Software

Version

ARC Plus firmware

2.1.0, 2.3.0 recommended

AutoLoad Plus software*

2.0.0, 2.3.0 recommended

AutoPilot® 2010 software

2.5.0, 2.6.0 recommended

* If using any version of AutoLoad Plus earlier than 2.3.0, you will need to download the Plus-X Dual IP-8

Adapter AutoLoad definition XML file from www.burk.com.

The onboard web interface is compatible with Internet Explorer version 8 or newer, Firefox, Chrome,

and other modern web browsers.

Unpacking

The Plus-X Dual IP-8 Adapter ships with the following:

Manual (on CD)

Plus-X Dual IP-8 Adapter unit

Power cord

10’ shielded CAT5 cable

Plus-X Dual IP-8 Adapter Installation and Operation Manual Rev. B

Front Panel Indicators

Front panel of the Plus-X Dual IP-8 Adapter

Indicator

State

Description

Power LED

Off

Power is off

Power LED

Green

Power is on

Power LED

Amber

No firmware loaded (contact Customer

Support)

Power LED

Flashing

Green

Resetting to factory default settings

Link LED

Green

Connected to ARC Plus

Link LED

Off

No connection to ARC Plus

Link LED

Flashing

Green, Red

Maintenance Mode

Link LED

Flashing Red

No connection to ARC Plus, unit is in

maintenance mode

Hardware Configuration

The Plus-X Dual IP-8 Adapter is configured via its onboard web interface. Open a web browser and

navigate to 192.168.0.100. The web page will prompt you for a username and password. Enter the

username admin and password password.

Note: The default IP address is 192.168.0.100 and the default password is “password”. If either of these

values have been changed and you do not know what they are, you need to perform a master initialization.

Press and hold the MASTER INIT button on the rear panel for three seconds. This will reset the Plus-X Dual

IP-8 Adapter to its factory default settings.

Settings

Click the Settings link on web page header to access the Plus-X Dual IP-8 Adapter settings. Fill out the

following fields:

IP Address

Subnet Mask

Gateway

ARC Plus IP Address

You may optionally change the HTTP and Plus-X ports of the Plus-X Dual IP-8 Adapter. The default

settings are recommended.

Plus-X Dual IP-8 Adapter Installation and Operation Manual Rev. B

Burk Technology recommends changing the Plus-X Dual IP-8 Adapter password. The password is used

to log on to the onboard web interface. To change the password, check the Change Password box and

enter the new password in the Password and Confirm fields.

When you are finished, click Save.

Note: If you are unsure what network settings to use, contact your network administrator.

Plus-X Dual IP-8 Adapter Settings

Installation

After entering the configuration settings, you are ready to install the Plus-X Dual IP-8 Adapter in its

permanent location. Simply move the IP-8 cables from the ARC-16 to the Plus-X Dual IP-8 Adapter.

Connect the Plus-X Dual IP-8 Adapter to the LAN/WAN, if it is not connected already.

Plus-X Dual IP-8 Adapter Installation and Operation Manual Rev. B

Software Configuration

Now that the Plus-X Dual IP-8 Adapter is installed on the network, you are ready to add the unit to the

ARC Plus using AutoLoad Plus. AutoLoad Plus is included with the ARC Plus, and may also be

downloaded from www.burk.com.

Configuration involves:

Adding the Plus-X Dual IP-8 Adapter unit to the ARC Plus

Mapping Plus-X Dual IP-8 Adapter channels to unused ARC Plus channels

Importing settings from your ARC-16 (optional)

Adding the Plus-X Dual IP-8 Adapter to the ARC Plus

Adding a Plus-X device in AutoLoad Plus

In order for the ARC Plus to recognize the Plus-X Dual IP-8 Adapter, the Plus-X Dual IP-8 Adapter must

be added to the site:

1. Open AutoLoad Plus and connect to the ARC Plus site to which you are adding the Plus-X Dual

IP-8 Adapter.

2. From the Edit menu, select Plus-X Devices to open the Plus-X device configuration dialog.

3. Click Add to add the Plus-X Dual IP-8 Adapter to the site.

4. AutoLoad Plus will prompt you to select the device type. Select Plus-X Dual IP-8 Adapter. You

may optionally change the description for the Plus-X device. The description appears in

AutoLoad Plus to identify each Plus-X device.

5. Enter the IP address and port number of the Plus-X Dual IP-8 Adapter. These should be the

same settings you used when you configured the Plus-X Dual IP-8 Adapter via the web.

Plus-X Dual IP-8 Adapter Installation and Operation Manual Rev. B

6. Check the Map default set of channels box if you wish to automatically add the Plus-X Dual IP-

8 Adapter channels to the ARC Plus (recommended). The ARC Plus must have 16 consecutive

unused channels, including the starting channel.

7. Click OK.

Note: The above instructions are for AutoLoad version 2.3 or above. Earlier versions vary slightly in

appearance and labeling only.

Manually Mapping Plus-X Dual IP-8 Adapter Channels

Overriding channels in AutoLoad Plus

If desired, you may manually map Plus-X Dual IP-8 Adapter channels to ARC Plus channels in AutoLoad

Plus by selecting the Meter Channels, Status Channels or Commands tab, as appropriate:

1. Within any of these tabs, click the Source button to configure a channel to use a Plus-X device

channel as its source.

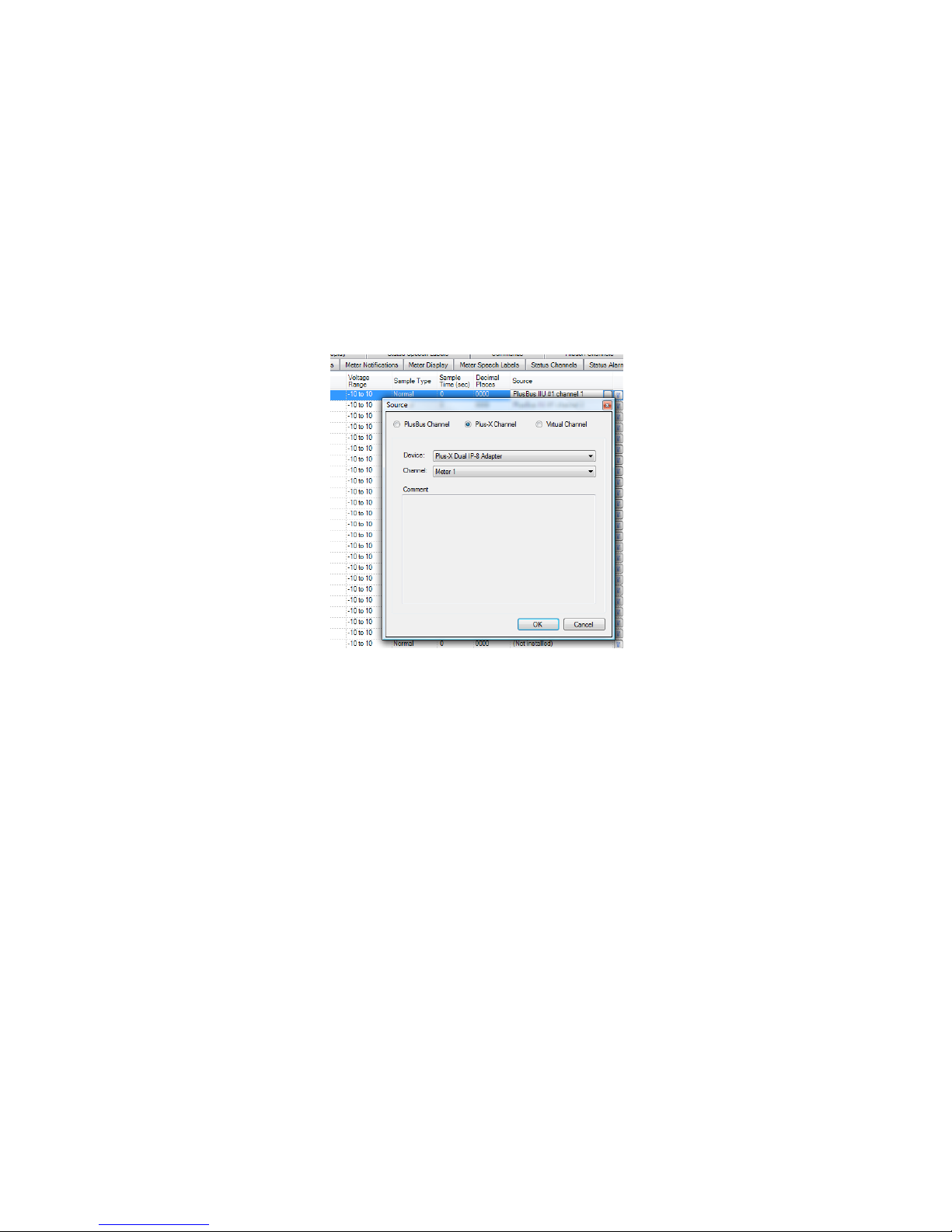

2. When the Source dialog appears, select Plus-X channel and choose the Plus-X device from the

list.

3. Select the Plus-X Dual IP-8 Adapter channel you wish to use.

4. Click OK.

Once mapped, each Plus-X Dual IP-8 Adapter channel will appear on the front panel of the ARC Plus, in

AutoPilot, on the ARC Plus web page, and will be accessible via the ESI.

Plus-X Dual IP-8 Adapter Installation and Operation Manual Rev. B

Importing ARC-16 Settings

AutoLoad Plus version 2.3 or later can import your ARC-16 settings using the .a16 file created by

AutoLoad 2 for the ARC-16. To import your settings, choose Import ARC-16… from the File menu in

AutoLoad Plus.

The wizard will prompt you for your ARC-16 settings file, and then allow you to choose which settings

to import. For each setting, use the Import checkbox to indicate that AutoLoad should import that

setting. Follow the onscreen instructions to complete the wizard. For more information, consult the

AutoLoad Plus Manual or help file.

Uploading New Firmware

You can load new firmware to the Plus-X Dual IP-8 Adapter using its onboard web interface. Navigate

to the IP address of the Plus-X Dual IP-8 Adapter, log on and click the Upload Firmware link. Click the

Browse button to select the firmware file, then click Upload to load the new firmware. The Plus-X Dual

IP-8 Adapter will reboot after the firmware upload is complete.

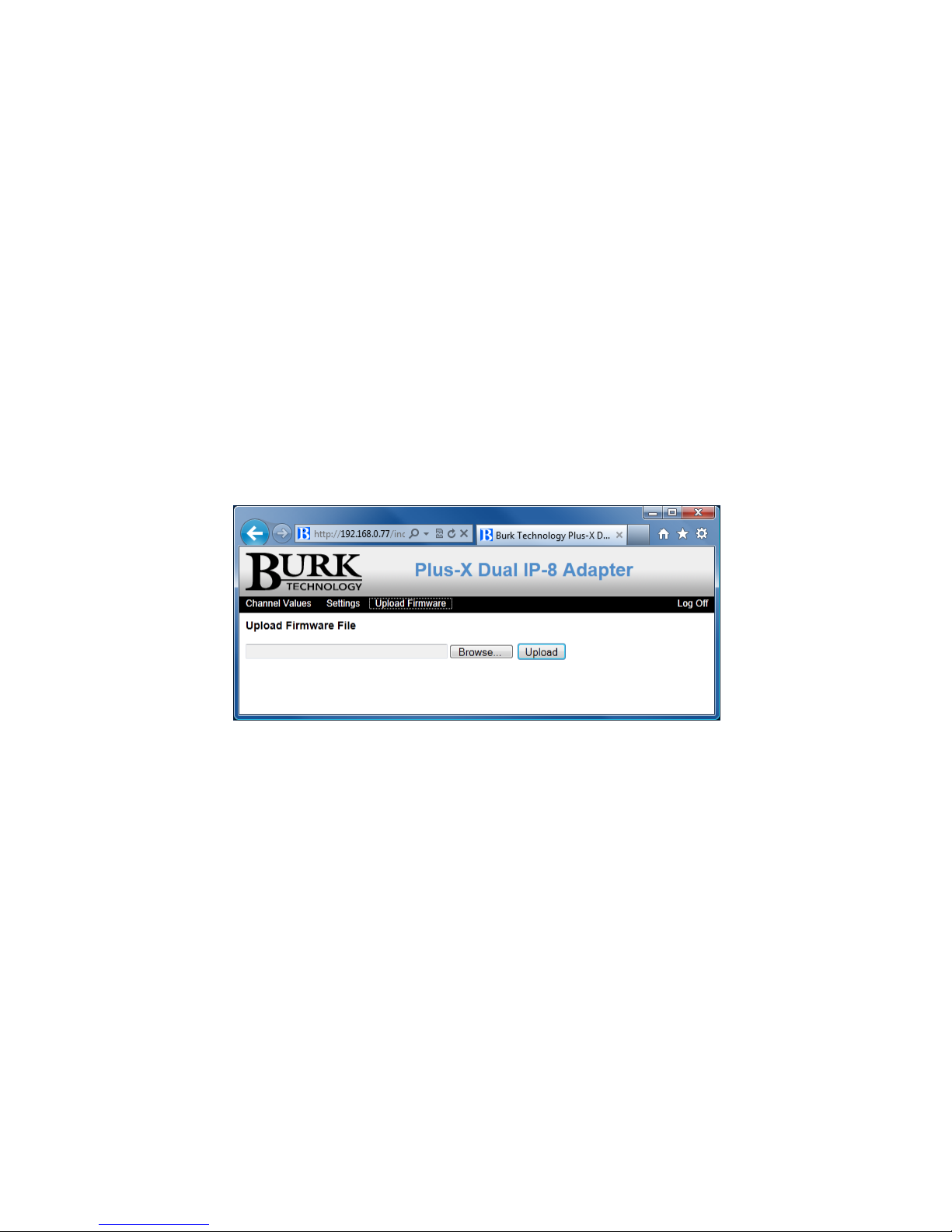

Uploading Firmware to the Plus-X Dual IP-8 Adapter

For the latest firmware updates, visit www.burk.com.

Troubleshooting

If the network connection between the Plus-X Dual IP-8 Adapter and ARC Plus is lost, the ARC Plus will

log an alarm after three minutes of network failure. The Plus-X Dual IP-8 Adapter Link LED will also turn

off. Check your network settings on both the ARC Plus and Plus-X Dual IP-8 Adapter.

Note: Plus-X Dual IP-8 Adapter events and errors are logged to the ARC Plus event list, which is accessible

by the ARC Plus front panel and from AutoPilot.

Plus-X Dual IP-8 Adapter Installation and Operation Manual Rev. B

Getting Help

For customer support, please email support@burk.com or call our direct customer support line at 978-

486-3711. We will be glad to assist you. The customer support office is open Monday –Friday, 9AM to

5PM Eastern time.

Warranty

Burk Technology, Inc. warrants the Plus-X Dual IP-8 Adapter to be free of defects in materials and

workmanship for a period of 24 months from the date of purchase. Equipment will be repaired or

replaced at the option of Burk Technology and returned freight prepaid to the customer. Damage due

to abuse or improper operation or installation of the equipment or caused by fire or flood or harsh

environment is not to be covered by this warranty. Damage in shipping is not the responsibility of Burk

Technology. A return authorization must be obtained before returning any equipment. Materials

returned under this warranty must be shipped freight prepaid and insured in the original shipping

carton or suitable substitute to Burk Technology, Inc., 7 Beaver Brook Road, Littleton, MA 01460.

Repairs not covered under this warranty will be made at prevailing shop rates established by Burk

Technology.

THE WARRANTY SET FORTH ABOVE IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR

IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY AND

FITNESS FOR A PARTICULAR PURPOSE. BURK TECHNOLOGY, INC. SHALL NOT BE LIABLE TO ANY

PARTY FOR ANY INCIDENTAL, SPECIAL, INDIRECT OR CONSEQUENTIAL DAMAGES ARISING FROM

THEUSE OF THIS EQUIPMENT.
