USE AND CARE OF YOUR

BUNN

Pour-Omatic®

Coffee Brewer

P-210/P-209

Welcome to the world of fine coffee. The BUNN

Pour-Omatic Coffee Brewer will enhance your

enjoyment of each cup of coffee. BUNN coffee

brewers are recognized in homes and restaurants

throughout the world as the very finest. Read this

booklet, and in no time you will know how to

make a great cup of coffee.

Keep this booklet for future reference

If you need any assistance, please call us at:

1–800–352– BUNN

2866

BUNN-O-MATIC CORPORATION

1400 STEVENSON DRIVE

POST OFFICE BOX 3227

SPRINGFIELD, ILLINOIS 62708-3227

www.bunnomatic.com

If you need any assistance, please call us at:

1–800–352–BUNN

Our best

wishes for

your coffee

enjoyment.

SPECIFICATIONS

Electrical - UL listed for household use only. This brewer has an attached,

polarized cord and requires 2-wire service with ground, rated 120 volts

ac, 71⁄2amps, single phase, 60 Hz. Components include an 800-watt tank

heater, 34 watt tank "Keep Warm" heater, & 65 watt decanter warmer;

899 watts total.

Dimensions - 141⁄4 inches high; 7 inches wide; 133⁄4inches deep

Brew Capacity - Two to eight 6-ounce cups per batch.

Weight - 10 pounds; includes decanter, water pitcher, filters, coffee

funnel, and deliming spring probe.

HIGH ALTITUDE USE

Your BUNN Pour-Omatic®coffee brewer is designed to operate in most

areas of the country. For high altitude use, over 5000 feet, the models GR-D

or B8-D should be used.

Table of Contents

IMPORTANT SAFEGUARDS ...................................... 4

GENERAL INFORMATION ........................................ 5

PREPARING THE BREWER FOR USE ........................ 6

BREWING DELICIOUS COFFEE ................................ 7

HOT WATER .............................................................. 7

COFFEE FUNDAMENTALS ........................................ 8

BREWING TIPS .......................................................... 8

DECANTER HANDLE MAINTENANCE ..................... 8

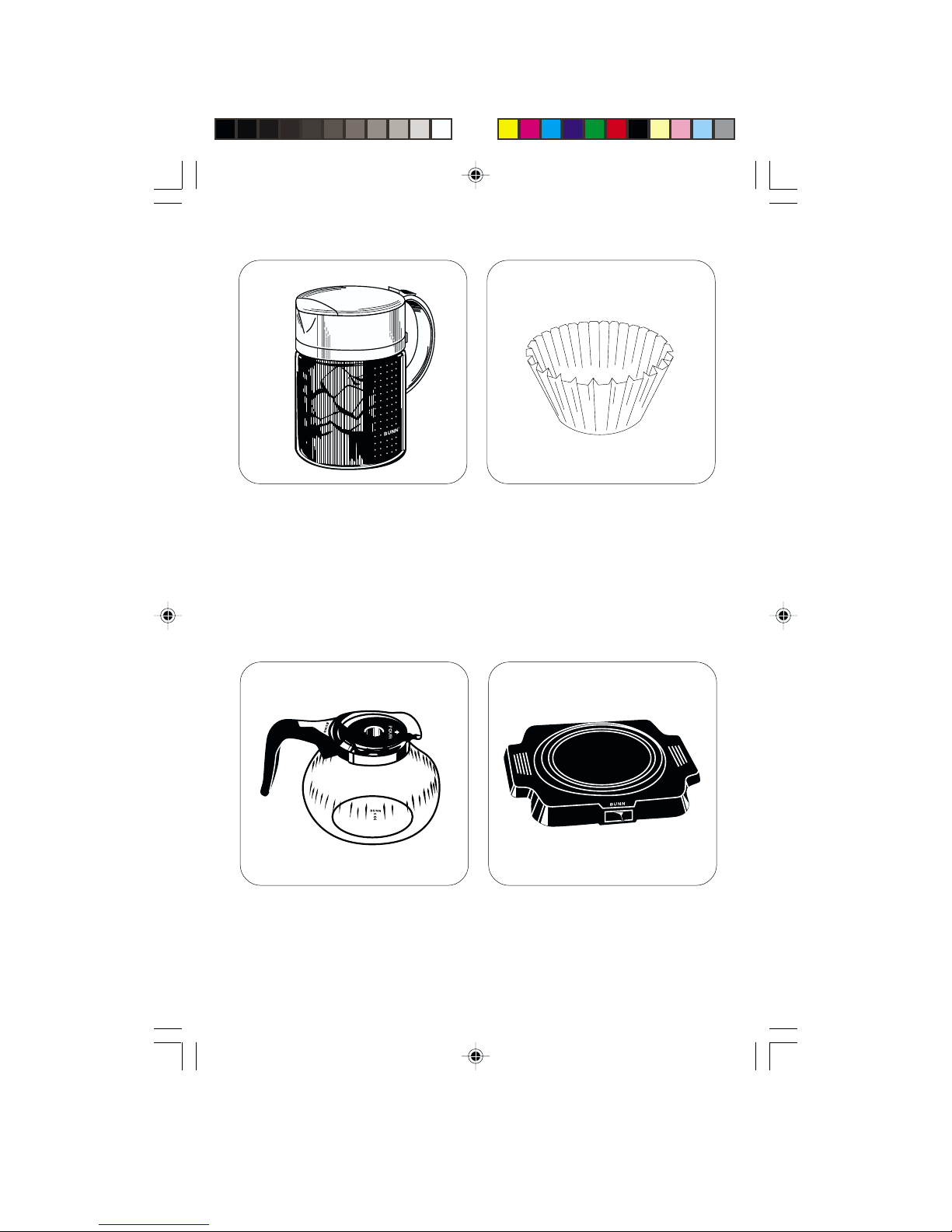

BUNN COMPANION PRODUCTS ............................. 9

ROUTINE CLEANING .............................................. 10

DELIMING ............................................................... 10

HARD WATER ......................................................... 10

WATER QUALITY .................................................... 11

SOFTENED WATER/DECAFFEINATED COFFEE ..... 11

DRAINING THE BREWER ....................................... 11

AUTHORIZED SERVICE .......................................... 11

LIMITED WARRANTY .............................. Back Cover

2866

Hazardous Voltage!

Can Cause Fire Or Electrical Shock!

Do Not Disassemble The Brewer!

There Are No User Serviceable Parts Inside!

Repair Should Be Done By Authorized Service Personnel!

(Refer to page 11 )

WARNING

BUNN

Pour-Omatic®

HOME MODEL COFFEE BREWER

HOT WATER

TANK

(LOCATED INSIDE)

VACATION

SWITCH

HINGED

FLIP-LID

WARMER

SWITCH

DECANTER

P-210

This symbol alerts you to

important operating and

service instructions.

This symbol alerts you to the

risk of fire or electrical shock in

the accompanying message.

BREW

FUNNEL

P-229/P-230

RISK OF FIRE OR ELECTRICAL SHOCK

■Read all instructions.

■Do not touch hot surfaces.

Use handles or knobs.

■Do not place cord, plugs, or

brewer in water or liquid.

■Close supervision is necessary

when the brewer is used by or

near children.

■Unplug from outlet when not

in use and before cleaning.

Allow to cool before putting

on or taking off parts, and

before cleaning.

■Do not operate the brewer

with a damaged cord or plug

or after the brewer malfunc-

tions, or has been damaged in

any manner. Return the

brewer to an Authorized

Service Facility for

examination, adjustment, or

repair. (Refer to page 11.)

■The use of an accessory not

evaluated for use with this

brewer may cause injuries.

■For household use only. Do

not use outdoors.

■Do not let cord hang over edge

of table or counter, or touch

hot surfaces.

■Do not place the brewer on or

near a hot gas or electric

burner, or in a heated oven.

■Do not use brewer for other

than its intended use.

■Do not place or remove

funnel, decanter, or decanter

lid while brewing.

■The decanter is designed for

use with this brewer. It must

never be used on a range top

or in a microwave.

■Do not set a hot decanter on a

cold surface.

■Do not use a cracked decanter

or a decanter having a loose or

weakened handle.

■Do not clean decanter with

cleansers, steel wool pads, or

other abrasive materials.

IMPORTANT SAFEGUARDS

Follow these basic safety precautions when using electrical appliances

to reduce the risk of fire, electric shock, and/or personal injury:

SAVE THESE INSTRUCTIONS

■A short power-supply cord is used to reduce the risks resulting from

becoming entangled-in or tripping-over a longer cord.

■If an extension cord is used, the marked electrical rating of the

extension cord should be at least as great as the electrical rating of

the brewer and the cord should be arranged so that it will not hang

over edge of table or counter where it can be pulled on by children

or tripped over.

GENERAL INFORMATION

NOTE - THE BREWER IS NOT READY TO PLUG-IN

Improper installation will result in permanent damage and void the

limited warranty. Read & follow the instructions on the next page.

■This brewer is designed to remain plugged-in at all times

(except during initial installation or when cleaning).

■A vacation switch is provided on the lower left side to completely

shut-off all electrical components when your plans take you away

from home for three or more days. Safety features, designed into the

BUNN®coffee brewer, make the daily use of this switch unnecessary.

■Whenever the brewer has been shut-off or unplugged, fill the tank

with water and allow the water in the tank to heat to the proper

temperature before using (about fifteen minutes or until the heating

sound stops).

■Your BUNN coffee brewer has a specially designed tank to keep the

water at the proper temperature. This constant supply of hot water

assures the correct method of brewing coffee, in less than three

minutes.

■The brewed coffee flows into the decanter where it is kept at

serving temperature on the porcelain decanter warmer. The warmer

is controlled by the lighted on/off switch on the front of the brewer.

NOTE- The warmer switch only controls the decanter warmer.

■While coffee is being brewed, the newest water in the tank is heated

to the proper temperature and held until needed.

■The decanter lid reduces coffee evaporation and temperature loss.

■Hot water, approximately 50°F hotter than that available from your

hot water faucet, is always available for other uses.

■The brewer is equipped with a polarized cordset. One blade of the

plug is slightly larger than the other. This is a safety feature and

allows the plug to fit into the outlet only one way. If you are unable

to insert the plug into the outlet, try turning it over. If the plug still

does not fit, contact an electrician to update your outlet. Do not

attempt to bypass the safety aspect of this polarized plug.

■The sprayhead will periodically become loose. Using extreme

caution not to burn yourself, retighten the sprayhead with your

finger tips.

NOTE- A severe burn may result if the sprayhead becomes

loose and falls off while brewing.

OFF

PREPARING THE BREWER FOR USE

NOTE - THE BREWER IS NOT READY TO PLUG-IN.

Raise the hinged flip-lid.

Close the lid and plug-in the brewer.

Slide an empty brew funnel into the brewer under

the warmer switch and place an empty decanter on the

warmer. Pour two pitchers of water (filled to the 48 oz

line) into the screened area on top of the brewer. Wait

two minutes between pitchers to allow the water to fill

the tank. When the tank is full, some water will flow

through the funnel and into the decanter.

P-199

P-196

P-214

P-219

Press the bottom of the vacation switch, located on the

lower left side of the brewer, to the "ON" position.

The vacation switch controls power to the tank heater.

Initially you will have to wait approximately fifteen

minutes in order for the water to reach brew

temperature.

Empty any water that has collected in the decanter.

You’re not done yet! The next page leads you through the five

easy steps to ‘BREWING DELICIOUS COFFEE’

BREWING DELICIOUS COFFEE

Insert a BUNN®coffee filter into the brew funnel.

(Be sure to use BUNN coffee filters for proper

brewing. There is a difference.)

Measure coffee into the filter and gently shake

to level the bed of grounds.

Make sure that the sprayhead is tight. Slide the brew

funnel into the brewer under the warmer switch. Snap

the decanter cover on the empty decanter and place

the decanter on the warmer beneath the brew funnel.

Place the lighted warmer switch in the "ON" position.

Raise the hinged flip-lid and pour water into the top

of the brewer. The water pitcher, supplied, will yield

approximately eight 6 ounce cups of brewed coffee

when filled to the 48 oz line. Your BUNN Pour-Omatic

will begin brewing coffee immediately.

P-206

P-205

P-216

P-196

P-215

When brewing has stopped, remove the brew funnel

and discard the filter and grounds. Do not touch hot

grounds.

HOT WATER

The same basic steps can be used to obtain hot water by omitting the filter and

coffee. The water from your BUNN coffee brewer is approximately 200°F. This

is hotter than the hot water from your faucet and must be handled with care.

COFFEE FUNDAMENTALS

Brewing delicious coffee is similar to cooking any favorite food. Both

require a good recipe. Proper coffee making needs quality equipment to

precisely control water temperature, volume, and brew time. The BUNN®

coffee brewer assures consistency in your recipe by controlling all of

these elements. The only variables remaining in the recipe are the grind

and amount of coffee used.

The amount of ground coffee is generally determined by the grind.

For best results, we recommend a drip (medium) grind.

Hot water extracts many elements from the ground coffee, some

desirable, some not. The taste and aroma are referred-to as strength, the

acidity as bitterness. Increasing the amount of ground coffee results in a

stronger beverage, and decreasing it results in a weaker beverage.

As the amount of ground coffee decreases, you'll note an increase in

the bitterness of the beverage. This happens because the hot water

begins to remove the undesirable elements such as acidity after all of the

desirable tastes and aroma have been removed.

Fresh ground coffee gives the best results. Always store the ground

coffee in a cool, dry area away from other food items with strong odors.

When stored in a refrigerator, keep it in an airtight container.

BREWING TIPS

When properly brewed, the difference between the best quality

ground coffee and a poor quality ground coffee becomes very dramatic.

Proper brewing requires little effort with the BUNN coffee brewer.

You'll always have a great coffee experience if you follow these tips:

1) Always start with clean equipment.

2) Always use fresh cold water.

3) Always use BUNN paper coffee filters for proper extraction.

4) Using 2 ounces of fresh drip grind coffee for each full pot (48 oz) will

give you a consistently great pot of coffee with a full-bodied flavor

and aroma. However, the real criteria is personal taste. Adjust the

recipe until it suits you. If you need to make a smaller batch,

experiment with less water and ground coffee.

5) Keep the beverage at the correct serving temperature by setting

the decanter on the porcelain warmer. For the freshest flavor, don't

keep brewed coffee for longer than an hour.

DECANTER HANDLE MAINTENANCE

Using a phillips screw driver, periodically tighten the screw in the handle.

BUNN®COMPANION PRODUCTS

EASY TEA™ PITCHER

Now the delicious taste of fresh

brewed iced tea is available with a

convenient accessory to all BUNN

home model coffee brewers. The

contemporary design of the BUNN

Easy Tea™ Pitcher is sure to enhance

any decor.

COFFEE & TEA FILTERS

Constant quality testing assures

consistent flavor without any grounds

in the cup. BUNN paper filters are

packaged to maintain their fluted

shape for use in most basket-type

drip coffee makers and the BUNN

Easy Tea™ pitcher.

AUXILIARY WARMERS

Durable, porcelain coated, scratch-

resistant warmer with lighted ON/

OFF switch keeps an extra decanter

of coffee, tea, hot chocolate or soups

at perfect temperature.

BCD DECANTERS

Extra glass decanters are an

attractive, useful way to serve coffee,

hot or iced tea, soups, cold juices,

hot chocolate, etc.

ROUTINE CLEANING

Rinsing the brew funnel and decanter after each

use is the only routine cleaning required. Occasionally,

wipe the outside of the brewer including the area

above the funnel with a damp cloth. (The brew

funnel and decanter are top-rack dishwasher safe.)

DELIMING

Periodically, you should delime the brewer to clear any deposits that may

have accumulated due to impurities in the water source.

NOTE- Unplug the brewer before deliming.

1) Unscrew the sprayhead with your fingertips and set it

aside.

2) Insert all but two inches of the flexible deliming spring

probe (supplied) through the sprayhead opening.

3) Slide the tool in-and-out five or six times to loosen

mineral deposits collected in the sprayhead tube.

Remove it and set it aside.

4) Check the holes in the sprayhead for mineral deposits.

These may be cleared by using a toothpick. Rinse the

sprayhead with water before reinstalling.

5) Plug-in the brewer and allow the water in the tank to

reheat before using. The frequency of

deliming depends on the mineral

content of your water.

HARD WATER

(Recommended At Least Every Three Months In Hard Water Areas.)

1) Unplug the brewer.

2) Slide an empty brew funnel into the brewer under the warmer switch and

center an empty decanter on the warmer.

3) Pour one quart of white vinegar into the top of the brewer.

4) Empty the decanter when liquid stops flowing from the funnel.

5) Plug-in the brewer and let it set for two hours.

6) Drain all water and loosened sediment from the brewer by following steps 1-

5 of the draining procedure on the next page, then return to step 7, below.

Return to this point after draining, to complete the deliming process.

7) Pour three pitchers of fresh, cold water into the top of the brewer. Empty the

decanter between pitchers.

8) Taste the water coming out of the brewer. Pour additional pitchers of fresh,

cold water into the brewer as needed until the water has no vinegar taste.

9) Plug-in the brewer and allow the water in the tank to reach brewing

temperature before using. (approximately 15 minutes.)

P-227

P-228

P-208

Table des matières

Autres manuels Bunn Cafetière

Bunn

Bunn Single TF DBC Guide de dépannage

Bunn

Bunn Smart Wave Series Guide de dépannage

Bunn

Bunn CDBC Manuel d'instructions et de sécurité

Bunn

Bunn CT Series Guide de dépannage

Bunn

Bunn ICBA Guide de dépannage

Bunn

Bunn AXIOM DV-APS Manuel utilisateur

Bunn

Bunn SINGLE Manuel d'instructions et de sécurité

Bunn

Bunn BT10 Instructions d'installation

Bunn

Bunn CW-APS Guide de configuration

Bunn

Bunn ThermoFresh Series Guide de référence rapide

Bunn

Bunn FPG-2 DBC Instructions d'installation

Bunn

Bunn TWIN INFUSION SERIES ICB-TWIN TALL Manuel utilisateur

Bunn

Bunn CDBCF Airpot Manuel d'instructions et de sécurité

Bunn

Bunn NHBX Manuel utilisateur

Bunn

Bunn DUAL SH DBC WITH SMART FUNNEL DUAL068000 Manuel du propriétaire

Bunn

Bunn Single SH Manuel d'instructions et de sécurité

Bunn

Bunn IC3B Manuel

Bunn

Bunn CDBCF15 APS Manuel utilisateur

Bunn

Bunn CW-APS Manuel d'instructions et de sécurité

Bunn

Bunn Single TF Manuel du propriétaire

Bunn

Bunn GPR Mode d’emploi

Bunn

Bunn IMIX-3A Guide de dépannage

Bunn

Bunn CRT5 Guide de dépannage

Bunn

Bunn VP17 Series Manuel d'instructions et de sécurité

Manuels Cafetière populaires d'autres marques

Taurus

Taurus Livorno 6 Manuel utilisateur

Delta-q

Delta-q QUICK Manuel utilisateur

Black & Decker

Black & Decker BLACK DECKER HOME DE790 Instructions d'installation

Saeco

Saeco Vienna Plus Sup 018M Manuel utilisateur

DeLonghi

DeLonghi DC300 Manuel utilisateur

INCAPTO

INCAPTO BXCO1470E Manuel utilisateur

Bosch

Bosch TASSIMO finesse TAS16B Series Manuel utilisateur

Exido

Exido 245-072 Manuel utilisateur

Animo

Animo OptiVend Choco Manuel utilisateur

Siemens

Siemens TQ505DF Series Manuel utilisateur

DeLonghi

DeLonghi ECI341 Manuel utilisateur

Krups

Krups KT406511 Manuel utilisateur

Cimbali

Cimbali M32 Classic Manuel utilisateur

Philips

Philips HL3844N Manuel utilisateur

Bosch

Bosch TES 515 SERIES Manuel utilisateur

Tekmatix

Tekmatix TMFM - 65 Manuel utilisateur

Scarlett

Scarlett SC-CM33005 Manuel utilisateur

LAVAZZA

LAVAZZA CLASSY PLUS Manuel utilisateur
