BTEK BT-470TL Manuel utilisateur

Page | 1

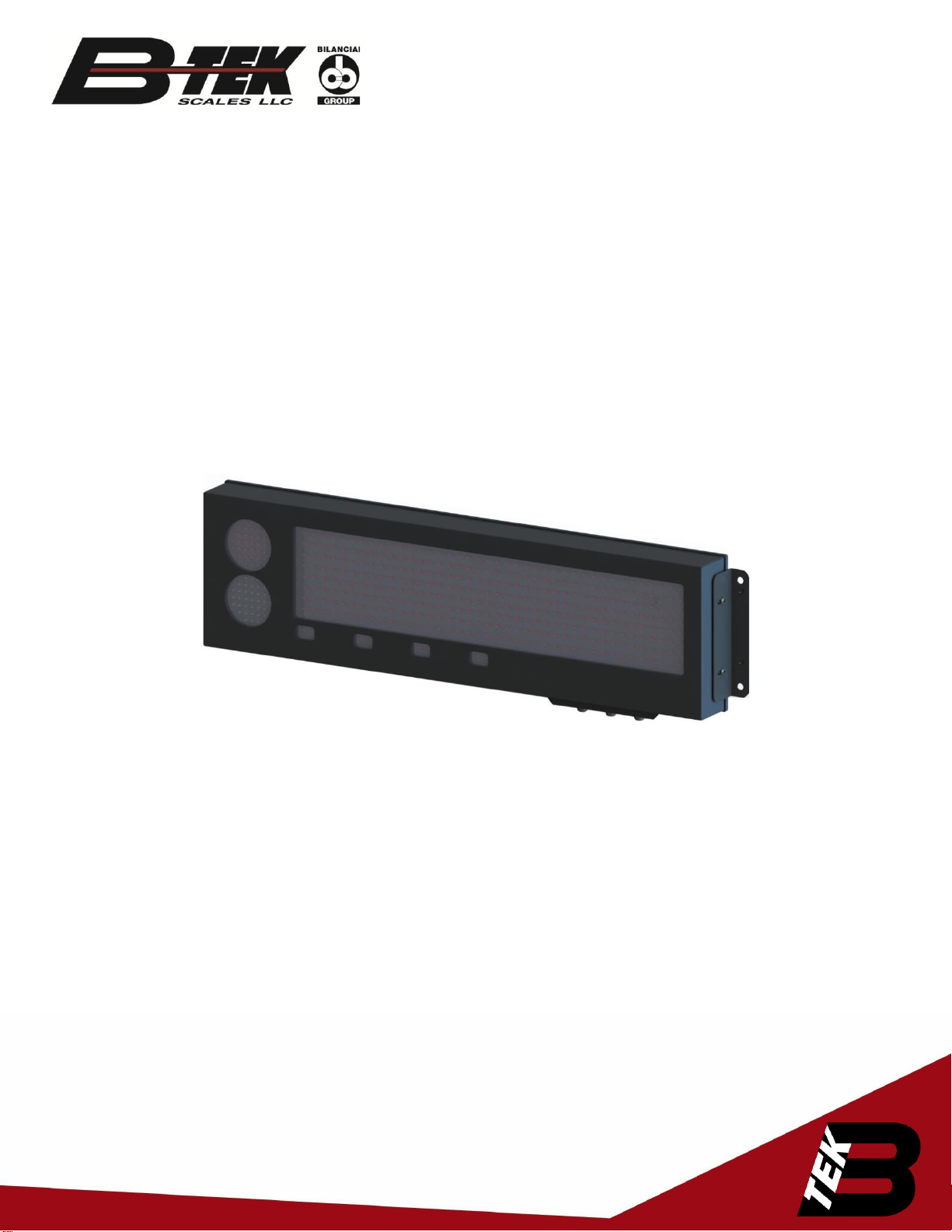

BT-470TL REMOTE DISPLAY

Item# 841-100043 / 841-100044

OPERATION & SETUP GUIDE V1.0

Page | 2

Contents

Introduction................................................................................................................................................... 3

Downloads................................................................................................................................................. 3

Wall and Pole Mounting................................................................................................................................ 4

Autolearn Mode............................................................................................................................................ 6

Embedded User Menu .................................................................................................................................. 7

Factory Default.......................................................................................................................................... 8

Connecting the Display to a Computer for Configuration Purposes.............................................................. 9

WagSet (Windows Operating System only)............................................................................................. 10

Web Panel Configuration Method........................................................................................................... 11

Remote Display Connections....................................................................................................................... 12

Ethernet Settings to Transmit Weight Data ................................................................................................ 13

Replacement Part Item Numbers................................................................................................................ 14

Page | 3

Introduction

BT-470TL remote display is designed to display measurement results transmitted by

weighing terminals. The display operates in the automatic mode by default (see Autolearn)

and in standard installations does not require prior configuration. For advanced options, it is

necessary to adjust the settings via WagSet software (from version v3.00), or through the

user menu embedded in the device, or Web browser.

The WagSet software enables advanced configuration of the device:

•Defining of the communication protocol with any weighing terminal,

•Restoring the default settings, displaying the software version, displaying the saved

communication protocol, and changing the network settings

•Setting the response to events reported by the weighing terminal (e.g. overloading,

underloading, instability, scale error)

•Enabling Alpha characters to be displayed within the data string.

•Setting advertising text in the following languages: EN, PL, RU, DE, CZ, SK, HU, UA,

LT, LV, NO, SE, FR, NL, BR, RO, ES, TR, FI.

•Changing the IP address and port of the weight indicator sending the data.

Default Indicator IP: 192.168.1.12 sending data on port 2102

The detailed information concerning the display configuration from a PC can be found in the

manual supplied with the WagSet software. Click Help > Help or press the F1 button. The way

of connecting the display to a PC is described in the “Connecting the display to a computer for

configuration purposes” section of this manual.

The user menu embedded in the device allows the basic display configuration without using a

PC:

•Manual selection of the communication protocol from the list, enabling the operation with

selected weighing terminals

•Restoring the default settings, displaying the software version, displaying the saved

communication protocol, communication ports, displaying the IP address, and subnet

mask.

Downloads

WagSet: WagSet Software Download

Devicer 2.08: Devicer 2.08 Download

Firmware: Firmware_v3.16

Page | 4

Wall Mounting

The BT-470 Item# 841-100044 can be wall mounted by fastening the two angle brackets to the

side of the display, then attaching to a sturdy wall. When installing without the visor, it is

recommended to install in an area protected from direct sunlight and rain.

Item# 841-100043 includes a visor, and pole mounting hardware. The kit included brackets for

a 3” pole, but other sizes can be purchased as needed. Attach the Unistrut to the back of the

visor, then slide clamps into unistrut, tighten the bolt to secure to the pole. Then attach

scoreboard to the visor, selecting one of the three holes to adjust display angle.

Optional Visor for pole or wall mounting

Page | 5

Pole Mounting

The mounting rails are fitted directly to the rear part of the device housing with the screws included in the set.

They enable the installation of mounting clamps, which are used to install the device on a pole.

Two mounting rails are provided for each remote.

Key:

1- flat bar with threaded pivots to be inserted into the mounting rail,

2- pipe / pole,

3- mounting bolts with a set of nuts and washers,

4- mounting elements of the fastening.

The mounting clamps for pipes are available in the following size:

•107-01-25-001 - Mounting clamps for mounting the device on poles 2” –4” (60 - 129 mm in diameter).

In order to properly install the device on the pole, two rails and two mounting clamps should be used.

Page | 6

Autolearn Mode

The autolearn mode is enabled by default (position no. 0 is set in the 'proto' submenu). To

disable it, the communication protocol must be set manually using the embedded user menu or

the WagSet software.

When autolearn mode is active, each time the device is started, it detects the parameters of the

communication with the weighing terminal and analyses the structure of the data frames it

sends. Then it adjusts the remote display's settings to enable correct communication with the

terminal. The whole operation lasts several seconds, depending on the baud rate and the time

intervals between consecutive frames. All remote display’s communication interfaces are

supported, i.e. RS232/RS485/CL and Ethernet.

The autolearn procedure is as follows:

1. Baud rate detection - dot 1 flashing on the display

2. Baud rate verification - dot 1 solid, dot 2 flashing

3. Analysis of the protocol and its frame structure - dots 1 and 2 solid, dot 3 flashing

During the analysis of the protocol and its frame structure, the measurement unit sent is also

recognized. The following tags are recognized - "kg" 'K' " t" 'T' 't' " g" "gr" 'G' 'g' "lb" 'L' 'l' "oz" 'o'

'O'. In case the terminal does not send a unit or sends a unit that is not recognized by the

autolearn function, the default unit will be set to lb.

The "Autolearn" function detects gross/net measurements if the following markers in the frame:

- for the Net measurement: "N" from the ASCII table,

- for the Gross measurement: "G" from the ASCII table.

The "Autolearn" function detects Traffic Light status if the following markers in the frame:

- Green: "B" from the ASCII table,

- Red: "R" from the ASCII table.

The autolearn mode supports the following transmission parameters:

Baud Rate

2400, 4800, 9600, 19200

Transmission parameters (data bits, parity, stop bits):

8N1, 7E1, 7O1

Note: If the data is sent via the Ethernet to the display and then one of the other interfaces, i.e.

RS232 / RS485 / CL is connected - the autolearn procedure will be carried out again in order to

determine the UART parameters and the protocol (the protocol for serial interfaces may differ

from the Ethernet protocol).

Page | 7

Embedded User Menu

The button used to operate the menu is located on the controller board inside the display

housing and marked B1. To access, unscrew the two philips head screws and slide out the

controller board drawer. Once you have finished the configuration, push the drawer back,

making sure that the seal is not compromised.

Fig. 1

Location of button B1

The user menu has the following options:

▪info

▪proto

▪custm

▪lights

▪reset

To activate a specific option, keep the button pressed until this option appears on the screen

("info", "proto", "custm" or "reset"). The option is entered after releasing the button when its

name is being displayed. If the button is released when the screen is blank between two

consecutive options, the display will return to its normal operation.

"info" option allows you to display the device software version and the network layer settings (IP

address, network mask, communication port for the WagSet software and communication port for

the weighing terminal).

Page | 8

“proto”option allows you to select the display communication protocol to work with the selected

weighing terminals (Tab. 1). You can change the protocol by short pressing the button. Saving

the selected protocol is accomplished by long holding down the button (until the messag

"Saved" appears). Exiting the "proto" option happens automatically after 30 seconds of user

inactivity

“custm” option allows you to select the display communication protocol to work with the

weighing terminals of the selected clients. These protocols have special, custom settings

needed for the given client. Setting the protocol is done in the same way as in the case of the

"proto" option - saving the selected protocol is accomplished by long holding down the button

(until the message "Saved" appears), while exiting the "custm" option happens automatically

after 30 seconds of user inactivity.

"lights" option allows you to choose the configuration of the traffic lights. Three profiles are

available:

•1 –lights: if there is no communication for more than 0.5 second, the red light will show,

•2 –lights: if there is no communication for more than 3 seconds, the "X" characters will be

displayed on both red and green light,

•3 –lights: if there is no communication, the status of the traffic light will not change.

Switching between the individual profiles is done by pressing the "B1" micro button. Saving the

selected profile is accomplished by long holding down the "B1" micro button, until the message

"Saved" appears. Exiting the "lights" option comes after 30 seconds of the user inactivity.

Factory Default

“reset” option allows you to restore the default settings of the remote display and to activate the

autolearn mode. The default network layer settings will also be restored (IP address:

192.168.1.11, network mask: 255.255.255.0, configuration port for the WagSet software: 2101,

communication port for the weighing terminal: 2102). To restore the default settings you should

press the B1 button and hold it down until the message "reset" appears during the normal

operation of the device. Hold the button down until the message "reset" starts flashing and do

not release it until the message "default" is displayed. Releasing the button before the message

"default" appears will result in interrupting the process of restoring the default settings and the

display will continue working according to the previously set parameters. Uploading new

network settings is possible using the WagSet software or via web panel.

Page | 9

List of the supported protocols

Note: “Proto” 53 is the B-TEK string bold font, “Proto” 54 is B-TEK string normal font,

“Custm” 28 is the Bilanciai Extended String.

Note 2: B-TEK strings allow alpha characters to be displayed in place of weight data.

Seq.

no.

Terminal name

Protocol

Seq.

no.

Terminal name

Protocol

Autolearn function

CAS NT570A

Rhewa 83 Plus

Cardinal 825

Radwag

Cardinal 204 225 748P

HBM WE2108

AMCS Group

HBM WE2110

A&D AD4329 AD4401

Rinstrum 320 420

Auto1

Ian Fellows SG0

SysTec / Pronova

Ian Fellows SG0 Status

SysTec

Zemic

Precia Molen

Master D

Pfister DWT800

Precia Molen I300 Slave A+

Pfister DWT410

Precia Molen I300 Master A+

Axis Long

Dini Argeo

Standard String

Avery L225

Mettler Toledo IND560

T –Scale U8

Fawag

Rice Lake 480 920i

Leon Engineering

W-OUT

Vishay VT300

Soehnle 3010 3011 3015

Belt Way

Eurobil bilance Iscale

Continua

Axtec

Compatible with the SMA protocol

SMA

GSE 460 465

Sartosius

Remote Control

GSE 250

AUTO1

Sensocar

STB-22

Flintec

Utilcell Matrix II

Format1

Schenck

Disomat B

Precia Molen i35

Master A+

Scheneck Opus Serial

Precia Molen i35

Master D

Gravex GX2SS

SMART SWIFT

Gravex GX18

Epelsa: BC, BI, Dexal, Cyber, Orion, Orion

Plus, Cyber Plus, V-36

Epelsa Cada

LetraB1

IHG TMI LP7510

B-tek String - Bold Font

Serial String

Arpege MasterK

B-tek String –Normal Font

Serial String

Bilanciai D410

Page | 10

Connecting the Display to a Computer for

Configuration Purposes

WagSet (Windows Operating System only)

WagSet Software Download

Before configuring the display from WagSet, connect it to a computer via Ethernet or RS232.

When using RS232, connect to the port of the computer as shown in the fig. below. See

“Remote Display Connections” for location of the RxD and GND connections.

To display alpha characters, select one of the B-TEK strings in configuration. Open the file, then

select the measurement result tab, then select “display” under “Display every character in the

result area”. Send configuration to the display. In your weight data stream, characters 3 thru 9

(same as weight digits) can be used to display messages on the display.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels BTEK Moniteur

BTEK

BTEK BT-470 Manuel utilisateur

Manuels Moniteur populaires d'autres marques

Linear Acoustic

Linear Acoustic LQ-1000 Manuel utilisateur

AOC

AOC I2579V Manuel utilisateur

Gateway

Gateway FPD1520 Manuel utilisateur

Furuno

Furuno Mu 120c Manuel utilisateur

Asus

Asus VB171D - 17" LCD Monitor Manuel utilisateur

Dell

Dell S2230MX Instructions d'utilisation

Philips

Philips 107C64 Manuel utilisateur

Dell

Dell S2409WFP Manuel utilisateur

EverFocus

EverFocus EN-7517E Manuel utilisateur

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Manuel utilisateur

Dell

Dell Precision 7680 Mode d’emploi

LG 50PM1M - - 50" Plasma Panel Manuel utilisateur

Bosch

Bosch DDU 9 Manuel utilisateur

Acer

Acer A231HL Manuel utilisateur

Philips

Philips 86BDL4152T Manuel utilisateur

NEC

NEC AccuSync LCD5V Manuel utilisateur

Emay

Emay SleepO2 Manuel utilisateur

IBM

IBM 6360 Instructions d'installation
