BT Diverse 2010 Manuel utilisateur

User Guide

Diverse

Deskphone

For use with Diverse 1010, 1015, 2010, 2015, 2-Line

and ISDN base stations

This equipment is not designed for making emergency telephone

calls when the power fails. Alternative arrangements should be

made for access to emergency services.

1ABC

2DEF

GHI

4JKL

5MNO

WXYZ

TUV

PQRS

GHI

✱

RCL

–

[■■■]

Diverse 2000 Deskphone

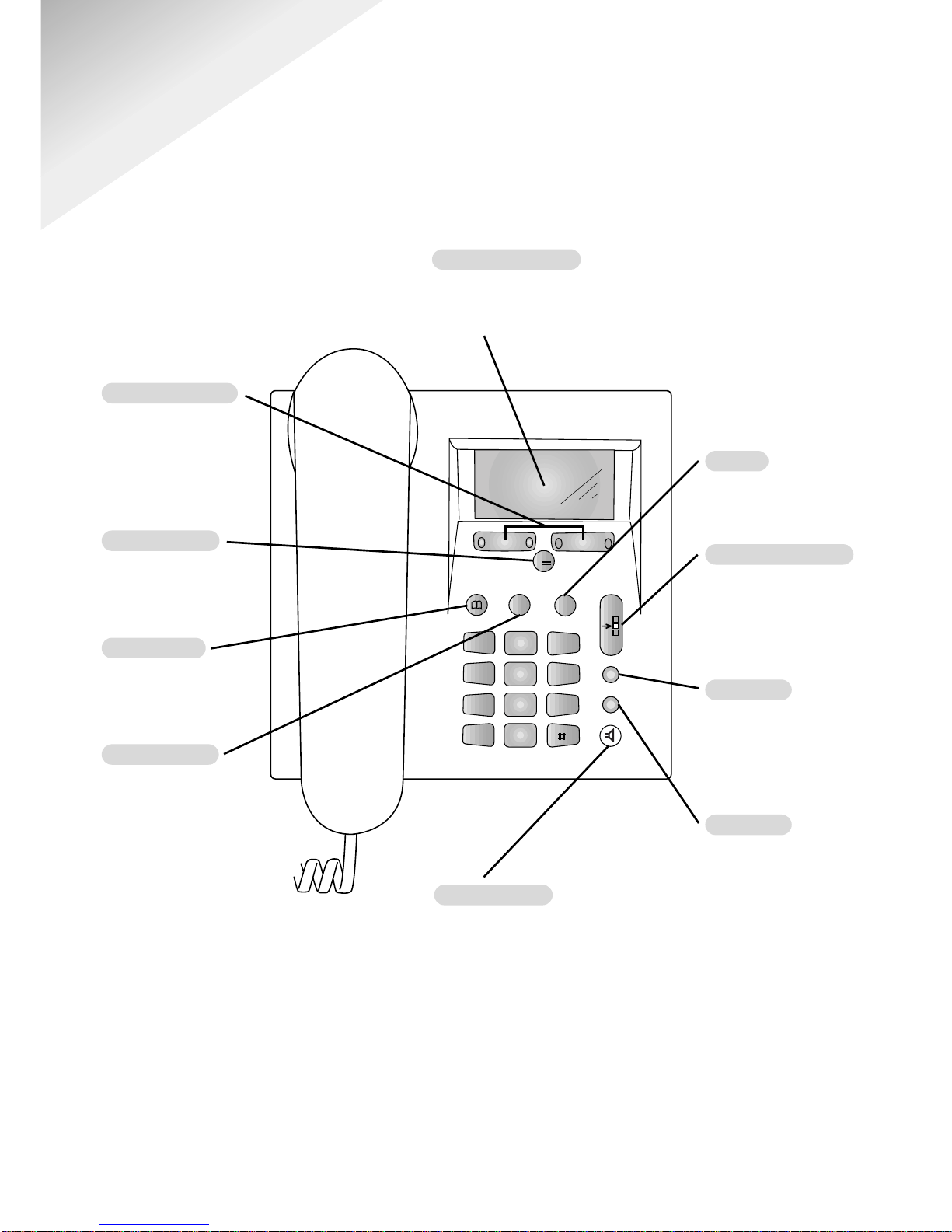

At a glance

Option buttons

Lets you select

from the menu

options on the

display. Recall

For use with

switchboards.

Display

Illuminated display shows

dialled numbers and menu

structure.

Volume +

For increasing

loudspeaker/hand

set volume during

a call.

Menu button

Brings menu

onto the display

Quickdial button

For dialling a

stored number

specified by the

user.

Phonebook

For storing

numbers.

Shortcut key

For storing

frequently used

functions

(e.g. call barring,

On/Off)

Volume –

For reducing

loudspeaker/hand

set volume during

a call.

Loudspeaker

For handsfree operation.

Please open this page for an ‘at a glance’

guide to your Diverse Deskphone.

For your records

For warranty purposes, proof of purchase is

required, so please keep your receipt.

Personal Emergency Numbers

Please use this space to record your selected

Diverse Deskphone PIN code.

See page 29 for the default PIN code and for full

instructions on how to change that code for

added security.

Date of purchase:

Place of purchase:

Serial number (on the underside of the telephone base station):

Purchase price:

In this guide

At a glance 1

Introduction 4

Installation 6

Registering your Diverse

Deskphone with a base station 8

Your Diverse Deskphone

menu display 11

Using the Diverse Deskphone 13

Using the Diverse Deskphone

with a switchboard 27

Additional Features 29

Operating with additional

base stations 33

How to use the shortcut

function 36

Maintenance 40

Help 41

Technical Information 42

Index 43

Building up a phone

system

You can add further handsets or

Deskphones to your base stations to

build up a comprehensive and

easy-to-use cordless telephone system.

Most Diverse base stations can have up

to 6 handsets or Deskphones registered

to them (the Diverse 2-Line and

Diverse ISDN will register 8). You can

to three base stations.

Introduction

Your Diverse Deskphone has been designed for ease of use

and made to the high standards set by BT.

Please read the instructions carefully

before use and retain this user guide

for future reference.

Your Diverse Deskphone is designed for

use with a Diverse telephone system.

It must be registered to an existing base

station before it will work.

This guide explains the basic features

of the Diverse Deskphone. For more

comprehensive instructions see your

main Diverse user guide. The instructions

for using a Diverse Deskphone are the

same as using a Diverse 2000 Executive

Handset. If you have a Diverse 2-Line

or ISDN base station, you should also

follow the more detailed instructions

for the Executive Handset as described

in the user guides that are supplied

with the base station.

DECT

By purchasing your Diverse Deskphone

you now own a product which offers

flexibility of location, combined with

the performance advantages of a high

quality telephone system. It complies

with the Digital Enhanced Cordless

Telecommunications (DECT) standard

and offers unparalleled quality and

features.

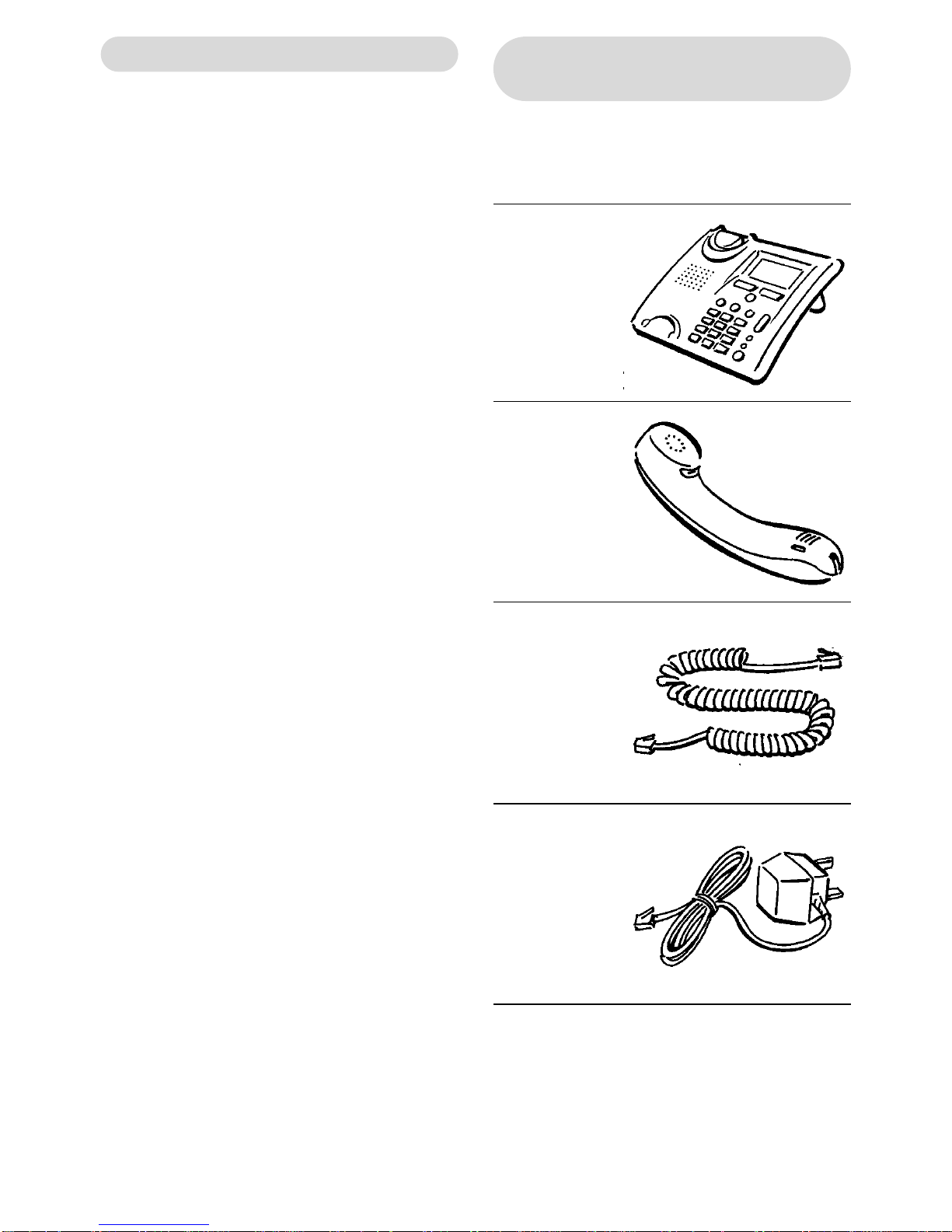

Unpacking your Diverse

Deskphone

If anything is missing, please contact

your place of purchase immediately.

•Diverse

Deskphone

•Handset

•Handset cord

(coiled)

•Mains

power unit

Important information

1. Do not use any power supply other

than the one provided with your telephone

unit (supplied BT unit C39280-Z4-C66).

Use of other power supply units may

cause irreparable damage to your

telephone; it will invalidate your warranty

and the approval given to the apparatus.

2. Research has shown that in certain

cases medical equipment can be affected

by cordless telephones. A distance of

at least one metre should therefore be

observed between the telephone and

medical equipment. Also follow any

special instructions from the institution

in which the product is to be used.

3. Diverse telephone systems can also

interfere with other electrical equipment

e.g. answering machines, TV and radio

sets, clock/radio alarms and computers,

if placed too close. To avoid risk of

interference place the unit at least one

metre away.

4. If you wear a hearing aid please note

that a humming noise may result from

the radio signals sent between the base

station and handset.

5. There is a slight chance that your

phone could be damaged by an electrical

storm. We recommend that you unplug

your Diverse Deskphone from the mains

power during storms.

6. Do not use the unit in bathrooms, near

fire or water, or in areas where there is

a danger of explosion.

7. Clean the Diverse Deskphone with a

damp (not wet) cloth or antistatic wipe.

Never use a dry cloth as this may cause

a static shock.

Insert the telephone power supply lead

into the socket marked on the underside

of the telephone. Put the other end of

the plug-in power unit into a 220/230V

electricity socket.

For your own safety use only the

BT approved plug-in power unit

(C39280-Z4-C66) supplied with your

telephone.

To make and receive calls your

telephone needs to be positioned within

range of its base station. The maximum

range inside most buildings is 50 metres.

Outside, the range is extended to

approximately 300 metres (the range will

vary depending on where your Diverse

base station and Diverse Deskphone are

sited, and the conditions within your

building). You can set your telephone

to beep if it is not within range.

See page 23.

Plan the location of your

Diverse Deskphone

Make sure your Diverse Deskphone is

within 2 metres of the phone and mains

sockets.

Put the connector (at the straight long

end of the handset cord) into the

socket marked on the underside of the

telephone. Secure the cord in its

groove. Insert the other end of the cord

into the handset.

Installation

Follow these steps to set up your Diverse Deskphone ready

for use.

2Connect the Deskphone to

the mains power supply

1Connect the handset to

the Deskphone

In order to ensure that you achieve

the maximum range possible with your

Diverse system please note the following

advice:

Install the base station on a central

location in your home or office. Avoid

placing the base station or Deskphone:

• Behind metal doors.

• Under the stairs.

• Behind heavy furniture or cabinets.

• In rooms with thick or metal walls.

• Near other electrical equipment, as it

may generate electrical interference.

• In the bathroom or other damp rooms.

These locations will reduce the optimum

range between the base station and the

attached handsets/Deskphones.

Please see the chapter on Registering

your Diverse Deskphone with a base

station.

You will now need to

3register your Deskphone

to a Diverse base unit

Press OK. After a short while all

available telephone extension

numbers will be displayed.

KEYPAD

Enter one of the extension

numbers using the keypad.

The telephone is now registered

as the extension number you

have chosen. The Deskphone

will beep once and briefly flash

INT plus its extension number on

the display. To confirm successful

registration, check that the base

number, eg. Base 1, has stopped

flashing.

If you experience any problems

registering your new phone,

please call the Diverse Helpline

on 0845 798070.

Registering with Diverse

1010,1015, 2010 and

2015 base stations

If your Diverse Deskphone has not been

registered previously to other base

stations, the display will show:

is not displayed, firstly

select the

option from the

SETTINGS

menu, then select the base

station number you wish to register it

with, then follow the instructions below:

Press keypad buttons in order shown

Press OK.

CODE

Enter the base station code

(default

0000

Press the green or grey PAGER

button on the base station (for

about 10 seconds) until you hear

a beep. You now have up to

1 minute to register your

Deskphone.

At the Deskphone

At the base station

Registering your

Diverse Deskphone with

a base station
