Product description

Introduction

The BT Redcare Essential unit is a wireless single path, roaming SIM, alarm signalling

unit for transmitting alarm signals from a customer’s alarm panel, via the BT Redcare

network to an Alarm Receiving Centre (ARC) using pass-through mode of operation.

The Essential unit has a UK roaming SIM with 4G/2G mobile technology.

The unit communicates via the BT Redcare network and a valid TA (Terminal adapter)

account must exist for the unit to communicate. The TA account will have been

populated with the serial number of the unit. Once connected to the platform the unit uses

a poll and response check to determine path status . Path fail alarm is platform generated.

The unit has 8 general purpose alarm inputs, and 2 outputs, making it suitable for

connection to most common alarm panels.

The unit is supplied already fitted with a BT Redcare enabled SIM card.

Primary path fail reporting 60mins

Alarm transmission category EN standards / PD6669 (UK) SP2

PD6669, ENSO131 (2017) Grade 2

Grade option (Table 10 EN50131-1 2020) 2A, 2B

Environmental class II

Information and substitution security AES256

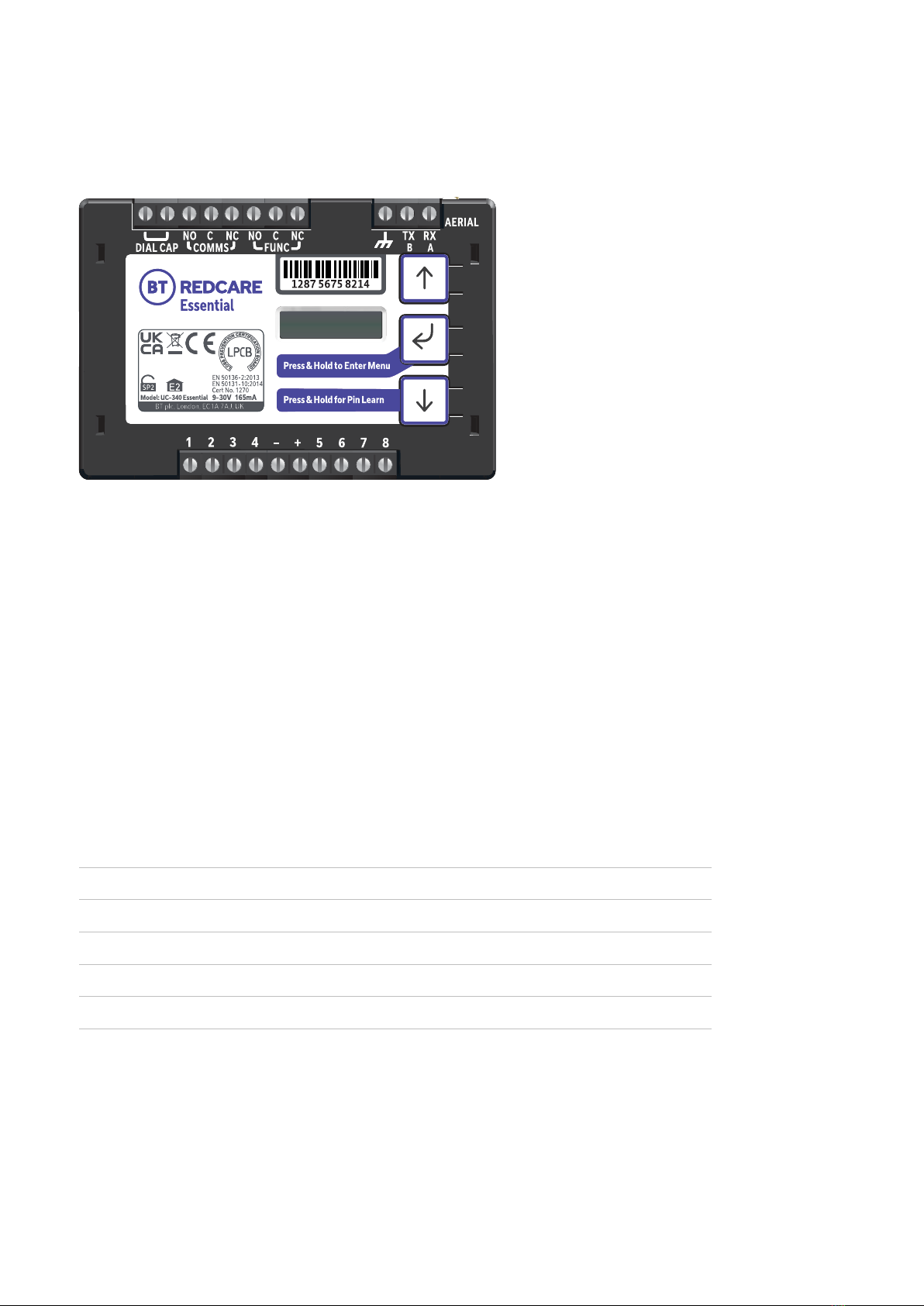

Figure 1 – Essential unit (not to scale)

1277 3427 5899

1292 2430 4763

Essential Essential IP Essential Extra Advanced Ultimate

1287 5675 8214

DIAL CAP

–+

COMMS

NO NCCNO NC

ETH

FUNC

AERIAL

0832-UKCA-CPR-X0002

2831-CPR-X0011

SEE INSTALL GUIDE

EN 50136-2:2013

EN 50131-10:2014

Cert No. 1270g

Model: UC-340 Advanced

9-30V 185mA

DIAL CAP

–+

COMMS

NO NCCNO NC

ETH

FUNC

AERIAL

Advanced

1287 5675 8214 ESA

1287 5675 8214 WPS

1287 5675 8214

DIAL CAP COMMS

NO NCCNO NC TX

FUNC

DIAL CAP COMMS

NO NCCNO NC RX

FUNC

AERIAL

–+

COMMS

NO NCCNO NC

FUNC

EN 50136-2:2013

EN 50131-10:2014

Cert No. 1270

Model: UC-340 Essential

9-30V 165mA

Average Normal Operation Average Max loading (inc. relays

and dial capture operated)

2G/4G unit @12V 70mA 165mA

Specifications

Size: 95mm x 67mm x 17mm

Weight: 73g

Power: 9V – 30V

Current:

Alarm inputs: 8 General purpose inputs 1–8. (-0.5V – 30V)

Alarm threshold: High >2V, and Low <1.3V

Outputs: 2 x Relay NO C NC (COMMS, FUNC). Max rating 1A @ 30V DC

RS232 port: Remote panel access (UDL) and signalling to some intruder panel types

RS485 port: Remote panel access (UDL) and signalling to some intruder panel types

Configuration: Using on-board configuration buttons, web portal or App

Processor: STM32

Wireless module: EL S61

GSM/GPRS/EDGE: Dual band 900/1800MHz, maximum transmit power +34.5dBm

LTE : Penta-Band 700 (Bd28)/800 (Bd20)/900 (Bd8)/1800 (Bd3)/2100 MHz (Bd1),

maximum transmit power +24dBm

Operating range: -10 to +50 degrees Celsius, average 90% non condensing humidity

Safety notes

Warning: Read all safety warnings and instructions. Failure to heed warnings and follow

instructions may result in electric shock, fire risk and/or personal injury.

Work area safety

• Keep work area clean, well lit and free of obstacles.

• Keep floor and walkways clear of cables and materials to avoid trip hazards.

• Keep children and bystanders away while performing installation and

maintenance work.

• Remove any left over materials when finished and keep all items away from children

and pets.

Personal safety

• Stay alert and attentive. A moment of inattention may result in personal injury.

• Do not perform installation or maintenance work when tired or under the influence

of medication, drugs or alcohol.

• Upon commencing work on security system enclosures and components, ensure

the item is securely fixed to the wall and that no components or contents such as the

battery can fall and cause personal injury.

Electrical safety

• Exercise care when working inside security system enclosures:

‑ Metallic tools, fingers, body parts or jewellery coming into contact with mains

wiring and terminals may cause electric shock.

‑ Metallic tools or jewellery coming into contact with battery terminals may cause

sparks, personal injury or create a fire risk.

• Exercise care when drilling into, or inserting fasteners into walls. Pipes and wiring may

be present in the wall and contact with tools or fasteners may provide risk of electric

shock, damage to premises services, or create a fire risk. Locate wiring, pipes and

services first to avoid accidents.

Figure 2 – Layout of terminals (not to scale)

Mounting and wiring

Removal of cover

The top cover can be removed by gently releasing each of the 4 clips on the base of

the unit by pushing the clips outward with a screwdriver blade.

Regular access to the inside of the unit should not be required, although occasional

access may be required to access the SIM card.

Mounting

The unit should be mounted inside the alarm panel, or inside a separate powered

housing, using the sticky mounting pads supplied.

The enclosure must meet or exceed the protection requirements of the particular

security grade for the whole installation as per EN 50131-1.

For optimum performance the supplied aerial should be mounted vertically outside of

and away from the housing by removing the adhesive backing. Ideally the aerial should

not be mounted on a metal surface. The aerial should be installed a distance of 20cm

or greater away from any user or bystander.

1277 3427 5899

1292 2430 4763

Essential Essential IP Essential Extra Advanced Ultimate

1287 5675 8214

DIAL CAP

–+

COMMS

NO NCCNO NC

ETH

FUNC

AERIAL

0832-UKCA-CPR-X0002

2831-CPR-X0011

SEE INSTALL GUIDE

EN 50136-2:2013

EN 50131-10:2014

Cert No. 1270g

Model: UC-340 Advanced

9-30V 185mA

DIAL CAP

–+

COMMS

NO NCCNO NC

ETH

FUNC

AERIAL

Advanced

1287 5675 8214 ESA

1287 5675 8214 WPS

1287 5675 8214

DIAL CAP COMMS

NO NCCNO NC TX

FUNC

DIAL CAP COMMS

NO NCCNO NC RX

FUNC

AERIAL

–+

COMMS

NO NCCNO NC

FUNC

EN 50136-2:2013

EN 50131-10:2014

Cert No. 1270

Model: UC-340 Essential

9-30V 165mA

Connection terminals

The screw terminals for the alarm inputs are suitable for use with a standard 3mm

blade terminal screwdriver.

Power connections

Power to the unit is via 2 screw terminals at the centre, with positive to the right nearest Pin 5.

The supply voltage range is 9V to 30V. The unit is designed to be connected to the Auxiliary

power output on an associated alarm panel, or separate powered enclosure. For use with

intruder alarm panels the power supply must meet the requirements of EN 50131-6.

Ensure the power source is sufficient to power all devices connected. See the power

requirements in the specification section. The account at the Alarm Receiving Centre (ARC)

should be put ‘on test’ before power up, as signals will be sent following initialisation.

Alarm inputs

The unit has 8 alarm inputs which are presented on screw terminals along the bottom of

the unit. These are labelled as Pin 1-4 and 5-8.

By default the 8 alarm inputs require a positive condition to be presented to send an

alarm. (Default = Positive applied). This can be changed using the Pin Learn button or

through the configuration menu. See later section on Configuration.

Input (Pin) Use

2 Hold up alarm

3Intruder alarm

4 Open / Close (Set / Unset)

5 – 8 General alarm

Fig 3 – Alarm input allocations. (Functions must be agreed with your ARC).

1287 5675 8214

DIAL CAP COMMS

NO NCCNONCTX

FUNC

DIAL CAP COMMS

NO NCCNONCRX

FUNC

AERIAL

DIAL CAP

–+

COMMS

NO NCCNONC

FUNC

Essential

SEE INSTALL GUIDE

1287 5675 8214

DIAL CAP COMMS

NO NCCNONCTX

FUNC

DIAL CAP COMMS

NO NCCNONCRX

FUNC

AERIAL

DIAL CAP

–+

COMMS

NO NCCNONC

FUNC

Essential

SEE INSTALL GUIDE

Outputs

Two relay outputs are provided on screw terminals at the top of the unit.

Output 1 is COMMS, Output 2 is FUNC.

See the further sections on outputs for a full explanation.

Serial data connections

The serial data connection labelled TX, RX, B and A is configurable for RS485

or RS232 connection depending on the panel.

This is done in the configuration menu.

These ports allow serial alarm panel connection. See Panel Upload Download section.

Dial Capture

The Dial Capture (DIAL CAP) terminals enable interfacing with an alarm panel’s digital

communicator. The alarm panel can then send SIA, CID or Fast Format messages through

the unit to the Alarm Receiving Centre.

Dial Capture can also be used for upload download UDL allowing remote access with

some types of alarm panel.

Aerial connection

Connect the supplied aerial to the MMCX connector on the top right of the unit.

The aerial should be placed in a vertical position that receives the best wireless

coverage. Carry out a survey to establish the best location. If necessary, a selection

of high gain and extension aerials can be purchased from the BT Redcare shop

at btinstallershop.com

Programming

Unit initialisation

The unit will immediately attempt to connect to the BT Redcare platform over the

mobile paths. The unit will typically complete path establishment in the following time

from power up.

The unit sends a ‘System Reset’ event (Pin 984,1) over the first available path, followed

by a ‘Unit Restarted’ restore (Pin 984,3) within two seconds. The unit also sends the

state of all 8 pins and low battery alarm restore. Sending these alarm states at start up

helps to ensure that the ARC alarm handling software reflects the true state of all pin

alarms after start up.

Status display

The unit clearly displays its status on the OLED. In its normal working state, the unit will

cycle its display.

Mobile Path and if registered

with the platform.

Signal strength – network type

(4G or 2G) received wireless

signal strength in dBm and signal

strength indicator bars. Two bars

or more is the recommended signal

level required.

The performance category can only be determined by the unit while in contact with

the platform. The unit will not show the performance category until the mobile path

is registered with the platform when it will retrieve the performance grade.

4G/2G 120s

Figure 4 – time to commission paths after unit power up

Signal Strength

4G [ ] [-103]

Path: Mobile

Registered

Service Grade

Redcare SP2

Alarms GPI Alarm

Alarms Battery

Low Battery

Service Grade – The EN

Performance category SP2

will be shown.

Shows the mobile network that

the device is connected to.

Mobile1 Operator

The unit may also show Low

Battery if the supply voltage is

below the supply threshold.

Pin status – any outstanding alarm

pins will be shown. If no pins are in

the alarm state, then pin status will

not be shown.

Signal strength:

Signal strength that is:

• On 2G below -90dBm = X will be displayed

• On 2G between -90 and -85, 1 bar will

be displayed

• On 2G between -85 and -80, 2 bars will

be displayed

• On 2G between -80 and -75, 3 bars will

be displayed

• On 2G above -75dBm, 4 bars will

be displayed

Signal strength that is:

• On 4G below -120dBm = X will be displayed

• On 4G between -120 and -110, 1 bar will

be displayed

• On 4G between -110 and -100, 2 bars will

be displayed

• On 4G between -100 and -90, 3 bars will

be displayed

• On 4G above -90dBm, 4 bars will be displayed

Path status

The status of the communication path is indicated by the OLED display.

The mobile path status has the following possible status:

• Up No Reg – path is up but not registered with the platform.

• Registered – has contacted the platform and successfully registered.

• Alarm/ACK – alarm is being transmitted and awaiting acknowledgement.

• Down – the path has lost connectivity to the platform and is trying to reconnect.

Note: When fully commissioned the mobile path should be registered.

Guide to signal strength

Figure 5 – Signal strength chart

Figure 6 – typical display cycling on a fully commissioned unit with a good signal strength and Pin 4 in the alarm or open state.

Poor Good Very Good Excellent

X or 1 bar – try to improve the signal by moving the unit, aerial or using an extn or high gain aerial –

available from btinstallershop.com

Path: Mobile

Registered

Service Grade

Redcare SP2

Signal Strength

4G [ ] [-103]

Alarms GPI Alarm

Mobile Operator

Three

Autres manuels pour Essential

Table des matières

Autres manuels BT Redcare Système de sécurité

BT Redcare

BT Redcare Classic Replacement Manuel utilisateur

BT Redcare

BT Redcare Advanced Manuel utilisateur

BT Redcare

BT Redcare Essential Extra Manuel utilisateur

BT Redcare

BT Redcare 5G Classic STU 11 pin Guide de dépannage

BT Redcare

BT Redcare UC-351GP/E-UK Manuel utilisateur

BT Redcare

BT Redcare Essential IP Manuel utilisateur

BT Redcare

BT Redcare 3GSTU-12V Guide de dépannage

BT Redcare

BT Redcare SECURE IP Manuel utilisateur

Manuels Système de sécurité populaires d'autres marques

Inner Range

Inner Range Concept 2000 Manuel utilisateur

Climax

Climax Mobile Lite R32 Instructions de montage

CADDX

CADDX NX-6 Manuel utilisateur

FBII

FBII XL-31 Series Manuel utilisateur

Johnson Controls

Johnson Controls PENN Connected PC10 Manuel utilisateur

Aeotec

Aeotec Siren Gen5 Manuel utilisateur

Blaupunkt

Blaupunkt SA 2700 Manuel utilisateur

IDEAL

IDEAL Accenta Manuel du propriétaire

AJAX

AJAX DoubleButton Manuel utilisateur

Swann

Swann SW-P-MC2 Manuel utilisateur

Ecolink

Ecolink Siren+Chime Manuel utilisateur

Digital Monitoring Products

Digital Monitoring Products XR150 Manuel utilisateur

EDM

EDM Solution 6+6 Wireless-AE Manuel utilisateur

Highway Safety Group

Highway Safety Group EA401 Manuel utilisateur

Siren

Siren LED GSM Manuel utilisateur

Detection Systems

Detection Systems 7090i Instructions de montage

Se-Kure Controls

Se-Kure Controls MicroMini SK-4841 Manuel utilisateur

Siemens

Siemens FDM273 Manuel utilisateur
