Tips and Techniques on the PR-620

Techniques and Tips on the PR-620

Learn how to demonstrate the PR-620 and make it look as

easy as it really is. Topics to be covered will be: basic

operation, machine threading, screen icons, merging

patterns, using more than 6 colors in a single project and

much more. Be impressed at how swiftly you can transfer

designs from Brothers extensive library of cards or from the

computer/PE Design 8.0 software to the PR-620. Create

endless possibilities with the editing and copy function built

right into the machine.

Tips and Techniques on the PR-620

Machine Parts

Front View:

1. Thread tension knobs

2. Thread pin guide

3. Needle bar case

4. Carriage

5. Hook cover/hook

6. Thread guide assembly support

7. Spool stand

8. Operation panel

9. Feet

Side view:

1. USB type “A” (host) port connector

2. Embroidery card slot

Side/rear view:

3. Hand wheel

4. USB type “B” (function) port connector

5. Power supply plug

6. Main power switch

7. Ventilation slots

Operation panel:

1. Start/stop button

2. Thread trimming button

3. Automatic needle-threading button

4. LCD (touch panel)

Tips and Techniques on the PR-620

Opening screen

1. Settings key

2. Machine operations key

3. New Embroidery key

4. Help key

5. Pattern Display area

Threading the bobbin and inserting

the bobbin case into the hook

1. Insert the bobbin into the bobbin case

2. Pull the thread through the opening in the tension

adjusting spring

3. Insert bobbin case into machine and close cover

Use only prewound bobbin (“L” type/Polyester) or bobbins specifically

designed for this machine

Tips and Techniques on the PR-620

Threading the machine

The numbers indicate the thread path for each of the numbered needle

bars.

1. Place on spool pin 1 the spool of the thread with

the color specified for the needle bar 1

2. Pass the thread through the number 1 hole in

the thread guide and wind the thread clockwise

once around the thread tension disc.

3. Use thread guides etched on machine to follow

path for each thread.

4. Pass the thread through the slot on the thread

guide, and then through the hole in the number 1

lower thread guides.

Tips and Techniques on the PR-620

5. Use the included threader to pass the thread through the number 1

needle bar thread guide.

6. Repeat this process for each needle to be threaded.

Threading the needle

Note: A design should be loaded in order to thread the

needles.

1. Move the needle threader to proper needle by

selecting that thread color.

2. Press the automatic needle threading button.

The hook on the automatic needle threading

mechanism passes through the eye of the

needle.

3. Pull out about 6 inches of thread. Then, as shown

in the illustration, pull the thread through the fork

of the automatic needle threader from the right,

and then after pulling the thread through the guide

on the presser foot, pull the thread through the

thread cutter to cut it.

4. Press the automatic needle threading button.

5. Repeat for remaining needles.

Tips and Techniques on the PR-620

Hooping the fabric in the embroidery frame

Select an embroidery hoop to use. Be sure to use an

appropriate size frame for the size of embroidery that you

will be doing. If the embroidery frame that is used

is too large, the pattern may be misaligned or the

fabric may pucker.

1. Loosen the screw on the outer frame.

2. Place the fabric with the right side up on top of

the outer frame.

3. Press the inner frame onto the outer

frame. Be sure there are no wrinkles in

the fabric after it is streched in the

embroidery frame.

4. Lightly tighten the screw, and then pull the

edges of the fabric.

5. Securely tighten the screw, and then check that

the fabric is taut.

Tips and Techniques on the PR-620

6.Using the disk shaped screwdriver, firmly

tighten the screw.

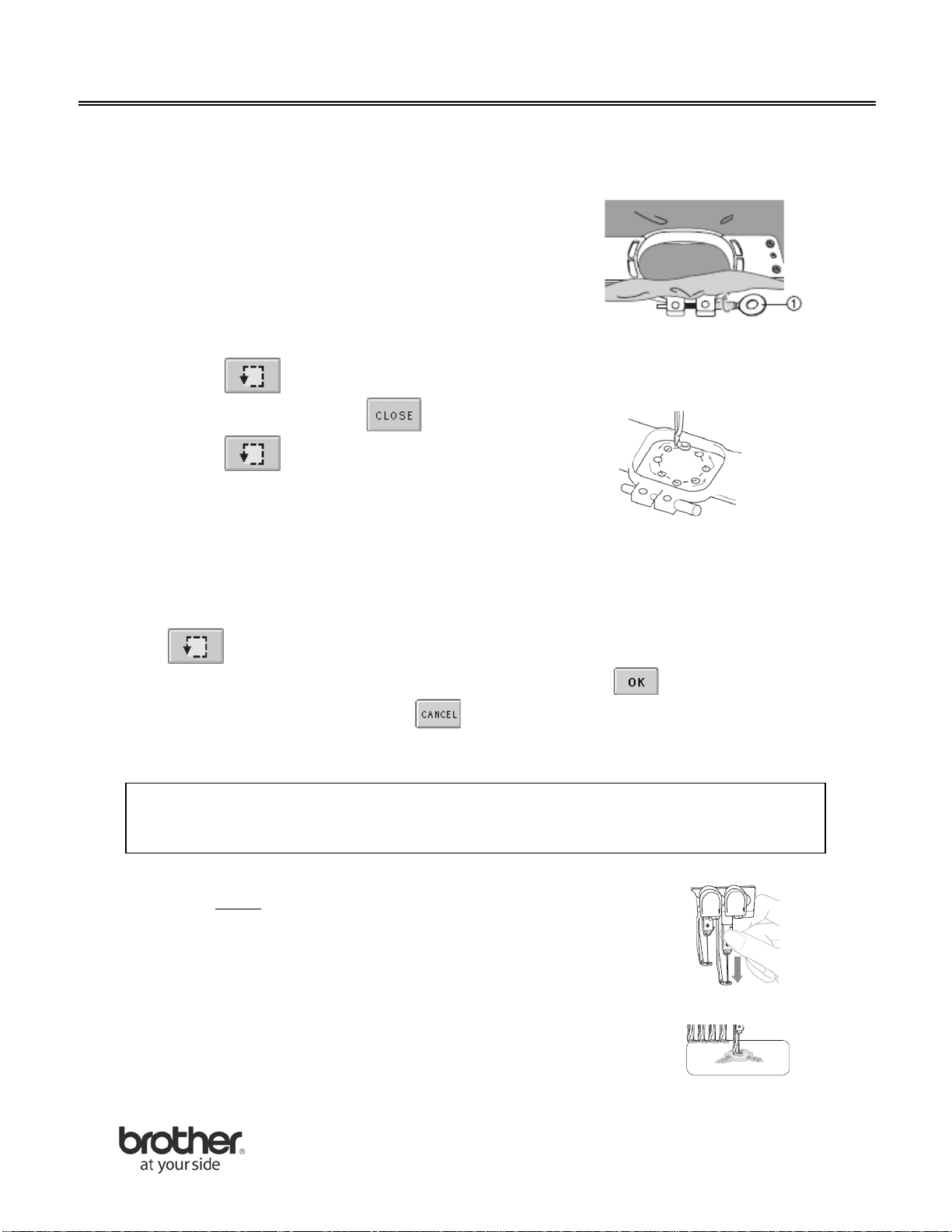

Check the embroidery area

1. Touch , a message appears warning that the embroidery frame is

about to move, select .

2. Touch again. The corners of the octagon

showing the embroidery area for the pattern

are indicated by needle punch points.

3. Carefully watch the movement of the embroidery frame and check that

the embroidery frame does not hit the presser foot.

4. When the embroidery frame moves to the desired position, touch

again.

5. To continue moving the embroidery frame, touch . To stop checking

the embroidery area, touch .

Finding the sewing position

TIP: By locking the needle bar and presser foot in the down position,

the needle drop point can easily be easily seen.

1. Hold the needle clap that is at the sewing position, and

then fully lower the needle.

2. The needle and presser foot are locked into the down

position.

3. Touch the arrow keys in the embroidery settings screen to move the

embroidery frame so that the needle drop point is at

the center of the area you wish to embroider.

Tips and Techniques on the PR-620

4. Display the embroidery screen, and then

touch the key for any needle bar other than

the one that is locked and the

needle bar will unlock.

To transfer a design from the computer using the USB cable included with

the machine

1. Plug the USB cable connector into the corresponding

connectors on the computer and the USB port connector

on the machine.

2. After the “Removable Disk” folder appears in

the “My Computer” folder on the computer, the

connection is complete.

3. Move/copy the pattern data that you wish to recall

into the “Removable Disk” folder.

4. On the machine, touch and a list of patterns will be displayed.

To transfer a design from an Embroidery Card to the machine

1. With the side of the embroidery card marked with an arrow facing

towards you, fully insert the card into the embroidery card

slot on the right side of the operation panel.

2. Touch and a list of patterns on the embroidery card

apears.

3. Select desired pattern.

Tips and Techniques on the PR-620

To transfer a design from a USB device (purchased separately) to the

machine

1. With the front of USB drive facing towards you, fully

insert the stick into the right side of the operation panel.

A list of approved USB devices can be found on the

Brother web site under the updates.

2. Touch and a list of patterns will appear.

3. Select desired pattern.

Basic Operation/Quick Start

Tips and Techniques on the PR-620

Selecting an Embroidery Pattern and merging letters

Vario

us patterns, such as embroidery patterns, frame patterns, built in

designs and patterns on embroidery cards, can be easily combined.

1. To merge designs, select Built in designs on the operation panel.

2. Select the Birdhouse and SET.

3. Select .

4. Select the Built in Alphabets and touch .

5. Type in H, select size (medium).

6. Continue typing in the letters in upper and lower case o m e_T w e e

t_H o m e and select .

7. Select Array and .

8. Use button to move lettering above bird house. Touch and

9. Touch centering button to center design in hoop.

10. Check the design by selecting preview .

11. Select and change threads as needed.

12. Load fabric in suggested hoop and place on machine.

13. Press and start/stop button to start embroidery
