Brother LS-1717 Manuel utilisateur

Home Sewing Machine

PARTS REFERENCE LIST

MODEL: LS-1717

LS-1817

LS-1717P/LS-1717B

LS-2020/LS-2020P

LS-30/X-3

LS-2000/LS2250PRW

- 1 -

CONTENTS

(1) PRINCIPAL PARTS............................................................... 2

(2) UPPER SHAFT AND NEEDLE BAR..................................... 4

(3) FEED MECHANISM .............................................................. 6

(4) PATTERN SELECTION, SHUTTLE HOOK AND

UPPER TENSION.................................................................. 8

(5) LAMP AND MOTOR............................................................ 10

(6) OTHER PARTS ................................................................... 12

Note on parts:

We keep performance parts for this sewing machine for at least 8 years after this model is discontinued.

Performance parts are the necessary parts to maintain the function of the sewing machine.

- 2 -

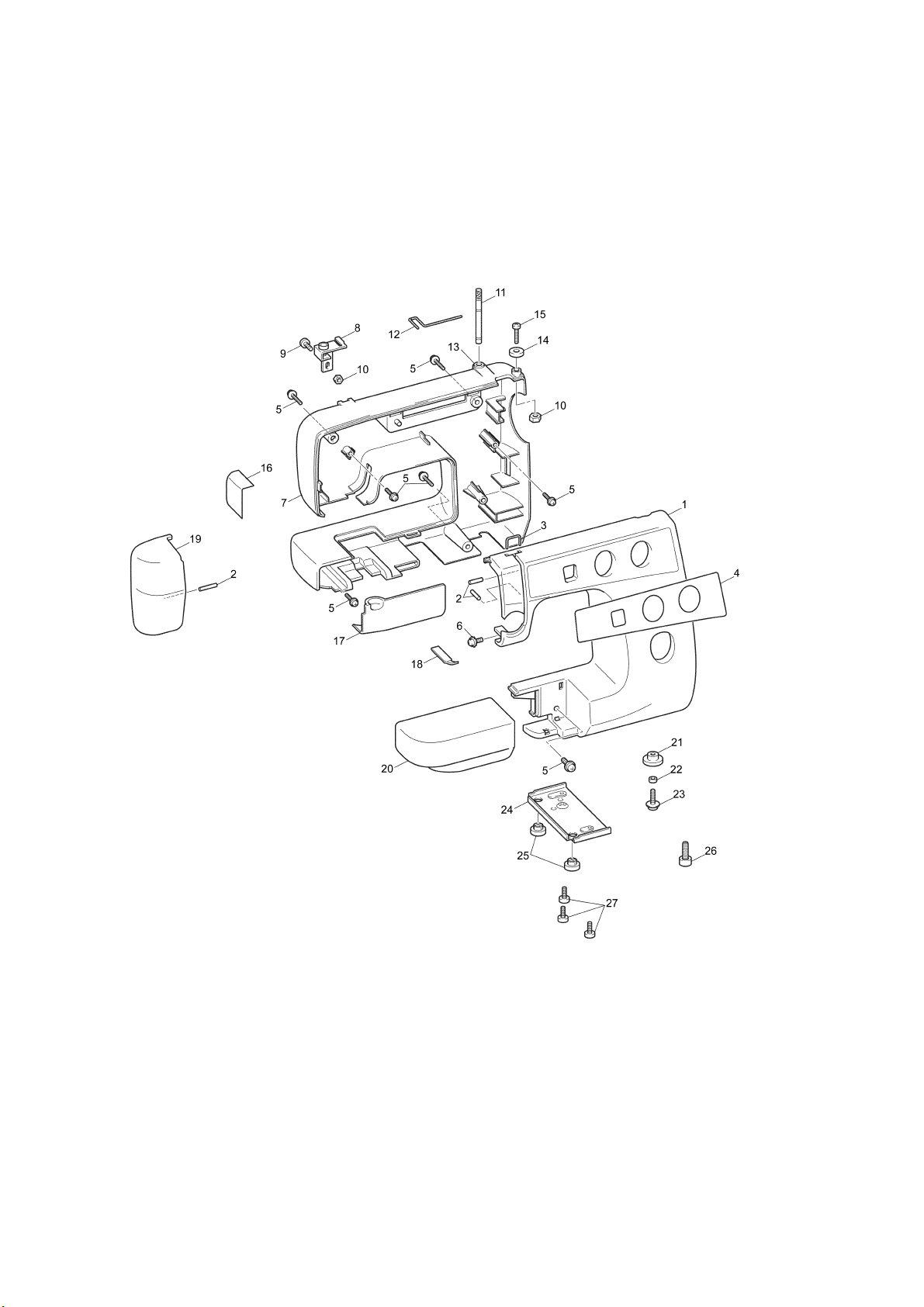

(1) PRINCIPAL PARTS

No. CODE NAME REMARKS No. CODE NAME REMARKS

1 XD0288021 FRONT COVER (OTHER) 050102 27 060400816 SCREW BIND M4X8

XE2350001 FRONT COVER (LS-30, X-3)

1000001718

XE7053001 FRONT COVER (LS-2000)

1000014502

XE9006001 FRONT COVER (LS2250PRW)

1000019930

2 0A0211850 PIN SPRING ROLL BW2

3 X53625121 UPPER COVER THREAD GUIDE

4 XA9970021 DECORATION PLATE (LS-1717, 1717P)

XA9970022 DECORATION PLATE (LS-1817)

XA9970023 DECORATION PLATE (LS-1717B) ADD

XA9970024 DECORATION PLATE (LS-2020) ADD

XA9970025 DECORATION PLATE (LS-2020P)

1000000507

XA9970026 DECORATION PLATE (LS-2000)

1000014502

XA9970027 DECORATION PLATE (LS2250PRW)

1000019930

XE2467001 DECORATION SHEET (LS-30)

1000001718

XE3861001 DECORATION SHEET (X-3)

1000006063

5 XA3337022 TAPTITE, CUP P M4X20 CHG

6 053400806 SCREW, PAN (T WASHER) M4X8

7 XC1201121 REAR COVER ASSEMBLY (OTHER)

1000009386

XE7055001 REAR COVER (LS-2000)

1000014502

XD0291121 REAR COVER (X-3, LS2250PRW) ADD

8 XE7029001 THREAD GUIDE ASSY

1000014592

9 0A5301006 SCREW PAN (S/P WASHER) M3X10

10 021300106 NUT 1 M3

11 XC8701021 SPOOL PIN (Metal Model)

XE6223001 SPOOL PIN (Plastic Model)

1000013717

12 XA0628121 SPOOL PIN SPRING

1000012082

13 XA8851021 SPOOL PIN STAND 050073

14 XE8912001 BOBBIN PRESSER

1000019930

15 052301606 SCREW, PAN (S/P WASHER) M3X16

16 X57891021 REFLECTOR

17 XA7926021 HINGED DOOR

18 X53638121 SPRING CHG

19 XA9974021 FACE PLATE (OTHER)

XE2217001 FACE PLATE (LS-30, X-3)

1000001718

XE7057001 FACE PLATE (LS-2000)

1000014502

20 XD0793021 ACCESSORY TABLE (OTHER) 050102

XE2218001 ACCESSORY TABLE (LS-30, X-3)

1000001718

XE7058001 ACCESSORY TABLE (LS-2000)

1000014502

21 X58361021 RUBBER CUSHION CHG

22 X56474021 SPACER

23 X57297021 SCREW

24 XA7932021 BASE PLATE

25 XA1805021 BASE RUBBER A

26 XA4687021 ADJUSTING SCREW ASSY CHG

- 3 -

- 4 -

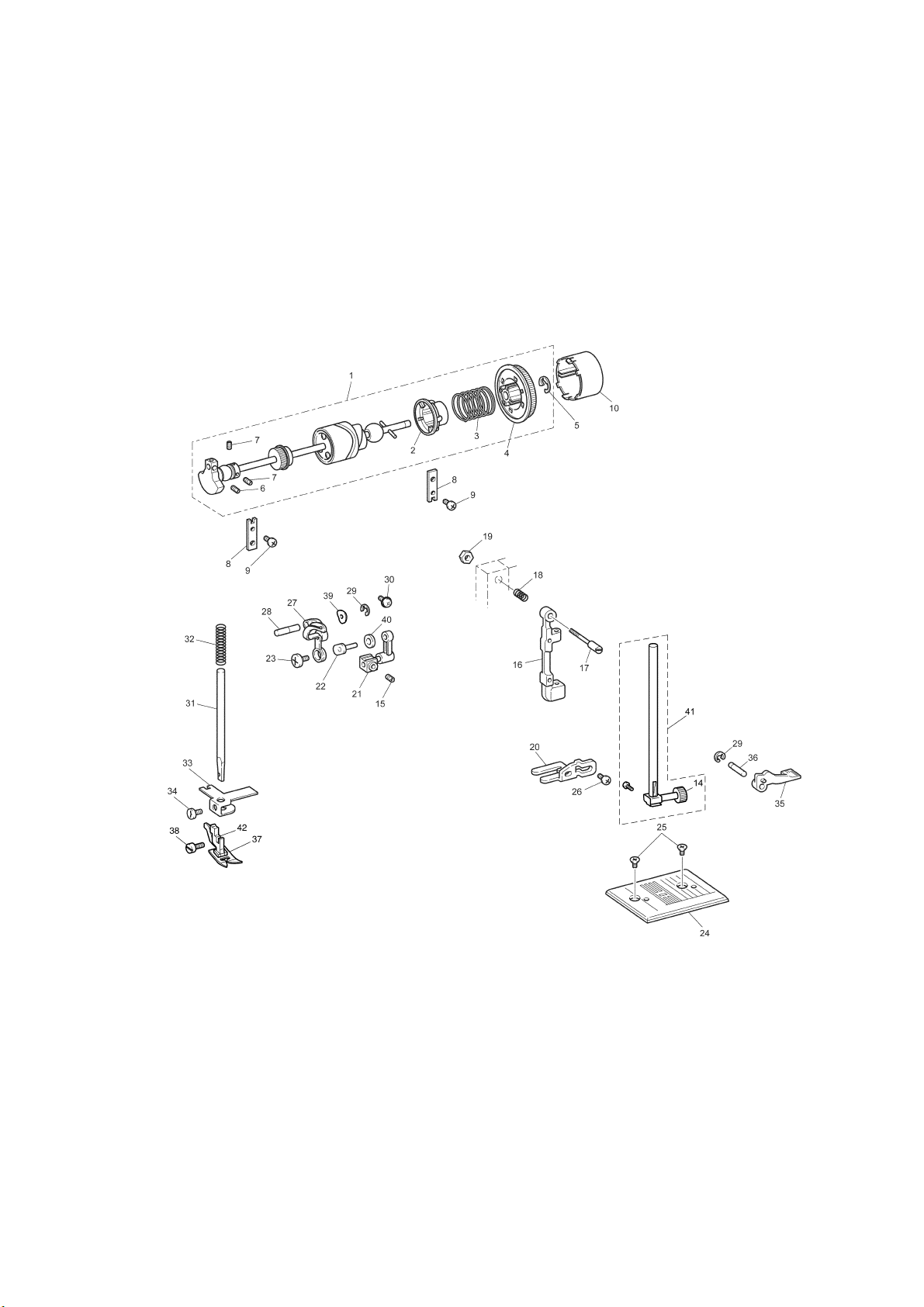

(2) UPPER SHAFT AND NEEDLE BAR

No. CODE NAME REMARKS No. CODE NAME REMARKS

1 XE3692001 UPPER SHAFT SUPPLY ASSY

1000006160

New Spec

2 XA0637120 CLUTCH PLATE 41 XD1220131 NEEDLE BAR ASSY N

1000001718

3 XA0636020 CLUTCH SPRING 42 XC3015031 PRESSER FEED HOLDER ASSY

1000001718

4 XA0638120 TIMING PULLEY

5 048080346 RETAINING RING E8

1000001452

6 012500532 SET SCREW SOCKET (FT) M5X5

1000010653

7 014400432 SET SCREW SOCKET (CP) M4X4

8 X52478021 BUSHING PRESSER

9 X57908021 TAPTITE, BIND S M4X10 CHG

10 XA0639021 BALANCE WHEEL

11 XA2358121 NEEDLE BAR (LS-1717, 1817) DEL

12 XA0642120 NEEDLE BAR THREAD GUIDE DEL

(LS-1717, 1817)

13 XA0643121 NEEDLE CLAMP (LS-1717, 1817) DEL

14 XC8563031 NEEDLE CLAMP SCREW

1000002936

XA0644021 NEEDLE CLAMP SCREW (LS-1717, 1817) DEL

15 012400432 SET SCREW SOCKET (FT) M4X4

16 XA8983021 NEEDLE BAR SUPPORTER

17 XA3477021 NEEDLE BAR SUPPORTER STUD

1000002222

18 X54369021 SPRING

19 X56851021 LOCK NUT

20 XE3167001 NEEDLE BAR SUPPORTER GUIDE

1000003433

21 XA1289121 NEEDLE BAR CRANK ROD ASSY

22 XA1113221 NEEDLE BAR CRANK

1000001814

23 132051022 SCREW, FLAT SM3.57-40X7 L

24 XA3954121 ZIGZAG NEEDLE PLATE

1000011532

25 X50487021 SCREW M4

1000010447

26 X57908021 TAPTITE, BIND S M4X10 CHG

27 XA1112121 THREAD TAKE-UP ASSY CHG

28 XA0648120 THREAD TAKE-UP LEVER STUD 050091

29 048050346 RETAINING RING E5

1000001452

30 X57913021 TAPTITE, BIND S M4X16

31 128437020 PRESSER BAR 040158

32 X55770021 PRESSER BAR SPRING

1000001718

33 XA0975021 PRESSER BAR GUIDE BRACKET

34 X52760021 SET SCREW, PAN M6X12

35 XA2511121 PRESSER FOOT LIFTER

1000001718

36 XA0977150 PRESSER FOOT LIFTER STUD

37 138135122 ZIGZAG PRESSER FOOT

1000001718

38 132730122 TIGHTENING SCREW 3.57 CHG

39 XA1866021 WASHER, SPRING 050209

40 X53330020 WASHER

1000003111

- 5 -

- 6 -

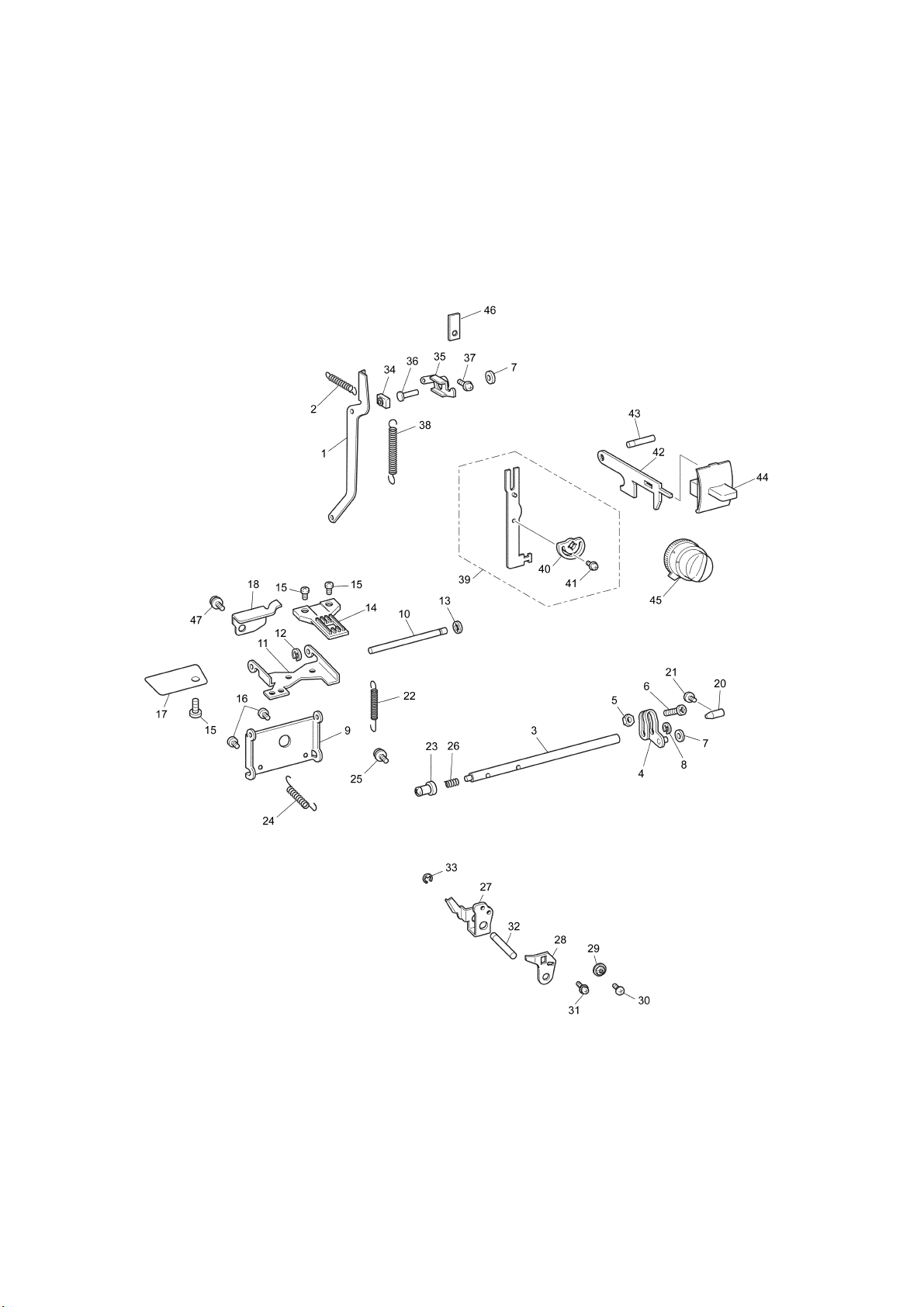

(3) FEED MECHANISM

No. CODE NAME REMARKS No. CODE NAME REMARKS

1 XA0978021 FEED CONNECTING ROD ASSY 44 XA9976021 REVERSE SEWING BUTTON (OTHER)

2 XA0980021 SPRING XE2219001 REVERSE SEWING BUTTON

1000001718

3 XA0982020 HORIZONTAL FEED SHAFT (LS-30, X-3)

4 XA0983121 HORIZONTAL FEED ARM ASSEMBLY 45 XA9977021 FEED DIAL CAM

5 021400205 NUT 2 M4 46 X50532021 PRESSER PLATE

6 060401416 SCREW BIND M4X14 47 138172021 SCREW, PAN (S/P WASHER) M4X10

1000017555

7 X53330020 WASHER CHG

8 048050346 RETAINING RING E5

1000001452

9 XA0987021 HORIZONTAL FEED PLATE

10 XA0988021 FEED STAND SHAFT

11 XA3960021 FEED STAND

12 048030346 RETAINING RING E3

1000001452

13 146200021 RETAINING RING, CS4

14 XA4430021 FEED DOG

15 060300416 SCREW BIND M3X4

16 060400816 SCREW BIND M4X8

1000017555

17 XA3474021 DUST PROTECT PLATE

18 XA4042120 FEED STAND SUPPORT

19 025040133 WASHER, PLAIN S 4

1000017555

20 XA1082051 TAPER POINT STUD R

21 XZ0074021 TAPTITE, CUP S 4X16 060158

22 XA0991021 SPRING

23 X55472021 TAPER POINT STUD L ASSEMBLY

24 XA4692021 SPRING CHG

25 XA0649021 TAPTITE, CUP S M4X14

26 X56613021 SPRING

27 XA3480021 VERTICAL FEED ARM

28 XA3481021 VERTICAL FEED ADJUSTER

29 X50559020 ZIGZAG ADJUSTING NUT CHG

30 062300806 SCREW PAN M3X8

31 060400516 SCREW BIND M4X5

32 XA0995121 VERTICAL FEED SHAFT 050091

33 048060346 RETAINING RING E6

1000001452

34 XA0030021 FEED SQUARE BLOCK CHG

35 XA0996020 FEED REGULATOR CHG

36 XA0997020 FEED REGULATOR SHAFT CHG

37 X57908021 TAPTITE, BIND S M4X10 CHG

38 XA4675021 SPRING 050091

39 XA9167021 FEED REGULATOR PLATE ASSEMBLY

40 XA1002020 REVERSE SEWING REGULATOR SHAFT

41 0A5300606 SCREW PAN (S/P WASHER) M3X6

1000011101

42 XA7989021 REVERSE SEWING LEVER PLATE

43 XA1004120 REVERSE SEWING SHAFT 050091

- 7 -

- 8 -

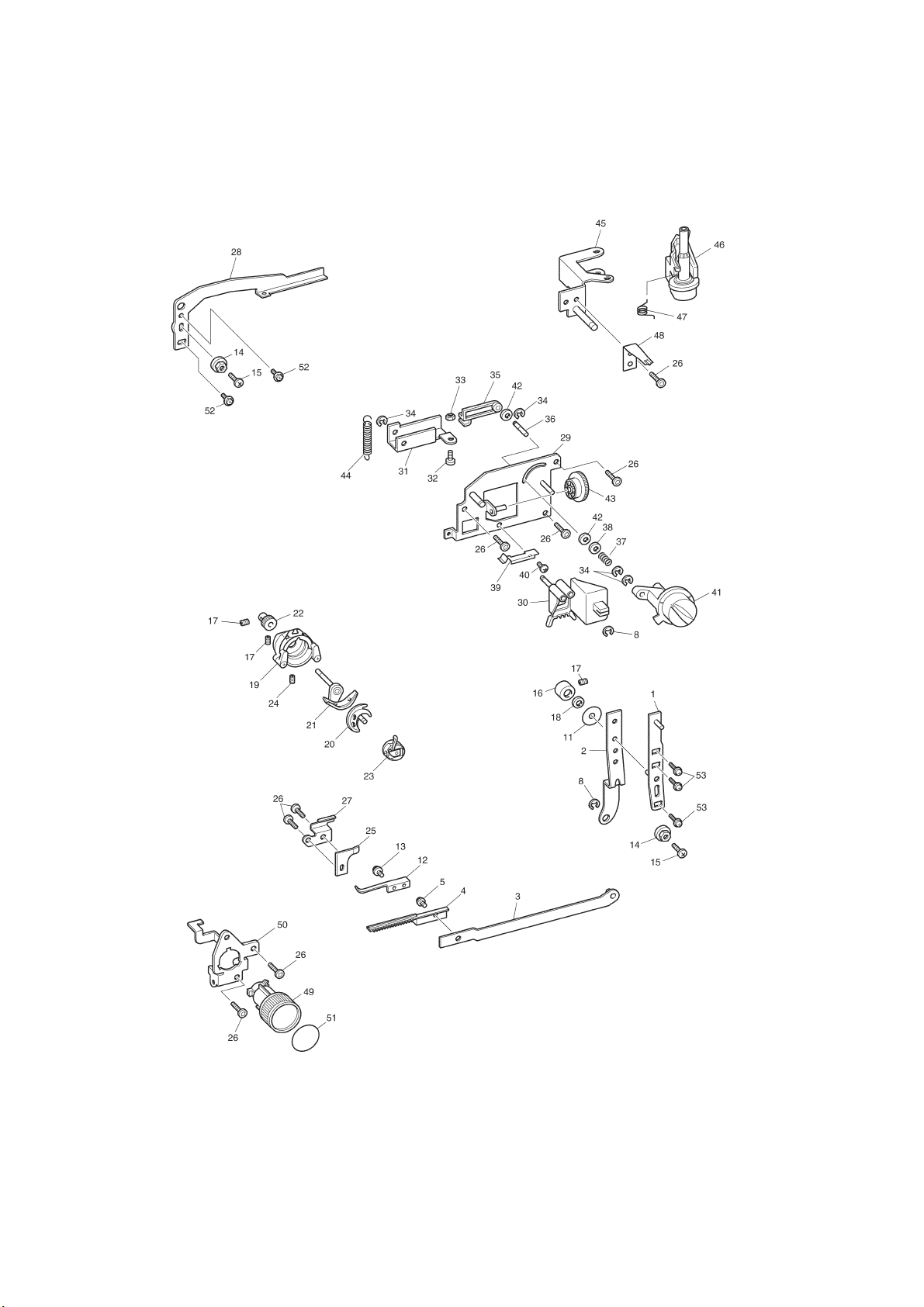

(4) PATTERN SELECTION, SHUTTLE HOOK AND UPPER TENSION

No. CODE NAME REMARKS No. CODE NAME REMARKS

1 XA4693121 CAM DRIVE CONNECTING ROD A 45 XA7985021 BOBBIN WINDER HOLDER ASSEMBLY

2 XA1012221 CAM DRIVE CONNECTING ROD B 46 XA1049021 BOBBIN WINDER SPINDLE ASSEMBLY

3 XA1014021 CAM DRIVE ROD C SUB ASSY 47 X59939021 BOBBIN WINDER SPRING

4 XA1017120 RACK 48 XA7988021 F DIAL SPRING

5 XC7564021 SCREW, PAN (S/P WASHER) M3X6

1000008646

49 XA1052021 UPPER TENSION CONTROL DIAL (OTHER)

6XA3439021 SPRING DEL XE3453001 UPPER TENSION CONTROL DIAL

7146200051 STOP RING DEL (LS-2000, LS2250PRW)

8 048040346 RETAINING RING E4

1000001452

50 XA4425021 TREAD TENSION BRACKET ASSY

9060400816 SCREW BIND M4X8

1000005128

51 XA1255121 THREAD TENSION LABEL

10 XA6909021 TOOTHED WASHER

1000005128

52 XA8474021 UPSET 4X12 DB 050221

11 131976020 WASHER THRUST CHG 53 XA6907021 SCREW 4X8

1000005128

12 XA1019021 RACK PLATE SPRING

13 XA8290021 TAPTITE, BIND S M4X8 CHG

14 X50559020 ZIGZAG ADJUSTING NUT

15 062301006 SCREW PAN M3X10

16 X52077121 COLLAR 050091

17 014400432 SET SCREW SOCKET (CP) M4X4

18 X53330020 WASHER

19 XA1317022 SHUTTLE RACE ASSEMBLY

20 128581022 SHUTTLE HOOK

21 XA1021021 SHUTTLE DRIVE ASSY

22 XA1025021 DRIVER SHAFT GEAR

23 128582023 BOBBIN CASE ASSEMBLY 040130

24 014400632 SET SCREW SOCKET (CP) M4X6

25 X57313121 RACK STOPPER

26 X57908021 TAPTITE, BIND S M4X10 CHG

27 XA5702021 RACK STOPPER A

28 XA7976021 ZIGZAG CONNECTING ROD

29 XC0842021 ZIGZAG BASE ASSEMBLY

30 XA9978021 NEEDLE POSITION SELECTOR ASSY

31 XA1036021 ZIGZAG LINK

32 X57953021 SCREW

33 X56960021 NUT 4 CHG

34 048030346 RETAINING RING E3

1000001452

35 XA7980021 ZIGZAG ADJUSTER CONNECTING ROD

36 XA7981020 CONNECTING ROD PIN

37 XA1040021 SPRING

38 025040133 WASHER, PLAIN S 4

39 XA7982021 NOTCHED SPRING

40 060300416 SCREW BIND M3X4

41 XA9980021 Z DIAL

42 137999020 POLYESTER SLIDER CHG

43 XA7984021 ZIGZAG CAM

44 XA1044021 SPRING

- 9 -
