FACSIMILE EQUIPMENT

SERVICE MANUAL

MODEL: FAX560/FAX580MC/MFC660MC

FAX-T72/FAX-T74/FAX-T76

©Copyright Brother 2000

No part of this publication may be reproduced in any

form or by any means without permission in writing

from the publisher.

Specifications are subject to change without notice.

PREFACE

This publication is a Service Manual covering the specifications, construction, theory of operation,

and maintenance of the Brother facsimile equipment. It includes information required for field

troubleshooting and repair--disassembly, reassembly, and lubrication--so that service personnel will

be able to understand equipment function, to rapidly repair the equipment and order any necessary

spare parts.

To perform appropriate maintenance so that the facsimile equipment is always in best condition for

the customer, the service personnel must adequately understand and apply this manual.

This manual is made up of six chapters and appendices.

CHAPTER I.GENERAL DESCRIPTION

CHAPTER II.INSTALLATION

CHAPTER III.THEORY OF OPERATION

CHAPTER IV.DISASSEMBLY/REASSEMBLY AND LUBRICATION

CHAPTER V. MAINTENANCE MODE

CHAPTER VI. ERROR INDICATION AND TROUBLESHOOTING

Appendix 1. EEPROM Customizing Codes

Appendix 2. Circuit Diagrams

This manual describes the models and their versions to be destined for major countries. The specifications

and functions are subject to change depending upon each destination.

CHAPTER I.

GENERAL DESCRIPTION

CHAPTER I. GENERAL DESCRIPTION

CONTENTS

1. EQUIPMENT OUTLINE........................................................................................ I-1

1.1 External Appearance and Weight.................................................................. I-1

1.2 Components ................................................................................................. I-1

2. SPECIFICATIONS................................................................................................ I-2

I- 1

1. EQUIPMENT OUTLINE

1.1 External Appearance and Weight

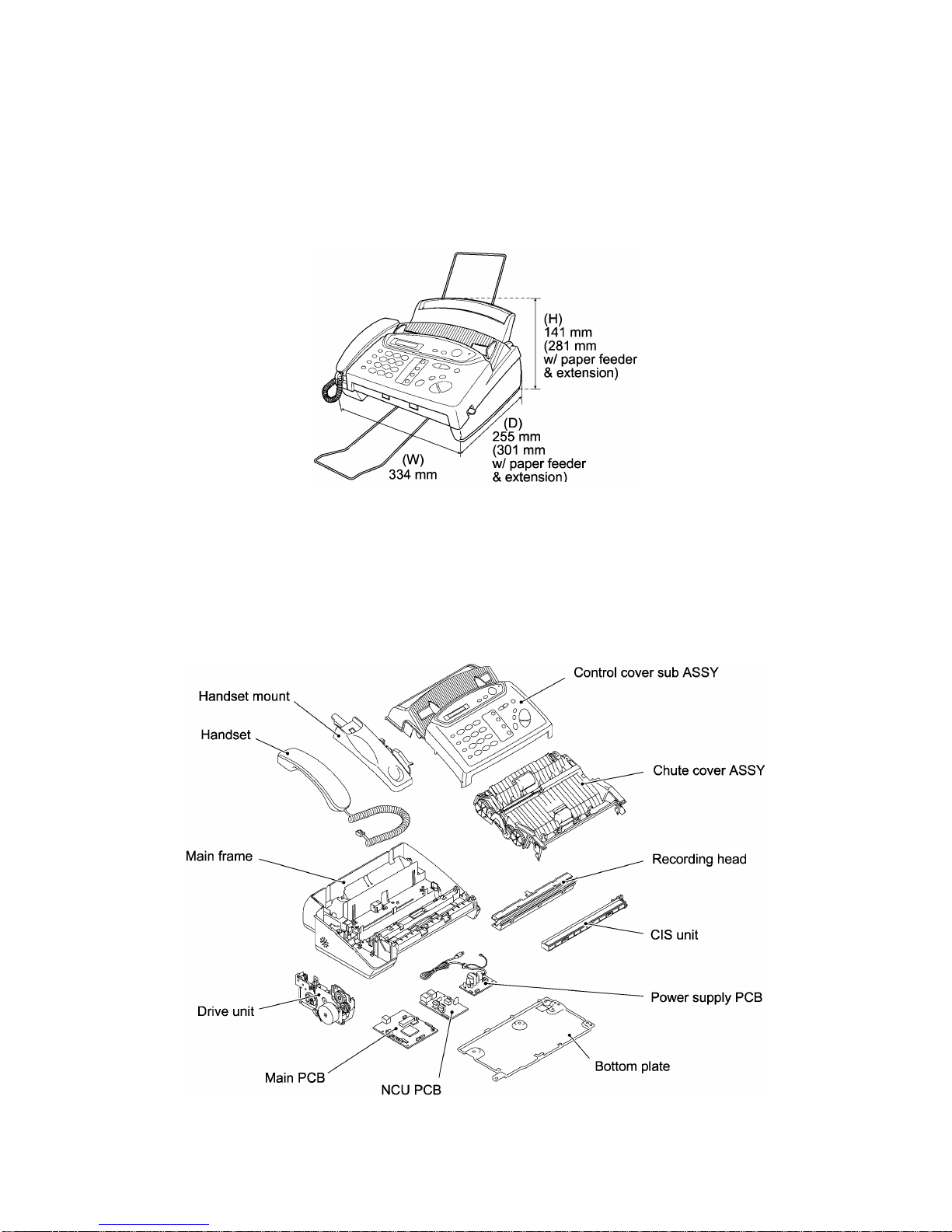

The figure below shows the equipment appearance and approximate dimensions.

Weight: Machine proper (excluding accessories) Approx. 2.9 kg

In package MFC660MC

Other models Approx. 4.5 kg

Approx. 4.1 kg

1.2 Components

The equipment consists of the following major components:

I- 2

2. SPECIFICATIONS

(1/2)

Model Name FAX560 FAX580MC MFC660MC

Engine Thermal transfer Thermal transfer Thermal transfer

Color Upper: New Personal white

(1485)

Lower: 1473 gray

Upper: New Personal white

(1485)

Lower: 1473 gray

Upper: MFC white

(1495 gray)

Lower: 1473 gray

Transmission Speed (sec) 15 9 9

Modem Speed (bps) 9600 14,400 14,400

Group Compatibility G3 G3 G3

Input/Output Width 8.5"/8.5" 8.5"/8.5" 8.5"/8.5"

ADF (pages) 10 10 10

Paper Feeder (sheets) Letter: 50*, Legal: 30 Letter: 50*, Legal: 30 Letter: 50*, Legal: 30

Ribbon Yield (letter-size) 150 pages (47 m) 150 pages (47 m) 150 pages (47 m)

Starter Ribbon Yield (letter-size) 30 pages (10 m) 30 pages (10 m) 30 pages (10 m)

Replacement Roll PC401: 47 m (150 pages) PC401: 47 m (150 pages) PC401: 47m (150 pages)

LCD Size 16 x 1 16 x 1 16 x 1

On-Screen Programming Yes Yes Yes

Super Fine Yes Yes Yes

Smoothing Yes Yes Yes

Gray Scale (levels) 64 by Dithered 64 by Dithered 64 by Dithered

One Touch 4 4 4

Speed Dial 50 50 50

Telephone Index Yes as "Search" Yes as "Search" Yes as "Search"

Speaker Phone Monitor Full duplex (digital) Full duplex (digital)

Handset Yes Yes Yes

FAX/TEL Switch Yes Yes Yes

Distinctive Ring Detection Yes Yes Yes

Caller ID Yes Yes Yes

Call Waiting Caller ID Yes Yes Yes

TAD Interface Yes Yes Yes

Enhanced Remote Activation Yes Yes Yes

Automatic Redial Yes Yes Yes

Next-FAX Reservation Yes Yes Yes

Multi-Resolution Transmission Yes Yes Yes

Polling Type Sim/Seq Sim/Seq Sim/Seq

Delayed Transmission 3-timer 3-timer 3-timer

Call Reservation Yes Yes Yes

Electronic Coverpage Yes-Super Yes-Super Yes-Super

Call Back Message Yes Yes Yes

Activity Report Yes Yes Yes

TX Verification Report Yes Yes Yes

Memory Capacity (pages) 512 KB

(up to 25 pages for OPR**) 512 KB

(up to 25 pages for OPR**)

ECM Yes Yes Yes

Broadcasting Yes Yes Yes

Quick Scan Yes Yes Yes

Out-of-Paper Reception Yes Yes Yes

*Paper feeder: 50 sheets for US/Canada

**Page memory: 25 pages in OPR (out-of-paper reception), 22 pages in quick scan

I- 3

(1/2)

Model Name FAX-T72

(Ger & Fra Only) FAX-T74 FAX-T76

Engine Thermal transfer Thermal transfer Thermal transfer

Color New Personal black (1293) New Personal black (1293) New Personal black (1293)

Transmission Speed (sec) 15 15 9

Modem Speed (bps) 9600 9600 14,400

Group Compatibility G3 G3 G3

Input/Output Width 8.5"/8.5" 8.5"/8.5" 8.5"/8.5"

ADF (pages) 10 10 10

Paper Feeder (A4-size) 30 sheets 30 sheets 30 sheets

Ribbon Yield (A4-size) 130 pages (47 m) 130 pages (47 m) 130 pages (47 m)

Starter Ribbon (A4-size) Yes-10 m (30 pages) Yes-10 m (30 pages) Yes-10 m (30 pages )

Replacement Roll

LCD Size 16 x 1 16 x 1 16 x 1

On-Screen Programming Yes Yes Yes

Super Fine Yes Yes Yes

Smoothing Yes Yes Yes

Gray Scale (levels) 64 by Dithered 64 by Dithered 64 by Dithered

One Touch 4 4 4

Speed Dial 50 50 50

Telephone Index Yes as "Search" Yes as "Search" Yes as "Search"

Speaker Phone Monitor Monitor Full duplex (digital)

Handset No Yes Yes

FAX/TEL Switch Yes Yes Yes

Caller ID Yes

HOL/SWE/UK/IRE/ FRA/

NOR/BEL/ DEN/SPA

Yes

HOL/SWE/UK/IRE/ FRA/

NOR/BEL/ DEN/SPA

Yes

HOL/SWE/UK/IRE FRA/

NOR/BEL/ DEN/SPA

Call Waiting Caller ID No No No

Distinctive Ring Detection Yes for DEN/UK Yes for DEN/UK Yes for DEN/UK

TAD Interface Yes Yes Yes

Enhanced Remote Activation Yes Yes Yes

Automatic Redial Yes Yes Yes

Next-FAX Reservation Yes Yes Yes

Multi-Resolution Transmission Yes Yes Yes

Polling Type Sim/Sec/Del/Seq Sim/Sec/Del/Seq Sim/Sec/Del/Seq

Delayed Transmission 3-timer 3-timer 3-timer

Call Reservation Yes Yes Yes

Electronic Coverpage Yes-Super Yes-Super Yes-Super

Callback Message Yes Yes Yes

Journal Report Yes Yes Yes

TX Verification Report Yes Yes Yes

Memory Capacity 512 KB

(up to 20 pages for OPR*) 512 KB

(up to 20 pages for OPR*)

ECM Yes Yes Yes

Broadcasting Yes Yes Yes

Quick Scan Yes Yes Yes

*Page memory: 20 pages ITU-T No.1 chart in OPR (out-of-paper reception) in the ECM mode

I- 4

(2/2)

Model Name FAX560 FAX580MC MFC660MC

Multi-Copying w/ Sorting Yes Yes Yes

Enlargement/Reduction Ratio Yes (50-150%) Yes (50-150%) Yes (50-150%)

Multi-Transmission No No No

Confidential Mailbox No No No

Auto Reduction Yes Yes Yes

Message Center No Yes Yes

TAD Recording Time No 15 minutes 15 minutes

Fax Forwarding/Paging Yes Yes Yes

Fax Retrieval Yes Yes Yes

Fax-/Voice-on-Demand No No No

Fax & Voice Mailbox No No No

Help List Yes Yes Yes

Missing Link No Ready Included

Optional Memory No No No

Voice Alarm No No No

Output Tray Yes, wire included. Yes, wire included. Yes, wire included.

Others Call Manage Call Manage Call Manage

I- 5

(2/2)

Model Name FAX-T72

(Ger & Fra Only) FAX-T74 FAX-T76

Out-of-Paper Reception Yes Yes Yes

Multi-Copying w/ Sorting Yes Yes Yes

Enlargement/Reduction Ratio Yes (50-150%) Yes (50-150%) Yes (50-150%)

Multi-Transmission No (w/o SHIFT key) No (w/o SHIFT key) No (w/o SHIFT key)

Confidential Mailbox No No No

Auto Reduction Yes Yes Yes

Message Manager No No Yes

TAD Recording Time No No 15 minutes

Fax Forwarding/Paging Yes-Only Fax Forwarding Yes-Only Fax Forwarding Yes-both

Fax Retrieval Yes Yes Yes

Fax-/Voice-on-Demand No No No

Fax & Voice Mailbox No No No

Help List Yes Yes Yes

MFL PRO for FAX No No Ready

Optional Memory No No No

Memo Manager No No No

Mute Key No Yes-music on hold;

Green Sleeves Yes-music on hold;

Green Sleeves

Backup for Clock 9 hours 9 hours 15 hours

Output Tray Not available Not available Not available

Backup for Page Memory No No 6 hours

Power Consumption Standby: Less than 2 W

Peak: 150 W Standby: Less than 2 W

Peak: 150 W

Remarks

Base models MC models

w/o handset w/ handset

American models FAX560 FAX580MC/MFC660MC

European models FAX-T72 FAX-T74 FAX-T76
