FACSIMILE EQUIPMENT

SERVICE MANUAL

MODEL: FAX255/FAX275/

FAX355MC/FAX375MC/

FAX-515/FAX-525DT/

FAX-525MC/HOMEFAX3

No part of this publication may be reproduced in any

form or by any means without permission in writing

from the publisher.

Specifications are subject to change without notice.

PREFACE

This publication is a Service Manual covering the specifications, construction, theory of opera-

tion, and maintenance of the Brother facsimile equipment. It includes information required for

field troubleshooting and repair—disassembly, reassembly, and adjustment—so that service

personnel will be able to understand equipment function, to rapidly repair the equipment and

order any necessary spare parts.

To perform appropriate maintenance so that the facsimile equipment is always in best condition

for the customer, the service personnel must adequately understand and apply this manual.

This manual is made up of six chapters and appendices.

CHAPTER I.GENERAL DESCRIPTION

CHAPTER II.INSTALLATION

CHAPTER III.THEORYOF OPERATION

CHAPTERIV.DISASSEMBLY/REASSEMBLYAND LUBRICATION

CHAPTER V.MAINTENANCE MODE

CHAPTER VI.ERROR INDICATION AND TROUBLESHOOTING

APPENDICES EEPROM Customizing Codes & Circuit Diagrams

This manual describes the model and its versions to be destined for major countries. The specifications

and functions are subject to change depending upon each destination.

CHAPTER I.

GENERAL DESCRIPTION

CHAPTER I. GENERAL DESCRIPTION

CONTENTS

1. EQUIPMENT OUTLINE................................................................................. I-1

1.1External Appearance and Weight........................................................... I-1

1.2Components............................................................................................I-1

2. SPECIFICATIONS..........................................................................................I-2

I – 1

1. EQUIPMENT OUTLINE

1.1 External Appearance and Weight

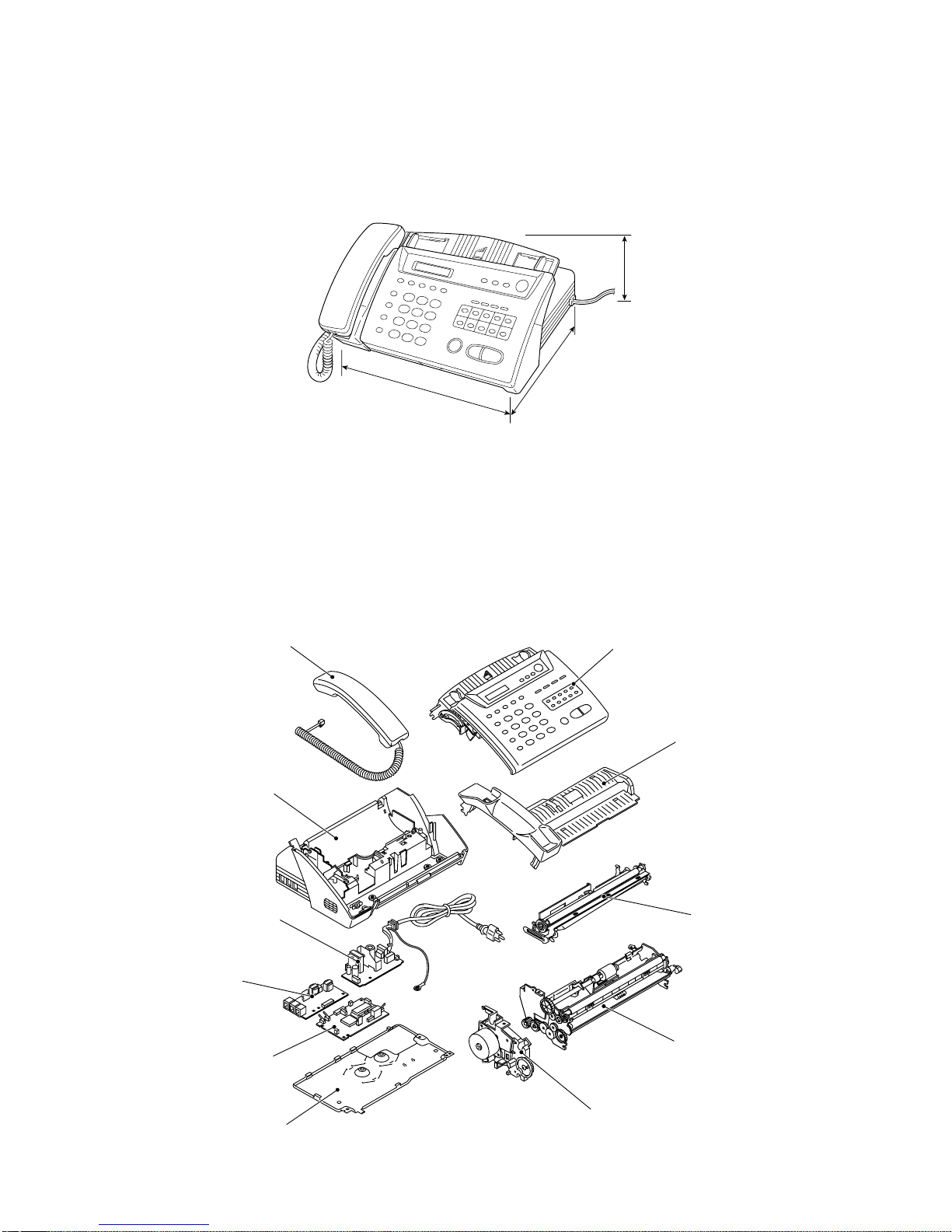

The figure below shows the equipment appearance and approximate dimensions.

Weight: Machine proper Approx. 2.9 kg (excluding a paper roll)

In package Approx. 4.0 kg

1.2 Components

The equipment consists of the following major components: Control panel ASSY

(with recording paper cover)

Inner cover

Recorder & cutter

unit

Scanner frame ASSY

Drive unit

NCU PCB

Main PCB

Bottom plate

Power supply PCB

Main frame

Handset

(Unit: mm)

137.0 (H)

240.0 (D)

299 (W)

I – 2

Model FAX255 FAX275

Color Gray (1293) White (1485)

Modem Speed 9600 bps 9600 bps

Coding Method MH MH

Transmission Speed 15 sec. 15 sec.

CCITT Group G3 G3

Input/Output Width Max. 8.5" x 8.5" Max. 8.5" x 8.5"

Handset Yes Yes

Automatic Cutter Yes Yes

ADF Capacity (pages) 10 10

Anti-curl System Yes Yes

Roll Paper Size (Standard thermal/Therma PLUS) 164'/98' (1"-core) 164'/98' (1"-core)

LCD Size 16 x 1 16 x 1

On-screen Programming Yes Yes

Memory Capacity No No

Super Fine Yes Yes

Smoothing Yes Yes

Gray Scale (levels) 64 by Dithered Method 64 by Dithered Method

One-touch Dialing 10 locations 10 locations

Speed Dialing 10 locations 15 locations

Telephone Index Yes Yes

Super Telephone Index No No

Hook Key (TEL Key) Yes Yes

Fax/Tel Switch Yes Yes

TAD Interface Yes Yes

Enlargement/Reduction No No

Enhanced Remote Activation Yes Yes

Distinctive Ringing (FAX Ability) Yes Yes

Next-fax Reservation No Yes

Help Yes, simple Yes, simple

Caller ID (Caller Display) Yes, w/ enhancement Yes, w/ enhancement

Automatic Redialing Yes Yes

Auto Reduction No No

Multi-resolution Transmission Yes Yes

Polling Yes (No secure polling) Yes (No secure polling)

Delayed Transmission Yes, 1 timer Yes, 1 timer

Delayed Polling No No

Coverpage No No

Call Reservation No No

Call-back Message No No

Activity Report No No

Auto CNG Detection (New) Yes Yes

Transmission Verification Report Yes, on LCD Yes, on LCD

ECM No No

Broadcasting No No

Quick Scanning No No

Out-of-paper Reception No No

Multi Copy No No

Multi Transmission No No

PCI (Missing link) No No

Confidential Mailbox No No

2. SPECIFICATIONS

I – 3

Model FAX355MC/FAX375MC FAX-525DT/FAX-525MC

Color White (1485) Gray (1293)/White (1485)*

Modem Speed 14400 bps 14400 bps

Coding Method MH MH

Transmission Speed 9 sec. 10 sec.

CCITT Group G3 G3

Input/Output Width 8.5"/8.5" Max. 216/216 mm

Hold Key (Mute Key) Yes Yes

Automatic Cutter Yes Yes

ADF Capacity 10 pages 10 pages

Anti-curl System Yes Yes

Roll Paper Size (Standard thermal/Therma PLUS) 164'/98' (1"-core) 50 m/30 m (1"-core)

LCD Size 16 x 1 16 x 1

On-screen Programming Yes Yes

Memory Capacity 512 KB 512 KB

Super Fine Yes Yes

Smoothing Yes Yes

Gray Scale (levels) 64 by Dithered Method 64 by Dithered Method

One-touch Dialing 10 10

Speed Dialing 50 50

Telephone Index Yes Yes

Caller ID (Caller Display) Yes, w/ enhancement Yes for UK/NLD/SWE/NOR/

BEL/FRA/DEN/ARL/NZ

Automatic Redialing Yes Yes

Auto Reduction No No

Multi-resolution Transmission Yes Yes

Polling Yes (No secure polling) Yes (w/ secure polling)

Delayed Transmission Yes, 1 timer Yes, 3 timers

Delayed Polling No Yes

Coverpage No No

Call Reservation No No

Call-back Message No No

Activity Report No Yes

Auto CNG Detection (New) Yes Yes

Transmission Verification Report Yes, on LCD Yes, on LCD

ECM Yes Yes

Broadcasting Yes Yes

Quick Scanning Yes Yes

Out-of-paper Reception Yes, 20 pages Yes, 20 pages

Multi Copy Yes Yes

Multi Transmission No No

PCI (Missing link) Yes Yes

Fax Forwarding Yes Yes

Fax-on-demand No No

Fax Retrieval Yes Yes

ICM Recording Time 15 minutes 15 minutes

Memo/2-way Recording Yes Yes

Page Memory Yes, 20 pages Yes, 20 pages

Paging Yes Yes

Personal Fax Mail box (5) No No

Personal Voice Mail Box (5) No No

Remote Control Yes Yes

TAD Type DSP type DSP type

Toll Saver Yes Yes

Voice-on-demand No No

Super Telephone Index No No

Speaker Phone Yes (Full Duplex) Yes (Full Duplex)

Fax/Tel Switch Yes Yes

TAD Interface Yes Yes

Enlargement/Reduction No No

Enhanced RemoteActivation Yes Yes

Distinctive Ringing (FAX Ability) Yes Yes for DEN/ARL/NZ

Next-fax Reservation Yes Yes

Help Yes, simple Yes, simple

* FAX-525DT: Gray (1293)

FAX-525MC: White (1485)

I – 4

Caller ID (Caller Display) Yes*** Yes

Automatic Redialing Yes Yes

Auto Reduction No No

Multi-resolution Transmission Yes Yes

Polling Yes Yes

Delayed Transmission Yes, 1 timer Yes, 1 timer

Delayed Polling Yes Yes

Coverpage No No

Call Reservation No No

Call-back Message No No

Activity Report Yes (15) Yes

Auto CNG Detection (New) Yes Yes

Transmission Verification Report Yes, on LCD Yes, on LCD

ECM No No

Broadcasting No No

Quick Scanning No No

Out-of-paper Reception No No

Multi Copy No No

Multi Transmission No No

PCI (Missing link) No, Yes**** No

Model FAX-515 HOMEFAX3

Color Gray (1293), White (1485)* White (1485)

Modem Speed 9600 bps 9600 bps

Coding Method MH MH

Transmission Speed 15 sec. 15 sec.

CCITT Group G3 G3

Input/Output Width Max. 8.5" x 8.5" Max. 8.5" x 8.5"

Handset Yes Yes

Automatic Cutter Yes Yes

ADF Capacity (pages) 10 10

Anti-curl System Yes Yes

Roll Paper Size (Standard thermal/Therma PLUS) 50 m/30 m (1"-core) 50 m/30 m (1"-core)

LCD Size 16 x 1 16 x 1

On-screen Programming Yes Yes

Memory Capacity No No

Super Fine Yes Yes

Smoothing Yes Yes

Gray Scale (levels) 64 by Dithered Method 64 by Dithered Method

One-touch Dialing 10 8

Speed Dialing 50 50

Telephone Index Yes Yes

Super Telephone Index No No

Hook Key (TEL Key) Yes Yes

Fax/Tel Switch Yes Yes

TAD Interface Yes Yes

Enlargement/Reduction No No

Enhanced Remote Activation Yes Yes

Distinctive Ringing (FaxAbility) Yes** Yes

Next-fax Reservation Yes Yes

Help Yes, Simple Yes, simple

* White (1485) only for the Australian versions

** Only for the Australian and Danish versions

*** Only for the U.K., Dutch, Norwegian, Belgium,

French, Danish and Swedish versions

**** Yes only for theAustralian versions

CHAPTER II.

INSTALLATION
