Brother FAX 1840C Manuel utilisateur
FACSIMILE EQUIPMENT
PARTS REFERENCE LIST
MODEL: FAX1835C / 1840C / 1940CN
MFC3240C / 3340CN
(For Germany / United Kingdom / France /
Belgium / Netherlands / Switzerland /
Ireland / Denmark / Austria / Spain / Italy /
Portugal / China / Hong Kong / Asia /
Oceania / Pan-Nordic /Euro Generic)
© Copyright Brother 2004
All rights reserved
No part of this publication may be reproduced in any form
or by any means without permission in writing from the
publisher.
Specifications are subject to change without prior notice.
NOTES FOR USING THIS PARTS REFERENCE LIST
1. In the case of ordering parts, it needs mentioning the following items:
(1) Code
(2) Q' ty
(3) Description
(4) Recommend (The √mark is attached to recommend parts at this column.)
(5) Symbol (PCB No., Revision, and Parts location mounted on the PCB.)
Note: No orders without Parts Code or Tool No. can be accepted.
[Example]
(1) (2) (3) (4) (5)
REF.NO. CODE Q' TY DESCRIPTION RECOMMEND SYMBOL REMARKS
2. Design-changed parts:
When the parts are changed, any one of the following symbols is mentioned in the REMARKS column.
CHG (chg): The part is changed to a new part.
ADD (add): The part is newly added.
DEL (del): The part is deleted.
Symbol in capital letters indicates that the change is the latest one in the page.
3. Parts change will be informed by the technical information.
COUNTRIES
GERMAN ----- GER
UNITED KINGDOM ----- UK
FRANCE ---- FRA
BELGIUM ---- BEL
NETHERLANDS ---- NLD
SWITZERLAND ---- CHE
IRELAND ---- IRE
DENMARK ---- DEN
AUSTRIA ---- AUS
SPAIN ---- SPA
ITALY ---- ITA
PORTUGAL ---- POR
CHINA ---- CHN
HONG KONG ---- HK
ASIA (SINGAPOLE/GULF) ---- ASA
OCEANIA (ARL & NZ) ---- OCE
PAN NORDIC ---- PND
EURO GENERIC ---- GNR

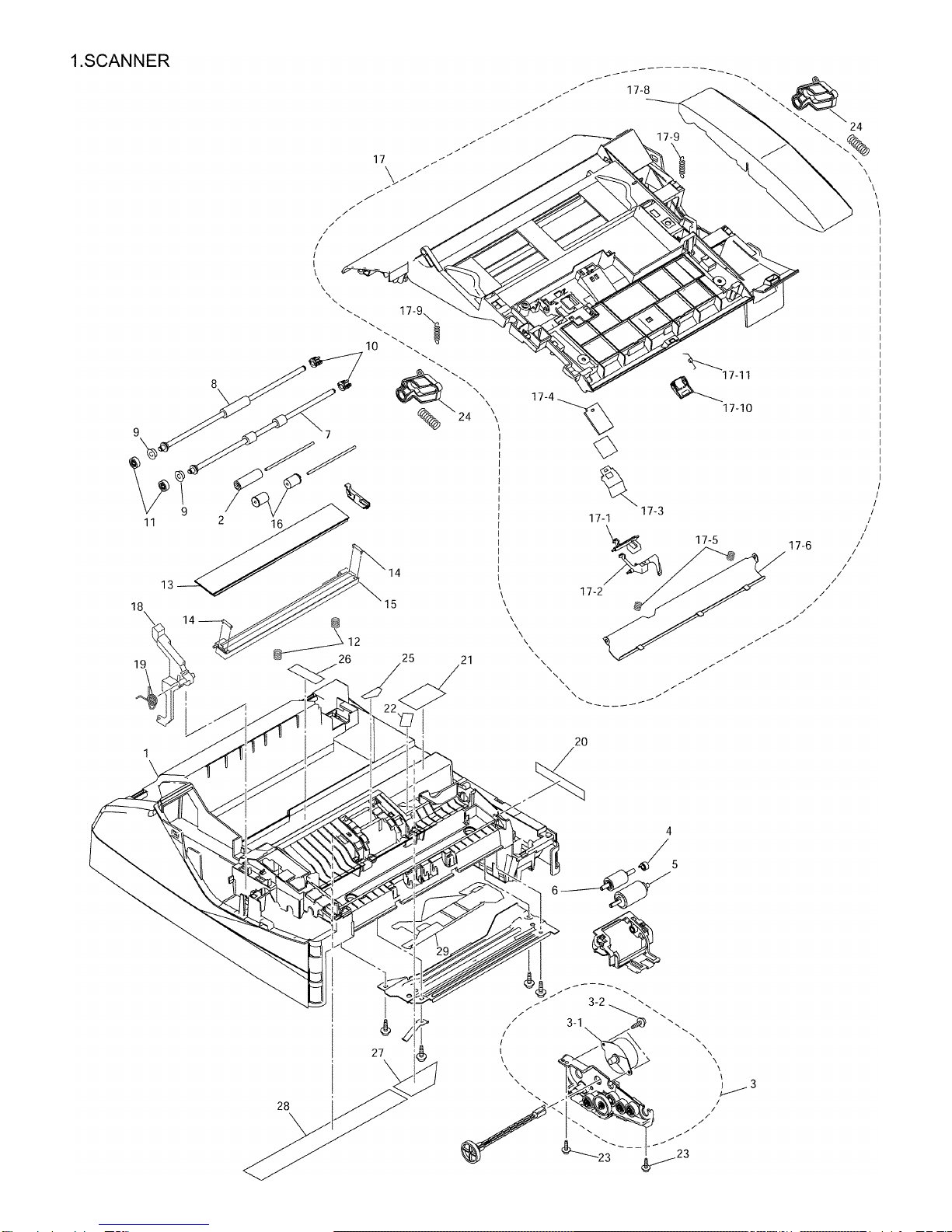

List1(SCANNER)
REF No. CODE Q'TY DESCRIPTION RECOMMEND REMARK
1 LP007300
2
1 UPPER COVER
,
FAX1835C/FAX1840C
(
*1
)
1 LP007100
2
1 UPPER COVER
,
FAX1835C/FAX1840C
(
*2
)
add
1 LP007400
2
1 UPPER COVER
,
FAX1940CN
(
*1
)
1 LP007200
2
1 UPPER COVER
,
FAX1940CN
(
*2
)
add
1 LP0073001 1 UPPER COVER
,
MFC3240C
(
*1
)
1 LP0071001 1 UPPER COVER
,
MFC3240C
(
*2
)
add
1 LP0074001 1 UPPER COVER
,
MFC3340CN
(
*1
)
1 LP0072001 1 UPPER COVER
,
MFC3340CN
(
*2
)
add
2 UU0021001 1 DOCUMENT PRESSURE ROLLER
3 LF5503001 1 SCANNER DRIVE UNIT
3-1 LF5510001 1 SCANNER MOTOR
3-2 0A530060
5
2 SCREW PAN
(
S/P WASHER
)
M3X6
4 LF5512001 1 PULL-IN ROLLER GEA
R
5 LF7067001 1 DOCUMENT SEPARATION ROLLER
6 LF7079001 1 DOCUMENT PULL-IN ROLLER
7 LF5515001 1 DOCUMENT EJECTION ROLLER
8 LF5517001 1 DOCUMENT FEED ROLLER
9 LE6494001 2 BUSHING ch
g
10 LF4230001 2 LOCK BUSHING
11 UU7039001 2 DOCUMENT FEED ROLLER GEAR 27
12 LF5522001 2 CIS SPRING
13 LF5523001 1 CIS GLASS
14 LF5524001 2 CIS SPACER
15 LG5352001 1 CIS UNIT
16 UL624400
2
2 PINCH ROLLER
17 LF553300
2
1 TOP COVER ASSY
,
FAX1835C/FAX1840C/FAX1940C
N
17 LF5533001 1 TOP COVER ASSY
,
MFC3240C/MFC3340C
N
17-1 LF5535001 1 DOCUMENT FRONT SENSOR ACTUATOR
17-2 LF5536001 1 DOCUMENT REAR SENSOR ACTUATOR
17-3 LF7975001 1 SEPARATION PLATE ch
g
17-4 LF7977001 1 SEPARATION RUBBER ch
g
17-5 LE9991001 2 SPRING
17-6 LF7074001 1 DOCUMENT PRESSURE BAR ASSY
17-8 LF554900
2
1 SIDE COVER R
,
FAX1835C/FAX1840C/FAX1940C
N
17-8 LF5549001 1 SIDE COVER R
,
MFC3240C/MFC3340C
N
17-9 LF5538001 2 STOPPER SPRING
17-10 LF7070001 1 DOCUMENT NIP PIECE add
17-11 LF7979001 1 NIP PIECE SPRING add
18 LF7066001 1 UPPER HOOK SWITCH ACTUATOR
,
FAX1840C/FAX1940CN
19 LF7680001 1
A
CTUATOR SPRING
,
FAX1840C/FAX1940CN
20 LP0717001 1 INK REPLACE LABEL CHG
21 LF5116001 1 CONSUMPTION LABEL FOR
GER/UK/FRA/BEL/NLD/CHE/IRE/DEN/AUS/SPA/ITA/POR/PND/GNR
21 LF7833001 1 CONSUMPTION LABEL FOR CHN
21 LF5941001 1 CONSUMPTION LABEL FOR HK/ASA/OCE
22 LF5179001 1 USB STICKER EXCEPT FOR CHN
22 LF5191001 1 USB STICKER FOR CHN
23 08531101
6
2 TAPTITE BIND B M3X10
24 LF5537001 2 TOP COVER STOPPER
25 LF7593001 1 FFC FILM
26 LF7242001 1
A
DF FILM
27 LF7677001 1 SLIDE SUPPORT FILM
28 LF7321001 1 SLIDE FILM
29 LF7640001 1 CIS FFC FILM
*1 : For models with non-detachable carria
g
e PCB on the
p
rint hea
d
*2 : For models with detachable carria
g
e PCB on the
p
rint hea
d
FAX1835, FAX1840C, FAX1940CN,
MFC3240C, MFC3340CN
8XA930, 8XA931, 8XA935,
8XA941, 8X947
List2(ENGINE)
REF No. CODE Q'TY DESCRIPTION RECOMMEND REMARK
1 LF7963001 1 ENGINE UNIT SUPPLY ASS
Y
ch
g
1-1 LF4764001 1 CARRIAGE MOTOR
1-2 LF4769001 1 CR ENCODER STRIP
1-3 00030030
5
4 SCREW
,
BIND M3X3
1-4 ----- NOT USED
1-5 ----- NOT USED
1-6 LP0555001 1 STAR WHEEL HOLDER ASSY A ch
g
1-7 LF7525001 1 PLATEN
1-8 LP0021001 1 PAPER PRESSURE HOLDER ch
g
1-9 LF4789001 1 REGISTRATION SENSOR ACTUATOR
1-10 LF4790001 1 SENSOR ACTUATOR SPRING
1-11 LF4800001 1 PF ENCODER DISK
1-12 LP0060001 1 PAPER FEED MOTOR ch
g
1-14 LF4809001 1 PF SENSOR PCB
1-15 08732061
6
1 TAPTITE
,
CUP S M3X6
1-16 LF4812001 1 PAPER PULL-IN ROLLER HOLDE
R
1-16-1 LF4815001 1
A
UTO SHEET FEEDER ROLLER ASSY add
1-17 LF4818001 1 FLUSHING CASE
1-18 LF4768001 1 TIMING BELT
A
DD
2 LF7036001 1 MAINTENANCE UNIT SUPPLY ASS
Y
√
2-1 LG5780001 1 PURGE CAM SWITCH
3 LF4806001 1 JAM CLEAR COVER
4 LF7964001 1 HEAD COVER ASSY
(
*1
)
4 LF7953001 1 HEAD COVER ASSY
(
*2
)
add
5 LP0057001 1 FFC SUPPORT add
6 LF7954001 1 CARRIAGE PCB SUPPLY ASS
Y
add
7 08732061
6
1 TAPTITE
,
CUP S M3X6
8 08731081
5
1 TAPTITE
,
CUP B M3X8
9 LF4760001 1 PURGE LEVER SPRING
(
LONGER
)
add
10 LF4759001 1 PURGE LEVER add
11 LF4762001 1 CLUCH GEAR add
12 LF4763001 1 CLUCH GEAR SPRING
(
SHORTER
)
add
*1 : For models with non-detachable carria
g
e PCB on the
p
rint hea
d
*2 : For models with detachable carria
g
e PCB on the
p
rint hea
d
FAX1835, FAX1840C, FAX1940CN,
MFC3240C, MFC3340CN
8XA930, 8XA931, 8XA935,
8XA941, 8X947
List3(CARTRIDGE CASE)
REF No. CODE Q'TY DESCRIPTION RECOMMEND REMARK
1LP047200
2
1 INK REFILL SUPPLY ASSY EXCEPT FOR CH
N
√
CHG
1LP047200
4
1 INK REFILL SUPPLY ASSY FOR CH
N
√
CHG
2LG5513001 1 LARGE VOLUME INK CARTRIDGE SENSOR
3LF7590001 1 HEAD JOINT RUBBER SUPPLY ASS
Y
FAX1835, FAX1840C, FAX1940CN,
MFC3240C, MFC3340CN
8XA930, 8XA931, 8XA935,
8XA941, 8X947
