Start Here MFC-J470DW

Quick Setup Guide

UK/IRE/GEN Version 0

Please read the Product Safety Guide first before you set up your machine. Then, please read this Quick Setup

Guide for the correct setup and installation.

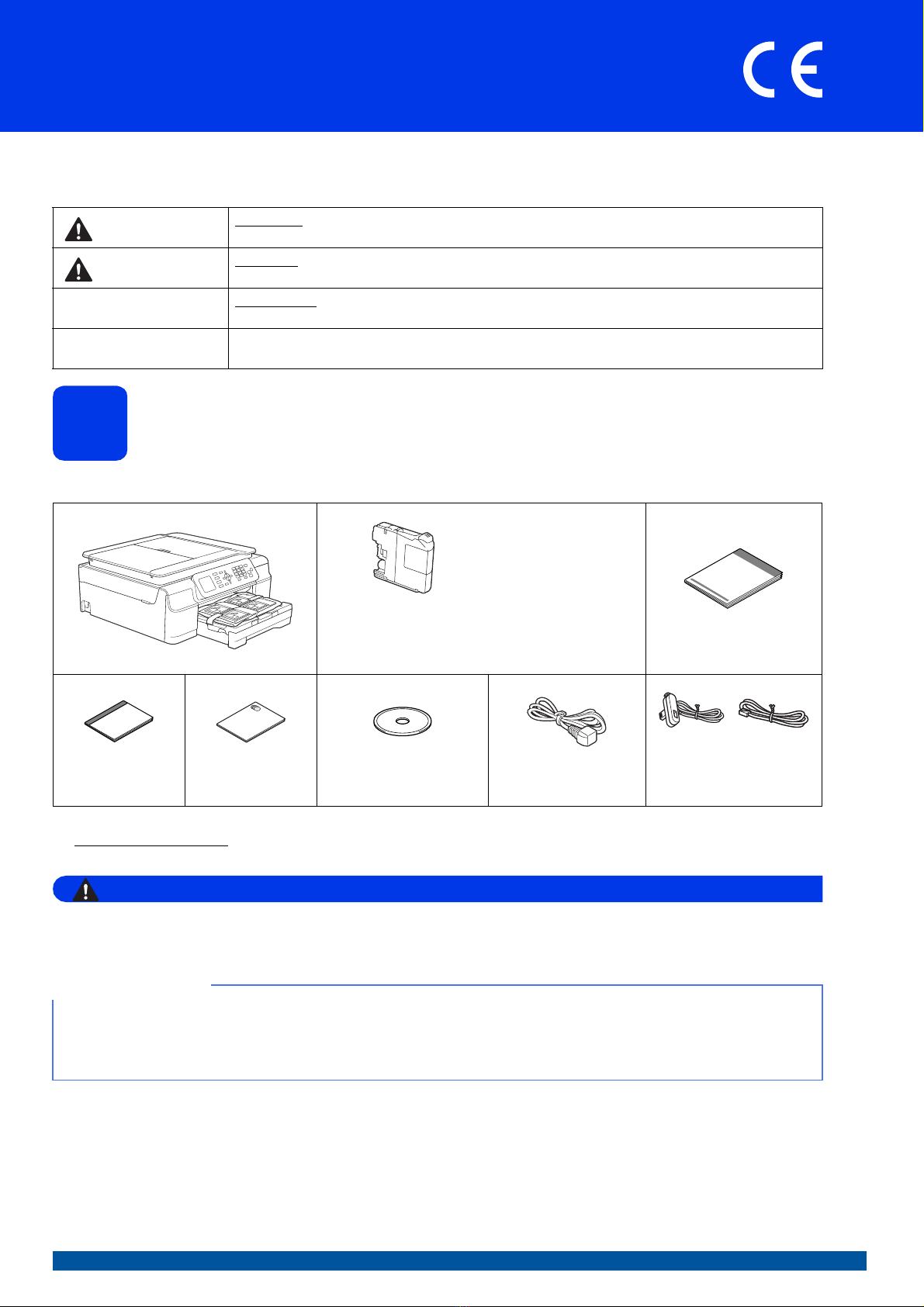

Unpack the machine and check the components

The components included in the box may differ depending on your country.

1If your computer does not have a CD-ROM drive, you can download the drivers from your model’s download page at

http://solutions.brother.com/. For more information, see page 11.

WARNING

Plastic bags are used in the packing of your machine. To avoid the danger of suffocation, keep these

plastic bags away from babies and children. Plastic bags are not toys.

WARNING WARNING indicates a potentially hazardous situation which, if not avoided, could result in death

or serious injuries.

CAUTION CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor

or moderate injuries.

IMPORTANT IMPORTANT indicates a potentially hazardous situation which, if not avoided, may result in

damage to property or loss of product functionality.

NOTE Notes tell you how to respond to a situation that may arise or give tips about how the operation

works with other features.

Introductory Ink

Cartridges

Black

Yellow

Cyan

Magenta

(Approx. 80% yield of

the replacement

cartridge (Standard))

uuBasic User’s Guide:

Consumable items

Quick Setup Guide

Basic User’s Guide Product Safety

Guide CD-ROM 1Power Cord Telephone Line Cord

NOTE

Save all packing materials and the box in case for any reason you must ship your machine.

USB cable

You need to purchase the correct USB cable.

We recommend using a USB 2.0 cable (Type A/B) that is no more than two metres long.

(for UK) (for others)

aRemove the protective tape and film covering

the machine, and also from the LCD.

Remove

the plastic bag acontaining the ink

cartridges from on top of the paper tray.

cMake sure you have all the components.

Connect the power cord

and telephone line

WARNING

• The machine must be fitted with an earthed

plug.

• Since the machine is grounded through the

power outlet, you can protect yourself from

potentially hazardous electrical conditions on

the telephone network by keeping the power

cord connected to your machine when you

connect it to a telephone line. Similarly, you

can protect yourself when you want to move

your machine by disconnecting the telephone

line first and then the power cord.

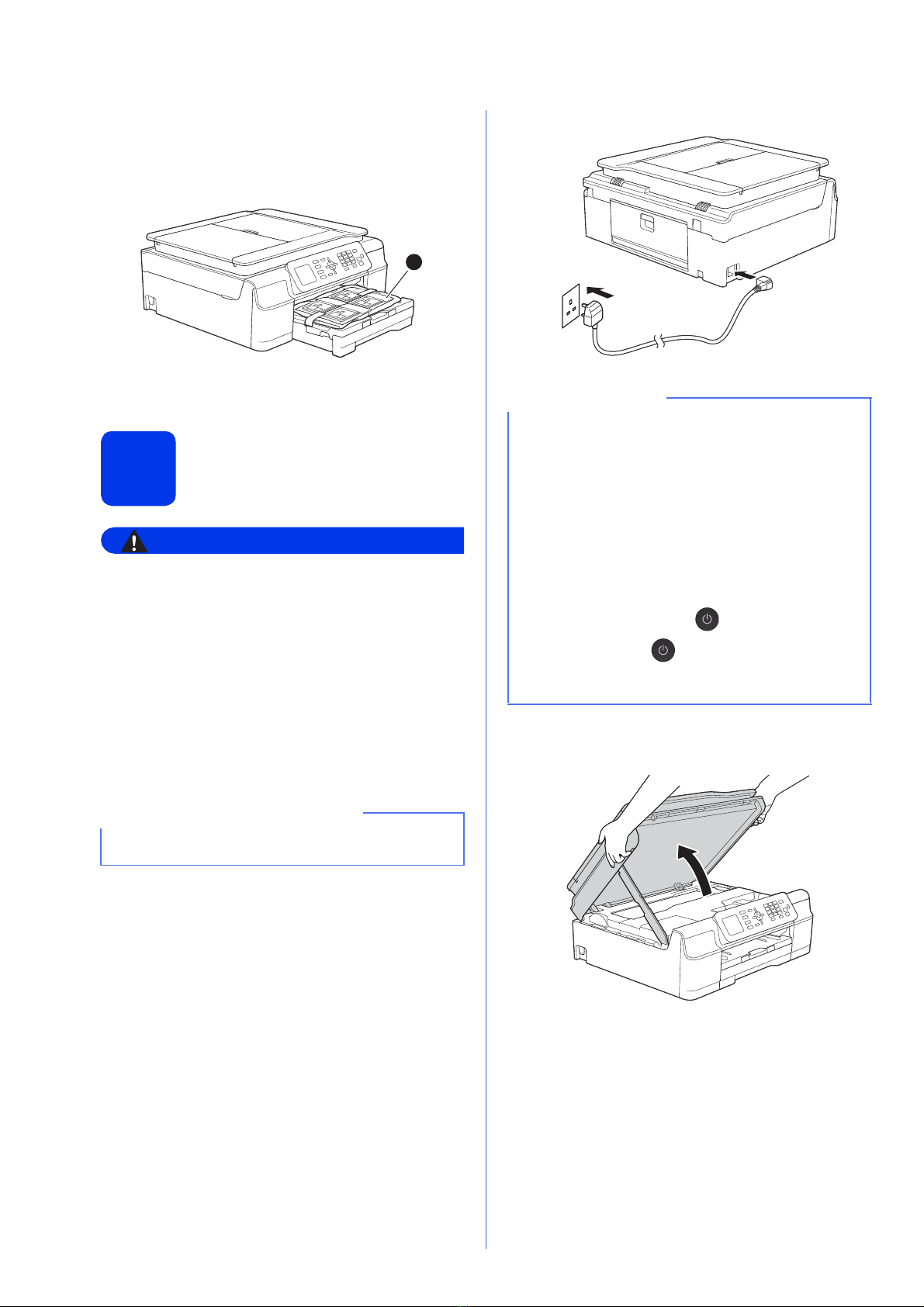

aConnect the power cord.

bLift the scanner cover until it locks securely into

the open position.

IMPORTANT

DO NOT connect the USB cable yet (if you are

using a USB cable).

NOTE

• If you do not plan to use the fax feature on this

machine, go to step 3on page 4.

• To prolong the life of the print head, provide the

best ink cartridge economy and maintain print

quality, we do not recommend unplugging the

machine frequently and/or leaving the machine

unplugged for extended periods of time. Each

time you plug the machine in, it automatically

cleans the print heads, which uses some of

your ink.

We recommend using to power down the

machine. Using allows minimal power to

the machine, resulting in periodic, but less

frequent, cleaning of the print heads.

(Example for UK)

cConnect the telephone line cord.

Connect one end of the telephone line cord to

the socket marked LINE on the machine.

Carefully guide the telephone line cord into the

cable channel and out the back of the machine.

Connect the other end to a modular wall

socket.

dLift the scanner cover to release the lock a.

Gently push the scanner cover support

down band close the scanner cover cusing

both hands.

CAUTION

Be careful not to pinch your fingers when the

scanner cover closes.

IMPORTANT

The telephone line cord MUST be connected to

the socket marked LINE on the machine.

(Example for UK)

NOTE

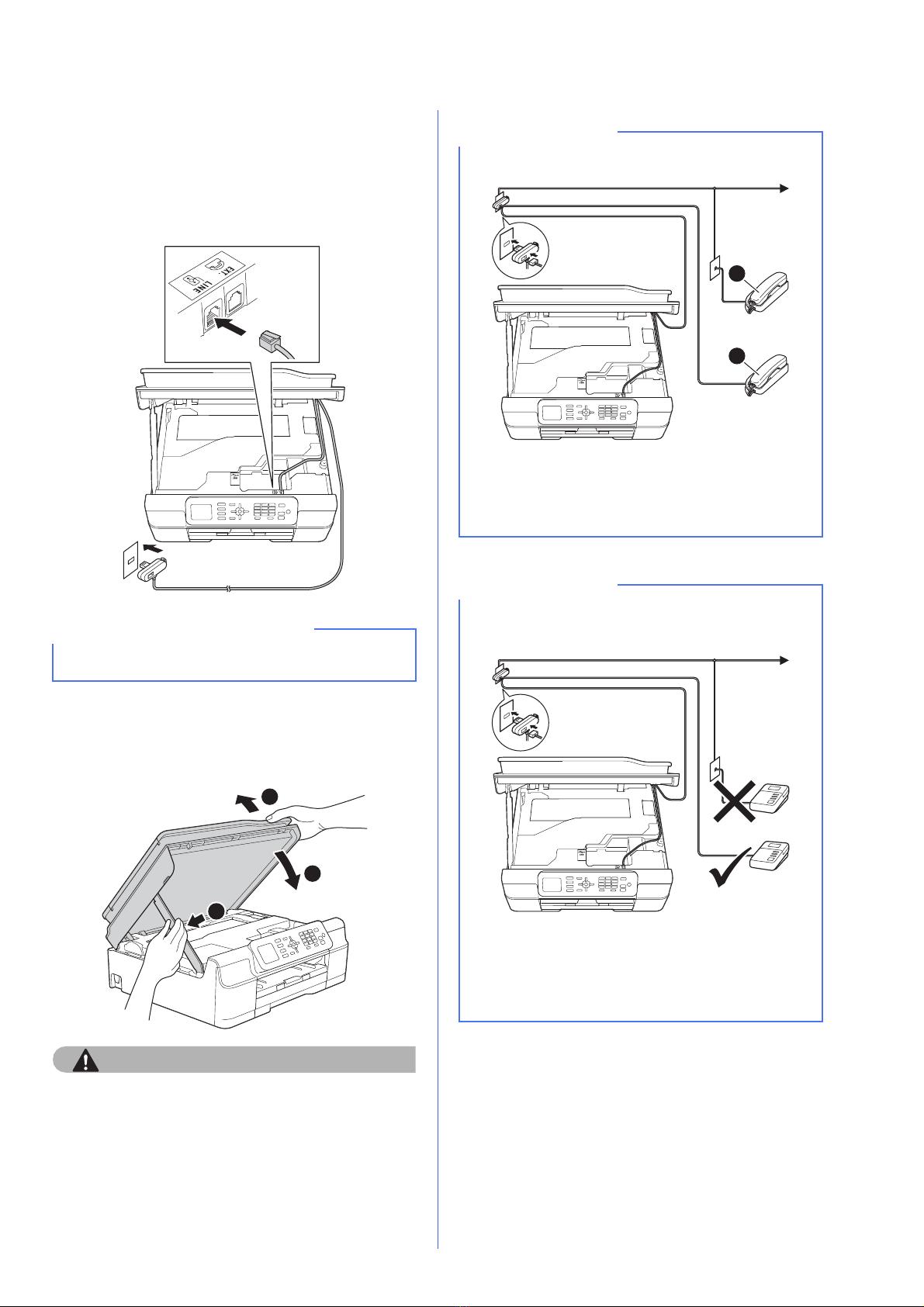

If you are sharing one telephone line with an

external telephone, connect it as shown below.

aExtension telephone

bExternal telephone

Please make sure you use an external telephone

with a cable no more than three metres long.

NOTE

If you are sharing one telephone line with an

external telephone answering machine, connect it

as shown below.

Set the receive mode to External TAD if you

have an external answering machine. See

Choose a Receive Mode on page 8. Detailed

information uuBasic User’s Guide: Connecting

an external TAD (telephone answering device)

Install the ink cartridges

CAUTION

If ink gets in your eyes, wash it out with water at

once and call a doctor if you are concerned.

aMake sure that the power is turned on.

The LCD will show No Ink Cartridge.

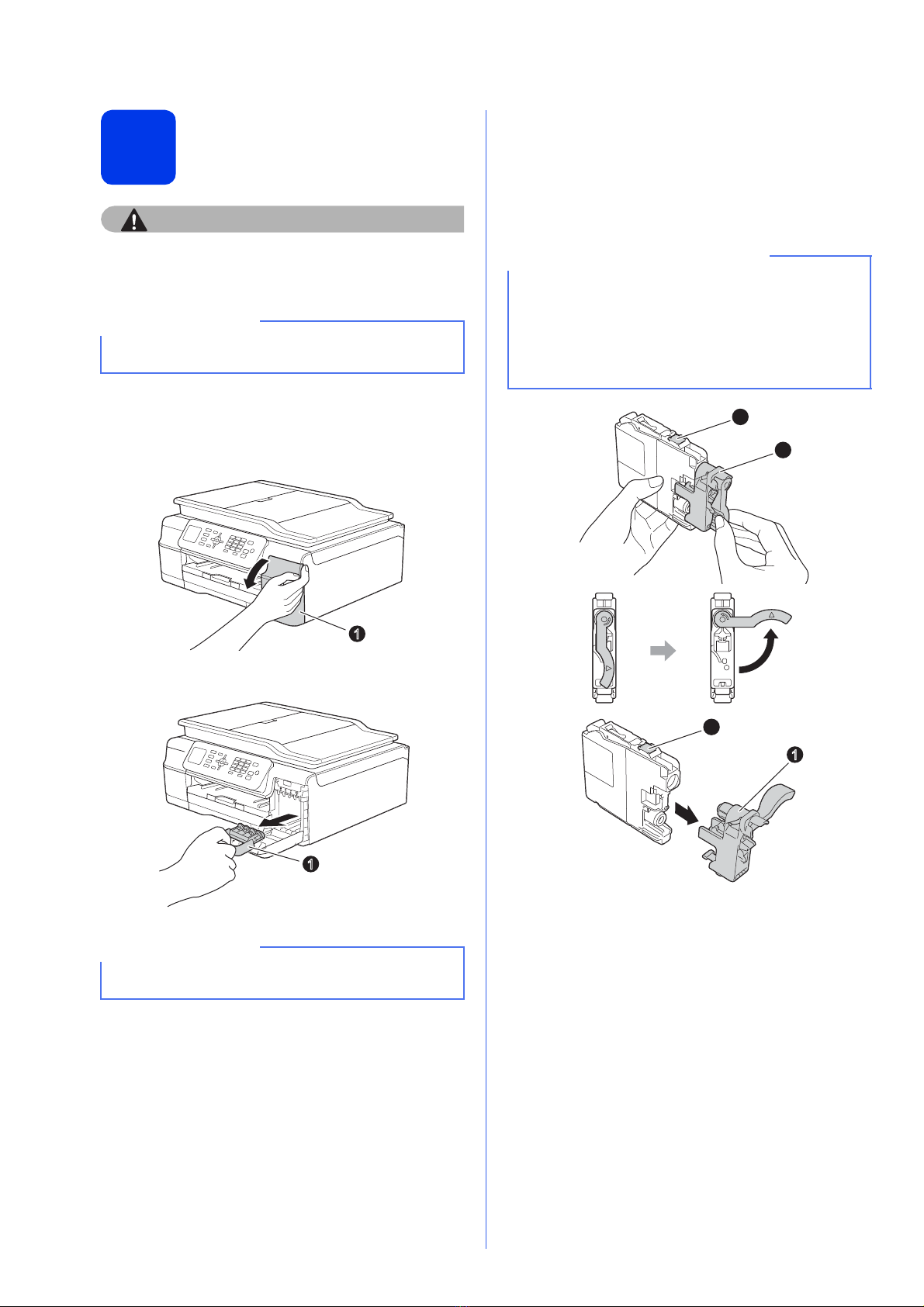

bOpen the ink cartridge cover a.

cRemove the orange protective part a.

dUnpack the ink cartridge.

Turn the green release lever on the orange

protective packing acounterclockwise until it

clicks to release the vacuum seal. Then

remove the orange protective packing aas

shown.

NOTE

Make sure you install the Introductory Ink

Cartridges included with your machine first.

NOTE

Do not throw away the orange protective part.

You will need it if you transport the machine.

IMPORTANT

• DO NOT shake the ink cartridges. If ink stains

your skin or clothing, wash with soap or

detergent at once.

• DO NOT touch the cartridge in the area

indicated b, as this can cause the machine not

to function with the cartridge.

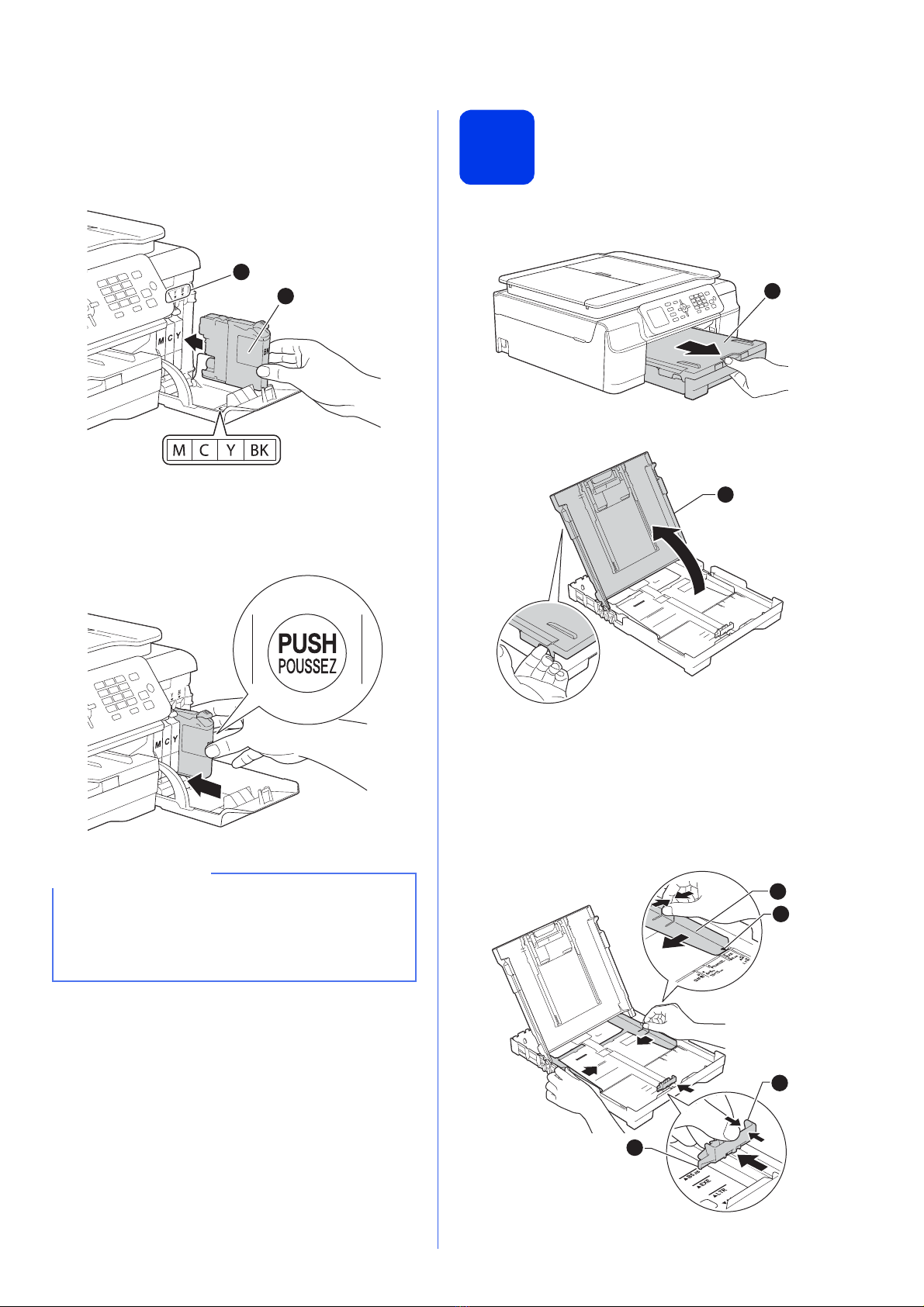

eTake care to match the sticker colour awith

the cartridge colour bas shown in the diagram

below.

Install each ink cartridge in the direction of the

arrow on the label.

fGently push the back of the ink cartridge

marked “PUSH” until the cartridge lever lifts.

After all the ink cartridges are installed, close

the ink cartridge cover.

Load plain A4 paper

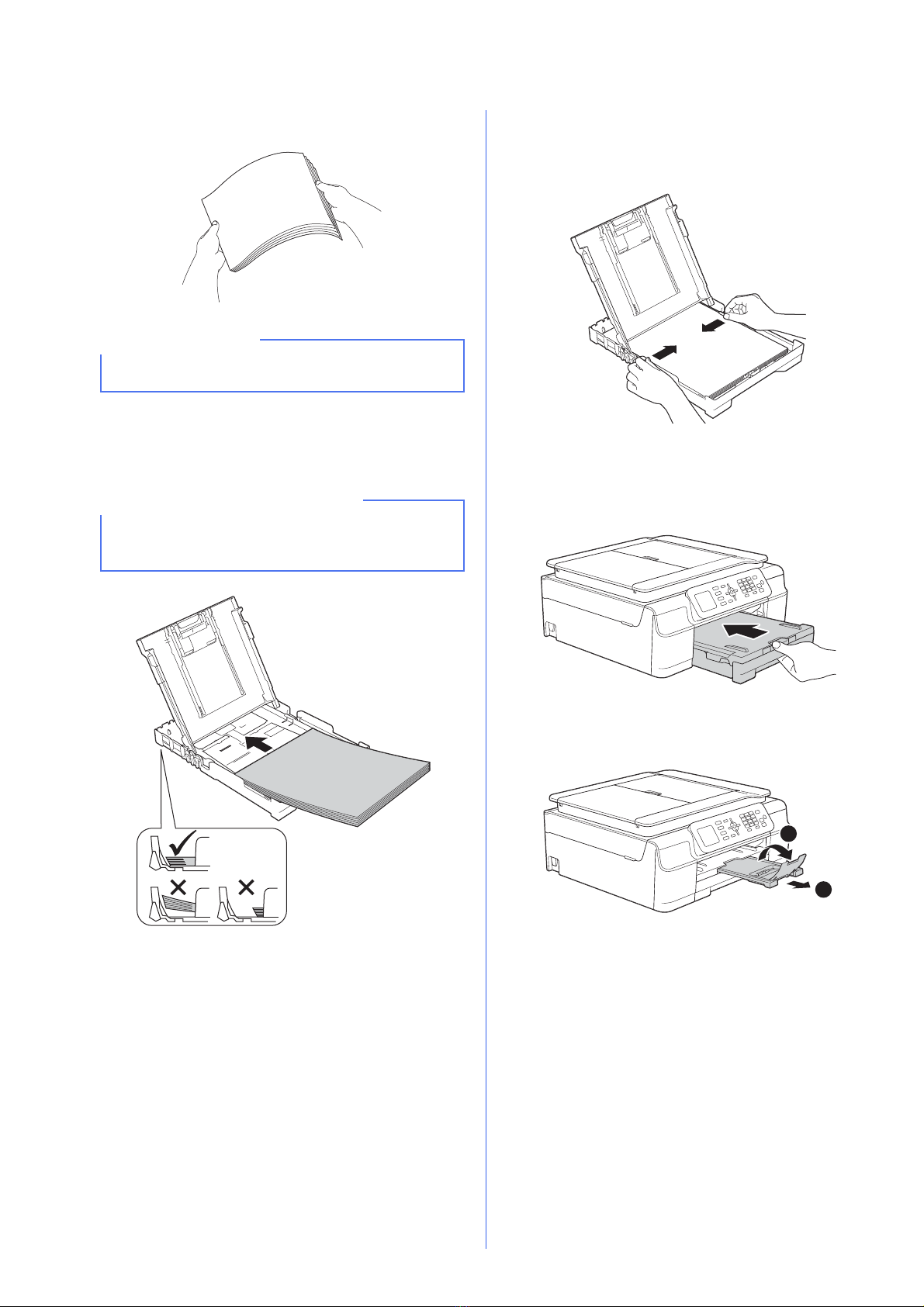

aPull the paper tray acompletely out of the

machine.

bOpen the output paper tray cover a.

cGently press and slide the paper width

guides aand then the paper length guide bto

fit the paper size.

Make sure that the triangular marks con the

paper width guides aand paper length

guide bline up with the mark for the paper size

you are using.

NOTE

The machine will prepare the ink tube system for

printing. This process will take approximately four

minutes. Do not turn off the machine. We

recommend you perform the next step while

waiting.

dFan the stack of paper well to avoid paper jams

and misfeeds.

eGently put the paper into the paper tray print

side down and top edge first. Check that the

paper is flat in the tray.

fGently adjust the paper width guides to the

paper with both hands. Make sure that the

paper width guides touch the edges of the

paper.

gClose the output paper tray cover.

hSlowly push the paper tray completely into the

machine.

iWhile holding the paper tray in place, pull out

the paper support auntil it clicks, and then

unfold the paper support flap b.

NOTE

Always make sure that the paper is not curled or

wrinkled.

IMPORTANT

Be careful that you do not push the paper in too

far; it may lift at the back of the tray and cause

paper feed problems.

Check the print quality

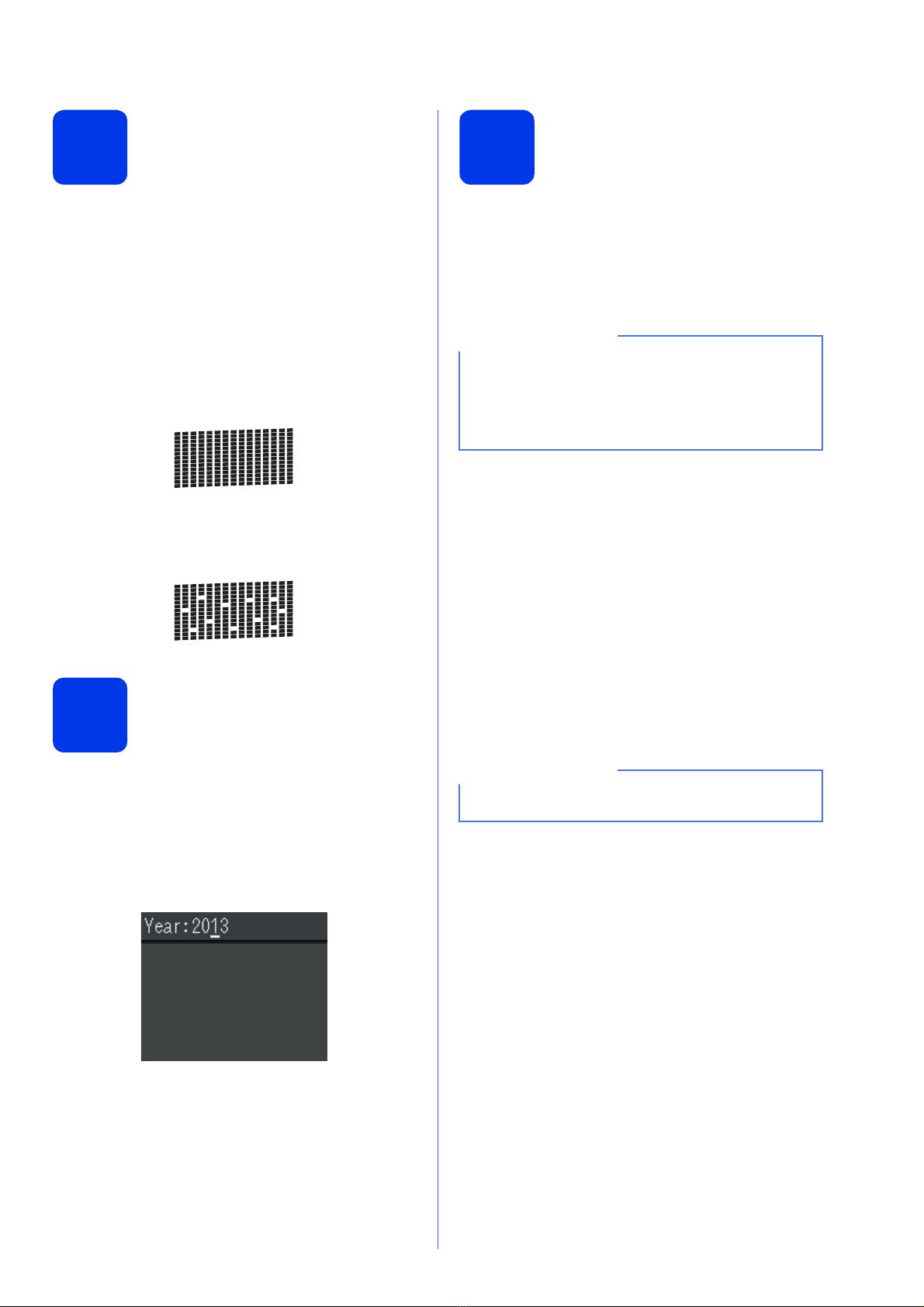

aWhen the preparation process has finished, the

LCD shows Load Paper and Press

Colour Start.

Press Colour Start.

bCheck the quality of the four colour blocks on

the sheet. (black/yellow/cyan/magenta)

cIf all lines are clear and visible, press 1(Yes) to

finish the quality check and go to the next step.

If lines are missing, press 2(No) and follow the

steps on the LCD.

Set the date and time

The LCD displays the date and time. You can also

add the current date and time to each fax you send by

setting your Station ID (see step 9).

aEnter the last two digits of the year on the dial

pad, and then press OK.

bRepeat for month/day/time in 24-hour format.

Wireless setup

(if needed)

When the Wi-Fi setup will start. message

appears on the LCD, read the message, and then

press OK to continue.

For wireless setup using a mobile device, go to a.

For Windows®and Macintosh users, go to b.

aPress aor bto choose Yes.

Press OK.

Go to step 15 on page 18 to continue with the

wireless setup.

After finishing the wireless setup, return to

step 8to finish the machine setup.

bPress aor bto choose No.

Press OK.

Go to step 8and continue with the machine

setup.

Wireless setup instructions for Windows®and

Macintosh users will be covered later, starting

on page 18.

Poor

(e.g. Enter 13for 2013.)

NOTE

If you want to configure any of the options in

steps 8-13, you can choose No in step a, and

then go to step 8.

You will be able to configure the wireless settings

later.

NOTE

If a prompt message appears on the LCD, read it

and press OK to continue.

Choose a Receive Mode

There are four possible receive modes: Fax Only,

Fax/Tel, Manual and External TAD.

uuBasic User’s Guide: Using Receive Modes

If you are not using this machine for faxing, go to the

next step.

aPress Menu.

bPress aor bto choose Fax.

Press OK.

cPress aor bto choose Setup Receive.

Press OK.

dPress aor bto choose Receive Mode.

Press OK.

ePress your preferred receive mode.

Press OK.

fPress Stop/Exit.

Enter personal

information (Station ID)

Set your machine’s Station ID so that the date and

time appear on each fax you send.

If you are not using this machine for faxing, go to the

next step.

aPress Menu.

bPress aor bto choose Initial Setup.

Press OK.

cPress aor bto choose Station ID.

Press OK.

dEnter your fax number (up to 20 digits) on the

dial pad, and then press OK. To enter a “+” for

international codes, press l.

eEnter your name (up to 20 characters) using

the dial pad, and then press OK.

fPress Stop/Exit.

Yes

Do you want to use the telephone features of your

machine (if available), an external telephone or

external telephone answering device connected on the

same line as the machine?

Do you want the machine to

answer fax and telephone calls

automatically?

Are you using the voice message

function of an external telephone

answering device?

Manual

Fax Only

Fax/Tel

External TAD

You control the telephone

line and must answer every

call yourself.

Your external telephone

answering device (TAD)

automatically answers every

call. Voice messages are

stored on the external TAD.

Fax messages are printed.

Your machine controls the

line and automatically

answers every call. If the

call is not a fax, the

telephone will ring for you

to pick up the call.

Your machine automatically

answers every call as a fax.

NOTE

• See the following chart for entering your name.

• If you need to enter a character that is on the

same key as the character before, press cto

move the cursor to the right.

• If you entered a character incorrectly and want

to change it, press dor cto move the cursor to

the incorrect character, and then press Clear.

• For more information uuBasic User’s Guide:

Entering Text

Press

key

One

time

Two

times

Three

times

Four

times

Five

times

2ABC2A

3DEF3D

4GH I 4G

5JKL5J

6MNO6M

7PQRS 7

8TUV8T

9WX Y Z 9

NOTE

If you make a mistake and want to start again,

press Stop/Exit and go back to a.

Transmission

Verification Report

Your Brother machine is equipped with a

Transmission Verification Report that can be used as

confirmation that you sent a fax. This report lists the

name or fax number of the receiving party, the date,

time, and duration of the transmission, the number of

pages transmitted, and whether or not the

transmission was successful.

Instructions on using this feature uuBasic User’s

Guide: Transmission Verification Report

Set Tone or Pulse dialling

mode

Your machine comes set for a Tone dialling service. If

you have a Pulse dialling (rotary) service, you need to

change the dialling mode.

aPress Menu.

bPress aor bto choose Initial Setup.

Press OK.

cPress aor bto choose Tone/Pulse.

Press OK.

dPress aor bto choose Pulse (or Tone).

Press OK.

ePress Stop/Exit.

Set the telephone line

type

If you are connecting the machine to a line that

features PBX or ISDN to send and receive faxes, it is

necessary to change the telephone line type

accordingly.

aPress Menu.

bPress aor bto choose Initial Setup.

Press OK.

cPress aor bto choose Phone Line Set.

Press OK.

dPress aor bto choose Normal, PBX or ISDN.

Press OK.

ePress Stop/Exit.

NOTE

PBX and TRANSFER

The machine is initially set to Normal, which lets

the machine connect to a standard PSTN (Public

Switched Telephone Network) line. However,

many offices use a central telephone system or

Private Branch Exchange (PBX). Your machine

can be connected to most types of PBX. The

machine’s recall feature supports timed break

recall only (TBR). TBR will work with most PBX

systems allowing you to gain access to an outside

line, or transfer calls to another extension. The

feature works when the Tel/R key is pressed.

Set the telephone line

compatibility (VoIP)

If you are connecting the machine to a VoIP service

(over the Internet), you need to change the

compatibility setting.

aPress Menu.

bPress aor bto choose Initial Setup.

Press OK.

cPress aor bto choose Compatibility.

Press OK.

dPress aor bkey to choose Basic(for

VoIP).

Press OK.

ePress Stop/Exit.

NOTE

If you are using an analogue telephone line, you

can skip this step.

Autres manuels pour Work Smart MFC-J470dw

Table des matières

Autres manuels Brother Imprimante tout-en-un

Brother

Brother FAX-1800C Manuel utilisateur

Brother

Brother MFC-9700 Manuel utilisateur

Brother

Brother DCP-J125 Instructions de montage

Brother

Brother MFC-5460CN Manuel utilisateur

Brother

Brother MFC-J6935DW Manuel utilisateur

Brother

Brother MFC-J775DW Manuel d'utilisation

Brother

Brother MFC 795CW - Color Inkjet - All-in-One Manuel utilisateur

Brother

Brother MFC-J280W Manuel utilisateur

Brother

Brother MFC 845CW - Color Inkjet - All-in-One Fiche technique

Brother

Brother MFC-J435W Instructions de montage

Brother

Brother HL-L3290CDW Manuel utilisateur

Brother

Brother DCP-9270CDN Manuel d'utilisation et d'entretien

Brother

Brother DCP-7080 Manuel utilisateur

Brother

Brother MFC-9760 Manuel utilisateur

Brother

Brother DCP-J125 Manuel utilisateur

Brother

Brother DCP-J525W Manuel d'utilisation et d'entretien

Brother

Brother MFC-9460CDN Manuel d'utilisation et d'entretien

Brother

Brother DCP 350C - Color Inkjet - All-in-One Manuel utilisateur

Brother

Brother MFC-J4410DW Manuel utilisateur

Brother

Brother DCP-J552DW Manuel utilisateur

Brother

Brother MFC-P2000 Manuel utilisateur

Brother

Brother MFC-5460CN Manuel utilisateur

Brother

Brother MFC 5490CN - Color Inkjet - All-in-One Manuel de la liste des pièces

Brother

Brother ADS-2100e Manuel utilisateur

Manuels Imprimante tout-en-un populaires d'autres marques

Triumph Adler

Triumph Adler DC 2016 Manuel

Epson

Epson WorkForce WF-2510 Guide de l'utilisateur

Epson

Epson Stylus Scan 2000 Manuel d'installation et d'exploitation

Epson

Epson PictureMate Snap PM 240 Mode d’emploi

Konica Minolta

Konica Minolta bizhub C35 Manuel utilisateur

Konica Minolta

Konica Minolta BIZHUB 558 Manuel utilisateur

Lexmark

Lexmark MX710 Series Manuel

Lexmark

Lexmark XC8155 Manuel utilisateur

Lexmark

Lexmark X642E Manuel utilisateur

Sharp

Sharp MX-2310U Mode d’emploi

Aficio

Aficio 200 Manuel utilisateur

Canon

Canon ImageCLASS 2300 Manuel

Ricoh

Ricoh Pro C900 Manuel utilisateur

Lexmark

Lexmark X925 Manuel utilisateur

Epson

Epson Stylus CX8400 Series Manuel utilisateur

Oce

Oce VarioLink 5022 Manuel utilisateur

Copystar

Copystar CS 4551ci Manuel utilisateur

Konica Minolta

Konica Minolta Magicolor 4650EN Manuel utilisateur
