Brother DCP-9042CDN Manuel utilisateur

STEP 1

STEP 2

Setup is Complete!

Quick Setup Guide

Setting Up the Machine

Installing the Driver & Software

DCP-9040CN

DCP-9042CDN

Before you can use the machine, you must set up the hardware and install the driver. Please read

this ‘Quick Setup Guide’ for proper set up and installation instructions.

Keep this ‘Quick Setup Guide’ and the supplied CD-ROM in a convenient place for quick and easy

reference at all times.

(EU only)

Version 0

ARL/ASA/NZ

Symbols used in this guide

Warning

Electrical Hazard

Hot Surface

Caution

Warnings tell you what to do

to prevent possible personal

injury.

Electrical Hazard icons alert

you to a possible electrical

shock.

Hot Surface icons warn you

not to touch machine parts

that are hot.

Cautions specify procedures

you must follow or avoid to

prevent possible damage to

the machine.

Improper Setup

Note

User's Guide, Software

User's Guide or

Network User's Guide

Improper Setup icons alert

you to devices and

operations that are not

compatible with the machine.

Notes tell you how you should

respond to a situation that

may arise or give tips about

how the current operation

works with other features.

Indicates reference to the

User's Guide, Software

User's Guide or Network

User's Guide which is on the

CD-ROM we have supplied.

Table of Contents

Getting Started

Carton components...................................................................................................................................... 2

Control panel................................................................................................................................................ 4

STEP 1 –

Setting Up the Machine

Remove the packing materials from the machine ........................................................................................ 5

Installing the toner cartridges ....................................................................................................................... 6

Load paper in the paper tray ........................................................................................................................ 6

Install the power cord .................................................................................................................................. 7

Setting the LCD contrast .............................................................................................................................. 7

STEP 2 –

Installing the Driver & Software

Windows®

For USB Interface Cable Users

(For Windows®2000 Professional/XP/ XP Professional x64 Edition/Windows Vista®) ............................ 10

For Network Interface Users

(For Windows®2000 Professional/XP/ XP Professional x64 Edition/Windows Vista®) ............................ 13

For Windows Server®2003, see the Network User’s Guide on the CD-ROM.

Firewall settings ................................................................................................................................... 16

Macintosh®

For USB Interface Cable Users................................................................................................................. 18

For Mac OS®X 10.2.4 or greater......................................................................................................... 18

For Network Interface Users ..................................................................................................................... 20

For Mac OS®X 10.2.4 or greater......................................................................................................... 20

For Network Users

BRAdmin Light utility (For Windows®users).............................................................................................. 23

Installing the BRAdmin Light configuration utility .................................................................................. 23

Setting your IP address, Subnet Mask and Gateway using BRAdmin Light ........................................ 23

BRAdmin Light utility (For Mac OS®X users)............................................................................................ 24

Setting your IP address, Subnet Mask and Gateway using BRAdmin Light ........................................ 24

Web Based Management (web browser)................................................................................................... 25

Restoring the network settings to factory default ....................................................................................... 25

Uninstalling the ‘MFL-Pro Suite’

Instructions on how to uninstall the MFL-Pro Suite software .....................................................................26

Uninstalling for Windows....................................................................................................................... 26

Uninstalling for Macintosh ..................................................................................................................... 26

Consumables and Options

Optional memory........................................................................................................................................ 27

Consumables ............................................................................................................................................. 27

Getting Started

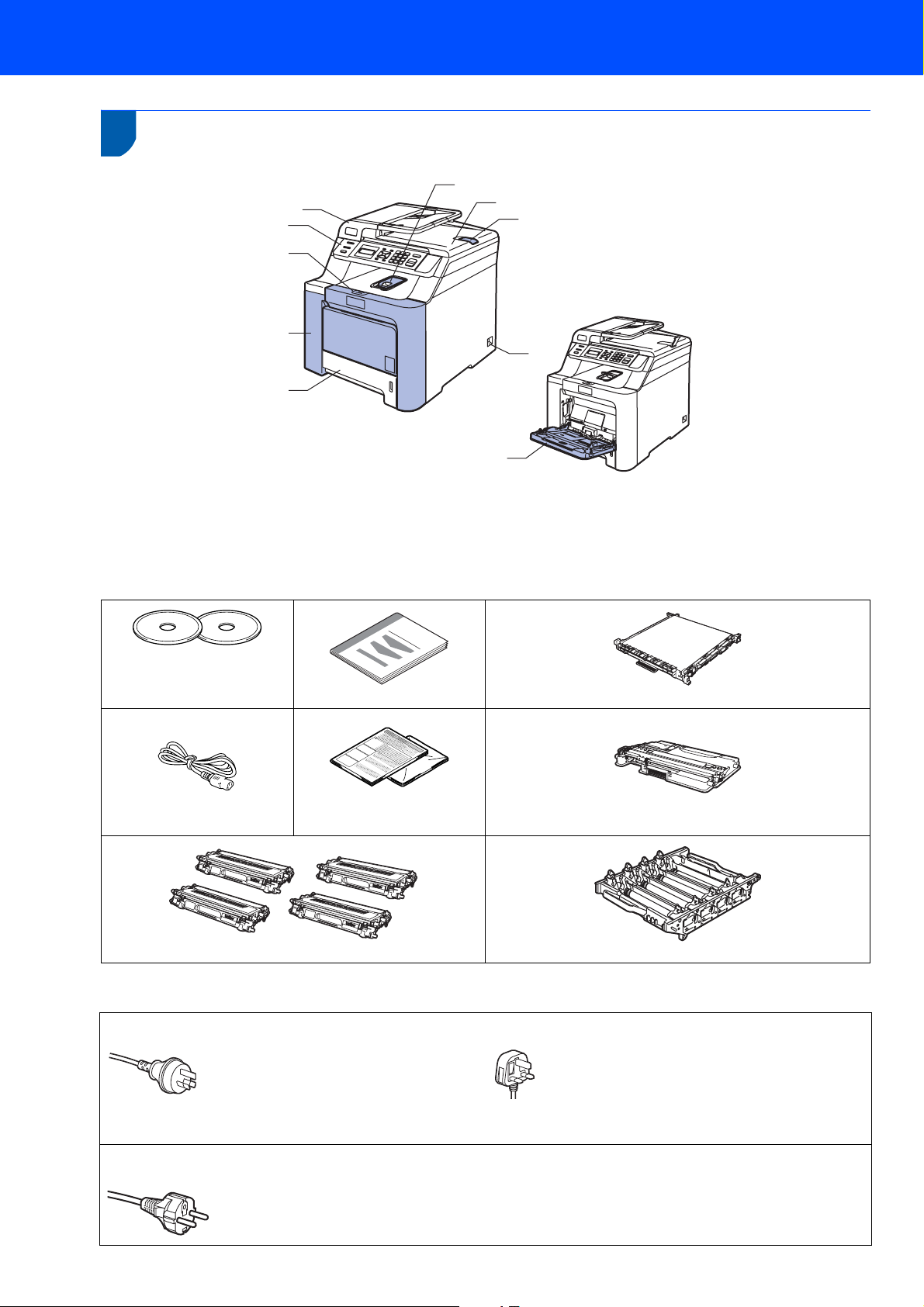

Carton components

1 Automatic Document Feeder (ADF)

2 Control Panel

3 Front Cover Release Button

4FrontCover

5 Paper Tray

6 Power Switch

7 ADF Document Output Support Flap

8 Document Cover

9 Face-down Output Tray Support

10 Multi-purpose tray (MP tray)

Carton components may vary from one country to another.

Save all packing materials and the carton in case for any reason you must ship your printer.

CD-ROMs

For Windows®

For Macintosh®

Quick Setup Guide

Belt Unit (pre-installed)

AC Power Cord

Insertion Sheet and Plastic

bag for repacking

Waste Toner Box (pre-installed)

Toner cartridges (Black, Cyan, Magenta and Yellow)

Drum Unit (pre-installed)

Australia & New Zealand users: Hong Kong, Malaysia & Singapore users:

The mains plug supplied with this machine is a grounded three pin plug. Make sure that the AC socket will accept this

grounded three pin plug. This machine must be grounded, If in doubt, call a qualified electrician.

Philippines & Thailand users:

The mains plug supplied with this machine is a side grounded two pin plug. Make sure that

the AC socket will accept this side grounded two pin plug. This machine must be grounded,

If in doubt, call a qualified electrician.

Getting Started

To ensure safe operation the supplied plug must be inserted only into a standard power outlet that is properly

grounded through the standard electrical wiring. Non grounded equipment may cause an electrical shock

hazard, and may cause excessive electrical noise radiation.

The interface cable is not a standard accessory. Please purchase the appropriate interface cable for the

interface you intend to use (USB or Network).

DO NOT connect the interface cable at this time. Connecting the interface cable is done during the software

installation process.

USB interface cable

Please make sure you use a USB 2.0 interface cable that is no longer than 2 metres. When you use a USB

cable, make sure you connect it to the USB port of your computer and not to a USB port on a keyboard or non-

powered USB hub.

Network cable

Use a straight-through Category5 (or greater) twisted-pair cable for 10BASE-T or 100BASE-TX Fast Ethernet

Network.

Getting Started

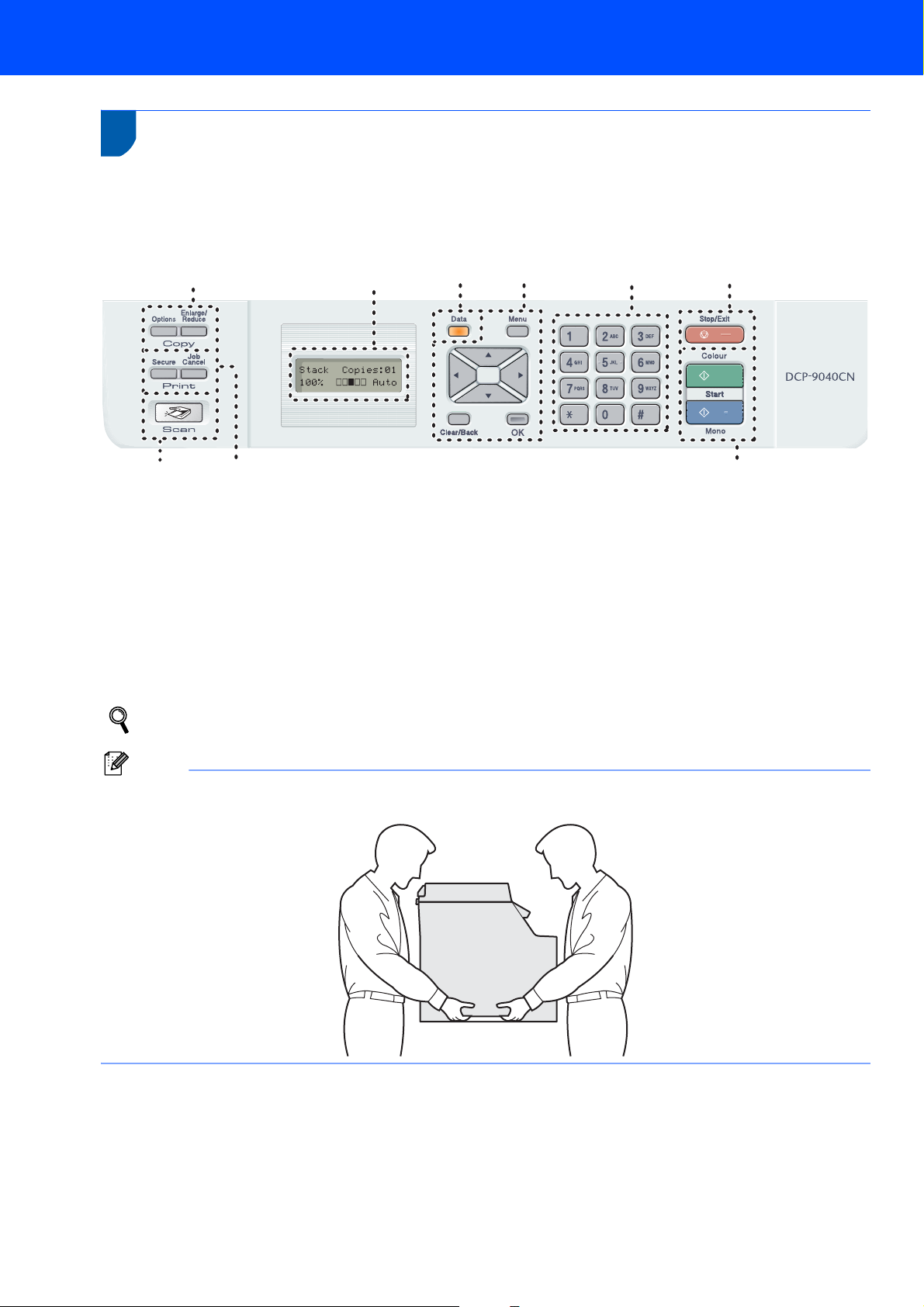

Control panel

DCP-9040CN and DCP-9042CDN have similar control keys.

1 Copy keys

2 LCD (Liquid Crystal Display)

3 Data LED

4 Menu keys

5 Numeric keys

6 Stop/Exit key

7Startkeys

8 Print keys

9 Scan key

For the details of the control panel, see Control panel overview in Chapter 1 of the User’s Guide.

Note

This machine is heavy and weighs 72.6 lb (32.8 kg). To prevent injuries use at least two people to lift the machine.

Be careful not to pinch your fingers when you set the machine back down.

3456

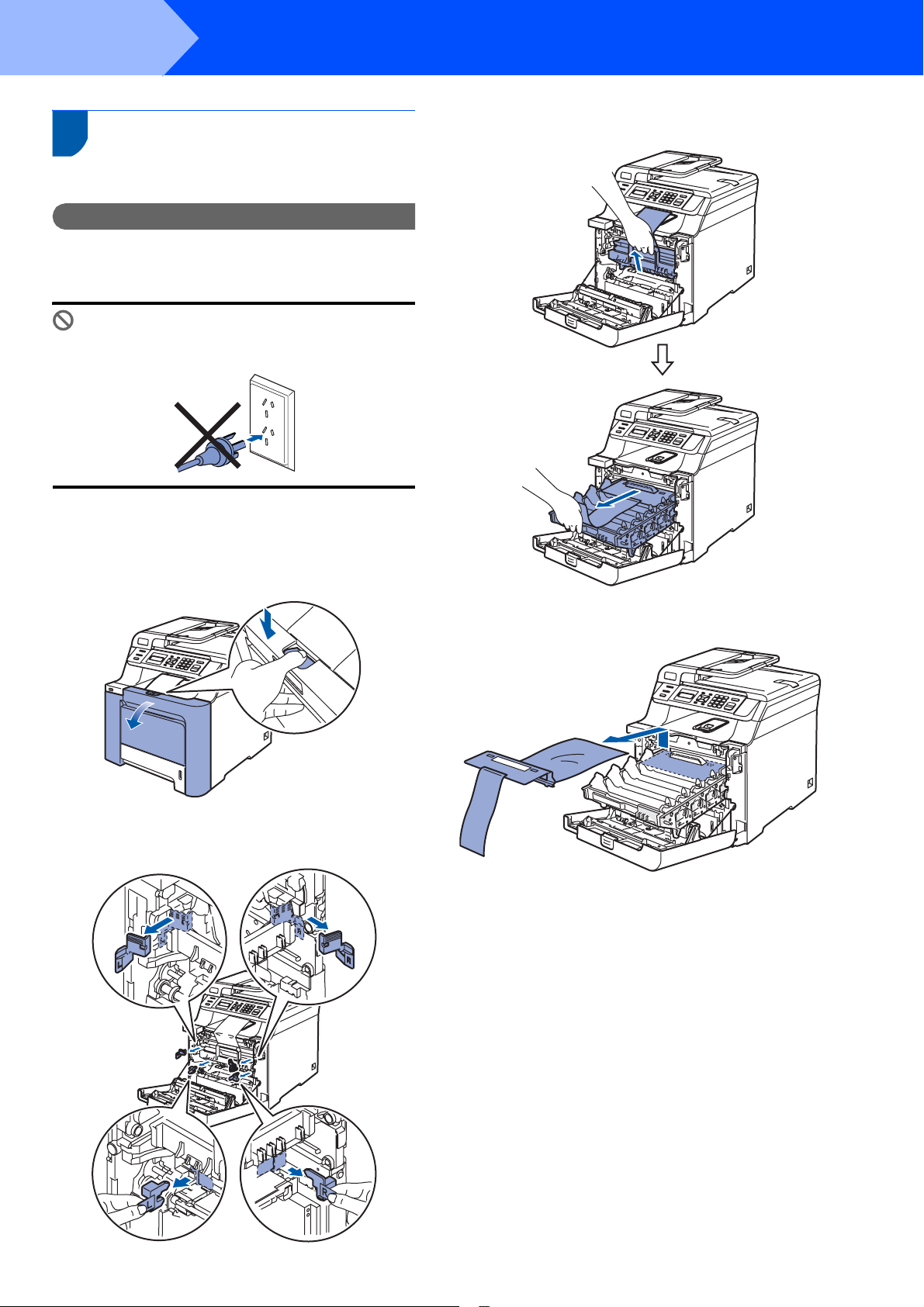

Setting Up the Machine

STEP 1

1 Remove the packing

materials from the machine

Important

Save all packing materials and the carton in

case you have to ship your machine.

Improper Setup

DO NOT plug in the AC power cord yet.

1Remove the packing tape from the outside of

the machine.

2Press the front cover release button and open

the front cover.

3Remove the four pieces of orange packing

material as shown in the illustration below.

4Hold the green handle of the drum unit. Lift the

drum unit up and then pull it out until it stops.

5Remove the orange packing material as shown

in the illustration below.

Setting Up the Machine

STEP 1

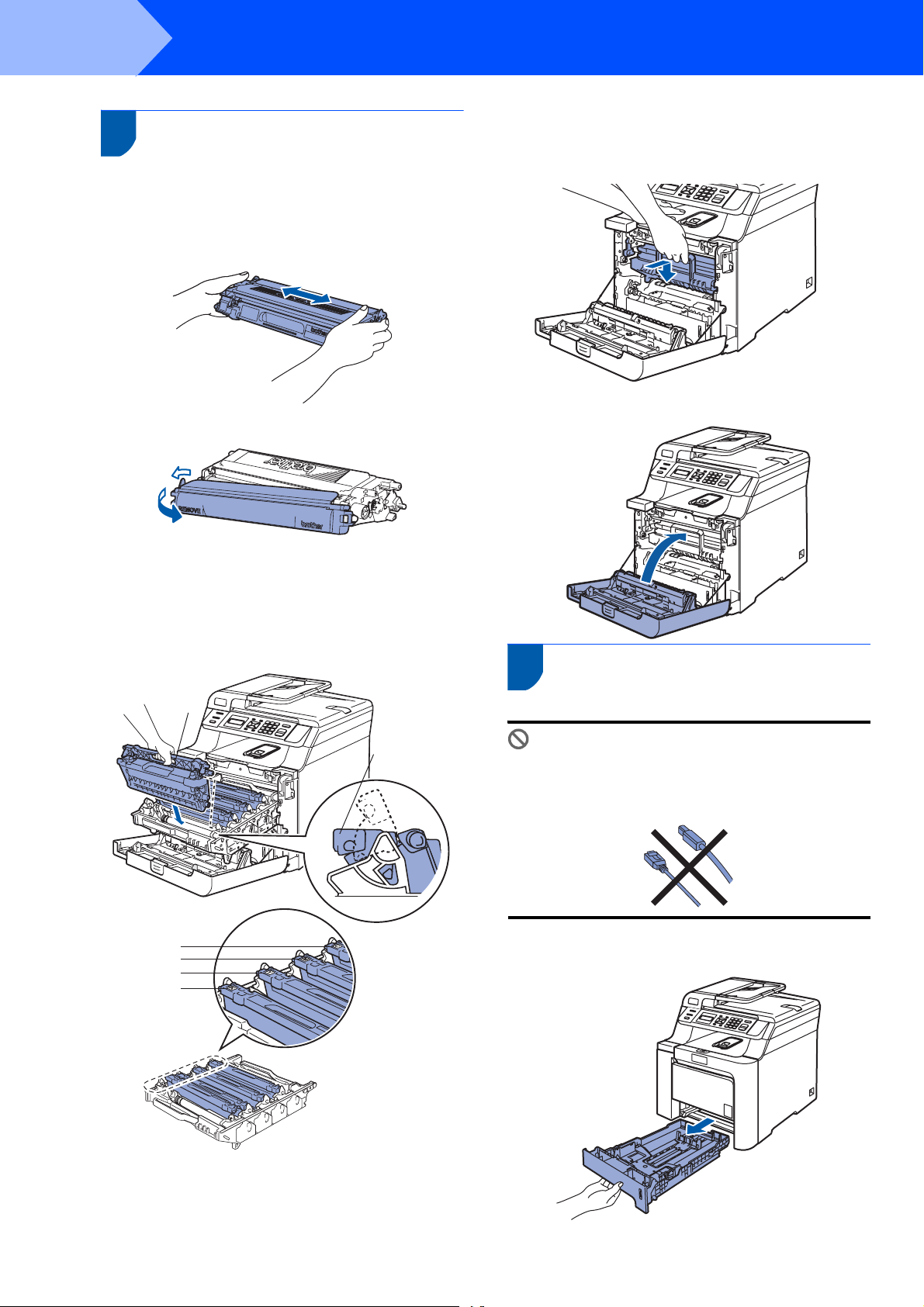

2 Installing the toner

cartridges

1Unpack the toner cartridges and gently shake

each toner cartridge from side to side 5 to 6

times.

2Pull off the protective cover.

3Hold the handle of the toner cartridge and slide

it into the drum unit. Make sure that you match

the toner cartridge colour to the same colour

label on the drum unit, and make sure that you

fold down the toner cartridge handle (1) once

the toner cartridge is in place.

1C— Cyan

2M— Magenta

3Y— Yellow

4K— Black

4Repeat steps 1through 3for the remaining

toner cartridges.

5Put the drum unit back into the machine.

6Close the front cover of the machine.

3 Load paper in the paper tray

Improper Setup

DO NOT connect the interface cable.

Connecting the interface cable is done during

the software installation process.

1Pull the paper tray completely out of the

machine.

(1)

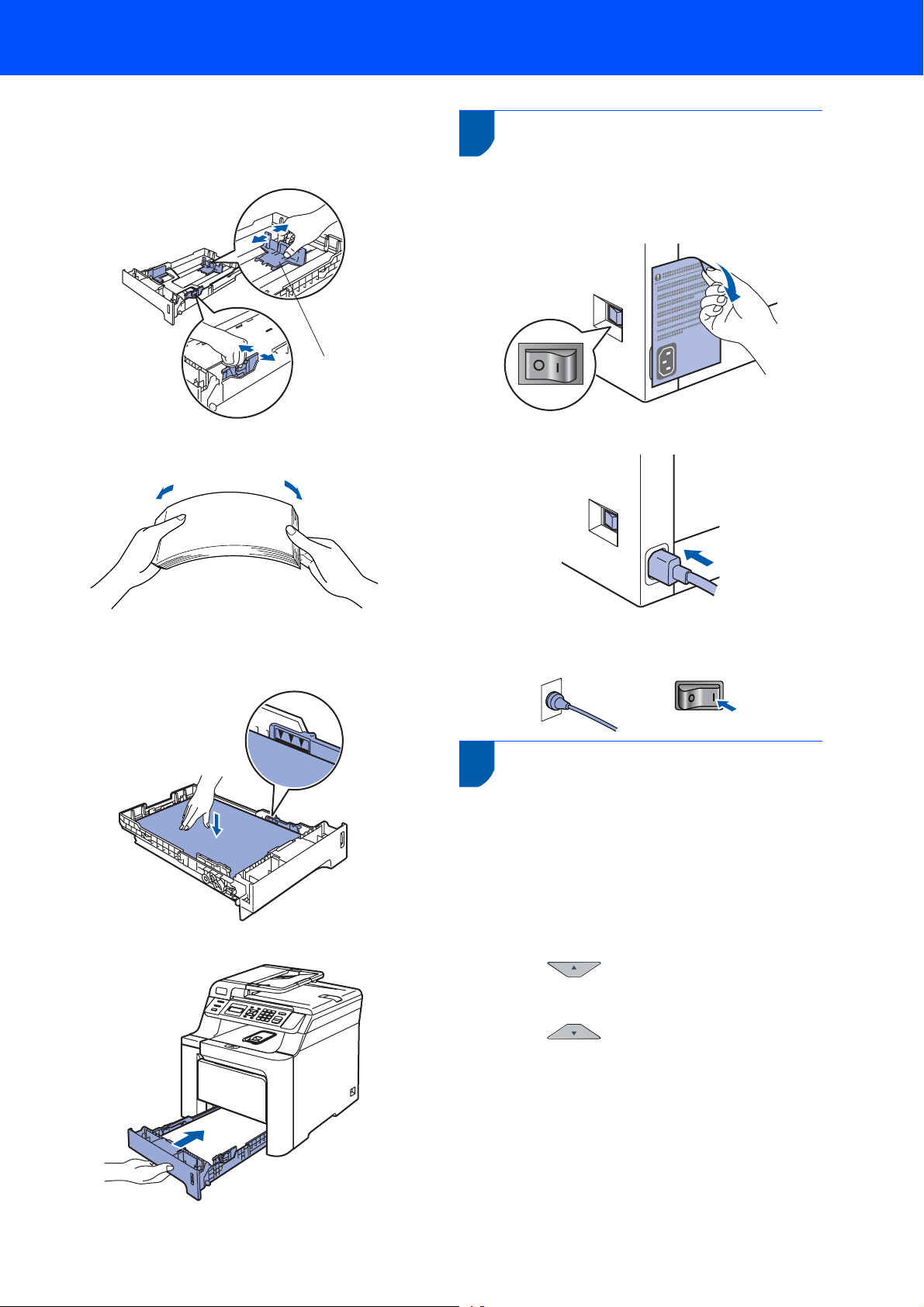

Setting Up the Machine

2While pressing the green paper-guide release

lever (1), slide the paper guides to fit the paper

size. Make sure that the guides are firmly in the

slots.

3Fan the stack of paper well to avoid paper jams

and misfeeds.

4Put paper in the paper tray. Make sure that the

paper is flat in the tray and below the maximum

paper mark.

5Put the paper tray firmly back into the machine.

4 Install the power cord

1Make sure that the machine’s power switch is

off. Remove the label covering the AC power

inlet.

2Connect the AC power cord to the machine.

3Plug the AC power cord into an AC outlet. Turn

the power switch on.

5 Setting the LCD contrast

You can change the contrast to help the LCD look

lighter or darker.

1Press Menu.

2Press 1.

3Press 6.

4Press to increase the contrast.

—OR—

Press to decrease the contrast.

Press OK.

5Press Stop/Exit.

(1)

Supplied CD-ROM ‘MFL-Pro Suite’

Windows®

Install MFL-Pro Suite

You can install the MFL-Pro Suite software and

multifunction drivers.

Install Other Drivers or Utilities

You can install additional MFL-Pro Suite software

utilities.

Documentation

View the User’s Guide, Software User’s Guide and

Network User’s Guide in HTML format. You can also

view the manuals in PDF format by accessing the

Brother Solutions Center. (Internet access required)

The Software User’s Guide and Network User’s

Guide include instructions for features available when

connected to a computer. (eg. printing, scanning and

networking details)

On-Line Registration

Registration Page.

Brother Solutions Center

Access the Brother Solutions Center for FAQs, User’s

Guide, driver updates and tips for using your

machine. (Internet access required)

Supplies Information

Visit our site for original/genuine Brother supplies at

http://www.brother.com/original/

Repair MFL-Pro Suite (For USB users only)

If an error occurred during the installation of the

MFL-Pro Suite, use this selection to automatically

repair and re-install the MFL-Pro Suite.

Note

MFL-Pro Suite includes the Printer Driver,

Scanner Driver, Brother ControlCenter3,

ScanSoft™ PaperPort™ 11SE with OCR by

NUANCE™. ScanSoft™ PaperPort™ 11SE is a

document management application for scanning

and viewing documents.

Macintosh®

Start Here OSX

You can install the MFL-Pro Suite that includes the

printer driver, scanner driver and the Brother

ControlCenter2 and BRAdmin Light for Mac OS®X

10.2.4 or greater.

Documentation

View the User’s Guide, Software User’s Guide and

Network User’s Guide in HTML format. You can also

view the manuals in PDF format by accessing the

Brother Solutions Center. (Internet access required)

The Software User’s Guide and Network User’s

Guide include instructions for features available when

connected to a computer. (eg. printing, scanning and

networking details)

Brother Solutions Center

Access the Brother Solutions Center for FAQs, User’s

Guide, driver updates and tips for using your

machine. (Internet access required)

Presto!®PageManager®

You can install Presto!®PageManager®to add OCR

capability to the Brother ControlCenter2 and easily

scan, share and organize photos and documents.

On-Line Registration

Registration Page.

Utilities

You can find the following additional Utilities from this

folder.

Presto!®PageManager®Uninstaller

BRAdmin Light

Autres manuels pour DCP-9042CDN

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Brother Imprimante tout-en-un

Brother

Brother MCF-J285DW Manuel d'utilisation et d'entretien

Brother

Brother MFC-8500 Manuel utilisateur

Brother

Brother MFC-8220 Manuel utilisateur

Brother

Brother DCP120C - Flatbed Multifunction Photo Capture... Manuel utilisateur

Brother

Brother MFC-J4410DW Manuel utilisateur

Brother

Brother DCP-1602 Manuel utilisateur

Brother

Brother HL-1218W Manuel utilisateur

Brother

Brother MFC-J6520DW Mode d’emploi

Brother

Brother MFC-9420CN Manuel utilisateur

Brother

Brother MFC-J4310DW Manuel utilisateur

Brother

Brother MFC 3360C - Color Inkjet - All-in-One Guide de sécurité

Brother

Brother DCP-C421W Manuel utilisateur

Brother

Brother MFC-4820C Manuel utilisateur

Brother

Brother Work Smart MFC-J470dw Manuel utilisateur

Brother

Brother Work Smart MFC-J470dw Manuel d'utilisation et d'entretien

Brother

Brother MFC-J6910DW Manuel utilisateur

Brother

Brother MFC-J615W Instructions de montage

Brother

Brother MFC-9*970CDW Manuel utilisateur

Brother

Brother IntelliFAX 1820C Manuel utilisateur

Brother

Brother MFC-9100C Manuel utilisateur

Brother

Brother MFC-9130CW Instructions d'installation

Brother

Brother HL-L8250CDN Manuel utilisateur

Brother

Brother MFC-T4500DW Manuel utilisateur

Brother

Brother DCP-J100 Manuel utilisateur

Manuels Imprimante tout-en-un populaires d'autres marques

Triumph Adler

Triumph Adler DC 2016 Manuel

Epson

Epson WorkForce WF-2510 Guide de l'utilisateur

Epson

Epson Stylus Scan 2000 Manuel d'installation et d'exploitation

Epson

Epson PictureMate Snap PM 240 Mode d’emploi

Konica Minolta

Konica Minolta bizhub C35 Manuel utilisateur

Konica Minolta

Konica Minolta BIZHUB 558 Manuel utilisateur

Lexmark

Lexmark MX710 Series Manuel

Lexmark

Lexmark XC8155 Manuel utilisateur

Lexmark

Lexmark X642E Manuel utilisateur

Sharp

Sharp MX-2310U Mode d’emploi

Aficio

Aficio 200 Manuel utilisateur

Canon

Canon ImageCLASS 2300 Manuel

Ricoh

Ricoh Pro C900 Manuel utilisateur

Lexmark

Lexmark X925 Manuel utilisateur

Epson

Epson Stylus CX8400 Series Manuel utilisateur

Oce

Oce VarioLink 5022 Manuel utilisateur

Copystar

Copystar CS 4551ci Manuel utilisateur

Konica Minolta

Konica Minolta Magicolor 4650EN Manuel utilisateur
