Before you can use the machine, you must set up the hardware and install the software.

Please read this “Quick Setup Guide” for the correct setup procedure and installation

instructions.

Keep this “Quick Setup Guide”, User’s Guide and supplied CD-ROM in a convenient place for

quick and easy reference at all times.

Step 1

Setting Up the machine

Step 2

Installing the Drivers & Software

Setup is Complete!

Installing the Drivers & Software

Setting Up

the machine

Windows®

USB

Windows®

Parallel

Windows

NT®4.0

Parallel

Macintosh®

USB

DCP-8060

Quick Setup Guide

Warning Caution Improper Setup Note User’s Guide

Warnings tell you

what to do to prevent

possible personal

injury.

Cautions specify

procedures you

must follow or avoid

to prevent possible

damage to the

machine or other

objects.

Improper Setup

icons alert you to

devices and

operations that are

not compatible with

the machine.

Notes tell you how

you should respond

to a situation that

may arise or give

tips about how the

current operation

works with other

features.

Indicates reference

to the User’s Guide.

Carton components may differ from one country to another.

Save all packing materials and the carton.

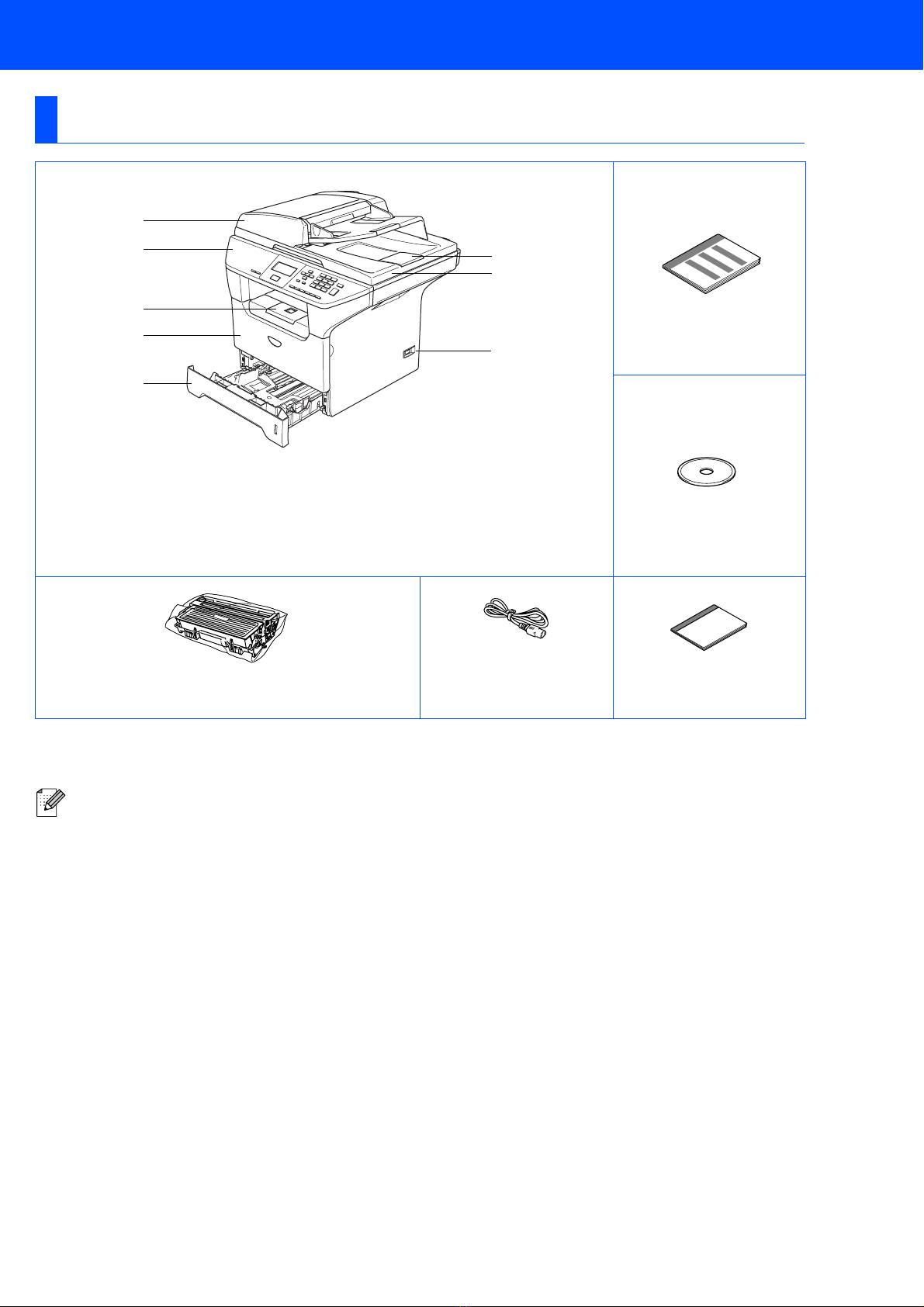

Carton Components

Quick Setup Guide

CD-ROM

Drum Unit Assembly

(including Toner Cartridge)

AC Power Cord

User’s Guide

The interface cable is not a standard accessory. Please purchase the appropriate interface cable for the

interface you intend to use (Parallel, USB).

Do NOT connect the interface cable at this time. Connecting the interface cable is done during the

software installation process.

■USB interface cable

Please make sure you use a USB 2.0 interface cable that is no longer than 6 feet (2.0 meters).

When you use a USB cable, make sure you connect it to the USB port of your computer and not to a

USB port on a keyboard or non-powered USB hub.

■Parallel interface cable

Please make sure you use a Parallel interface cable that is no longer than 6 feet (2.0 meters).

Use a shielded interface cable that is IEEE 1284-compliant.

1. Automatic Document Feeder (ADF)

2. Control Panel

3. Face-down Output Tray

Support Flap (Support Flap)

4. Front Cover

5. Paper Tray

6. Power Switch

7. Document Cover

8. ADF Document Output Support Flap

■Getting Started

DCP-8060

Control Panel

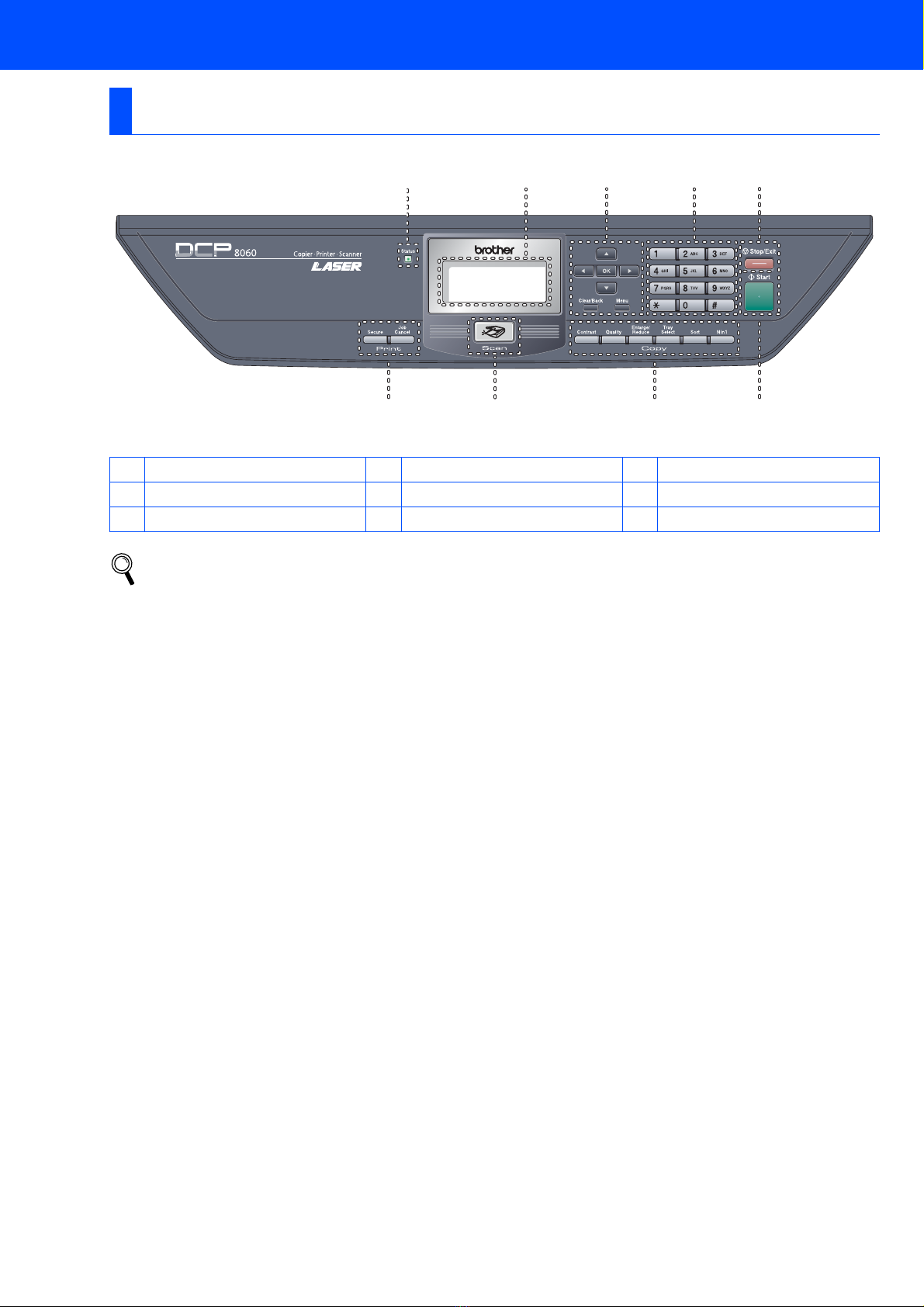

1Status LED 2LCD (Liquid Crystal Display) 3Menu keys

4Dial Pad 5Stop/Exit key 6Start key

7Copy keys 8Scan key 9Print keys

For the details of the control panel, see "Control panel overview" in Chapter 1 of the User’s Guide.

879

1234

Table of Contents

Setting Up the machine

1. Install the Drum Unit and Toner Cartridge Assembly ................................... 4

2. Load Paper in the Paper Tray .......................................................................... 5

3. Release the Scanner Lock ............................................................................... 6

4. Connect the Power Cord .................................................................................. 6

5. Setting the LCD Contrast ................................................................................. 7

Installing the Drivers & Software

Supplied CD-ROM “MFL-Pro Suite” ................................................................................ 8

For USB Interface Cable Users

(For Windows®98/98SE/Me/2000 Professional/XP/XP Professional x64 Edition) .... 10

For Parallel Interface Cable Users

(For Windows®98/98SE/Me/2000 Professional/XP/XP Professional x64 Edition) .... 12

For Windows NT®Workstation Version 4.0 Users ...................................................... 15

For USB Interface Cable Users

■For Mac OS®X 10.2.4 or greater ...................................................................... 17

■Options and Consumables

Options ............................................................................................................................ 20

Replacement Consumables ........................................................................................... 20

Step 1

Step 2

Setting Up the machine

Do not connect the interface cable.

Connecting the interface cable is

done during the software

installation process.

1Open the front cover by pressing the front

cover release button (1).

2Unpack the drum unit and toner cartridge

assembly.

3Gently rock it from side to side several times

to distribute the toner evenly inside the

cartridge.

4Put the drum unit and toner cartridge into

the machine so that it clicks into place.

5Close the front cover of the machine.

1Install the Drum Unit and Toner Cartridge Assembly

(1)

Step 1

Setting Up

the machine

Windows®

USB

Windows®

Parallel

Windows

NT®4.0

Parallel

Macintosh®

USB

1Pull the paper tray completely out of the

machine.

2While pressing the blue paper guide release

lever (1), slide the adjusters to fit the paper

size. Check that the guides are firmly in the

slots.

3Fan the stack of paper well to avoid paper

jams and misfeeds.

4Put paper in the paper tray.

Check that the paper is flat in the tray and

below the maximum paper mark (1).

5Put the paper tray firmly back into the

machine and unfold the support flap (1)

before you use the machine.

2Load Paper in the Paper Tray

(1)

For details on supported paper

specifications, see “Acceptable paper and

other media” in Chapter 2 of the User’s

Guide.

(1)

1Push the lever (1) in the direction shown to

unlock the scanner.

(The gray scanner lock lever is located at

the back left side, under the document cover

(2).)

Do not connect the Parallel or USB

cable yet.

1Make sure that the power switch is off.

Connect the AC power cord to the machine.

2Plug the AC power cord into an AC outlet.

Turn the power switch on.

3Release the Scanner

Lock

(2)

(1)

4Connect the Power Cord

If Scanner Locked appears on the LCD,

immediately release the scanner lock and

press Stop/Exit. (See “Release the Scanner

Lock” on page 6.)

Step 1 Setting Up the machine

Setting Up

the machine

Windows®

USB

Windows®

Parallel

Windows

NT®4.0

Parallel

Macintosh®

USB

You can change the contrast to help the LCD look

lighter or darker.

1Press Menu.

2Press 1.

3Press 6.

4Press to increase the contrast.

—OR—

Press to decrease the contrast.

Press OK.

5Setting the LCD Contrast

Go to the next page to

install the drivers & software

Installing the Drivers & Software

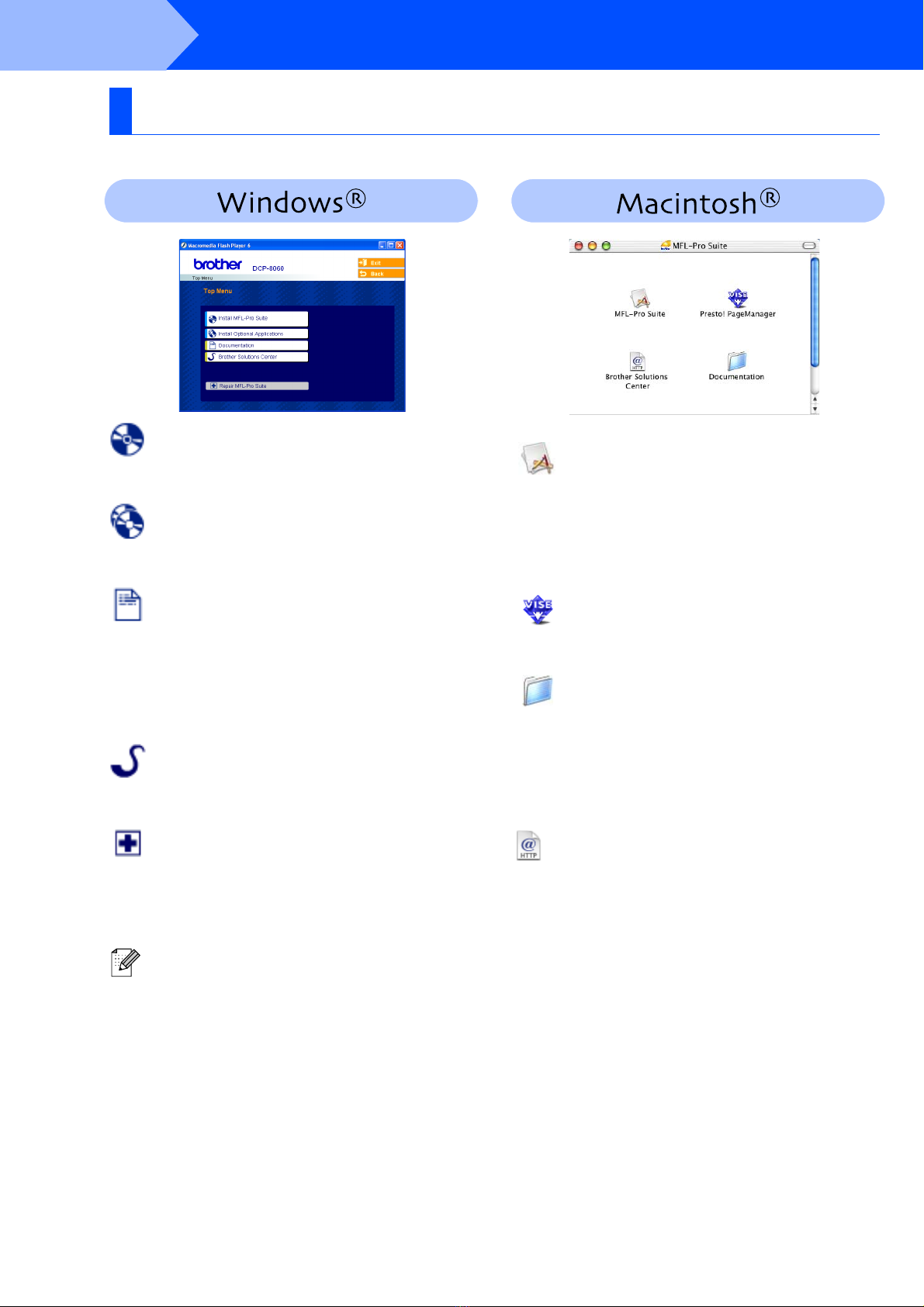

The CD-ROM includes the following items:

Install MFL-Pro Suite

You can install the MFL-Pro Suite and multifunction

drivers.

Install Optional Applications

You can install additional MFL-Pro Suite software

utilities.

Documentation

View the User’s Guide and other document in PDF

format (Viewer included). The User’s Guide on the

CD-ROM includes the Software and Network User’s

Guide for features available when connected to a

computer (e.g. Printing, Scanning and networking

details).

Brother Solutions Center

Brother contact information and web site links offering

the latest news and support information.

Repair MFL-Pro Suite

(For USB and Parallel cable users only)

If you experience errors while installing the MFL-Pro

Suite, you can use this function to automatically repair

and re-install the software.

MFL-Pro Suite

You can install the MFL-Pro Suite that includes the

printer driver, scanner driver and the Brother

ControlCenter2 for Mac OS®10.2.4 or greater. You

can also install Presto!®PageManager®to add OCR

capability to the Brother ControlCenter2 and easily

scan, share and organize photos and documents.

Presto!®PageManager®

You can install Presto!® PageManager® to add OCR

capability to the Brother Control Center2.

Documentation

View the User’s Guide and other document in PDF

format (Viewer included). The User’s Guide on the

CD-ROM includes the Software and Network User’s

Guide for features available when connected to a

computer (e.g. Printing, Scanning and networking

details).

Brother Solutions Center

You can access the Brother Solutions Center, a Web

site offering information about your Brother product

including FAQs, User’s Guides, Driver updates and

Tips for using your machine.

Supplied CD-ROM “MFL-Pro Suite”

MFL-Pro Suite includes Printer Driver, Scanner

Driver, Brother ControlCenter2, and True

Type

fonts.

Step 2
