Quick Setup Guide DCP-4020C

Before you can use the DCP, you must set up the hardware and install the driver.

To help you get started in setting up the machine and installing the driver & software,

please read the “Setup Guide” and follow the simple instructions.

For the latest driver and to find the best solution for your problem or question, access the Brother

Solutions Center directly from the driver or go to

http://solutions.brother.com

http://www.brother-uk.com

Keep this “Quick Setup Guide”, User’s Guide and supplied CD-ROM in a convenient place for

quick and easy reference at all times.

Step 1

Setting Up the DCP

Step 2

Installing the Driver & Software

Setup is Complete!

Installing the Driver & Software

Setting Up

the DCP

Windows®Mac®OS

8.6-9.2

Mac®OS X

10.1/10.2.1 or greater

Carton components may differ from one country to another.

Save all packing materials and the carton.

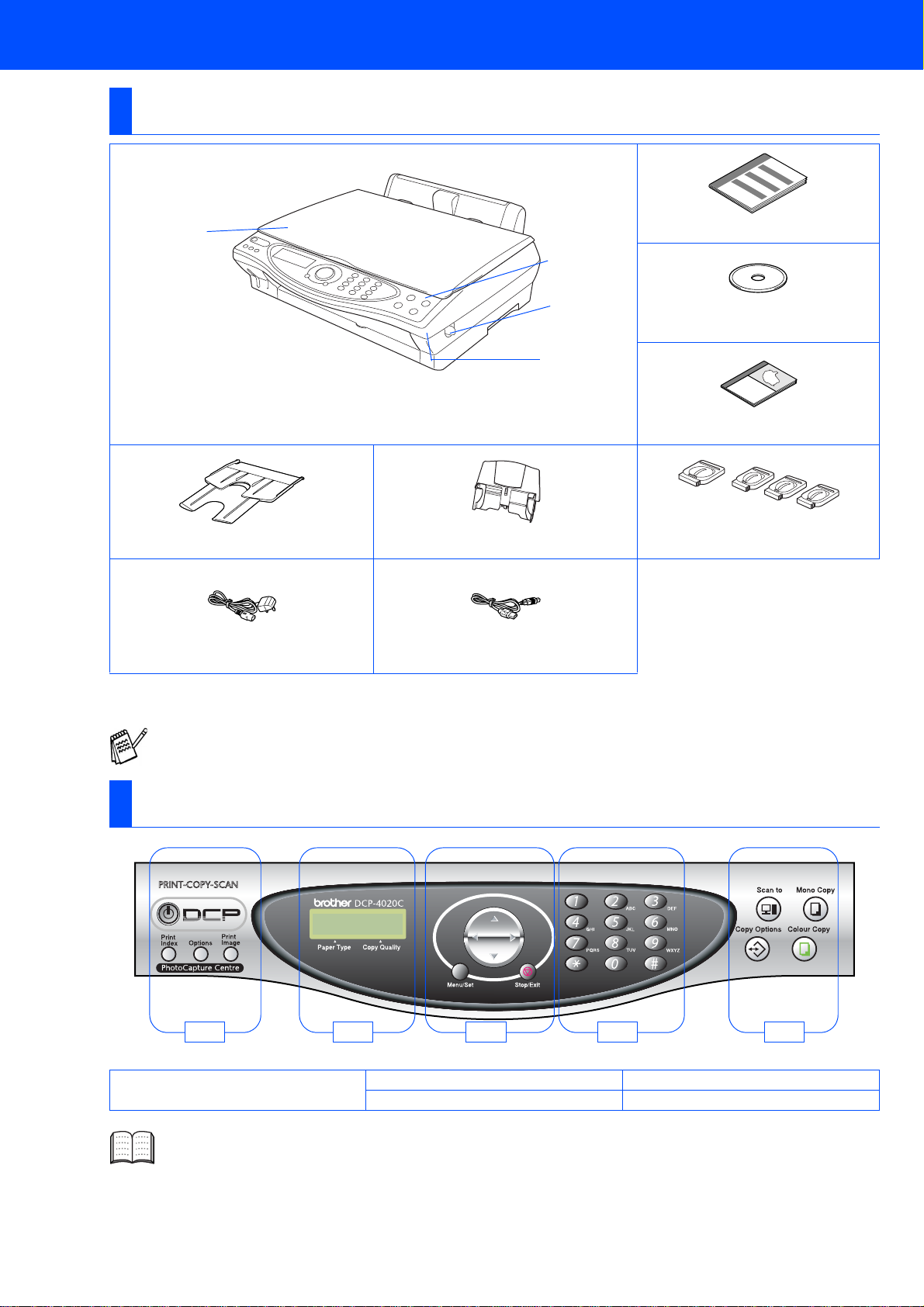

Carton Components

Quick Setup Guide

CD-ROM

User’s Guide

Output Paper Support Paper Tray

Ink Cartridges

(Black, Cyan, Yellow, Magenta)

Power Cord USB Cable

■You must use the appropriate USB cable.

■Use only a USB interface cable that is no longer than 2 meters.

Control Panel

1. Photo Capture Centre and

On/Off keys 2. Liquid Crystal Display (LCD) 4. Numeric keys

3. Navigation keys 5. Scan and Copy keys

For the details of the control panel, see "DCP-4020C control panel overview" in Chapter 1 of the

User’s Guide.

1. Control Panel

2. Scanner Cover Release Lever

3. Scanner Cover

4. Document Cover

1 2 3 4 5

■Getting Started

Table of Contents

Setting Up the DCP

1. Removing the Protective Parts.........................................................................2

2. Attaching the Output Paper Support................................................................2

3. Attaching the Paper Tray...................................................................................2

4. Loading Paper....................................................................................................3

5. Install Power Cord..............................................................................................3

6. Installing the Ink Cartridges..............................................................................4

7. Colour Block Quality and Alignment Check....................................................5

8. Setting the LCD Contrast ..................................................................................7

9. Setting a Date and Time ....................................................................................7

Installing the Driver & Software

Supplied CD-ROM (MFL-Pro Suite)...................................................................... 8

For Windows®98/98SE/Me/2000 Professional/XP Users................................. 10

■For Windows®98/98SE/Me Users Only ............................................................13

■For Windows®2000 Professional Users Only..................................................15

■For Windows®XP Users Only ...........................................................................16

For Mac®OS 8.6 - 9.2 Users............................................................................... 18

For users of Mac®OS X 10.1 / 10.2.1 or greater ............................................... 20

Warning Hint User’s Guide

Indicates warnings that

must be observed to

prevent possible

personal injury.

Indicates cautions that

must be observed to use

the DCP properly or

prevent damage to the

DCP.

Indicates notes and

useful tips to remember

when using the DCP.

Indicatesreferencetothe

User’s Guide.

Step 1

Step 2

Setting Up the DCP

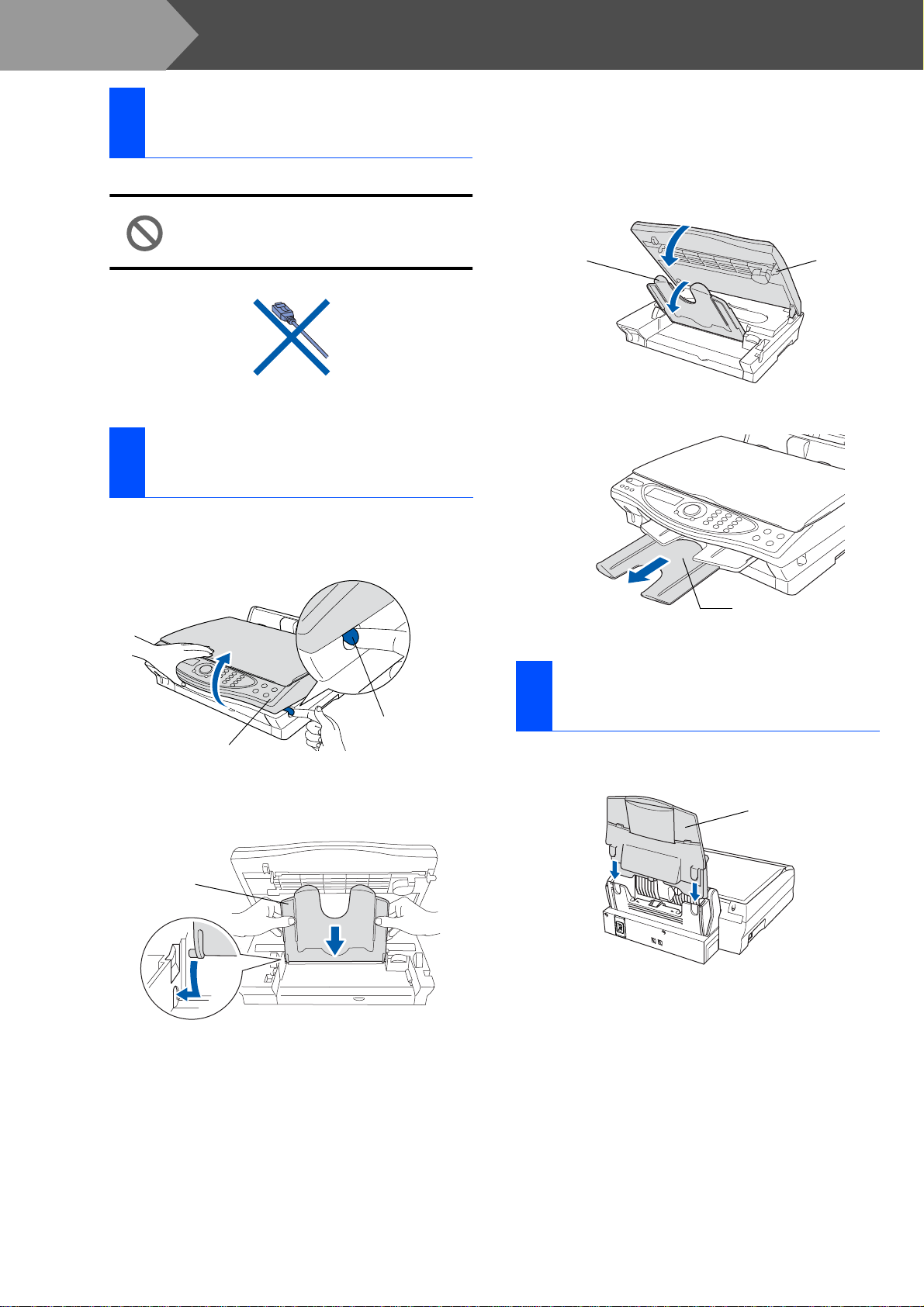

1Remove the protective tape.

Do NOT connect the USB cable.

Connecting the USB cable is done

when installing the driver.

1Pullthescannercoverreleaselevertoopen

the scanner cover and lift it to the opening

position.

2Attachtheoutputpapersupporttothepaper

output slot.

3Close the output paper support and the

scanner cover.

4Pull out the extension.

1Insert the paper tray from above into the

back of the DCP.

1RemovingtheProtective

Parts

2Attaching the Output

Paper Support

Scanner Cover

Release Lever

Output Paper

Support

3Attaching the Paper Tray

Output Paper

Support

Scanner

Cover

Output Paper

Support Extension

Paper Tray

Step 1

Setting Up

the DCP

Windows®Mac®OS

8.6-9.2

Mac®OS X

10.1/10.2.1 or greater

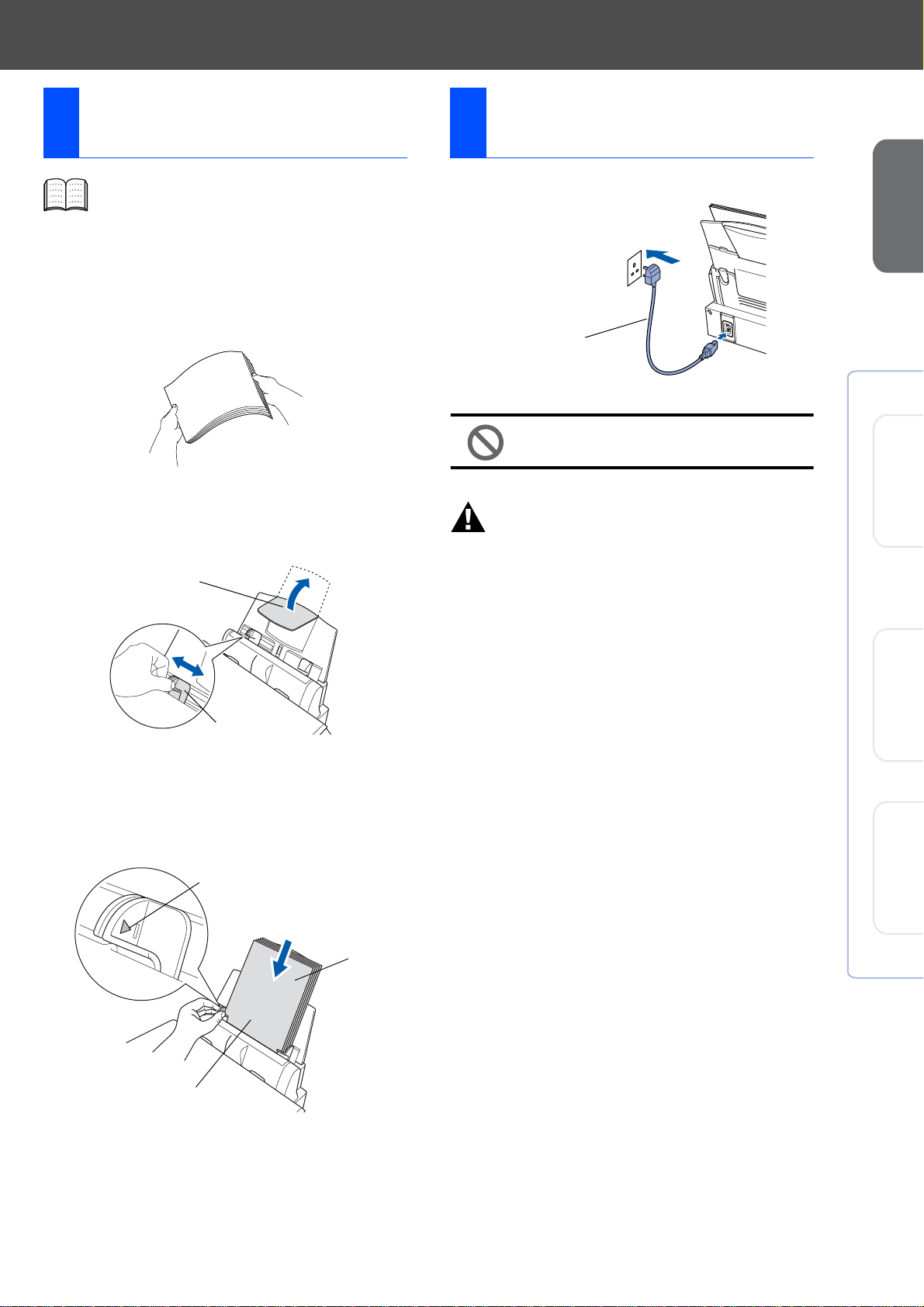

1Fan the stack of paper well to avoid paper

jams and misfeeds.

2Unfold the paper support and then press

and slide the paper guide to fit the paper

width.

Gently insert the paper.

Make sure the print side is towards you and

the paper is below the maximum paper

mark.

1Connect the power cord.

Do not connect the USB cable yet.

Warning

■The DCP must be fitted with an earthed plug.

4Loading Paper

You can load up to 100 sheets of 80 g/m2

paper.

For more details, see “Paper capacity of

the Paper Tray” in Chapter 2 of the User’s

Guide.

Paper Support

Paper Width Guide

Paper

Print Side

Maximum

Paper Mark

5Install Power Cord

Power Cord

Setting Up the DCP

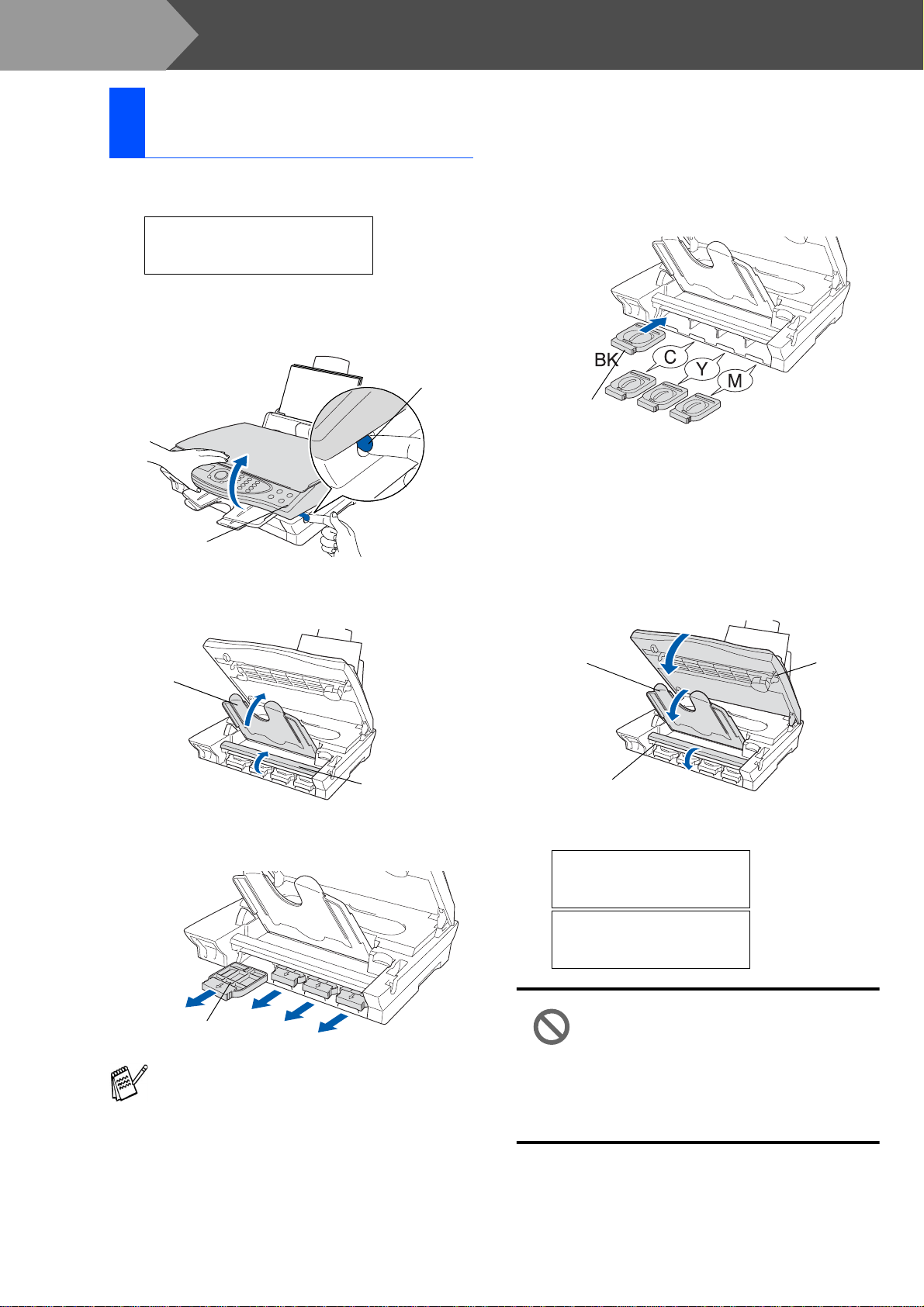

1Make sure that the power is turned on.

The LCD shows:

2Pullthescannercoverreleaselevertoopen

the scanner cover and lift it to the opening

position.

3Lift the output paper support and ink

cartridge cover.

4Remove the yellow plastic protective

cartridges.

5Inserttheinkcartridgesintotheslotforeach

colour until it clicks.

Do not peel a film off the cartridge.

6Close the ink cartridge cover, the output

papersupportandthescannercover.When

the DCP is setup for the first time, the

machine will prepare the Brother unique ink

tube system for use for the first time. This

process will occur only once, the first time

ink cartridges are installed. The preparation

process will last up to four minutes.

The LCD shows:

• DO NOT remove ink cartridges if

you do not need to replace them.

Ifyoudo so, it mayreducetheink

quantity and the DCP will not

know the quantity of ink left in

the cartridge.

6Installing the Ink

Cartridges

CHECK CARTRIDGE

Open cover, then...

Do not throw away the yellow plastic

protective cartridges. You will need them in

the future to transport the machine.

Scanner Cover

Release Lever

Ink Cartridge Cover

Output Paper

Support

Protective Cartridge

PREPARING SYSTEM

APPROX 4 MINUTES

PREPARING SYSTEM

PLEASE WAIT

Ink Cartridge

Output Paper

Support

Scanner

Cover

Ink Cartridge

Cover

Step 1

Setting Up

the DCP

Windows®Mac®OS

8.6-9.2

Mac®OS X

10.1/10.2.1 or greater

• DONOTshaketheinkcartridges.

If ink stains your body or

clothing, wash with soap or

detergent immediately.

• Brother multifunction machines

are designed to work with ink of

a particular specification and

work to a level of optimum

performance when used with

genuine Brother ink cartridges.

Brother cannot guarantee this

optimum performance if ink or

ink cartridges of other

specifications are used. Brother

does not therefore recommend

the use of cartridges other than

genuine Brother cartridges with

this machine or the refilling of

empty cartridges with ink from

other sources. If damage is

caused to the print head or other

parts of this machine as a result

of the use of ink or ink cartridges

other than genuine Brother

products due to the

incompatibility or lack of

suitability of those products with

this machine, any repairs

required as a result will not be

covered by the warranty.

• DO NOT insert and remove the

cartridges repeatedly. If you do

so, the ink may seep out of the

cartridge.

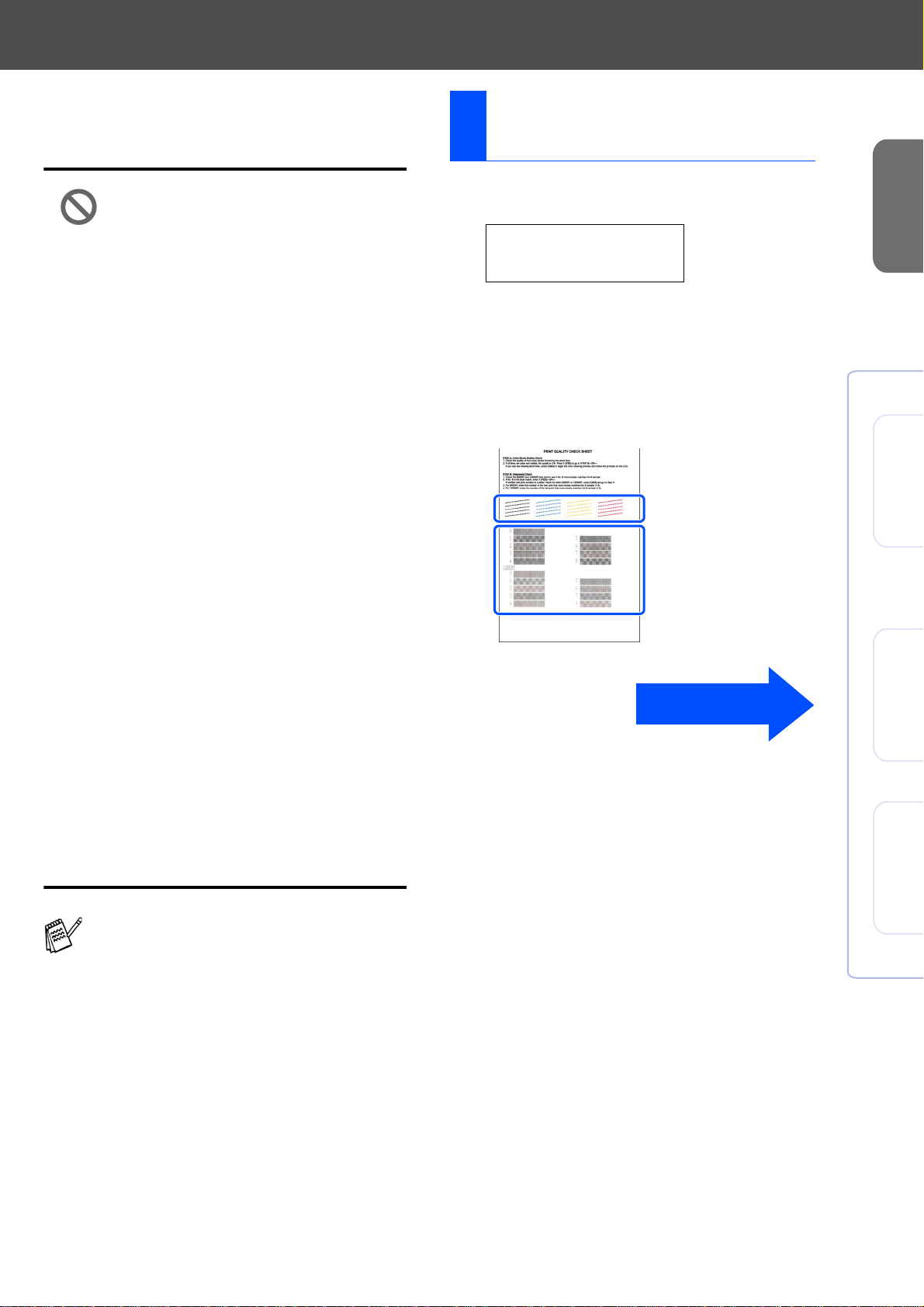

1After the cleaning cycle is finished, the LCD

shows;

2Make sure the paper is loaded in the paper

tray.

Press the Colour Copy key.

3The DCP starts printing the PRINT

QUALITY CHECK SHEET (only during

initial ink cartridge installation).

If you mix the colours by installing an ink

cartridge in the wrong position, you must

clean the print head by running several

cleaning cycles after correcting the cartridge

installation.(See“Cleaningtheprint head” in

Chapter 15 of the User’s Guide.)

7ColourBlockQualityand

Alignment Check

SET PAPER AND

PRESS COLOUR CPY

Check in Step A

Check in Step B

To be continued

Setting Up the DCP

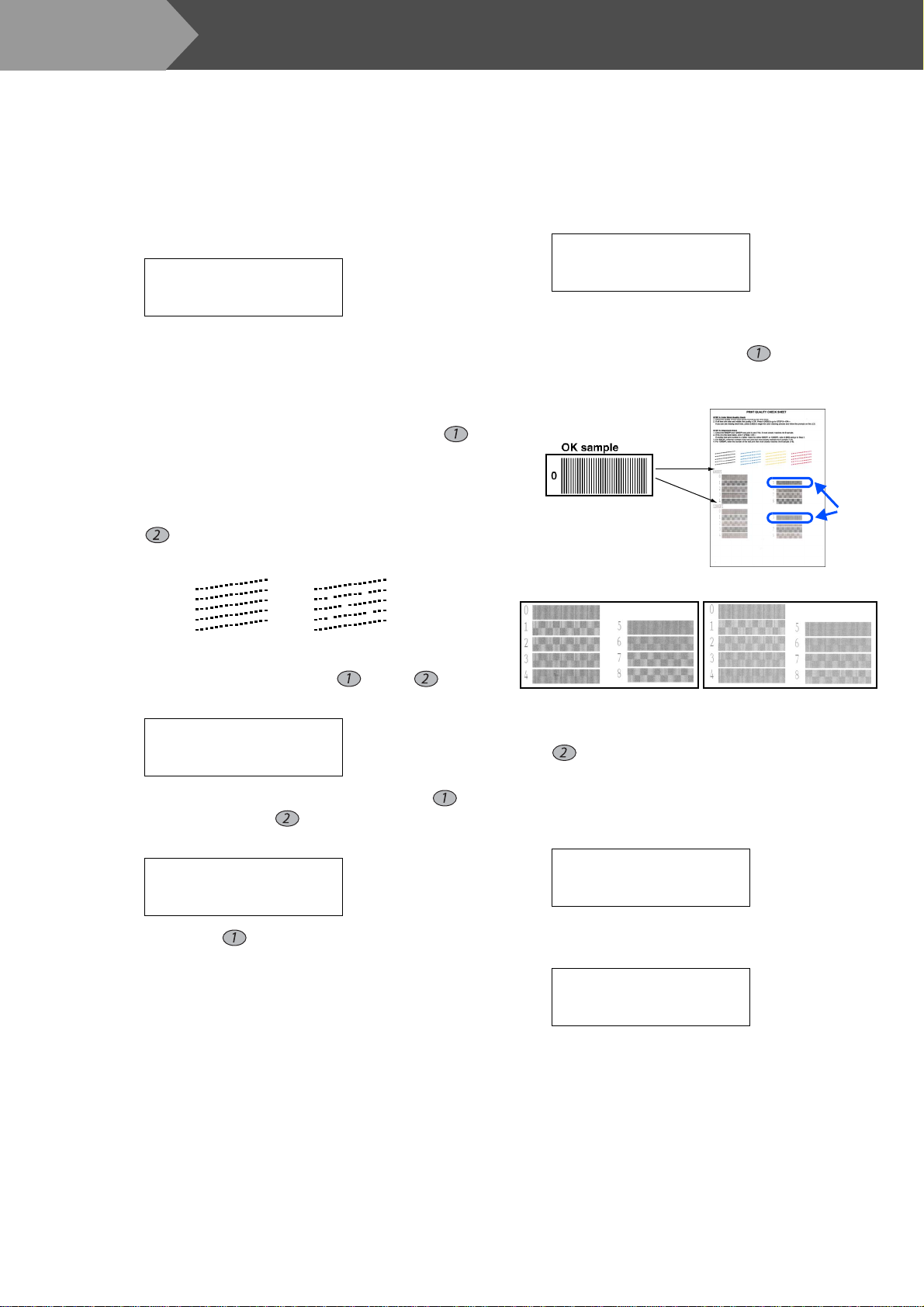

Step A: Colour Block Quality

Check

1The LCD shows:

Check the quality of the four colour blocks

formed by the short lines printed on the

sheet.

(BLACK/CYAN/YELLOW/MAGENTA)

2Ifalllinesareclearandvisible,pressthe

key on the dial pad to go to STEP B:

Alignment Check on page 7.

---OR---

If you can see missing short lines, press the

key on the dial pad and go to 3.

3The LCD asks you if the print quality is OK

foreachcolour.Pressthe keyor key

on the dial pad.

When you have finished selecting the

key (YES) or the key (NO) for each

colour, the LCD shows:

Press the key (YES), and then DCP

starts cleaning the colours.

After cleaning is finished, press the

Colour Copy key. The DCP starts printing

the PRINT QUALITY CHECK SHEET again

and goes back to the first step of STEP A.

Step B: Alignment Check

1The LCD shows:

Check the 600 DPI and 1200 DPI test print

to see if No.5 most closely matches the OK

sample (No.0). Press the key if No.5

matches it.

Ifanothertest printnumberisabettermatch

for either 600 DPI or 1200 DPI, press the

key to select NO and go to 2.

2For 600 DPI, select the number from 1 to 8

that most closely matches the No.0 sample

and enter it using the dial pad.

3For 1200 DPI, enter the number from 1 to 8

that most closely matches the No.0 sample.

The Quality check is now complete.

IS STEP "A" OK?

1.YES 2.NO

BLACK OK?

1.YES 2.NO

START CLEANING?

1.YES 2.NO

OK Poor

IS STEP "B" OK?

1.YES 2.NO

600DPI ADJUST

SELECT BEST #

1200DPI ADJUST

SELECT BEST #

600 DPI

1200 DPI

No.5

Step 1

Setting Up

the DCP

Windows®Mac®OS

8.6-9.2

Mac®OS X

10.1/10.2.1 or greater

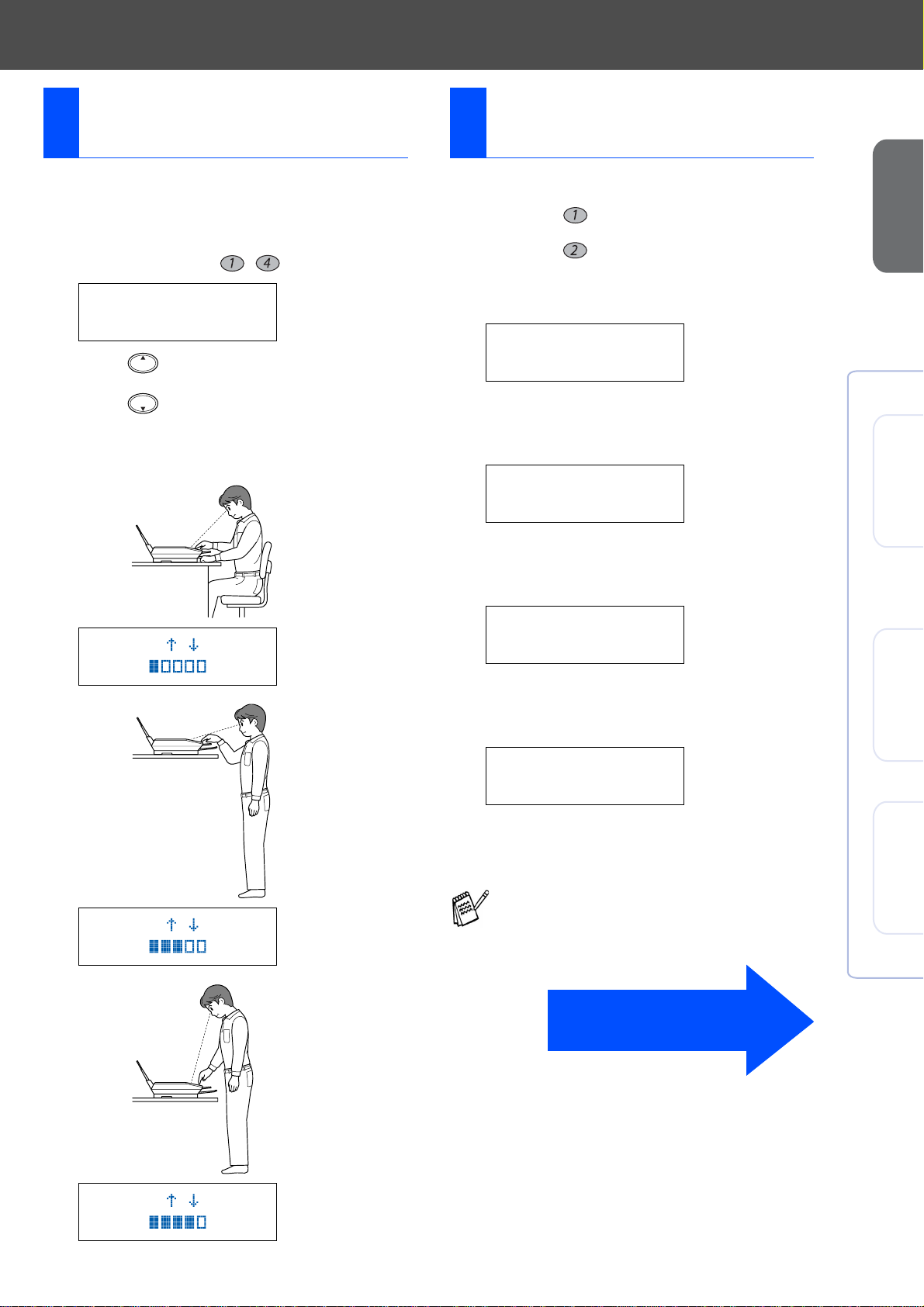

You can adjust the LCD contrast for a sharper and

more vivid display. If you are having difficulty seeing

the LCD from your position, we recommend the

following contrast settings for improved viewing.

1Press Menu/Set, , .

2Press to increase the contrast.

---OR---

Press to decrease the contrast.

3Press Menu/Set.

4Press Stop/Exit.

1Press the Menu/Set key.

2Press the key.

3Press the key.

4Enter the last two digits of the year.

Press Menu/Set.

(e.g. Enter 0, 3for 2003.)

5Enter two digits for the month.

Press Menu/Set.

(e.g. Enter 0, 9for September.)

6Enter two digits for the day.

Press Menu/Set.

(e.g. Enter 0, 6.)

7Enter the time in 24-Hour format.

Press Menu/Set.

(e.g. Enter 1, 5, 2, 5for 3:25 P.M.)

8Press the Stop/Exit key.

8Setting the LCD Contrast

GENERAL SETUP

4.LCD CONTRAST

SELECT & SET

9Setting a Date and Time

DATE/TIME

YEAR:2003

DATE/TIME

MONTH:09

DATE/TIME

DAY:06

DATE/TIME

TIME:15:25

If you want to repeat from 1, press the

Stop/Exit key.

Go to page 9

to install the driver

Installing the Driver & Software

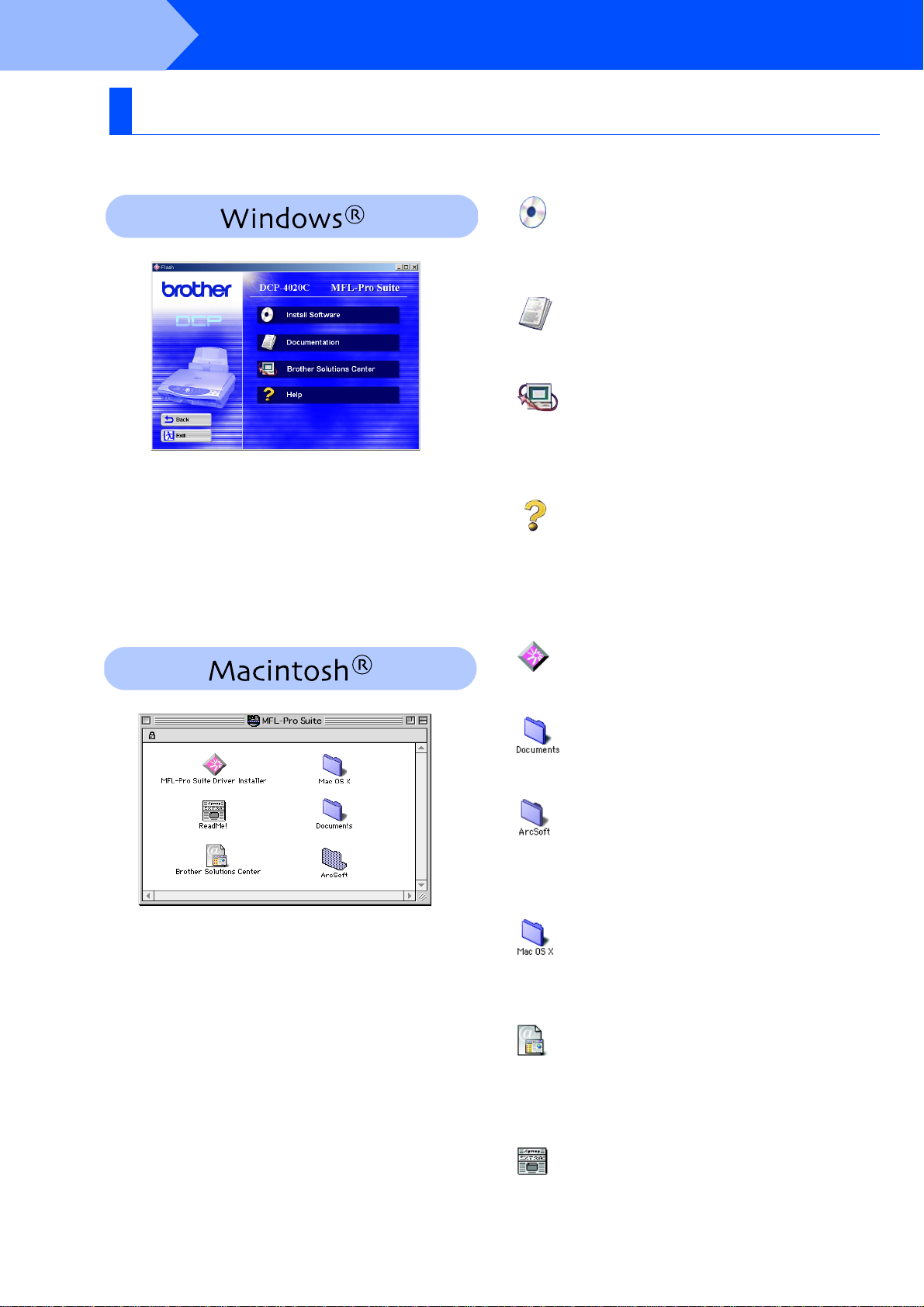

You can find a variety of information on the CD-ROM.

Install Software

You can install printer, scanner drivers and the

various utility items, including PaperPort®,

TextBridge®and PhotoPrinter®4.

Documentation

View the User’s Guide and other documentation in

PDF format. (Viewer included)

Brother Solutions Center

YoucanaccesstheBrotherSolutionsCenterwhichis

a Web site offering information about your Brother

product including FAQs, User Guides, Driver updates

and Tips for using your machine.

Help

Helpful hints.

MFL-Pro Suite Driver Installer

You can install printer and scanner drivers for

OS 8.6 - 9.2.

Documents

View the User’s Guide and other documentations in

PDF format.

PhotoPrinter®4

Arcsoft PhotoPrinter®4 software is for editing and

printing your images including templates that aid you

inprintingmultiple imagesononepageand the ability

to crop, rotate and add special effects to your picture.

Mac OS X (For Native Mac OS X 10.1/10.2.1

only)

You can install the printer and scanner driver for Mac

OS X.

Brother Solutions Center

YoucanaccesstheBrotherSolutionsCenterwhichis

a Web site offering information about your Brother

product including FAQs, User Guides, Driver updates

and Tips for using your machine.

ReadMe!

You can get important information and

troubleshooting tips.

Supplied CD-ROM (MFL-Pro Suite)

Step 2

Autres manuels pour DCP-4020C

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Brother Imprimante tout-en-un

Brother

Brother DCP-7030 Guide de sécurité

Brother

Brother DCP-L8400CDN Manuel d'utilisation et d'entretien

Brother

Brother 9840CDW - Color Laser - All-in-One Manuel utilisateur

Brother

Brother MFC 4300 Manuel utilisateur

Brother

Brother MFC-860 Manuel utilisateur

Brother

Brother MFC-J825DW Instructions de montage

Brother

Brother MFC-8820DN Manuel utilisateur

Brother

Brother DCP-9040CN Manuel utilisateur

Brother

Brother PDS-5000 Manuel utilisateur

Brother

Brother MFC-J280W Manuel utilisateur

Brother

Brother DCP-395CN Manuel de la liste des pièces

Brother

Brother MFC-250C Manuel utilisateur

Brother

Brother MFC 6890CDW Manuel utilisateur

Brother

Brother MFC-J280W Instructions d'installation

Brother

Brother IntelliFax-4750 Instructions de montage

Brother

Brother DCP-J752DW Manuel utilisateur

Brother

Brother MFC-L5700DN Manuel technique

Brother

Brother MFC 7340 - B/W Laser - All-in-One Manuel de la liste des pièces

Brother

Brother MFC-J3520 Manuel d'installation et d'exploitation

Brother

Brother 8085DN - DCP B/W Laser Manuel utilisateur

Brother

Brother HL-P2500 Manuel utilisateur

Brother

Brother MFC-J4310DW Guide de l'utilisateur

Brother

Brother DCP-J125 Manuel utilisateur

Brother

Brother Business Smart MFC-J4510dw Mode d’emploi

Manuels Imprimante tout-en-un populaires d'autres marques

Triumph Adler

Triumph Adler DC 2016 Manuel

Epson

Epson WorkForce WF-2510 Guide de l'utilisateur

Epson

Epson Stylus Scan 2000 Manuel d'installation et d'exploitation

Epson

Epson PictureMate Snap PM 240 Mode d’emploi

Konica Minolta

Konica Minolta bizhub C35 Manuel utilisateur

Konica Minolta

Konica Minolta BIZHUB 558 Manuel utilisateur

Lexmark

Lexmark MX710 Series Manuel

Lexmark

Lexmark XC8155 Manuel utilisateur

Lexmark

Lexmark X642E Manuel utilisateur

Sharp

Sharp MX-2310U Mode d’emploi

Aficio

Aficio 200 Manuel utilisateur

Canon

Canon ImageCLASS 2300 Manuel

Ricoh

Ricoh Pro C900 Manuel utilisateur

Lexmark

Lexmark X925 Manuel utilisateur

Epson

Epson Stylus CX8400 Series Manuel utilisateur

Oce

Oce VarioLink 5022 Manuel utilisateur

Copystar

Copystar CS 4551ci Manuel utilisateur

Konica Minolta

Konica Minolta Magicolor 4650EN Manuel utilisateur
