Broil King FKCHAR Manuel utilisateur

B100638-0-1102 Page 1

FRONT SHELF KIT OWNER’SMANUAL

RETAIN OWNER’SMANUAL FOR FUTURE REFERENCE.

B100638-0-1102

Page 2 B100638-0-1102

C22

Before You Begin

This manual includes an illustration for each of the

five shelf kits available for your grill. Locate the

illustration that depicts the shelf kit you have and

thencarefullyfollowallinstructionspertainingtoyour

kit.

Each step of the installation is illustrated. In each

illustrationpartsare identified with“Index”numbers.

Index numbers appear in parenthesis after a part

name is mentioned for the first time in the

instructionsandare labeled ontheillustrations. You

can reference each part by its key number on the

Parts List if you need help in identifying a part.

Compare the parts found in the shipping container

to the parts list. If any parts are missing contact

yourBroilmaster®dealerbeforebeginningassembly.

CAUTION: PARTS MAY HAVE SHARP EDGES.

WEAR LEATHER WORK GLOVES AND HANDLE

PARTS CAREFULLY DURING THE UNPACKING,

ASSEMBLY AND THE INSTALLATION.

Tools Required

These tools are required for the assembly of your

shelf kit:

• Phillips screwdriver

• Socket set or nut drivers

CONGRATULATIONS!

You have chosen the finest accessory for your outdoor cooking pleasure.

Please take time to read this entire manual before installing your

premium Broilmaster® Front Shelf Kit.

IMPORTANT: THIS MANUAL SHOULD BE READ THOROUGHLY BY THE PERSON INSTALLING THE SHELF

KIT AND ALL PERSONS WHO WILL USE AND MAINTAIN THE SHELF KIT. THE INSTALLER SHOULD BE SURE

THE MANUAL IS LEFT IN THE POSSESSION OF THE USER. THE USER SHOULD RETAIN THIS MANUAL FOR

FUTURE REFERENCE WHEN USING OR CLEANING THE SHELF KIT AND TO PROPERLY IDENTIFY ANY

REPAIR PARTS THAT MAY BE REQUIRED.

IMPORTANT INFORMATION

B100638-0-1102 Page 3

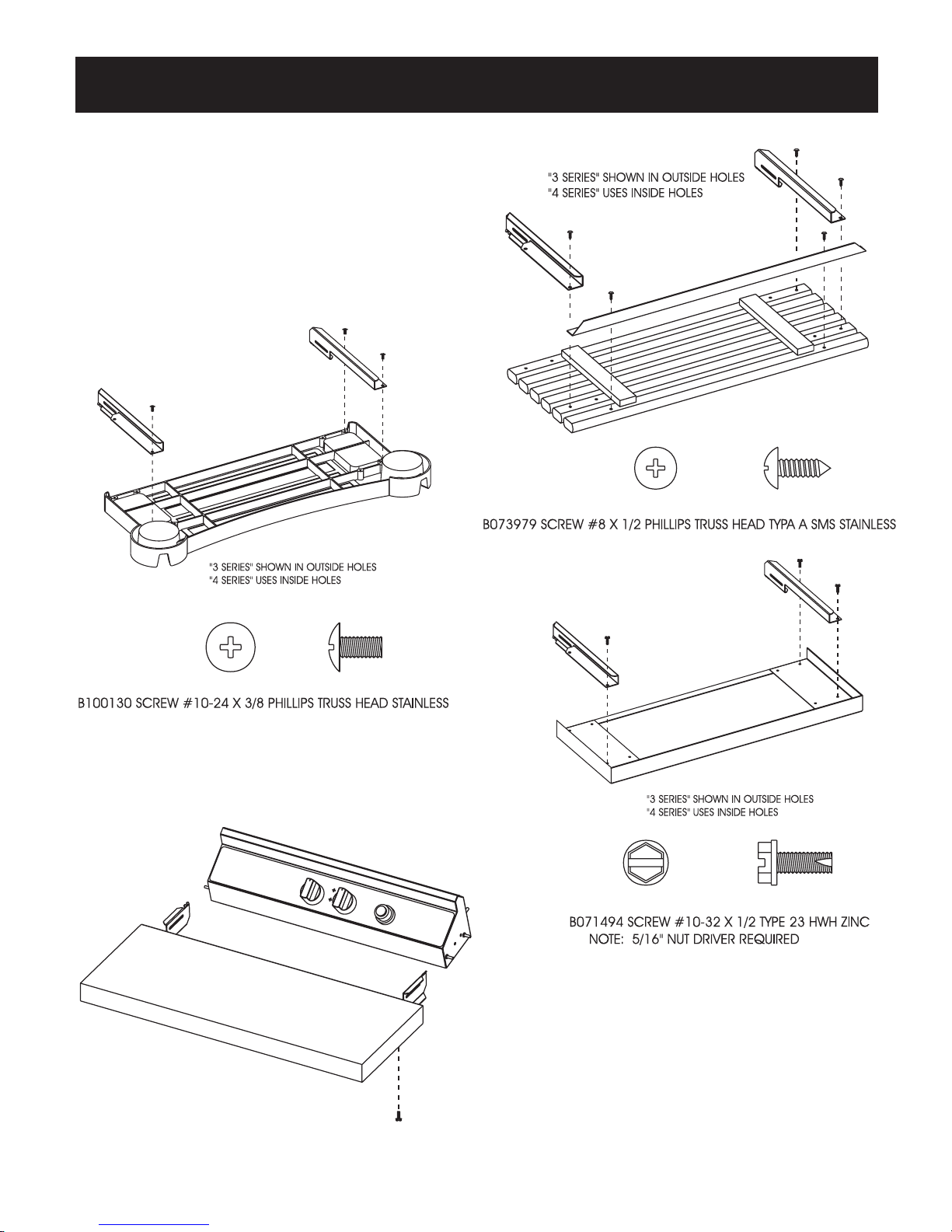

Front Shelf

Install the brackets using three of the four mount

screws provided as shown by the following figures.

Note: The remaining screw is left out to allow the

bracket to pivot during installation.

FRONT SHELF INSTALLATION

FIGURE 1

Insert the front control panel pin through the slots in the

bracket. Install the remaining bracket screw at this time.

FIGURE 2

FKCHAR AND FKTAU

FKWOOD

FKSS

Page 4 B100638-0-1102

RETAIN OWNER’SMANUAL FOR FUTURE REFERENCE.

BROILMASTER®

A Division of Empire Comfort Systems, Inc.

918 Freeburg Ave.

Belleville, Illinois 62220

Phone: 1-800-851-3153

FAX: 1-800-443-8648

VISIT OUR WEB SITE AT WWW.broilmaster.com

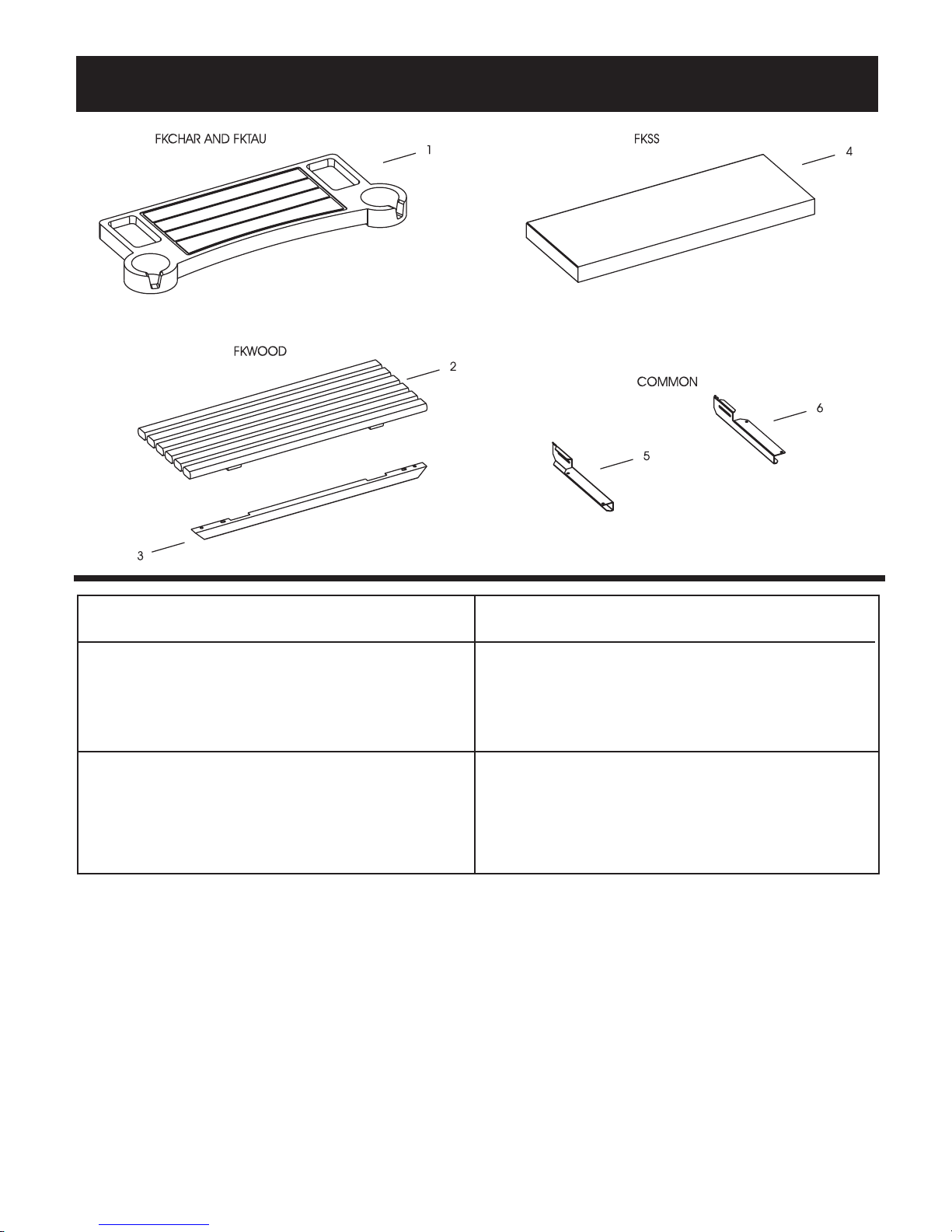

PARTS DIAGRAM & PARTS LIST - FRONT SHELF

Index Part

No. No. Description Index Part

No. No. Description

FKCHAR AND FKTAU

1 B073261 FRONT SHELF (FKCHAR)

1 B073263 FRONT SHELF (FKTAU)

5 B100034 LEFT FRONT BRACKET

6 B100035 RIGHT FRONT BRACKET

B100020 HARDWARE PACKAGE

FKWOOD

2 B048423 FRONT SHELF

3 B063070 SHELF SKIRT

5 B100034 LEFT FRONT BRACKET

6 B100035 RIGHT FRONT BRACKET

B100022 HARDWARE PACKAGE

FKSS

4 B076726 FRONT SHELF

5 B100034 LEFT FRONT BRACKET

6 B100035 RIGHT FRONT BRACKET

B100018 HARDWARE PACKAGE
