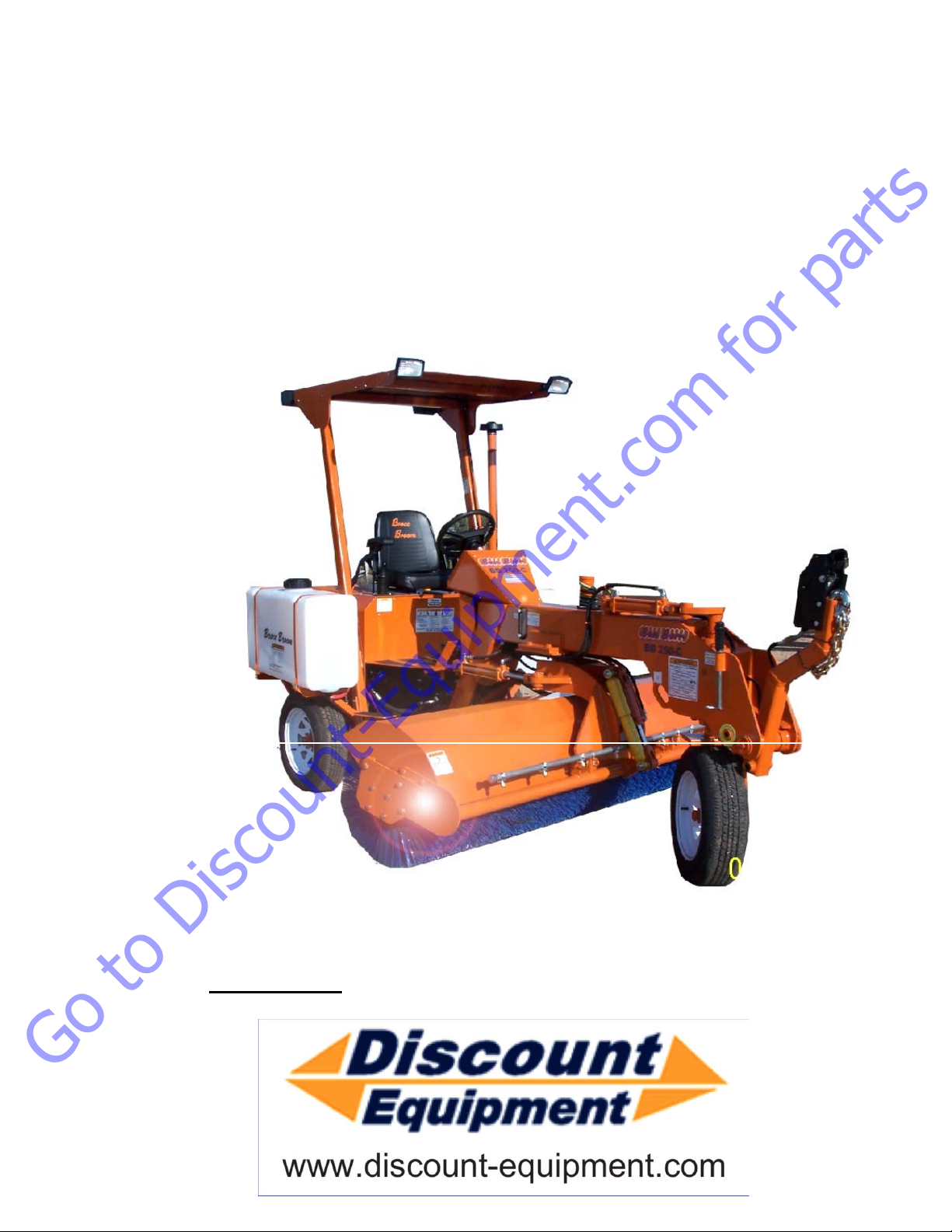

Broce Broom BB-250 Series Manuel utilisateur

For Serial Numbers 304263 -304334

BB250 Self Propelled Multi Purpose Sweeper

SERVICE -MAINTENANCE &

PARTS MANUAL

THIS VEHICLE DOES NOT CONFORM TOALL

SAFETYANDEMISSIONSSTANDARDSAPPLICABLE

TO ON-ROAD VEHICLES IN THE UNITED STATES.

Go to Discount-Equipment.com for parts

Discount-Equipment.com is your online resource for quality parts & equipment.

Florida: 561-964-4949 Outside Florida TOLL FREE: 877-690-3101

Need parts?

Click on this link: http://www.discount-equipment.com/category/5443-parts/ and

choose one of the options to help get the right parts and equipment you are looking

for. Please have the machine model and serial number available in order to help us

get you the correct parts. If you don’t find the part on the website or on one of the

online manuals, please fill out the request form and one of our experienced staff

members will get back to you with a quote for the right part that your machine needs.

We sell worldwide for the brands: Genie, Terex, JLG, MultiQuip, Mikasa, Essick, Whiteman,

Mayco, Toro Stone, Diamond Products, Generac Magnum, Airman, Haulotte, Barreto,

Power Blanket, Nifty Lift, Atlas Copco, Chicago Pneumatic, Allmand, Miller Curber, Skyjack,

Lull, Skytrak, Tsurumi, Husquvarna Target, Stow, Wacker, Sakai, Mi-T-M, Sullair, Basic,

Dynapac, MBW, Weber, Bartell, Bennar Newman, Haulotte, Ditch Runner, Menegotti,

Morrison, Contec, Buddy, Crown, Edco, Wyco, Bomag, Laymor, EZ Trench, Bil-Jax, F.S.

Curtis, Gehl Pavers, Heli, Honda, ICS/PowerGrit, IHI, Partner, Imer, Clipper, MMD, Koshin,

Rice, CH&E, General Equipment ,Amida, Coleman, NAC, Gradall, Square Shooter, Kent,

Stanley, Tamco, Toku, Hatz, Kohler, Robin, Wisconsin, Northrock, Oztec, Toker TK, Rol-Air,

APT, Wylie, Ingersoll Rand / Doosan, Innovatech, Con X, Ammann, Mecalac, Makinex, Smith

Surface Prep,Small Line, Wanco, Yanmar

Go to Discount-Equipment.com for parts

BB-250 Series Brooms

Broce Manufacturing Company, Inc.

WARRANTY REGISTRATION

Purchased From (Dealership)

Company: ___________________________________________________

Address: ___________________________________________________

City: _________________________ State: ____ ZIP: ________

Delivery Date to Dealer: ___ / ___ / ___ Unit Hours: _______________

Model Number: _BB-250-___ Serial Number: ____________

Purchaser

Company: ___________________________________________________

Address: ___________________________________________________

City: _________________________ State: ____ ZIP: ________

Delivery Date to Owner: ___ / ___ / ___ Unit Hours: _____________

Purchaser - Type of Business

Construction/Highway Rental Asphalt Contractor

Equipment Dealer Municipality Other

The Purchaser has been instructed and/or has read the manual and understands proper preventive

maintenance, operation and safety precautions.

The Warranty and Limitations of Liability are found in the Warranty pages enclosed in the Parts

and Operators Manuals.

Broce Manufacturing Co. Inc. reserves the right to make design changes or modifications to Broce

products at any time without incurring any obligation to make similar changes or modifications to

previously sold units.

If this Document is not signed and returned to Broce Manufacturing Co. Inc., the warranty begins

at the date of delivery to the Dealership.

I hereby acknowledge acceptance of above and conditions in the Warranty Policy

Purchaser/Owner: __________________________________________________________

Dealer Representative: __________________________________________________________

Go to Discount-Equipment.com for parts

BROCE MANUFACTURING COMPANY

BROCE BROOM LIMITED TWELVE MONTH WARRANTY

For a period of twelve (12) months or 1,000 hours whichever comes first, from the

date of delivery of product to the original user, Broce Manufacturing of Dodge City,

Kansas warrants each product to be free from manufacturing defects, subject to the

limitations contained in this policy. This limited warranty covers parts and labor.

This warranty does not apply to defect caused, in whole or in part, by unreasonable

use while in the possession of the user, including, but not limited to, failure to

properly set up product, failure to provide reasonable and necessary maintenance,

normal wear, routine tune ups or adjustments, improper handling, accidents,

operation at speed or load conditions contrary to published specifications, improper

or insufficient lubrication, or improper storage. This warranty is not a guarantee

that the performance of each product will meet the expectations of the purchaser.

Broce Manufacturing shall not be liable for consequential damage of any kind,

including, but not limited to: consequential labor costs or transportation charges in

connection with the replacement or repair of defective parts, lost time or expense

which may have accrued because of said defects. In no event shall Broce

Manufacturing’s total liability hereunder exceed the product purchase price.

Many components used by Broce Manufacturing are subject to the warranties of

their respective manufacturers. These warranties will be considered void if the

product is modified or repaired in any way not expressly authorized, or if closed

components are disassembled prior to return. Closed components include, but are

not limited to gearboxes, hydraulic pumps, motors, cylinders and actuators.

Our obligation under the warranty is expressly limited, at our option, to the

replacement or repair at Broce Manufacturing of Dodge City, KS or at a service

facility designated by us. We are not responsible for unauthorized repairs or

replacements. Any implied or statutory warranties, including any warranty of

merchantability or fitness for a particular purpose, are expressly limited to duration

of this written warranty. We make no other express warranty. This warranty

cannot be extended, broadened, or changed except in writing by an authorized

officer of Broce Manufacturing.

Broce ManufacturingCo. Inc.

1460 South 2nd Avenue

Dodge City, KS 67801

(877) 227-8811

Go to Discount-Equipment.com for parts

TABLE OF CONTENTS

DESCRIPTION PAGE #

WARRANTY I

SPECIFICATIONS II

STANDARD AND OPTIONAL EQUIPMENT III

START UP AND PROPELLING 2

TOWING PROCEDURES 3

OPERATION OF THE SWEEPING CORE 4

SWEEPING TIPS 5

EXTENDING BRUSH LIFE 6

MACHINE OPERATION AND SAFETY 7

MACHINE CONTROL LOCATIONS 11

MACHINE SERVICE AND SAFETY GUIDELINES 13

LUBRICATION AND MAINTENANCE 16

BRAKE INSPECTION AND SERVICE 17

ENGINE 18

STORAGE 18

BROOM WAFERS 18

REPAIR PARTS 20-35

Go to Discount-Equipment.com for parts

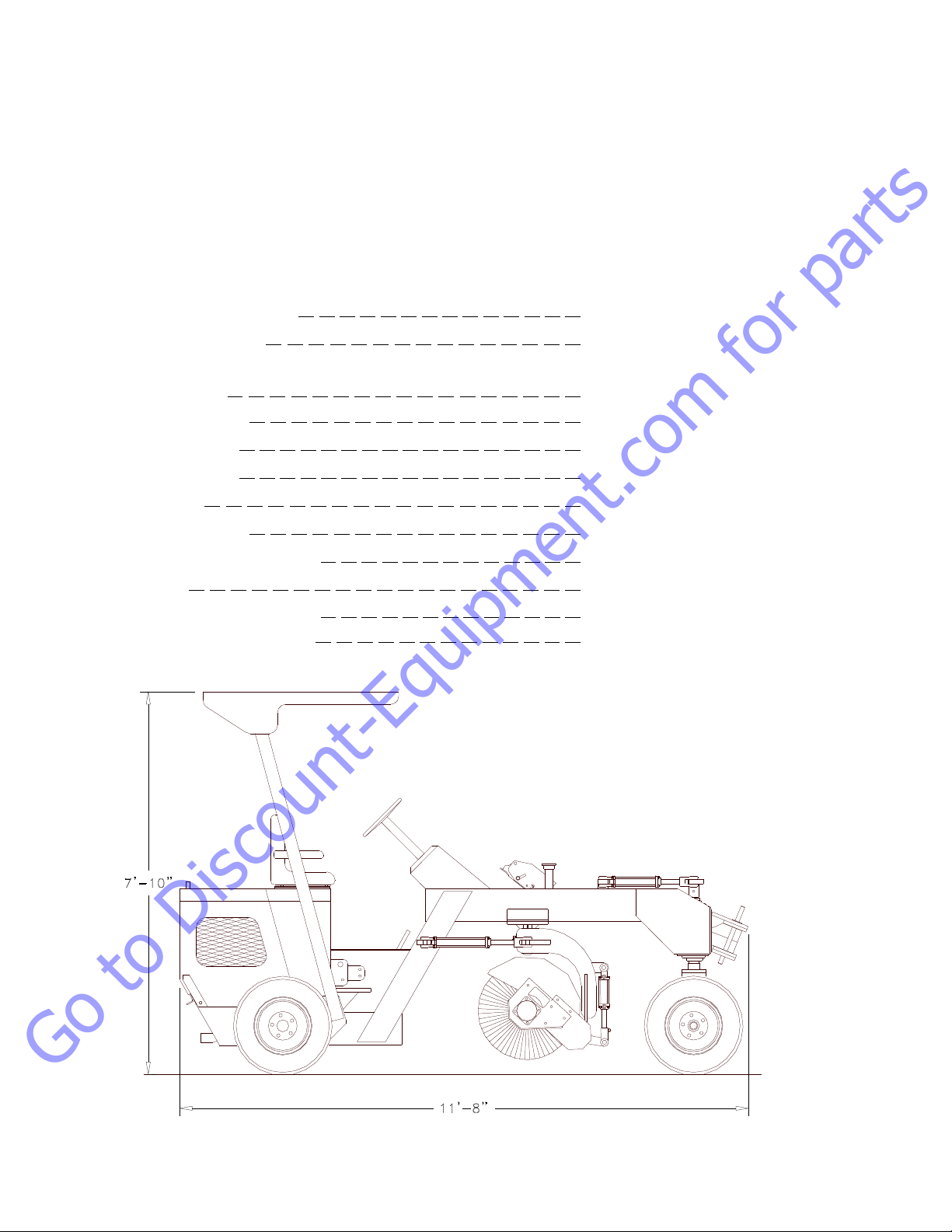

MODEL BB-250

Specification Sheet

Engine Horse Power 37 H.P.

Machine Weight 3,000 LB

3,600 LB w/Water System

Broom Size 6 3/8” ID X 24” OD

Broom Length Full 8 FT

Broom Drive Hydraulic Motor

Broom Angle Full 40° (both ways)

Steering 60° (both ways)

Fuel Capacity 9 GAL

Hydraulic Oil Capacity 15 GAL

Speed 0 to 8 M.P.H.

Inside Sweeping Radius 5 FT

Optional Water System 72 GAL

Go to Discount-Equipment.com for parts

STANDARD EQUIPMENT ON ALL UNITS

SAFETYORANGEPAINT

8’ STEEL CORE W/6 3/8” X 24” POLY CONVOLUTED WAFERS

CERTIFIED ROLL-OVER PROTECTION STRUCTURE & CANOPY

SEAT BELTS & REVERSE ALARM

POWER STEERING

2-WHEEL HYDRAULIC DRUM BRAKES W/MANUAL PARKING BRAKE

37 H.P. 4-CYLINDER KUBOTA DIESEL ENGINE

2” BALL TOW HITCH W/SURGE BRAKES & TOW LIGHTS

GAUGE PACKAGE INCLUDES; OIL, WATER, ALTERNATOR, FUEL GAUGE & HOUR METER

P185/70R14RADIALTIRES

SAUER/DANFOSS HYDRAULICTRANSMISSION

OPTIONAL EQUIPMENT

2 5/16” BALL HITCH OR PENTLE EYE HITCH

70 GAL WATER SPRINKLER SYSTEM

AMBER BEACON LIGHT

AMBER STROBE LIGHT

FRONTWORKLIGHTS&REARTAILLIGHTS

REAR WORK LIGHTS (2 Single Beam)

TURN SIGNAL & WARNING LIGHTS

PAINT (Other than standard Safety Orange)

CaterpillarEngineModel(3013) 31 Hp.

III

Go to Discount-Equipment.com for parts

START UP & PROPELLING

CAUTION: OPERATOR MUST BE SEATED WITH SEAT BELT PROPERLY

SECURED WHILE ENGINE IS RUNNING.

This model of broom is hydrostatically driven. Motion is achieved by depressing the foot pedal on

the floor board to the right of center. Letting the foot pedal up will result in a braking action caused by

the hydraulic system. This is the proper method for braking on this machine. The brake pedal on the left

side of the floor board should not have to be used except in cases where the engine has died or there is

a problem with the hydraulic system.

CAUTION: BEFORE STARTING ENGINE, BE SURE PARKING BRAKE IS SET,

(PULLED ALLTHE WAY FORWARD), LEFT FOOT IS ON THE BRAKE

PEDAL AND RIGHT FOOT DOES NOT CONTACT THE CONTROL

PEDAL.

1. Turn the key switch to the start position, all the way to the right. Add fuel as necessary using the

hand operated locking throttle near the lower right side of the dash. Release the key switch when the

engine starts. Do not use ether (STARTING FLUID) in this engine, severe engine damage will occur.

2. Use the foot pedal on floor board to choose the direction of foward or reverse.

3. After the desired direction has been selected, raise engine R.P.M. to about half throttle. Release

parking brake. Slowly depress control pedal and adjust the engine to the desired travel speed. Speed

can also be varied by the distance the control pedal is depressed.

CAUTION: DO NOT REVERSE THE DIRECTION OF TRAVEL WHILE THE

BROOM IS IN MOTION. THIS WILL DAMAGE THE DRIVE

COMPONENTS AND VOID THE WARRANTY. THIS TYPE OF

OPERATION IS CONSIDERED TO BE ABUSE.

4. To stop the engine, turn the key back to the center position. The parking brake must be set prior to

leaving the operator’s seat.

Go to Discount-Equipment.com for parts

TOWINGPROCEDURES

1. Before towing this machine check the following:

A. The tires should be inflated to 32 PSI and be in good condition.

B. Any loose items on the machine should be removed or secured.

C. Check to see that all the lug nuts/bolts are tight on the wheels and that the wheels are in good

condition.

2. The Parking Brake must always be set before starting to hook up the machine to a towing vehicle.

The Parking Brake must also be set before starting to unhook the machine from a Towing Vehicle.

3. Flip switch for Hitch on Dash

4. Drive Broom behind Vehicle (Leave about 5’feet between vehicle and broom)

5. Lower hitch on to ball (Have one person guide you if possible)

6. When hitch is on, Power down with control valve (Where tire is about 6” off ground)

7. Put shaft pin in hole to secure

8. Unlock hubs ontherear wheels of themachinesothatitwill rollfreely without turning thehydraulic

motors.

9. Open 1/4” ball valve on hitch for brakes.

10. Hook up the lights and make sure they are in good working order.

11. Hook up tow chain

12. Reverse procedure for unhooking.

13. Release the Parking Brake. Pull the machine a short distance and make sure the machines brakes

are not dragging. If they are, adjust and/or repair them so that they will work effectively when

needed.

Note: When the machine is to be unhooked from the towing vehicle, set the Parking Brake and

proceed to unhook the machine in the same manor as it was hooked up, except in reverse

order.

Note:The speedatwhichthismachineistoweddepends on conditions andthepersonal judgement

of the individual in charge. Broce Manufacturing Co. will not be responsible for neglect or

poor judgement at anytime during machine operation and/or towing of the machine.

Go to Discount-Equipment.com for parts
