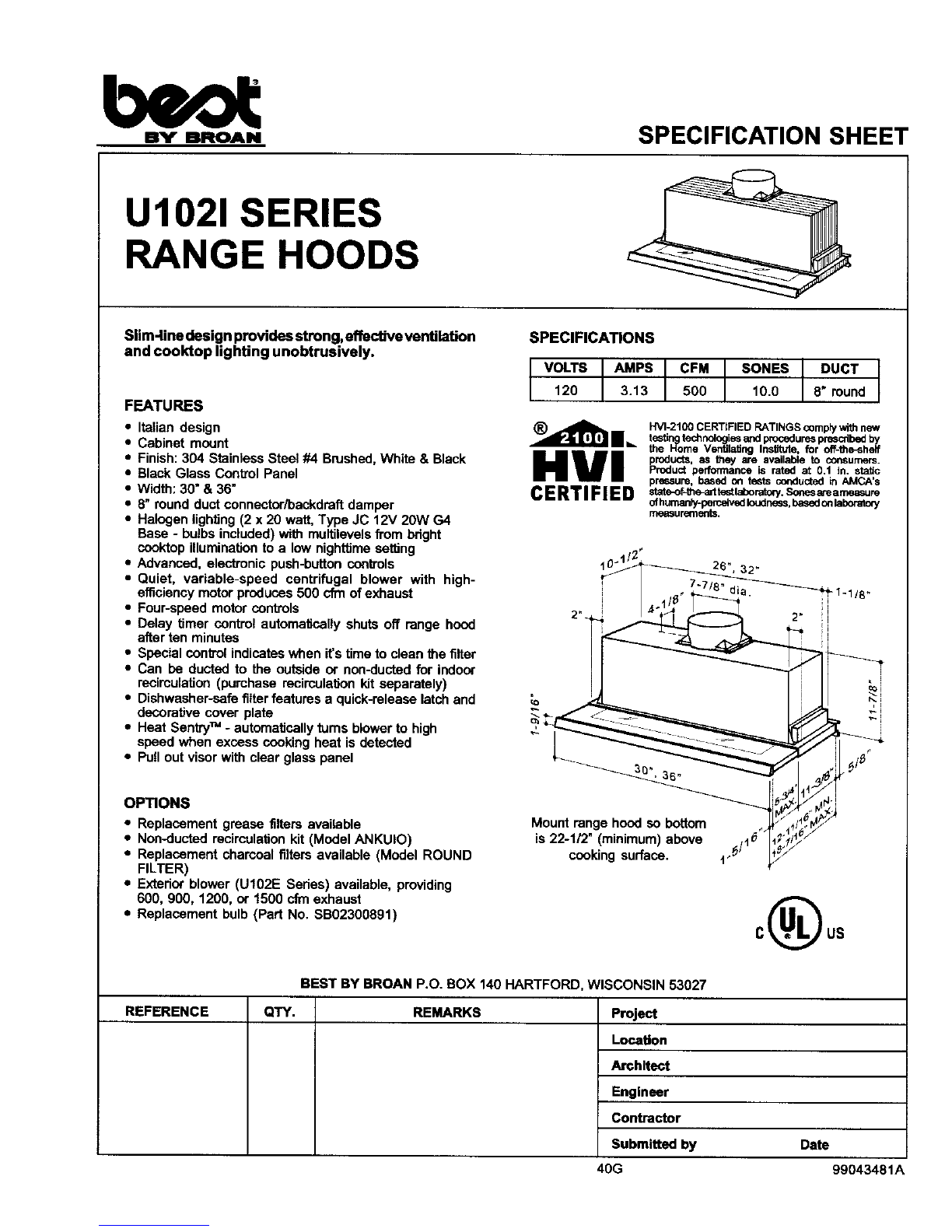

BY BROAN

U1021 SERIES

RANGE HOODS

SPECIFICATION SHEET

Slim-linedesignprovidesstrong,effecUveventilation

and cooktop lighting unobtrusively.

FEATURES

• Italian design

• Cabinet mount

•Finish: 304 Stainless Steel #4 Brushed,White & Black

•Black Glass Control Panel

•Width: 30" & 36"

•8" round duct connector/backdraft damper

•Halogen fighting(2 x 20 watt, Type JC 12V 20W G4

Base -bulbs included) with multifevels from bright

cooktop illuminationto a low nighttimeset'dng

•Advanced, electronic push-buttonconfrols

•Quiet, variable-speod centrifugal blower with high-

efficiency motor produces 500 cfm of exhaust

•Four-speed motor controls

•Delay timer control automatically shuts off range hood

after ten minutes

•Special control indicateswhen it's time to clean the filter

•Can be ducted to the outside or non-ducted for indoor

recireulation (purchase recirculation kit separately)

•Dishwasher-safe filterfeatures a quick-release latch and

decorative cover plate

•Heat SentryTM - automatically turns blowerto high

speed when excess cooking heat is detected

•Pull out visor with clear glass panel

SPECIFICATIONS

VOLTS AMPS CFM SONES DUCT

120 3.13 500 10.0 8" round

_m HVI-2100 CERTIFIED RATINGS complywith new

teatir_ technologies and procedures prescribed by

h,. the rlome Ventilating Institute, for off-the-shelf

141/I

CERTIFIED

OP_ONS

•Replacement grease filters available

• Non-ducted recirculationkit (Model ANKUIO)

•Replacement charcoal filters available (Model ROUND

FILTER)

•Extedor blower (U102E Series) available, providing

600, 900, 1200, or 1500 cfm exhaust

•Replacement bulb (Part No. SB02300891)

products, as they are available to

Produc_ performance is rated at 0.1 in. static

pressure, based on tests conducted in AMCA'S

state-of-the_adtestlaboratoq/. Sonesafe arneasure

of human_pemelved loudness,based on laborat_y

measurements.

!/lord/F/Mount range hood so bottom _ _ _/,.

is 22-1/2" (minimum) above /.I_"_'I/_ /

cooking surface, t, ¢ _

c( )us

REFERENCE QTY.

BEST BY BROAN P.O. BOX 140 HARTFORD, WISCONSIN 53027

REMARKS Project

Location

Architect

Engineer

Contractor

Submitted by

40G

Date

99043481A

U1021 SERIES WIRING 120 VOLT, 60 HZ

LINE IN

CONNECT

HITETO HITE

BLACKTO BLACK

REEN TO ROUND

BOX MARKED

"120VACINPUT'

U1021 SERIES MOUNTING

Bottom

Opening \

3/4"

Cabinet

.Width

Cabinet _

_"_ Front "_ ___i in"

10-3/4"

3/4"

Cabinet "A" "B"

Width

30" 28-1/2" 15"

36" 34-1/2" 18"

mY BI_q_AN BEST BY BROAN P.O. BOX 140 HARTFORD, WISCONSIN 53027
