SPECIFICATION SHEET

BEST BY BROAN P.O. BOX 140 HARTFORD, WISCONSIN 53027

REFERENCE QTY. REMARKS Project

Location

Architect

Engineer

Contractor

Submitted by Date

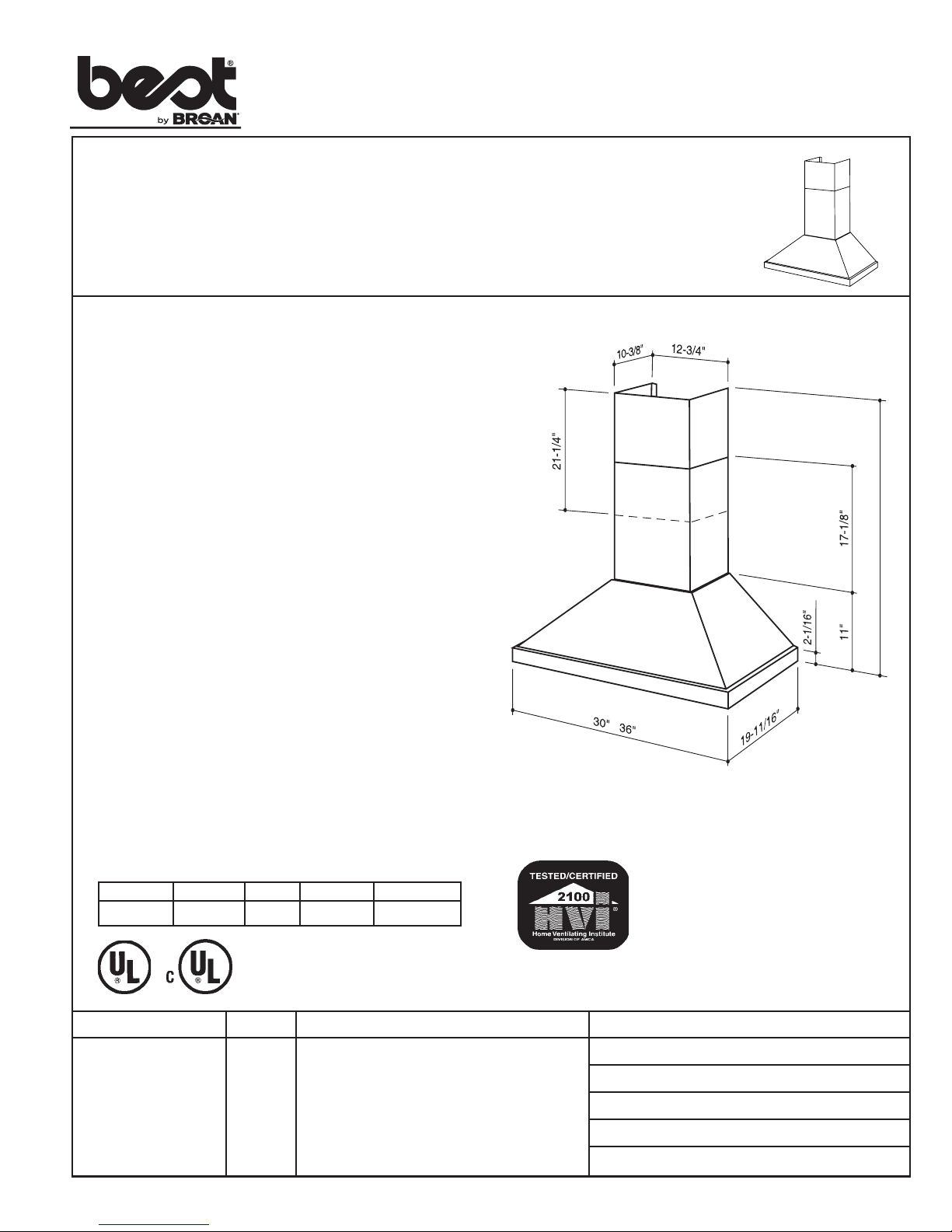

K41 SERIES

RANGE HOODS

Class pyramidal lines create a statement of simple

elegance.

FEATURES

•Italian design

•Wall mount

•Finishes: 304 Stainless Steel #4 Brushed, White, Black,

Polished Brass, Brushed Copper

•Widths: 30”, 36”

•Telescopic flue accommodates 8’ to 9’ ceilings

•6” round duct connector/backdraft damper

•Convertible to non-ducted operation (for 8’ to 9’ ceilings

only - requires Model No. REKITK41 sold separately)

•Halogen lighting (2 x 20 watt, MR16 - bulbs included)

•Slide controls: on-off, infinite speed

•Single centrifugal blower

•Dishwasher-safe filter features a quick-release latch and

decorative cover plate

•Heat SentryTM - automatically turns blower to high speed

when excess cooking heat is detected

OPTIONS

•Backsplash available (Model BSK1)

•Accent trim in contrasting or complementary finishes

(Model No. FTK41)

•Flue extension for 10’ ceiling (ducted only) (Model No.

FEXTK42) (31-7/8” long)

•Recirculating filter (Model No. ROUND FILTER)

•Replacement grease filters available

•Replacement bulb (Part No. SB02300668)

HVI-2100 CERTIFIED RATINGS comply with new

testing technologies and procedures prescribed by

the Home Ventilating Institute, for off-the-shelf

products, as they are available to consumers. Product

performance is rated at 0.1 in. static pressure, based

on tests conducted in AMCA’s state-of-the-art test

laboratory. Sones are a measure of humanly-perceived

loudness, based on laboratory measurements.

50J 99042839C

SPECIFICATIONS

VOLTS AMPS CFM SONES DUCT

120 3.13 500 8.0 6” round

min 33"

max 47"

Mount range hood so bottom of hood is

24” minimum above cooking surface.

BEST BY BROAN P.O. BOX 140 HARTFORD, WISCONSIN 53027

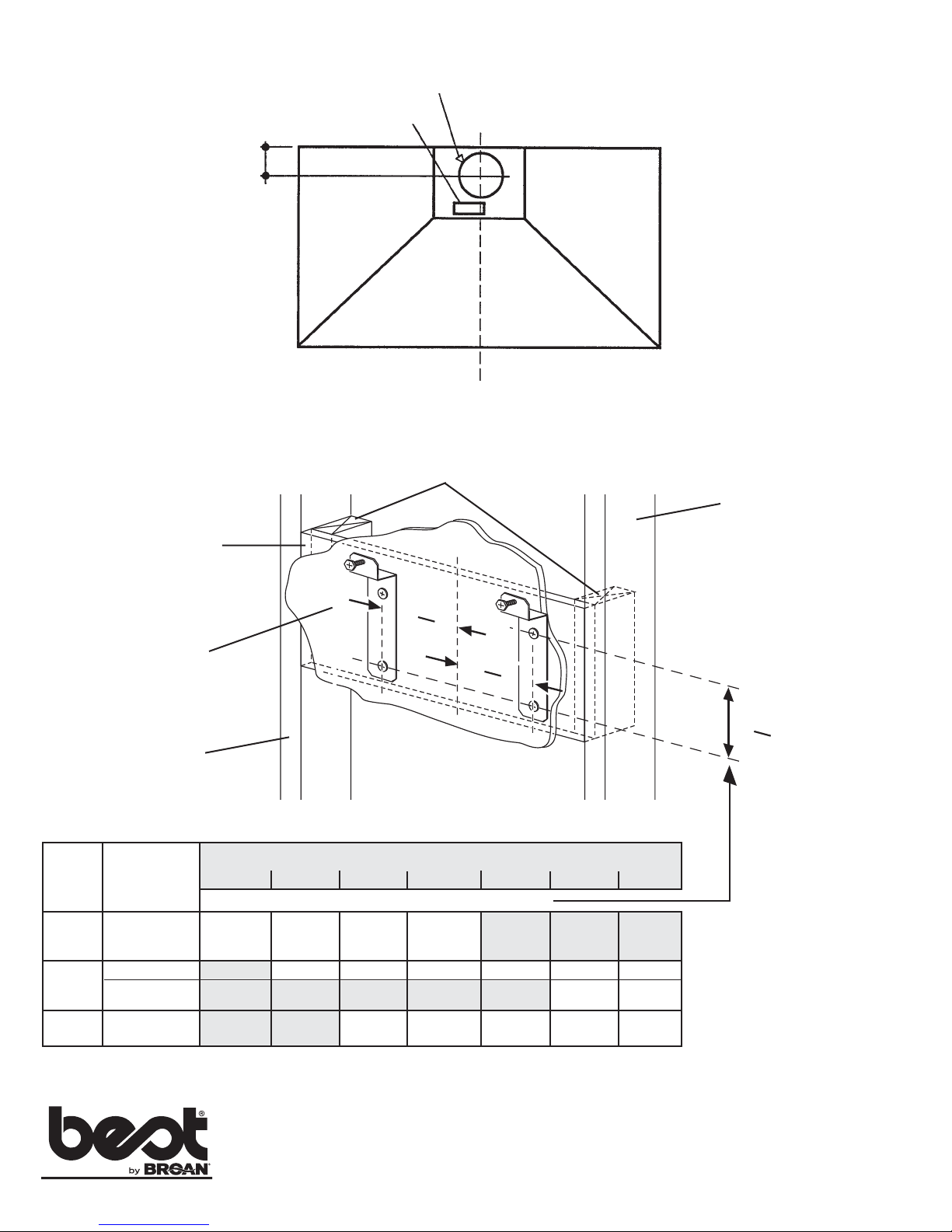

K41 SERIES WIRING

K41 SERIES MOUNTING

4-1/4”

Wiring Box

Air Outlet Ø 5-7/8”

NOTE: Minimum hood distance above cooktop must not be less than 24”.

A maximum of 30” above the cooktop is highly recommended for best capture of cooking impurities.

Distances over 30” are at the installer and users’ discretion; and if ceiling height and flue length permit.

MOUNTING BRACKET

LOCATION

(ABOVE 36” HIGH

COOKTOP)

CEILING DUCT

MOUNTING DISTANCE ABOVE 36” HIGH COOKTOP (SEE NOTE BELOW)

HEIGHT METHOD 24” 25” 26” 27” 28” 29” 30”

MOUNTING BRACKET LOCATION ABOVE 36” HIGH COOK TOP

8 FEET DUCTED OR 36-3/16” 37-3/16” 38-3/16” 39-3/16”

NONDUCTED

with REKITK41

9 FEET DUCTED 37-3/16” 38-3/16” 39-3/16” 40-3/16” 41-3/16” 42-3/16”

NONDUCTED 41-3/16” 42-3/16”

with REKITK41

10 FEET DUCTED WITH 38-3/16” 39-3/16” 40-3/16” 41-3/16” 42-3/16”

FEXTK42

3 "

2 "

FRAMING BEHIND WOOD

CROSS SUPPORT

WOOD CROSS

SUPPORT – SECURED

TO FRAMING AND

LOCATED BEHIND

DRYWALL

STUD
