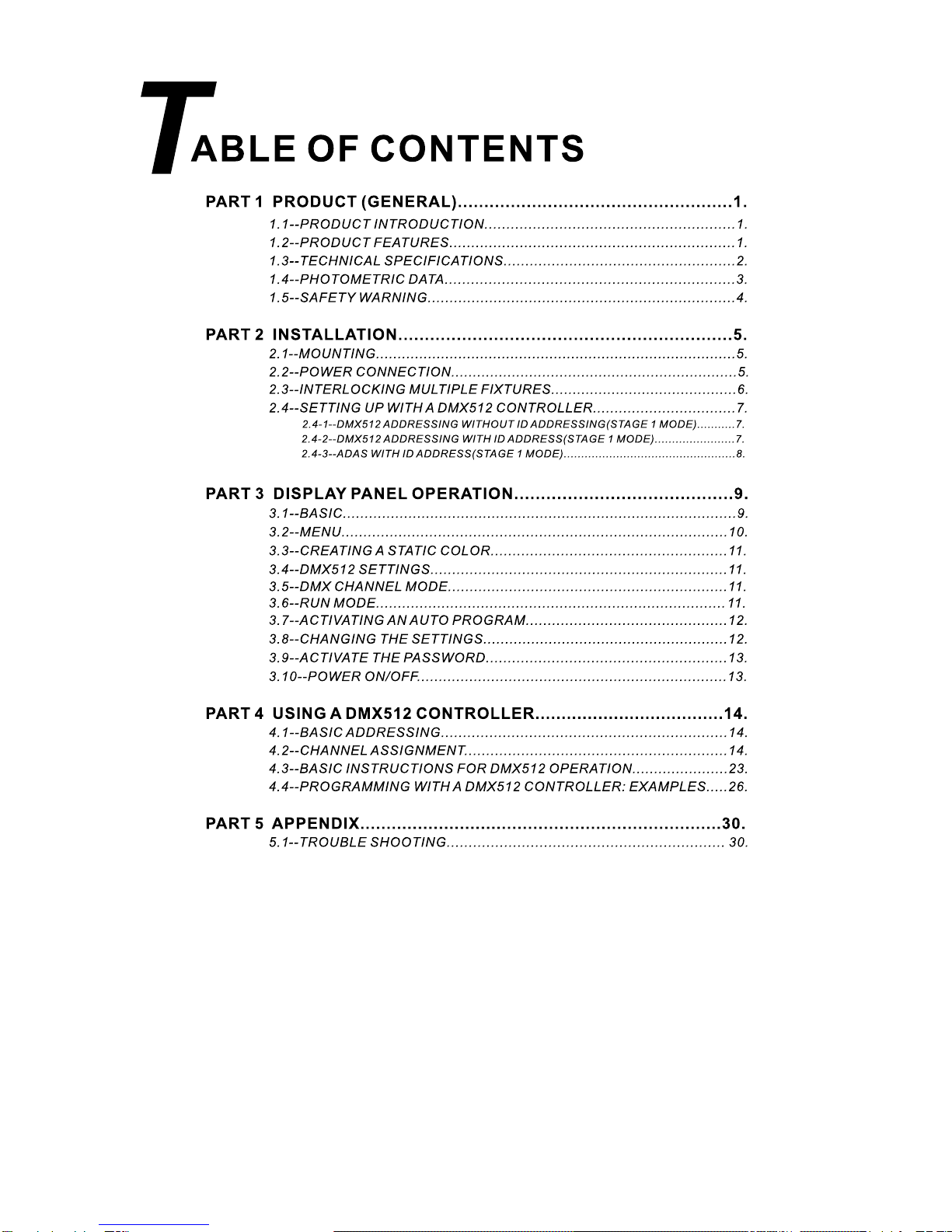

Table des matières

Autres manuels Briteq Équipement d'éclairage

Briteq

Briteq BT-GLOWPANEL Manuel utilisateur

Briteq

Briteq BT-THEATRE 100EC Manuel utilisateur

Briteq

Briteq Spectra 3D Laser Manuel utilisateur

Briteq

Briteq LED BLINDER WHITE - V1.0 Manuel utilisateur

Briteq

Briteq BTX-BLIZZARD WASH1 Manuel utilisateur

Briteq

Briteq BT-36II Manuel utilisateur

Briteq

Briteq LD-POWER240 Manuel utilisateur

Briteq

Briteq BTX 300 Beam Manuel utilisateur

Briteq

Briteq Club Laser 7 Manuel utilisateur

Briteq

Briteq BT-LASER2000 RGB Manuel utilisateur

Briteq

Briteq BT-BEAM70 Manuel utilisateur

Briteq

Briteq BT-THEATRE 150EZ Manuel utilisateur

Briteq

Briteq MIINI COLOR 7 TC - V1.1 Manuel utilisateur

Briteq

Briteq BT-30FC WASH Manuel utilisateur

Briteq

Briteq BT-THEATRE 250EZ Mk2 Manuel utilisateur

Briteq

Briteq Stage Beamer RGB MK2 Manuel utilisateur

Briteq

Briteq BT-150LS Manuel utilisateur

Briteq

Briteq BT-AKKUPOLE Manuel utilisateur

Briteq

Briteq BTX-700SW Manuel utilisateur

Briteq

Briteq BEAMSPOT1-TRIAC NW Manuel utilisateur

Briteq

Briteq LDP COBWASH Manuel utilisateur

Briteq

Briteq LED MEGA BEAM Manuel utilisateur

Briteq

Briteq Spectra 3D Laser Manuel utilisateur

Briteq

Briteq BEAMSPOT1-DMX NW Manuel utilisateur

Manuels Équipement d'éclairage populaires d'autres marques

Brizo

Brizo 8SP-MU-4 Manuel utilisateur

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 Manuel utilisateur

IKEA

IKEA BJÖRKSPIREA Manuel utilisateur

Laserworld

Laserworld Evolution Series ES-400RGB Manuel utilisateur

Alien

Alien RG STAR Manuel utilisateur

EuroLite

EuroLite LED B-40 Manuel utilisateur

Qazqa

Qazqa Suplux SL 3 Black 103062 Manuel utilisateur

Commercial Electric

Commercial Electric 54568141 Manuel utilisateur

CREE LIGHTING

CREE LIGHTING 304 Series Manuel utilisateur

Goobay

Goobay 49867 Manuel utilisateur

ECOMAN ITALIA

ECOMAN ITALIA LED T8 Manuel utilisateur

Alkalite

Alkalite Krypton KT-81 Manuel utilisateur

Clas Ohlson

Clas Ohlson GU10 Manuel utilisateur

DTS

DTS DELTA 10 F Manuel utilisateur

ring

ring Solar Steplight Manuel utilisateur

One Stop Gardens

One Stop Gardens 57696 Instructions de montage

Chauvet DJ

Chauvet DJ COREpar UV120 ILS Manuel utilisateur

SIREM

SIREM Swimeo A2 Manuel utilisateur

USER

MANUAL

Ver 1,0

WWW.BRITEQ-LIGHTING.COM

1.1 PRODUCT INTRODUCTION

This product is designed for indoor or outdoor use. Suitable applications include wash or

effect lighting for architectural, stage or nightclub applications. This product can also be

installed for use in signage and advertising using the dynamic functions available with

DMX512 control. Direct input of DMX512 signal allows the units to be controlled from any

DMX512 controller. This product can be operated as a single unit or in multiple units for

large applications.

The specially developed controller that allows the product to be controlled independent of

the DMX512 controllerenables the userto create andedit a widerange of customprograms.

All programs can be touch-button displayed or scheduled to START and END at scheduled

times. When programs have been created or edited in the controller, it is also possible to

trigger these programs using the DMX IN function when connected to a DMX512 controller.

1.2 PRODUCT FEATURES

LED FIXTURE

1 PRODUCT(GENERAL) 12008.8.13

1PRODUCT (GENERAL)

* RGB Dimmer 0-100%

* Strobe

* Individual control of each LED group

* Automatic programs

* IP65 protection rating

* LCD display

* Display control'lock-out'

* Direct DMX512 input

* Automatic DMX512 and ID Addressing

* Independant IDaddress

* Overheat protection(showing "warning heat")

* Lightweight aluminium casing

* Black anti-UV plastic cover

* Interlocking-module system

1.3 TECHNICAL SPECIFICATIONS

LED MODULE

1 PRODUCT(GENERAL) 22008.8.13

Dimensions

LED MODULE:

Voltage

Rated Power

IP65 protection rating

108pcs (36 xRED / 36x GREEN /36 x BLUE)

Weight

LED/Unit

Output/LED

Cooling

IP

1W

Direct air convection

570 x 220x 190mm

13Kg

100~240V...50/60Hz

150W

1.4 PHOTOMETRIC DATA

PHOTOMETRIC DATA

1 PRODUCT(GENERAL) 32008.8.13

RGB 100%

1

2

3

0

1

2

3

2(0.9x0.5) 4(1.4x1.0) 6(2.0x1.6) 8(2.5x2.1) 10(3.0x2.6Area(m))

Diameter(m)

9100 2910 1370 800 643 LUX

15

WHITE

1

2

3

0

1

2

3

2(0.9x0.5) 4(1.4x1.0) 6(2.0x1.6) 8(2.5x2.1) 10(3.0x2.6Area(m))

Diameter(m)

8100 2570 1160 689 575 LUX

15

RED

1

2

3

0

1

2

3

2(0.9x0.5) 4(1.4x1.0) 6(2.0x1.6) 8(2.5x2.1) 10(3.0x2.6Area(m))

Diameter(m)

2900 893 414 238 197 LUX

15

GREEN

1

2

3

0

1

2

3

2(0.9x0.5) 4(1.4x1.0) 6(2.0x1.6) 8(2.5x2.1) 10(3.0x2.6Area(m))

Diameter(m)

5565 1752 836 471 396 LUX

15

BLUE

1

2

3

0

1

2

3

2(0.9x0.5) 4(1.4x1.0) 6(2.0x1.6) 8(2.5x2.1) 10(3.0x2.6Area(m))

Diameter(m)

710 231 110 64 53 LUX

15

1.5 SAFETY WARNING

IMPORTANT

ALWAYS READ THE USER MANUAL BEFORE OPERATION.

PLEASE CONFIRM THAT THE POWER SUPPLYSTATED ON THE

PRODUCT IS THE SAME AS THEMAINS POWER SUPPLYIN YOUR

AREA.

This product must be installed by a qualified professional.

Always operate the equipment as described in the user manual.

A minimum distance of 0.5m must be maintained between the equipment and

combustible surface.

The product must always be placed in a well ventilated area.

Always make sure that the equipment is installed securely.

DO NOT stand close to the equipment and stare directly into the LED light

source.

Always disconnect the power supply before attempting and maintenance.

Always make sure that the supporting structure is solid and can support the

combined weight ofthe products.

The earth wire must always be connected to the ground.

Do not touchthe power cablesif your handsare wet.

ATTENTION

1 PRODUCT(GENERAL) 4

This product leftthe place of manufacture in perfect condition. In orderto

maintain this condition and for safe operation, the user must always follow the

instructions and safety warnings described in this user manual.

Avoid shaking or strong impactsto any partof the equipment.

Make sure thatall parts ofthe equipment are kept clean and free of dust.

Always make sure that the power connections are connected correct and

secure.

If there is any malfunction of the equipment, contact your distributor

immediately.

When transferring the product, it is advisable to use the original packaging in

which the productleft the factory.

Shields, lenses orultraviolet screens shall be changed if they have become

damaged to such an extent that their effectiveness is impaired.

The lamp (LED) shall be changed if it has become damaged or thermally

deformed.

2008.8.13

2 INSTALLATION 52008.8.13

2.1 MOUNTING

The LED MODULE can be mounted in a

hanging position using the support frame. It is

possible to use any bolt of the correct size and

strength to mount the fixture. It is

recommended to use at least 2 mounting points

per fixture. Mounting with a clamp or other

mounting bracket is recommended depending

on the requirements of your application.

For overhead use, always install a secure-

chain that can hold at least 10 times the weight

of the fixture. You must only use safety-ropes

with screw-on carabines. Pull the safety-rope

through the aperture on the the base's metal

frame. Insert the end in the carabine and

tighten the fixationscrew. (See picture on right)

HANGING

UPRIGHT

The LED MODULE can be mounted upright

using the support frame. It is possible to use

any bolt of the correct size and strength to

mount the fixture. It is recommended to use at

least 2 mounting points per fixture. Mounting

with a clamp or other mounting bracket is

recommended depending on the requirements

of your application.

The LED MODULEcan be mountedat any angleand in any

position. It is possible to furtheradjust the angleof the LED

MODULE using thetwo adjustment knobslocated on theside of

the fixture.

2.2 POWER CONNECTIONS

2INSTALLATION

UPRIGHT

@ 220~240V: 15 units may be connected in series

@100~120V: 8 units may be connected in series

2 INSTALLATION 62008.8.13

2.3 INTERLOCKING MULTIPLE FIXTURES

The diagram above shows how multiple units can be interlocked together to create a 'panel'

or 'blinder' arrangement.

The 'male' and 'female' connections enable the fixtures to be interlocked together in the

way shown in the diagram. Please note that when multiple units are mounted together it is

not necessary to attach every single unit to the truss, wall or weight supporting system.

However, it is important to ensure that all fixtures are securely locked together and that

each fixture is secured using a safety cable.

2 INSTALLATION 72008.8.13

2.4 SETTING UP WITH A DMX512

CONTROLLER

2.4-1 DMX512 ADDRESSING WITHOUT ID ADDRESSING

(STAGE 1 MODE)

The figure above shows a simple DMX512

layout with thestarting address ofthe first

unit set at 1, with the second set at 13 and

so on... (Note that when used in this way,

the CH10 IDfunction must be inactive (CH10=0))

............

DMX512

CONTROLLER

DMX Addr.1 DMX Addr.13 DMX Addr.25

Connect the DMX512controller to theunits in series.

Each unit has 12 DMX channels so the DMX Addresses should increase by increments of

12 (e.g. 1,13,25,37...)

The ID addresshas not beenset so therefore when using the controller CH10 must

be inactive ( CH10=0 ).

It is also possible to deactivate ID address selecting ID OFF from the Settings menu.

on the fixture

Each DMX Address may be used as many times as required.

Any DMX address in the range from 001 to 245 may be used.

2.4-2 DMX512 ADDRESSING WITH ID ADDRESS(STAGE 1 MODE)

Connect the DMX512 controller to the units in series

Each unit has 12 DMX channels so the DMX Addresses should increase by increments of

12 (e.g. 1,13,25,37...)

Each DMX Address may be used as many times as required.

Any DMX address in the range from 001 to 245 may be used.

Each DMX addressmay carry upto 66 separateID addresses.

ID Address should be set in the Settings menu on each unit in ascending values

(i.e. 1,2,3...)

ID On should be set in the Settings menu on eachunit.

ID addresses are accessible from CH10 on the DMX512 controller.

Example:

............

DMX512

CONTROLLER

DMX Addr.1

ID Addr.1

DMX Addr.1

ID Addr.2

DMX Addr.1

ID Addr.3

DMX Addr.13

ID Addr.1

DMX Addr.13

ID Addr.2

DMX Addr.13

ID Addr.3

Example:

The figure above shows a simple DMX layout

which has usedthree units ateach DMX address.

The three unitshave different ID addresses which

allows the user to collectively control the whole

group of units at that DMX address by setting

CH10 to 0, or to control each unit independently by

first selecting the DMX address and then by using

CH10 to locate the target ID address. (Note that

when using IDaddresses it is also possible to

activate ADAS which allows for even more options

with DMX addressingand control see ADAS

Addressing section 2.2-3)

2.4-3 ADAS WITH ID ADDRESS(STAGE 1 MODE)

Connect the DMX512 controller to the units in series

Select ADAS ON from the Settings menu

ID Address should be set in the Settings menu on each unit

in ascending values(i.e. 1,2,3...)

ADAS addressingis based onthe ID addressas follows:

ADAS DMX Address = { ADAS fader * (ID Address -1)}+1

ADAS addressing is activated by moving CH8 + CH10 faders to the 255 value (CH8 = 255 &

CH10 = 255)

ADAS addressing is deactivated by moving CH8 + CH10 + CH11 to the 255 value

(CH8 = 255, CH10 = 255 & CH11 = 255)

When ADASis deactivated, allDMX addresses willreturn to theiroriginal DMXAddress.

To permanently store ADAS DMX addresses, select ADAS copy from the Settings

menu,on the target fixtures to store the new DMX Address.

Example:

............

DMX512

CONTROLLER

ID Addr.1 ID Addr.2 ID Addr.3

The figure aboveshows a simpleID address

layout using one DMX address. Each of the

units has a different ID address which will

receive a new temporary DMX address when

ADAS is activated(unless ADAS copy

is selected). The user is able to activate and

deactivate ADASat will givingthe possibility

of creating many different fixture grouping

possibilities using theID address, realDMX

address and theADAS temporaryDMX address.

2 INSTALLATION 2008.8.13

When using ADAS, all fixtures must have the

following settings from the Settings menu set correctly;

ID address Each unit should have the target ID address set in ascending order

ID ON/OFF Each unit should set ID On

ADAS fader no Each unit shouldbe set tothe same number of faders as your

controller(must be 12)

ADAS ON/OFF Each unit should be set as ADAS On

Note:

8
