Bristan FLT BAS C Manuel utilisateur

Please keep this booklet for future

reference.

Installer, when you have read these

instructions please ensure you leave them

with the user.

Installation Instructions

Flute Tap Range

Models covered:

FLT BAS C, FLT 1HBF C,

FLT 2HBSM C, FLT TBAS C

www.divapor.com

Contents

Thank you for choosing Bristan, the UK’s leading taps and showers expert.

We have designed this product with your enjoyment in mind. To ensure that it works

to its full potential, it needs to be ﬁtted correctly. These ﬁtting instructions have been

created to give you all of the information you need and, if you need any further help,

please do not hesitate to contact us.

Important Safety Information................................................... 3

General Information ................................................................. 4

Speciﬁcations ........................................................................... 5

Dimensions............................................................................... 6-7

Installation Requirements ....................................................... 8

Installation................................................................................ 9-10

Maintenance ............................................................................. 11

Troubleshooting........................................................................ 12

Notes......................................................................................... 13

Guarantee ................................................................................. 14-15

Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisers.

www.divapor.com

Important Safety Information

•Please read these instructions thoroughly and retain for future use.

•All products manufactured and supplied by Bristan are safe provided they are

installed, used correctly and receive regular maintenance in accordance with these

instructions.

•If you are in any doubt about your ability to install this product safely you must

employ the services of an experienced qualiﬁed plumber.

•This ﬁtting needs to be installed in accordance with, and meet the requirements of the

Water Supply (Water Fittings) Regulations 1999 and Scottish Byelaws 2004.

•Remove all packaging and check the ﬁtting for damage before starting installation.

•Warning: Before starting any installation please consider the following: before

drilling into walls, check that there are no hidden electrical wires, cables or water

supply pipes. This can be checked with the aid of an electronic detector.

•If power tools are used do not forget to: - Wear eye protection

- Unplug equipment after use

•Important: Remember to turn off the mains water supply before connecting to any

existing pipe work. Fitting isolating valves to the inlet feeds is recommended for ease

of maintenance.

•Warning: Before installing the new ﬁtting it is essential that you thoroughly ﬂush

through the pipework in order to remove any remaining swarf, solder, etc.

Failure to carry out this procedure could cause problems or damage to the workings of

the ﬁtting.

•Take care when handling the ‘ﬂexible connecting pipes’, do not bend, twist or crush

them. Only tighten the pipes by hand.

•Do not crush or kink the shower hose, this could damage the hose and cause leaks.

• This product must not be modiﬁed in any way as this will invalidate the guarantee.

Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisers.

www.divapor.com

General Information

This product has been tested to the Water Regulations Advisory Scheme (WRAS) and

satisﬁes the requirements of the Water Supply (Water Fittings) Regulations 1999 and

current bylaws. For full Installation Requirements & Notes (IRN) please visit

www.wras.co.uk/directory.

Designed to comply with BS EN 200 for combination taps to be used within systems

designed to BS 6700.

BS 6700 recommends the temperature of stored water should never exceed 65°C.

A stored water temperature of 60°C is considered sufﬁcient to meet all normal

requirements and will minimise the build up of lime scale in hard water areas.

If installing this product on a low pressure (tank fed) system please see speciﬁcation

table (page 5) to determine the minimum distance required from underside of the cold

water tank to the outlet.

These taps and mixers should be installed in compliance with the Water Regulations.

Where the supplies are unbalanced, i.e. Hot water from cylinder tank / cold from the

mains, approved check valves must be ﬁtted in the supply pipes.

For further details contact your Local Water Authority.

Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisers.

www.divapor.com

Speciﬁcations

Product Code

Working pressure

Inlet

Minimum distance

from cold water tank

to outlet (metres)

Min Max

FLT BAS C 0.2 5.0 M10 15mm Compression Flexible Tails 2

FLT 1HBF C 0.5 5.0 M16 15mm Compression Flexible Tails 5

FLT 2HBSM C 1.0 5.0 M12 15mm Compression Flexible Tails 10

FLT TBAS C 0.2 5.0 M10 15mm Compression Flexible Tails 2

Maximum static pressure- 10.0 bar

Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisers.

www.divapor.com

Dimensions

Dimensions are nominal and in millimetres.

Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisers.

Basin Mixer

Tall Basin Mixer

Basin Mixer

155

105

130

105

188

www.divapor.com

Dimensions Cont.

2 Hole Bath Shower Mixer

Dimensions are nominal and in millimetres.

Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisers.

1 Hole Bath Filler

155

230

165

143

116

154

243

116

143

165

www.divapor.com

Installation Requirements

Flexible Connecting Pipes

Care must be taken when connecting the ﬂexible connection pipes to the household pipework

to ensure they do not bend sharply and kink or twist.

See below for recommended ways to ﬁt the ﬂexible connecting pipes.

Slight

bend

90°

Angle

Kink Curved

round

Twists

Important: Failure to follow these guidelines may result in poor performance and damage

to the ﬂexible connecting pipes.

Important: Full access must be made available on installation for future maintenance/

servicing purposes.

System Requirements:

Gravity fed hot & cold (Equal pressures)

Gravity fed hot & cold (Differential pressure, maximum ratio 5:1)

Unvented systems

Instantaneous water heater (Combination boiler)

Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisers.

www.divapor.com

Installation

1. Screw the ﬂexi tails into the bottom

of the tap body by hand only

(DO NOT OVERTIGHTEN).

2. Feed the ﬂexi tails through the hole,

ensuring the washer is ﬁtted between the

body and the basin/ bath.

3. Screw the ﬁxing rod into the bottom of

the tap. Slide 'C' shaped rubber washer

and 'C' shaped metal washer onto the

ﬁxing rod up to the underside of the basin/

bath.

4. To secure the tap in place tighten the

ﬁxing nut onto the ﬁxing rod until is fully

tightened against the 'C' shaped metal

washer. Suitable spanner can be used to

fully tighten the ﬁxing nut.

5. Connect the ﬂexi tails to the hot and

cold water supplies.

Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisers.

www.divapor.com

Installation Cont.

Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisers.

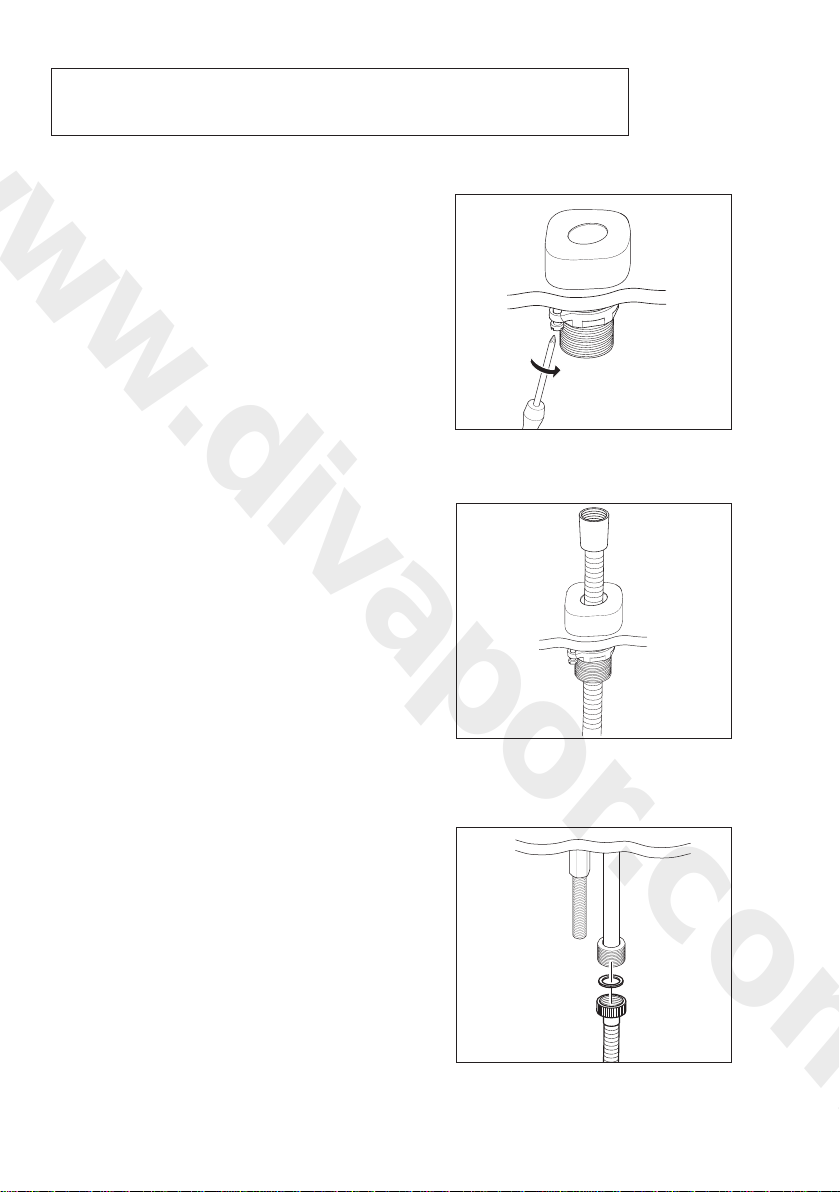

6. Bath Shower Mixer only

Remove the nut, metal and rubber

washers from the handset holder

threaded tail.

Place the handset holder base through

the hole, slide the rubber and metal

washers onto the thread and secure in

place by tightening the backnut up to the

underside of the bath.

The screws on the backnut allow for any

uneven surfaces and should be tightened

up to the metal washer.

Feed the hose through the handset

holder base and connect the hose to the

shower outlet pipe using the small

sealing washer.

Fit the handset to the hose using the

small washer.

7. Basin Mixer and Tall Basin Mixer only

Fit the clicker waste ensuring the rubber

washer is ﬁtted between the basin and

the waste. Place the other rubber washer

under the basin and secure in place by

tightening the backnut. In order to ﬁll

the basin, the button in the middle of the

waste needs to be pressed down.

To release the water, press the button

again.

8. Turn on water supplies, lift the handle

upwards and operate in both directions,

letting the water ﬂow for a few minutes.

9. Check all joints and connections for any

leaks.
