2. After meeting requirements for the electric system,
carry out the following steps

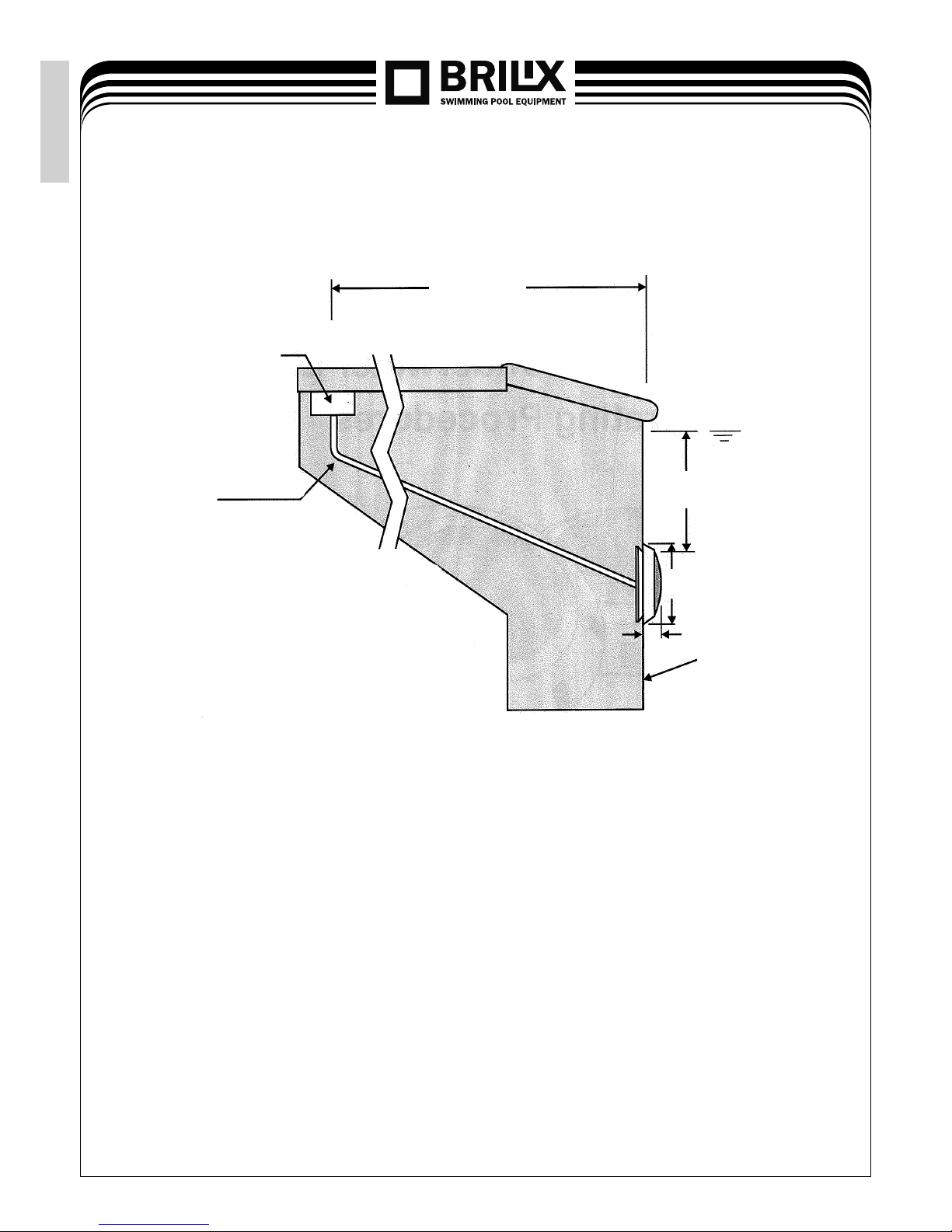

1. Find a place on the vertical surface where you want to install the light. The top edge of the lentil should
be placed 45cm under the pool water level, see picture 1.
2. Connect the installation pipe to the centre of the distant erection pack (left from the consol), see picture 2
3. If the surface of the pool should be plastered, you must leave the concrete receded of the thickness
of the plaster. Completed surface of the concrete must be levelled with the distant erection pack.
ATTENTION: Completed surface in the surroundings of the distant erection pack MUST BE flat and
aligned with the surface of the distant erection pack. It ensures the perfect adhesion of the light to the wall
of the pool, see picture 3.
4. After finishing the surface of the pool, trim the installation pipe.
5. Roll the electric cable up in a way that its available length does not exceed 2,4 m. This superfluous cable
enables to remove the light from the pool in order to exchange the lamp and carry out the service.
6. Pull the cable through the installation pipe and connect its conductors in the junction box. While connecting
the conductors be careful not to pull more than 75-80 mm of the superfluous cable on the light through the
installation pipe.
7. Connect all conductors to the appropriate circuit conductors in the junction box and pad all connections
by the use of paraffin.
8. Fix the cover of the junction box.
9. Before turning the light on for longer than 10 seconds, fill the pool in a way that the light will be completely
immersed in the water. In order to check the correct functions, turn the main switch or the fuse on, also
activate the switch controlling the appropriate light.
10. The safe installation of the light to the consol is secured by turning the safety system, see picture 4.
11. The light must be connected to the safety transformer for 12V
