Brighter X-Dot Manuel utilisateur

User manual

Please read the instructions carefully before use

This

product

manual

contains

important

information

about

the

safe

installation

and

use

this

projector.

Please

read

and

these

instructio

carefully

and

keep

this

manual

safe

place

for

future

reference.

SAFETY PRECAUTIONS

This fixture is a sophisticated piece of electronic equipment.To guarantee a smooth

operation,it is important to follow all instructions and guidelines in this manual.

Professional is not responsible for injuries and/or damages resulting from the misuse

of this fixture due to the disregard of the information printed in this manual.Only

qualified and/or certified personnel should perform installation of this fixture and only

the original rigging parts included with this fixture should be used for installation.Any

modifications to the fixture and/ or the included mounting hardware will void the

original manufacturer’s warranty and increase the risk of damage and/or personal

injury.

PROTECTION CLASS 1-FIXTURE MUST BE PROPERLY GROUNDED.

THERE ARE NO USER SERVICEABLE PARTS INSIDE THIS UNIT.DO NOT

ATTEMPT ANY REPAIRS YOURSELF, AS DOING SO WILL VOID YOUR

MANUFACTURER’SWARRANTY. DAMAGES RESULTING FROM MODIFICATIONS

TO THIS FIXTURE AND/ OR THE DISREGARD OF SAFETY INSTRUCTIONS AND

GUIDELINES IN THIS MANUAL VOID THE MANUFACTURER’SWARRANTY AND

ARE NOT SUBJECT TO ANY WARRANTY CLAIMS AND/ OR REPAIRS.

DO NOT PLUG FIXTURE INTO A DIMMER PACK!

NEVER OPEN THIS FIXTURE WHILE IN USE!

UNPLUG POWER BEFORE SERVICING FIXTURE!

NEVER TOUCH FIXTURE DURING OPERATION,AS IT MAY BE HOT! KEEP

FLAMMABLE MATERIALS AWAY FROM FIXTURE!

NEVER LOOK DIRECTLY INTO THE LIGHT SOURCE!

RETINA INJURY RISK -MAY INDUCE BLINDNESS!

SENSITIVE PERSONS MAY SUFFER AN EPILEPTIC SHOCK!

ENSURE ALL CONNECTIONS AND END CAPS ARE PROPERLY SEALED WITH A

DIELECTRIC GREASE (AVAILABLE AT MOST ELECTRICAL SUPPLIERS)TO

PREVENT WATER CORROSION AND/ OR ELECTRICAL SHORT CIRCUIT.

MINIMUM DISTANCE TO OBJECTS/SURFACES

MUST BE 3.3FEET (1METER)

MAXIMUM TEMP OF EXTERNAL SURFACE 185° F(85°C)

MINIMUM DISTANCE OF FLAMMABLE MATERIALS FROM THE SURFACE IS 1.6

FEET (0 .5 METER)

- 3 -

SAFETY PRECAUTIONS

• DO NOT TOUCH the fixture housing during operation.Turn OFF the power and

allow approximately 15 minutes for the fixture to cool down before servicing.

• DO NOT shake fixture, and avoid brute force when installing and/or operating

fixture.

• DO NOT operate fixture if the power cord is frayed, crimped, damaged and/or if

any of the power cord connectors are damaged and do not insert into the fixture

securely with ease.

• NEVER force a power cord connector into the fixture.If the power cord or any of its

connectors are damaged, replace it immediately with a new one of the same power

rating.

• DO NOT block any air ventilation slots.

• All fan and air inlets must remain clean and never blocked.

• Allow approx.6” (15cm) between fixture and other devices or a wall for proper

cooling.

• Always disconnect fixture from main power source before performing any type of

service and/or cleaning procedure.

• Only handle the power cord by the plug end.Never pull out the plug by tugging the

wire portion of the cord.

• During the initial operation of this fixture, a light smoke or smell may emit from the

interior of the fixture. This is a normal process and is caused by excess paint in the

interior of the casing burning off from the heat associated with the lamp and will

decrease gradually over time.

• Consistent operational breaks will ensure fixture will function properly for many

years .

• ONLY use the original packaging and materials to transport the fixture in for

service.

- 4 -

MAINTENANCE GUIDELINES

DISCONNECT POWER BEFORE PERFORMING ANY MAINTENANCE!

CLEANING

Frequent cleaning is recommended to ensure proper function,optimized light output,

and an extended life.The frequency of cleaning depends on the environment in which

the fixture operates: damp,smoky or particularly dirty environments can cause greater

accumulation of dirt on the fixture’s optics.Periodically clean the external lens surface

with a soft cloth to avoid dirt/debris accumulation.NEVER use alcohol, solvents, or

ammonia-based cleaners .

MAINTENANCE

Regular inspections are recommended to ensure proper function and extended

life.There are no user serviceable parts inside this fixture.Please refer all other service

issues to an authorized our service technician.Should you need any spare parts,

please order genuine parts from your local dealer.

Please refer to the following points during routine inspections:

• A detailed electric check by an approved electrical engineer every three

months, to make sure the circuit contacts are in good condition and prevent

overheating.

• Be sure all screws and fasteners are securely tightened at all times.Loose

screws may fall out during normal operation, resulting in damage or injury as larger

parts could fall.

• Check for any deformations on the housing, color lenses, rigging hardware,and

rigging points (ceiling,suspension, trussing).Deformations in the housing could allow

for dust to enter into the fixture.Damaged rigging points or unsecured rigging could

cause the fixture to fall and seriously injure a person(s).

• Electric power supply cables must not show any damage,material fatigue or

sediments.NEVER remove the ground prong from the power cable.

- 5 -

OVERVIEW

1. Lens

2. System Menu LCD Display

3. DMX Input

4. Power Input

5. DMX Output

6. Power Output

7. Fuse

8. RJ45 Input

9. Value

10. RJ45 Output

- 6 -

INSTALLATION GUIDELINES

FLAMMABLE MATERIAL WARNING

Keep fixture minimum 5.0 feet (1 .5m) away from flammable materials and/or

pyrotechnics.

ELECTRICAL CONNECTIONS

A qualified electrician should be used for all electrical connections and/or

installations.

MINIMUM DISTANCE TO SURFACES/OBJECTS IS 3.3 FEET (1 METER).

MINIMUM DISTANCE TO FLAMMABLE MATERIALS IS 1.6 FEET(0 .5

METER).

EXTERNAL SURFACE CAN REACH TEMPERATURES OF 185° F (85° C).

DO NOT INSTALL THE FIXTURE IF YOU ARE NOT QUALIFIED TO DO

SO!

Fixture MUST be installed following all local,national, and country commercial electrical and

construction codes and regulations.

Before rigging/mounting a single fixture or multiple fixtures to any metal truss/structure or placing

the fixture( s) on any surface,a professional equipment installer MUST be consulted to determine if

the metal truss/ structure or surface is properly certified to safely hold the combined weight of the

fixture( s) , clamps, cables, and accessories.

Overhead rigging requires extensive experience,including calculating working load limits, installation

material being used, and periodic safety inspection of all installation material and the fixture, among

other skills. If you lack these qualifications, do not attempt the installation yourself. Improper

installation can result in bodily injury.

Fixture ambient operating temperature range is -4° to 113°F (-20° to 45°C). Do not operate the fixture

when the ambient temperature falls outside of this range.

Fixture(s) should be installed away from walking paths, seating areas, or areas were unauthorized

personnel might reach the fixture by hand.

NEVER stand directly below the fixture(s) when rigging, removing, or servicing.

Overhead fixture installation must always be secured with a secondary safety attachment, such as an

appropriately rated safety cable.

Allow approximately 15 minutes for the fixture to cool down before serving.

- 7 -

INSTALLATION GUIDELINES

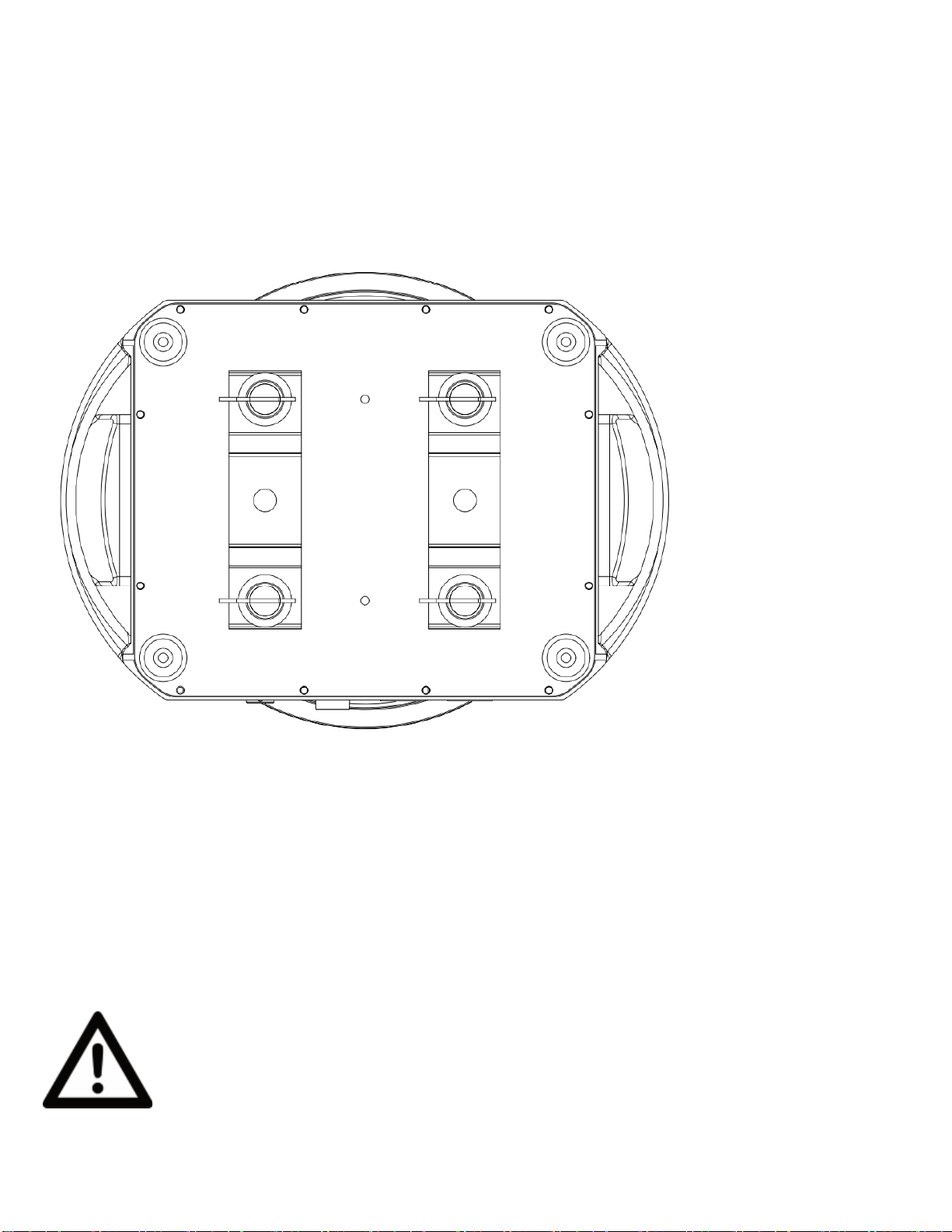

OMEGA BRACKET INSTALLATION

Insert the Omega Brackets into the matching holes on the bottom of the fixture.Secure the Omega

Brackets to the fixture by turning each quick-lock fastener ¼ turn clockwise . Always check to make

sure that each fastener is completely locked. Omega brackets can be installed into the

underside of the fixture’s base as illustrated below.

CLAMP INSTALLATION

When mounting the fixture to a truss, be sure to secure appropriately rated professional grade

rigging clamps to the included Omega Brackets using an M10 screw fitted through the center hole of

the Omega Brackets.This fixture requires the installation of two Omega brackets and two clamps for

secure truss mounting.The fixture also provides built- in rigging points for a SAFETY CABLE.Be sure

to only use the designated rigging point for the safety cable and never secure a safety cable to a

carrying handle.

SAFETY CABLE:

ALWAYS ATTACH A SAFETY CABLE WHENEVER INSTALLING THIS FIXTURE

IN A SUSPENDED ENVIRONMENT TO ENSURE THAT THE FIXTURE WILL

NOT FALL IF THE CLAMP FAILS.

- 8 -

INSTALLATION GUIDELINES

POWER AND DATA CABLES

TO MAINTAIN THE IP65 RATING INTEGRITY OF THE FIXTURE, ALL CABLES

MUST BE RUN TOWARDS THE GROUND IN ORDER TO PREVENT WATER

ACCUMULATION AROUNDTHE CONNECTIONS.

RJ45DATA CABLES

THE INCLUDED RJ45 DATA CABLE IS FOR FIXTURE TO FIXTURE

INTERCONNECTIONS ONLY!THE RJ45 CABLE CONNECTORS MAY NOT BE

COMPATIBLE WITH OTHER RJ45 OR ETHERNET TYPE CONNECTORS.

- 9 -

INSTALLATION GUIDELINES

POWER AND DATA CONNECTIONS

ENSURE ALL CONNECTIONS AND END CAPS ARE PROPERLY SEALED WITH

ADIELECTRIC GREASE ( AVAILABLE AT MOST ELECTRICAL SUPPLIERS) IN

ORDER TO PREVENT WATER CORROSION AND/ OR ELECTRICAL SHORT

CIRCUIT.

TO MAINTAIN IP65 RATING INTEGRITY AND PREVENT WATER FROM

ENTERING THE FIXTURE, SEAL ALL UNUSED CONNECTION RUBBER CAPS.

SAFETY

CABLE

LOOP

ALWAYS ATTACH ASAFETY CABLE WHENEVER INSTALLING THIS

DEVICE IN ASUSPENDED ENVIRONMENT TO ENSURE THE FIXTURE

WILL NOT FALL IF THE CLAMP FAILS！

- 10 -

SYSTEM MENU

Main Menu

Sub Menu

Option/Value

Address

001

...

512

Channel

028CH

051CH

107CH

128CH

Setting

Control Mode

DMX

Artnet

DMX+Artnet

sACN

DMX+sACN

Dimmer Mode

Linear

Square

I-Square

S-Shape

Dimmer Speed

Slow

Fast

LED Frequency

400HZ

1200HZ

2000HZ

4000HZ

6000HZ

8000HZ

16000HZ

24000HZ

White Balance

000-255

FAN Mode

Auto

Silent

Full

Calibration

Invert_Pan

NO/YES

Invert_Tilt

NO/YES

System Calibration

PAN 001~255

Tilt 001~255

Focus 001~255

Rotate 001~255

Language

Chinese

English
