Briggs & Stratton 20318 Guide de configuration

Model No. 020318 (2200 PSI (151.7 BARS) Pressure Washer) Manual No. 203766A Revision B (05/01/2008)

BRIGGS & STRATTON POWER PRODUCTS GROUP, LLC

JEFFERSON, WISCONSIN, U.S.A.

Questions? Help is just a moment away!

Call: Pressure Washer Helpline

1-800-743-4115 M-F 8-5 CT

Illustrated Parts List

2BRIGGSandSTRATTON.COM

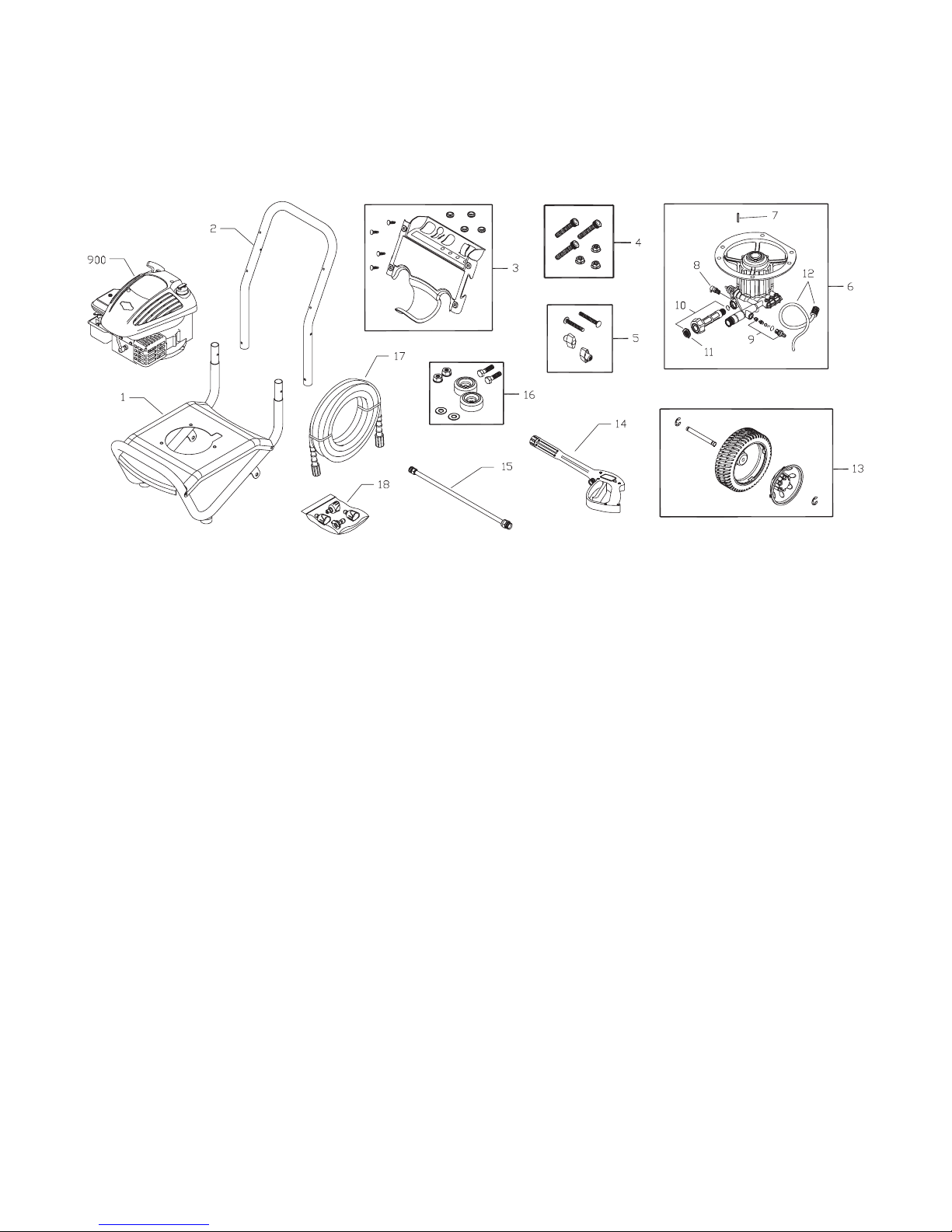

Exploded View and Parts list — Main Unit

Item Part # Description

1 202791GS BASE, w/Mounts

2 Y199110GS HANDLE

3 202792GS ASSY, Billboard w/Decals & Clips

195964GS Clips, Tree

30809GS Grommet

4 192649GS KIT, Pump Mounting Hardware

5 B2203GS KIT, Handle Connector

6 200200GS ASSY, Pump

7 23139GS Key

8 194298GS Valve, Thermal Relief

9 200279GS Kit, Chemical Injection

10 200278GS Kit, Water Inlet

11 B2384GS Filter, Inlet

12 189971GS Kit, Chemical Hose

13 202483GS KIT, Wheel

203872GS Axle

200520GS Hubcap

192050GS E-Ring

14 204627GS GUN

15 200595GS EXTENSION, QC

16 192310GS KIT, Vibration Mount

Item Part # Description

17 202017GS HOSE

18 202181GS KIT, Nozzles

198841GS Nozzle, Soap

201580AEGS Nozzle, QC, Project Pro, Red

201580XGS Nozzle, QC, Project Pro, Orange

201580RGS Nozzle, QC, Project Pro, Yellow

900 § ENGINE

Items Not Illustrated:

203766GS MANUAL, Operator’s

194256GS KIT, Tag/Warning, Service

BB3061BGS OIL BOTTLE

793973 ASSY, Shroud/Label

794693 LABEL, Warning

202442 DECAL, Shroud

87815GS GOGGLES

Optional Accessories

6048 KIT, O-Ring Maintenance

6039 PUMP SAVER

§ - Contact Engine Manufacturer

Copyright © 2007 Briggs & Stratton Power Products Group, LLC. All rights reserved. No part of this material may be reproduced

or transmitted in any form by any means without the express written permission of Briggs & Stratton Power Products Group, LLC.
