Briggs & Stratton 020224-1 Guide de configuration

Illustrated Parts List

Model No. 020224-1 (2700 PSI Pressure Washer) Manual No. 203763A Revision B (04/23/2007)

BRIGGS & STRATTON POWER PRODUCTS GROUP, LLC

JEFFERSON, WISCONSIN, U.S.A.

2700 PSI / 185 BAR

EXPLODED VIEW AND PARTS LIST

Item Part # Description

1 198732GS ASSY, Base

2 M194567GS HANDLE

3 200170GS ASSY, Billboard w/Decals & Clips

195964GS Clips, Tree

4 196006GS HOSE

5 192318GS KIT, Engine Mounting Hardware

6 198347GS ASSY, Pump

23139DGS Key

94298GS Valve, Thermal Relief

7 B2203GS KIT, Handle Fastening

8 194509GS KIT, Wheel

191265GS E-Ring

9 192310GS KIT, Vibration Mount

10 193819GS KIT, Hook

11 192131GS KIT, Pump Mounting Hardware

12 96016GS QUICK CONNECT, Female, Plastic

13 95456GS QUICK CONNECT, Male

14 193482GS GUN

15 192198GS EXTENSION, w/Nozzle Holder

Item Part # Description

16 196902GS KIT, Nozzle

198841GS Nozzle, QC, Plastic, Soap

195983WGS Nozzle, QC, Red

195983XGS Nozzle, QC, Yellow

195983ZGS Nozzle, QC, White

900 § ENGINE

Item Not Illustrated

203763GS MANUAL, Operator’s

MS3431 MANUAL, Engine

191267SGS AXLE

192014GS FITTING, 1/2"

192015GS FITTING, 3/4"

200171GS KIT, INT’L Tag Warning

6048 KIT-O-Ring

Optional Accessories

6039 PUMP SAVER

§ - Contact Engine Manufacturer

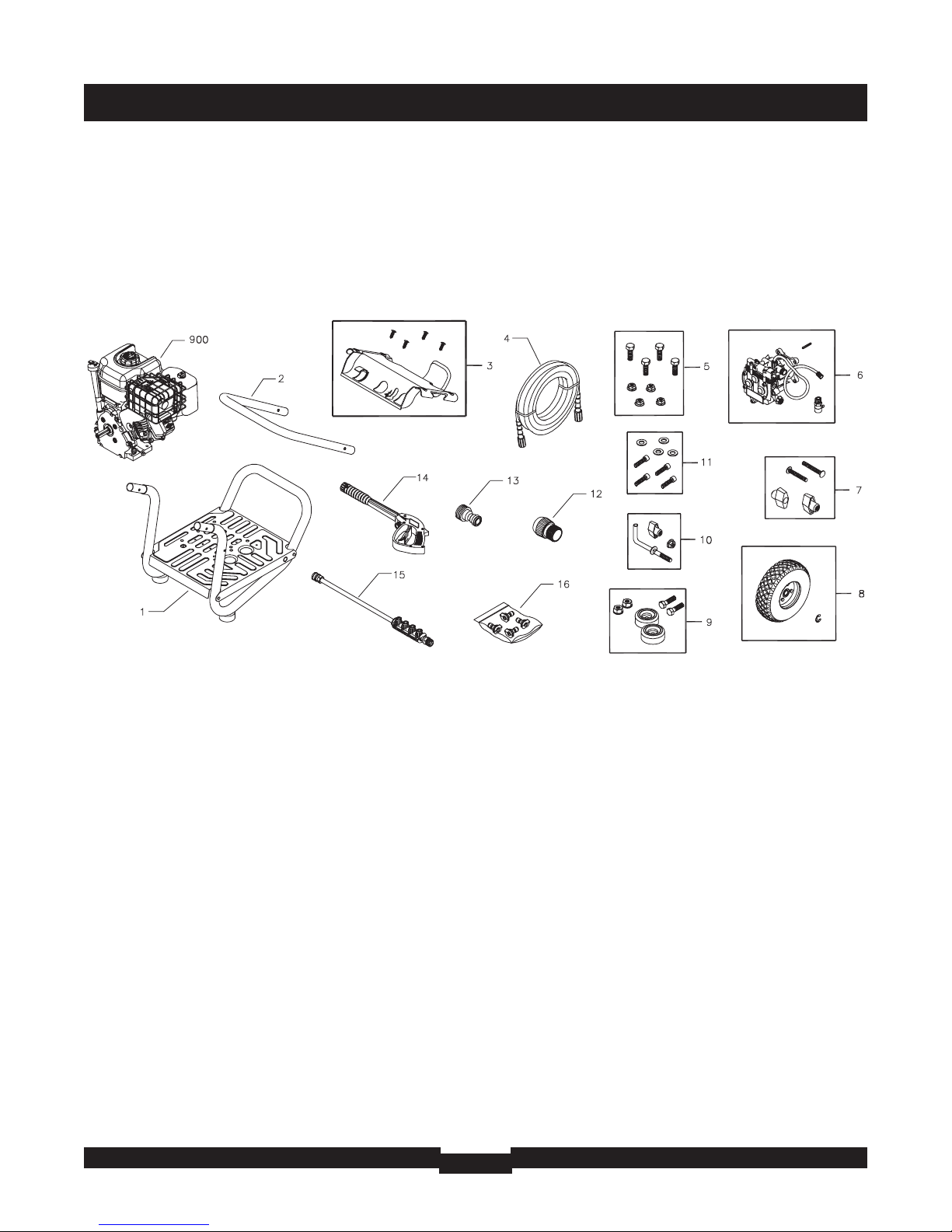

EXPLODED VIEW AND PARTS LIST - MAIN UNIT

reproduced or transmitted in any form by any means without the express written permission of Briggs & Stratton Power

Products Group, LLC.

EXPLODED VIEW AND PARTS LIST

Item Part # Description

19 190571GS CAP, Oil

28 198102GS MANIFOLD

45 190578GS PIN

62 190581GS CAP, 1/8

76 194298GS VALVE, Thermal Relief

A 190594GS KIT, Unloader

B 190670GS KIT, Water Inlet

C 190669GS KIT, Breather Tube

D 193808GS KIT, Head Brass

E 193806GS KIT, Check Valves

F 190592GS KIT, Inlet Check

G 190593GS KIT, Chemical Injection

Item Part # Description

H 193807GS KIT, Seal Set

J 189971GS KIT, Chemical Hose

K 193971GS KIT, Pipe Fitting

L 193972GS KIT, Unloader Seat

Items Not Illustrated

B2384GS FILTER, Inlet

190586GS OIL BOTTLE

186452GS FILTER, Inlet, Bag of 10

NOTE: Items A - L are service kits and include all parts

shown within the box.

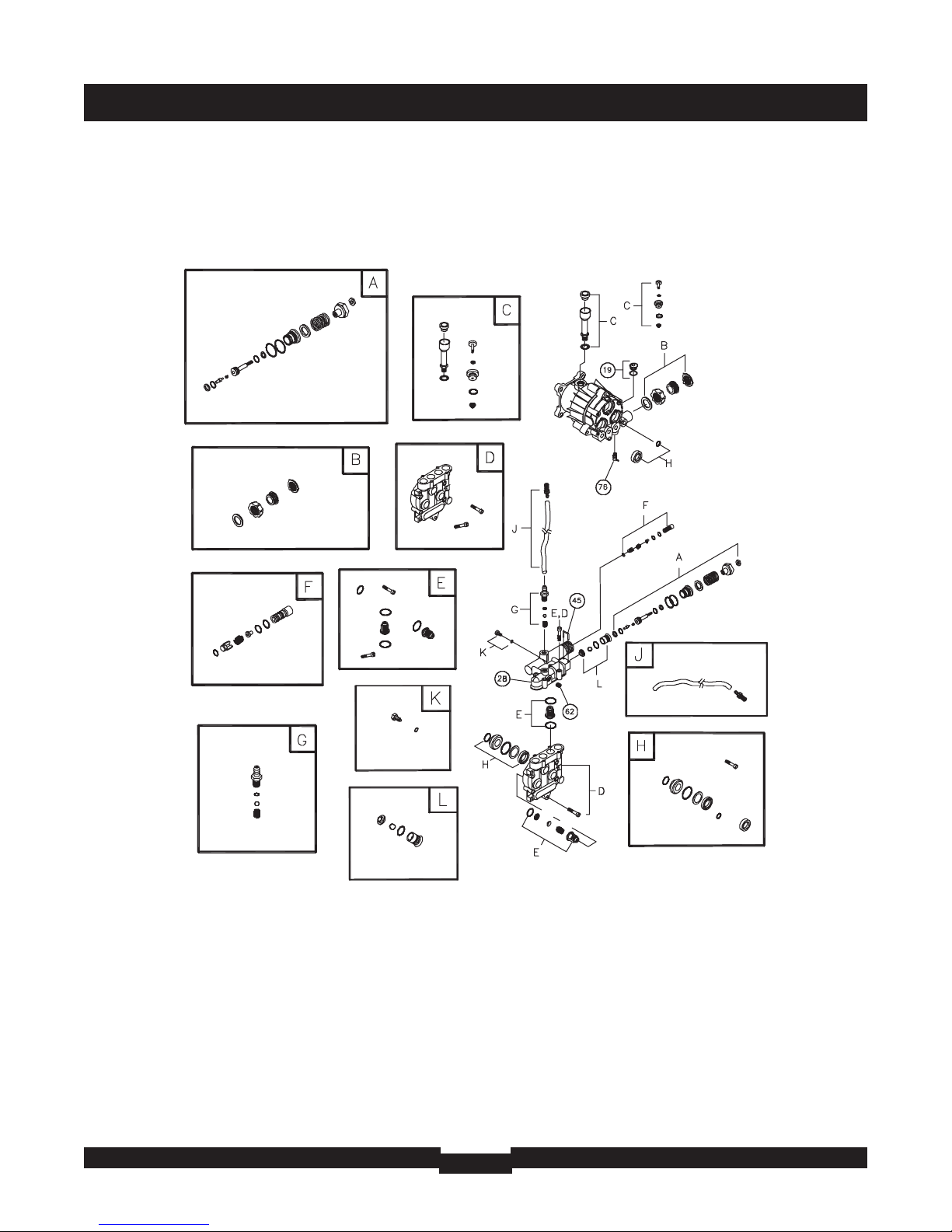

EXPLODED VIEW AND PARTS LIST - PUMP
