Briggs & Stratton PowerBoss 030217 Guide de configuration

Manual No. 195679A Rev. 0 (01/11/2005)

BRIGGS & STRATTON POWER PRODUCTS GROUP, LLC

JEFFERSON,WISCONSIN, U.S.A.

Illustrated Parts List

Questions? Help is just a moment away!

Preguntas? La ayuda es justa un momento lejos!

Call: Generator Helpline / Llamada: Generador Helpline

1-800-743-4115 M-F 8-5 CT

PowerBOSS™ is a trademark of Briggs & Stratton Power Products.

PowerBOSS™ es una marca registrada de Briggs & Stratton Power Products.

Model / Modelo

030217

(5250W)

5250W Portable Generator

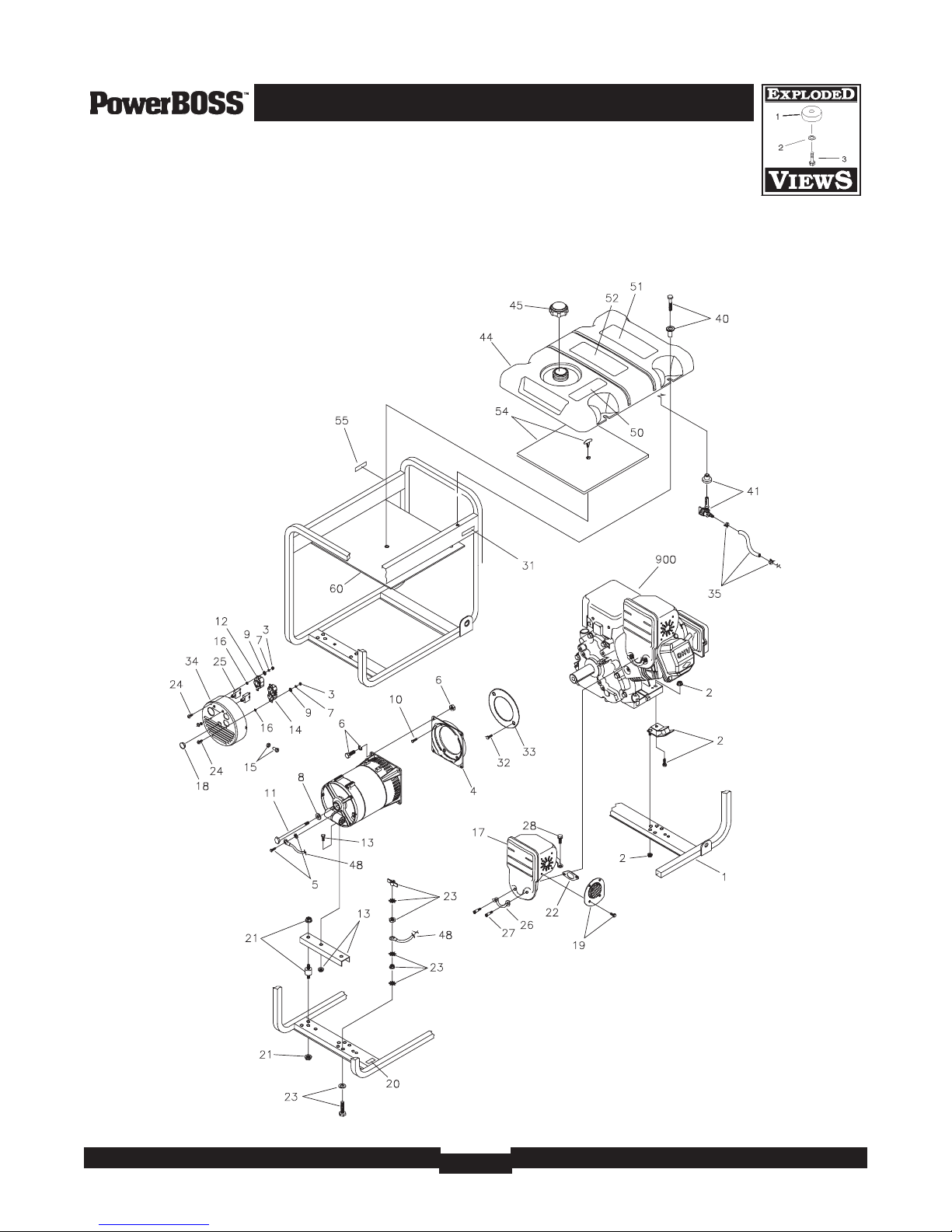

EXPLODED VIEW - MAIN UNIT

5250W Portable Generator

EXPLODED VIEW - PARTS LIST

Item Part # Description

1 B195681GS CRADLE

2 194150GS KIT, Mount,Vibration, 45°

3 * NUT, M4 - 0.7

4 194364GS ADAPTER, Engine

5 194623GS KIT, Grounding Hardware

6 194151GS KIT, Hardware Mounting,Alt

7 * WASHER, #8 Lock

8 96796GS WASHER, M8 Flat

9 * WASHER, M4 Flat

10 190274BGS SBHCS, 3/8-16 x 3/4 Lg.

11 45757GS HHCS, M6 - 1.0 x 25

12 43437GS OUTLET, 120/240V, 30A

13 194608GS KIT,Alt Support w/ Hardware

14 68759GS OUTLET, 120V, 20A, Duplex

15 194584GS KIT, Hardware Terminal Box

16 * WASHER, Shakeproof, Int. #8

17 697252 MUFFLER

18 194366GS CAP

19 392390 SPARK ARRESTER, w/ Screws

20 B4986GS DECAL, Ground, Green

21 194153GS KIT,Vibration

22 697255 GASKET, Exhaust

23 194154GS KIT, Grounding Hardware

24 * SCREW, PH M4 x 12

25 75207GS BREAKER, Circuit, 20A

26 695400 TAB, Locking

27 695399 SCREW, Shoulder

28 695312 SCREW

31 191436GS DECAL, Hot Muffler

Item Part # Description

32 * HHCS, 5/16" x 3/4" SEMS

33 B4260GS DISK,Air Blocker

34 194587GS TERMINAL BOX, with Hardware

35 194265GS KIT, Fuel Hose w/Clamps

40 194398GS KIT, Hardware Fuel Tank

41 192980GS KIT,Valve, Fuel

44 194217GS ASSY,Tank, Fuel (Includes Items 41,

50, 51 & 52)

45 90878GS CAP, Fuel

48 194622GS WIRE, Ground Mount

50 188333GS DECAL, Gas Fill

51 194799GS DECAL, Danger

52 189235GS DECAL, Start Instructions

54 194448GS KIT, Insulation with Clip

55 191435GS DECAL, Fuel Shut-off

60 193452GS SHIELD, Heat

900 § ENGINE

Parts Not Illustrated

195679GS MANUAL, Owners

MS5242 MANUAL, Engine

BB3061BGS BOTTLE, Oil

196790GS KIT, Decal Service

189208GS FUEL STABILIZER

* - Items without part numbers are common fasteners and

are available at your local hardware store.

§ - Contact Engine Manufacturer

5250W Portable Generator

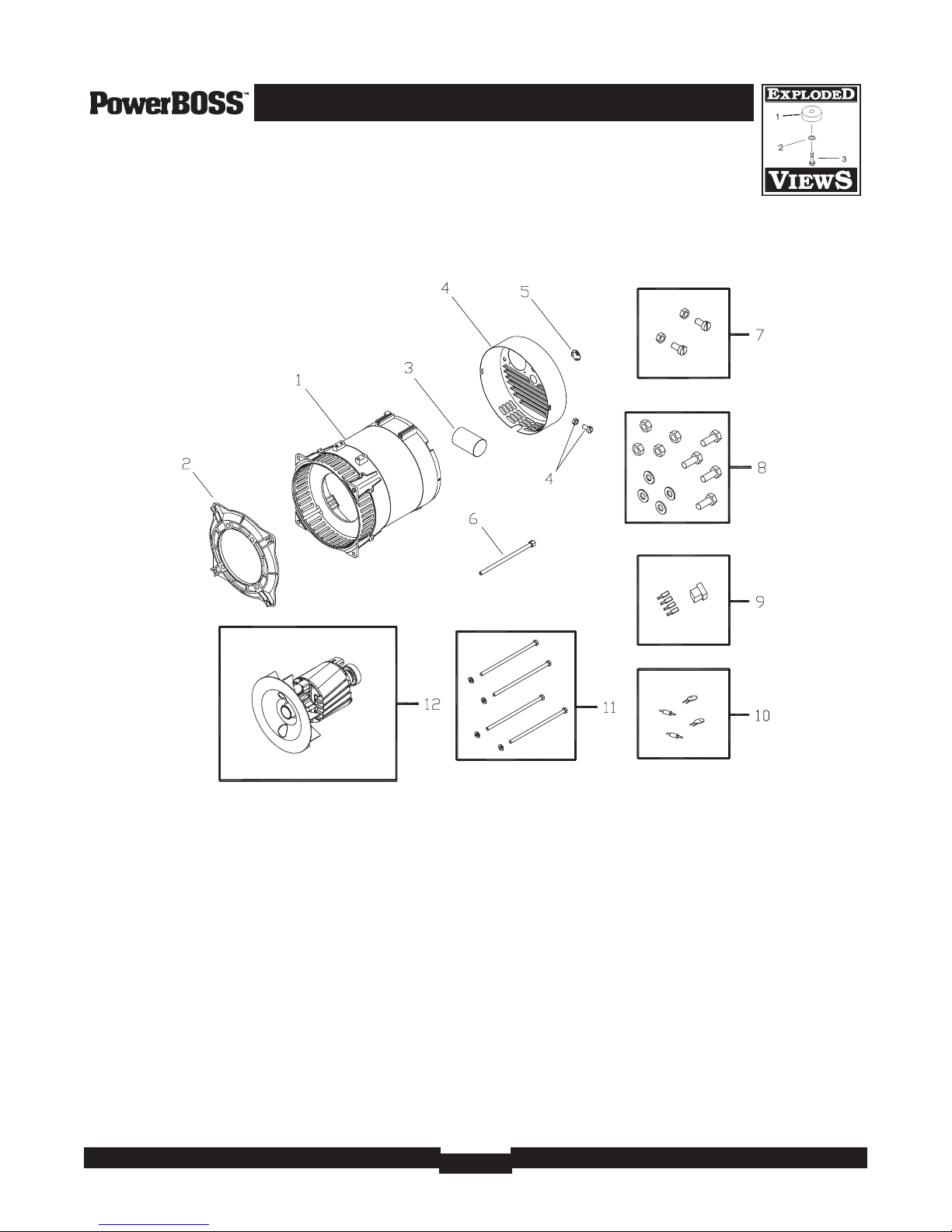

EXPLODED VIEW AND PARTS LIST - ALTERNATOR

Item Part # Description

1 194581GS ASSY, Stator

2 194364GS FLANGE, Interchangeable

3 194586GS CAPACITOR

4 194587GS KIT,Terminal Box Lid w/Hardware

5 194366GS CAP, Securing Stud

6 194365GS STUD, Securing

7 194584GS KIT,Terminal Lid Hardware

8 194583GS KIT, Flange Hardware

9 194580GS KIT, Connector

10 194579GS KIT, Electronics

11 194582GS KIT, Stator Hardware

12 194585GS ASSY, Rotor

5250W Portable Generator

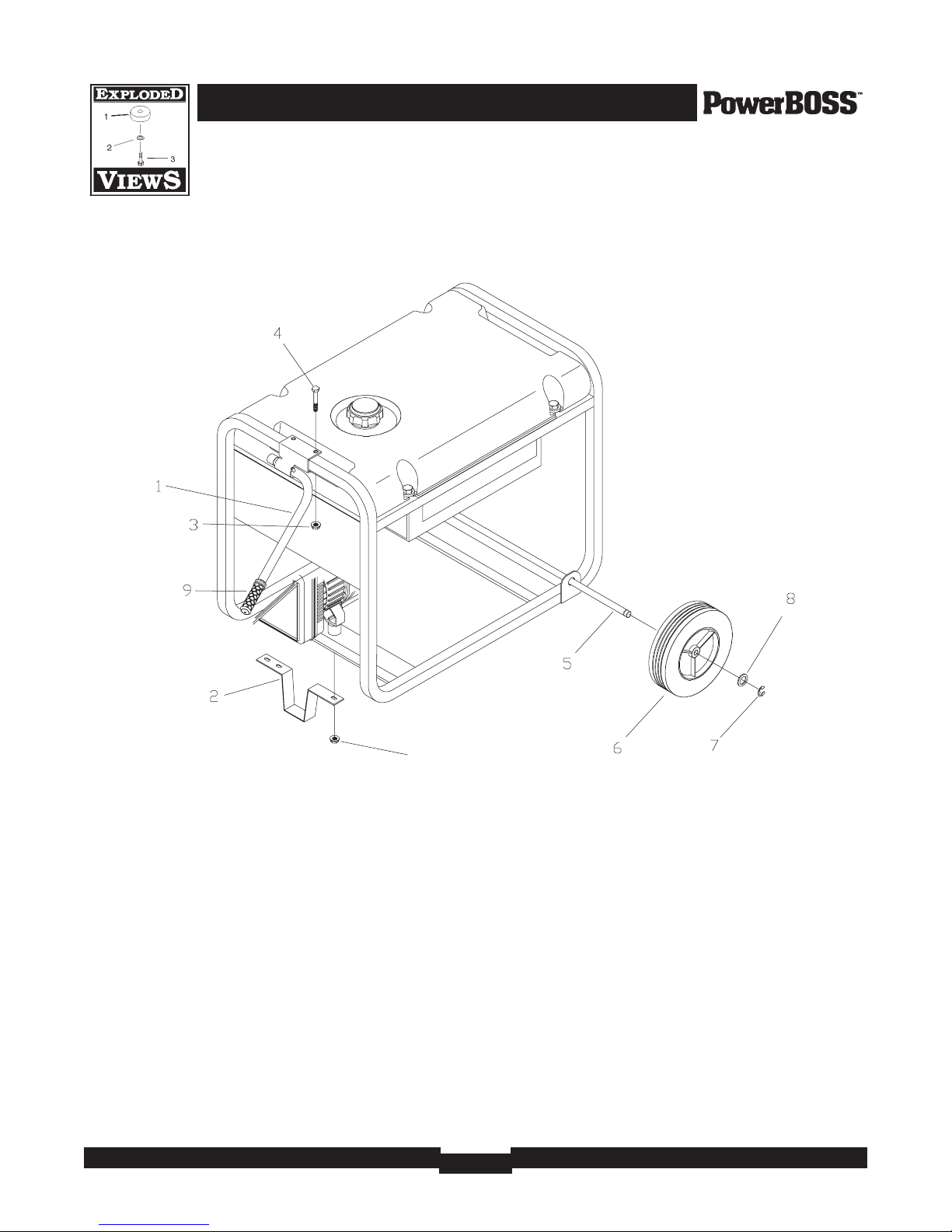

EXPLODED VIEW AND PARTS LIST - WHEEL KIT

USE EXISTING FASTENERS

TO SECURE ITEM #2

FROM VIBRATION MOUNTS

Item Part # Description

1 189715GS ASSY, Handle (Includes Item 9)

2 B1764GS SUPPORT, Leg

3 52858GS NUT, Locking Hex M8 - 1.25

4 * HHCS, M8 - 1.25 x 45

5 192006AGS AXLE

6 87280GS WHEEL

7 192050GS E-RING

8 * WASHER, Flat 1/2"

9 189718GS GRIP

* - Items without part numbers are common fasteners and

are available at your local hardware store.

Use existing fasteners from

vibration mounts to secure #2
