Briggs & Stratton 30334 Guide de configuration

Questions? Help is just a moment away!

Preguntas? La ayuda es justa un momento lejos!

Call: Generator Helpline

Llame: Línea Directa del Generador

1-800-743-4115 M-F 8-5 CT

BRIGGSandSTRATTON.COM

BRIGGS & STRATTON POWER PRODUCTS GROUP, LLC

JEFFERSON, WISCONSIN, U.S.A.

8000 Watt Portable Generator

Illustrated Parts List

Las Partes ilustradas Listan

030334 Manual No. 203985A Revision - (10/31/2007)

8000W Portable Generator

EXPLODED VIEW - MAIN UNIT

2BRIGGSandSTRATTON.COM

reproduced or transmitted in any form by any means without the express written permission of Briggs & Stratton Power

Products Group, LLC.

8000W Portable Generator

EXPLODED VIEW - PARTS LIST

Item Part # Description

1 M204145GS KIT, Cradle (Includes 20, 31 & 42)

2 * WASHER, Lock 5/16 M8

3 B92531GS BRACKET, Support Engine

4 190220GS ADAPTER, Engine

5 NSP ASSY., Alternator (see page 4)

6 * NUT, Hex M8 - 1.25

7 B190723GS BRACKET, Support Eng/Muffler

8 96796GS WASHER, 8.4 x 22.2 x 9.29

9 * WASHER, 0.34 x 1 x 10

10 190274DGS SBHC, 3/8-16 x 7/8"

11 187365CGS HHCS, 5/16 - 24 x 9.29

12 189302LGS ASSY WIRE, #16, Red

13 * HHCS, M8 - 1.25 x 45

14 92532GS BRACKET, Muffler

15 710250 GASKET, Exhaust

16 * HHCS, M8 - 1.25 x 25

17 B4206AGS MUFFLER

18 67989GS NUT, M8 Flange Serrated

19 83083GS SCREEN, Spark Arrest

20 B4986GS DECAL, Ground

21 194155GS KIT, Vibration Mount

22 86494GS SCREW, Wing M6 - 1.0 x 16

23 86292GS SCREW, 10 - 16 x 3/4, Self Drill

24 194390GS ASSY., Heat Shield

25 191190GS CAP

26 74908GS TAPTITE, M5 - 0.8 x 10

27 * HHCS, M6-1.0 x 12

28 * HHCS, 5/16 - 18 x 3/4

29 198222GS KIT, Vibration Mount

30 * HHCS, M8 - 1.25 x 12

31 200310GS DECAL, Warning Exhaust

32 * NUT, 1/4 - 20

33 * WASHER, 1/4 Lock

34 195422GS COVER, RBC Plastic with Cap

35 791745 KIT, Hose, Fuel (cut to fit)

36 192376GS SCREW, 12 - 24 x 1/2 Thread

Forming

37 56893GS CRIMPTITE, 10-24 x 1/2

38 B2153GS SCREW, Self Driller, 12-14 x 7/8

39 B196810GS BRACKET, Starter

40 198221GS KIT, Hardware, Fuel Tank

41 193272GS VALVE, Fuel

42 200311GS DECAL, Neutral Bonded

Item Part # Description

43 691656 SOLENOID

44 202954GS ASSY., Tank Fuel (Includes Items 41,

50, 51, 52, 53, 55 & 56)

45 189135GS CAP, Tank Fuel

47 77395GS NUT, M6 Flange Lock

48 195373GS WIRE, Ground

50 188333GS DECAL, Instruction Fuel Level

51 194984GS DECAL, Warning, French

52 94480GS DECAL, Start Instructions

53 192724GS GAUGE, Fuel

54 194448GS KIT, Insulation w/Clip

55 197798GS DECAL, Fuel Shutoff

56 202997GS DECAL, CO Warning

57 * HHCS, M6 - 1.0 x 12

58 204726GS ASSY. Control Panel

59 189164GS PALNUT, 3/16

60 195537GS HEATSHEILD

61 B4300GS HHS, 1/4 - 20 x 1/2, Trilobular

68 195680GS TRAY, Battery

69 193463GS BATTERY

70 87799GS SWITCH, Rocker On/Off

71 196626GS ASSY, Jack, Coax, DC

73 192351GS LUG, 1/4, #22/18

74 193347GS KIT, Hardware Battery

75 196627AGS WIRE-A, #13, Red

76 185939KGS ASSY WIRE, #55 Black

77 196627BGS WIRE-A, #13B, Red

78 189302MGS ASSY WIRE, #13 Red

81 196627EGS WIRE-A, #0, Black

99 189759GS KIT, Fuel Repair Valve

900 § ENGINE

Parts Not Illustrated

203985GS MANUAL, Operator’s

BB3061BGS BOTTLE, Oil

B4177GS CHARGER, Battery

202179GS DECAL, Family, CA EVP

205168GS KIT, Decal Service

§ - Contact Engine Manufacturer

* - Items without part numbers are common fasteners and

are available at your local hardware store.

8000W Portable Generator

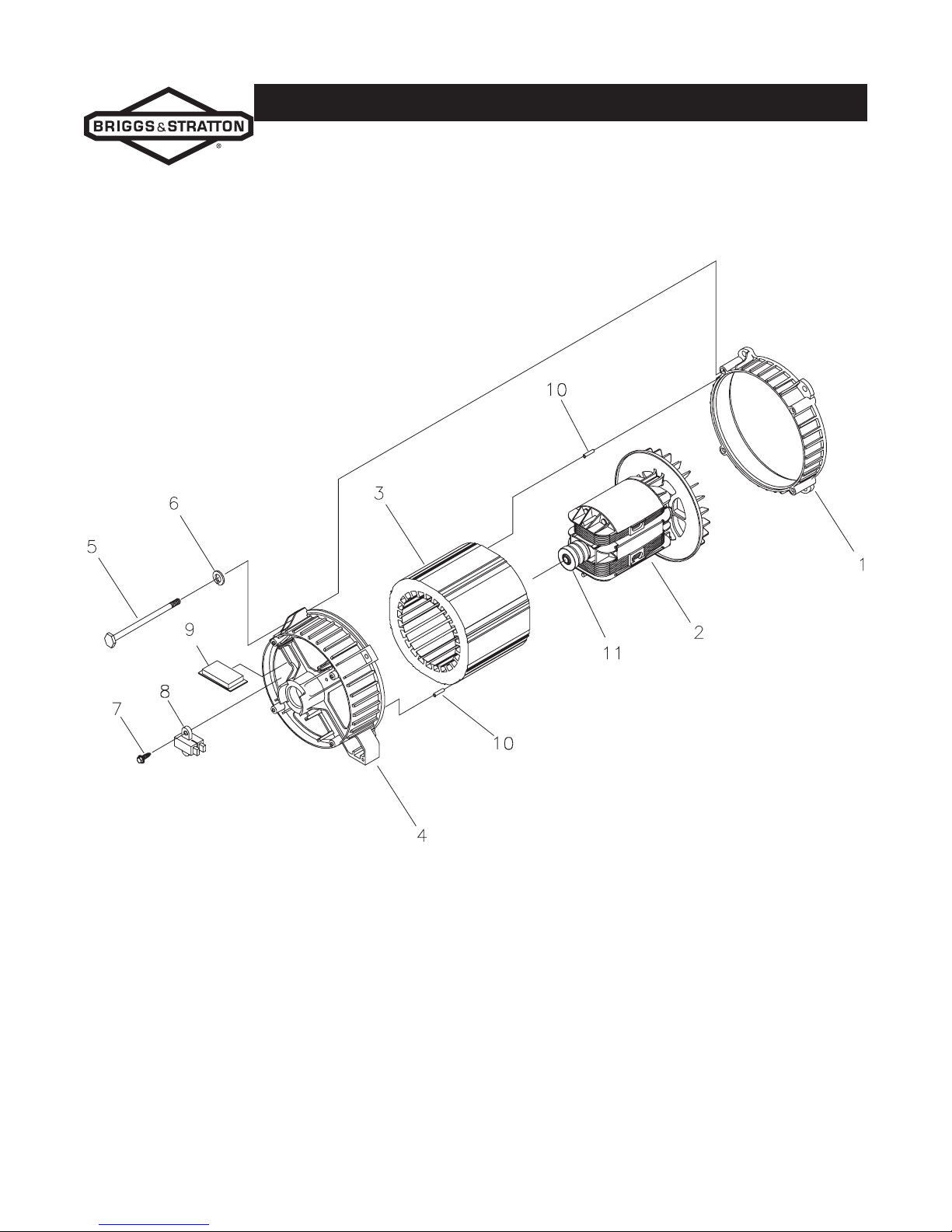

EXPLODED VIEW AND PARTS LIST - ALTERNATOR

Item Part # Description

1 186059GS ADAPTER, Mounting, Alternator

2 205174GS ASSY, Rotor (Includes Item 11)

3 204285GS STATOR

4 193336GS RBC, (with O-Ring p/n 189197GS)

5 66449LGS BOLT, Stator, M6 - 1.0 x 190

6 * WASHER, 1/4 Lock

7 66849GS TAPTITE, M5 - 0.8 x 16

8 66386GS ASSY, Holder, Brush

9 198339GS REGULATOR

10 81917GS PIN, Roll, 4mm x 10

11 65791GS BEARING

* - Items without part numbers are common fasteners and are

available at your local hardware store.

4BRIGGSandSTRATTON.COM

8000W Portable Generator

EXPLODED VIEW AND PARTS LIST - CONTROL PANEL

Item Part # Description

1 198468GS PANEL, Control

2 197472GS COVER, Flip Outlets

3 201573GS BOX, Control Panel

4 191481GS BOOT, Circuit Breaker

5 202033GS BREAKER, Circuit, 30A

6 202951GS LIGHT, Led Panel

7 197958GS SCREW, 3 x 6, Tapping

8 84198GS CAP, Breaker, Circuit

9 202394GS BREAKER, Circuit, 20A

10 202932GS BAR, Retaining

11 84543BGS PPPHS, M3-0.5 x 12

12 204075GS OUTLET, 120/240V, 30A

13 189164GS PALNUT, 3/16

14 204078GS OUTLET, 120V, 20A

15 201678GS HOUSING, 6-Pin, Plug, Ark-les

16 204079GS OUTLET, 120V, 20A

8000W Portable Generator

EXPLODED VIEW AND PARTS LIST - WHEEL KIT

Item Part # Description

1 203273GS WHEEL

2 * WASHER, 5/8"

3 191267RGS AXLE, 5/8"

4 191265GS E-RING

5 * HHCS, M8 1.25 x 20

6 67989GS NUT, M8, Flange Serrated

7 203977GS ASSY, Support

8 198669GS GRIP

9 B193200GS ASSY, Handle with Grip

10 * NUT, M8 - 1.25, Nylok

11 B4135GS PIN, Handle

Item Part # Description

12 * WASHER, 1.2 x 0.346 x 0.03, Nylon

13 * HHCS, M8 - 1.25 x 45

14 * WASHER, Flat, 5/16 - M8

Items Not Illustrated

203979GS KIT, Hardware (Includes Items 2, 4,

5, 6, 10, 11, 12, 13 & 14)

* - Items without part numbers are common fasteners and

are available at your local hardware store.

6BRIGGSandSTRATTON.COM
