21C200
Illustrated Parts List
Model Series
21C200
TYPE NUMBERS
0110 through 0920.
TABLE OF CONTENTS
Alternator 7..........................
Blower Housing/Shrouds 5............
Camshaft 2...........................
Carburetor 4..........................
Controls 6............................
Crankcase Cover 2....................
Crankshaft 2..........................
Cylinder 2............................
Cylinder Head 3.......................
Electric Starter 7......................
Exhaust System 4.....................
Flywheel 5............................
Fuel Supply 7.........................
Gasket Set -- Engine 3.................
Gasket Set -- Valve 3..................
Governor Spring 6....................
Ignition 7.............................
Kit -- Carburetor Overhaul 4............
Lubrication 2.........................
Operator’s Manual 2..................
Piston/Rings/Connecting Rod 2........
Rewind Starter 5......................
Valves 3..............................
Warning Label 2......................
Not for
Reproduction
21C200
Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.
3392--2 Assemblies include all parts shown in frames. 10/07/2008
2
1058 OPERATOR’S MANUAL 1319 WARNING LABEL
REQUIRED when replacing parts
with warning labels affixed.
524
287 842
847 523
525
1351
306
3
552
15
718
718A
21
20
1221
27
30
32
46
741
146
24
742
746
220
22
725
18
19
1
16
219
29
2
27
26
25
28
30
32
29
307
15B
998A
529
21
17
20
1221
18
19
170
Not for
Reproduction
21C200
Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.
3392--3 Assemblies include all parts shown in frames. 10/07/2008
3
45
1026
383
337
914
13
1171
1022
635
1023A
35
883
868
7
1100 798
1022
36
51
51A
34
33 42
192
1029
5
42
812
1275
362
358 ENGINE GASKET SET
51
51A
7
1022
883
868
163
20
12
3
7
1095 VALVE GASKET SET
1022
868
51 51A
883
358 ENGINE GASKET SET
Not for
Reproduction
21C200
Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.
3392--4 Assemblies include all parts shown in frames. 10/07/2008
4
108C
118
130A
135
117
369
127A
51
51A
104A
105A
137A
1127A
975A
125B
133A
95A
632
633B
97A
633B
109E
98A
832
613 613B
883
300B
836
633B
109F
633B
951
676C
677
NOTE: This muffler is intended for replacement
purposes only and is not to be used
for retrofitting to engines with different
exhaust systems.
883C
832C
836C
300C
863C
740
740A
819
355
436C
437
1177
121A CARBURETOR OVERHAUL KIT
105A
104A 137A
127A
633B
51
51A 163
98A
51
51A
122
Not for
Reproduction
21C200
Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.
3392--5 Assemblies include all parts shown in frames. 10/07/2008

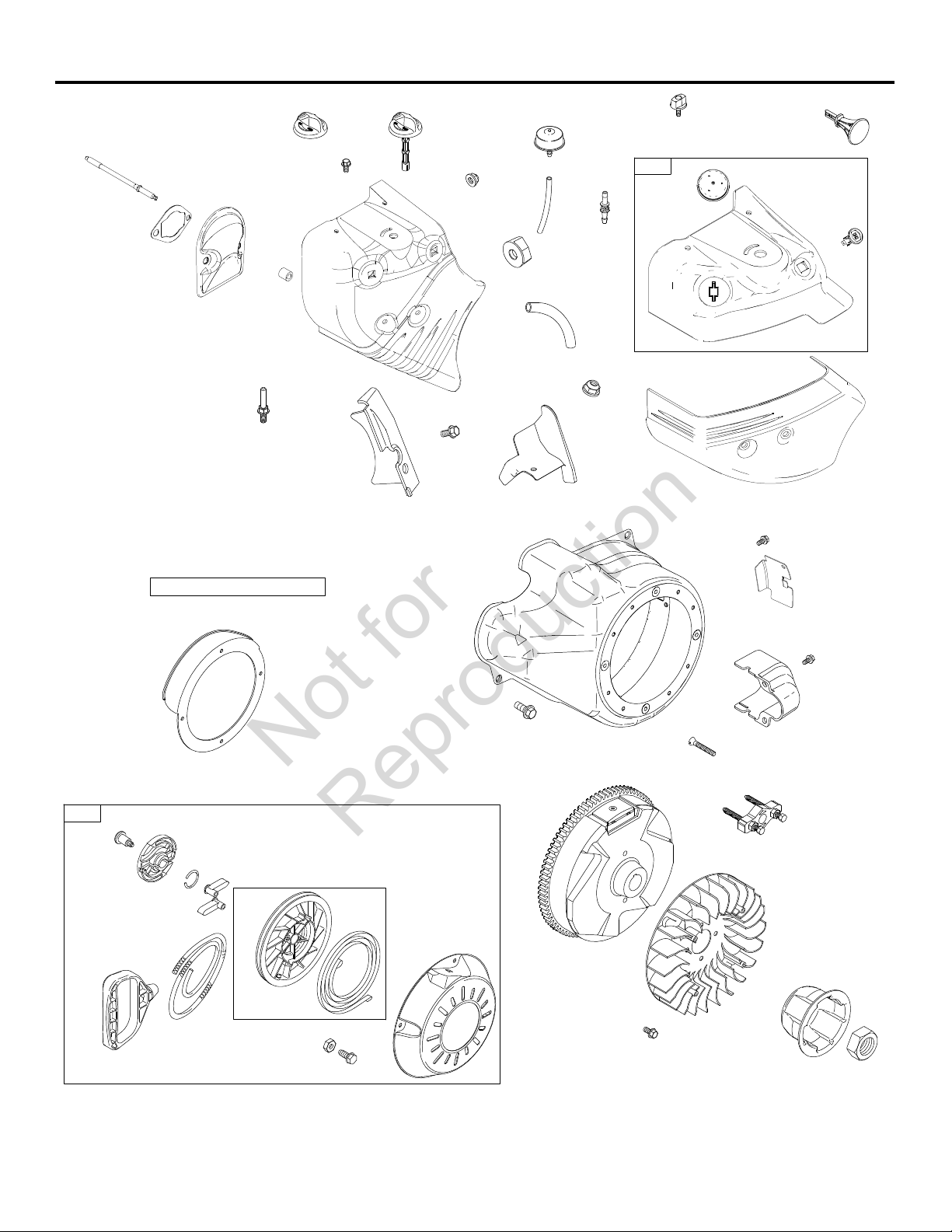

5
731
53C
610
668B
163
1252
1251
472
1196
11B
1288
528
976
472A
1011
1230
1318
305
304
732
727A
332
4551070
1005
65
592 55A
1211
1210
58
459
689
456
597
60A
930
608A
1036 EMISSIONS LABEL
363
23
78A
37A
695
731E
731D
976
990A
892A
1196A
1352
1251A
Not for
Reproduction
21C200
Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.
3392--6 Assemblies include all parts shown in frames. 10/07/2008
6
268
269
265
270
271
267
211
209
632
621
410
188
668
773
1138
188
616
615
505
562
227
504
616
485
663B
663A
281A
222A
271B
604A
564
278
281
663C
Not for
Reproduction
21C200
Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.
3392--7 Assemblies include all parts shown in frames. 10/07/2008
7
972A
190
958
601
601
187 187A
501
526
474B
NOTE: All stators use a No. mounting screw.
1119
NOTE: The proper flywheel part number and/or the alternator magnet size will
determine the alternator type or output. See repair instruction manual
for additional information.
318
493
990A
892A
503
DUAL
CIRCUIT
474H
DUAL
CIRCUIT
878 878
957A
578
474A
DC ONLY
187D
601
851
334
333
813
356G
356J
309A
697
309C
697
727A
732
957
Not for
Reproduction
REF. PART REF. PART REF. PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION
21C200
KIncluded in Engine Gasket Set--Ref. No. 358.
DIncluded in Carburetor Overhaul Kit--Ref. No. 121A.
∆Included in Valve Gasket Set--Ref. No. 1095.
Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.
3392--8 Assemblies include all parts shown in frames. 10/07/2008
8
1 793617 Cylinder Assembly
2 698340 Kit--Bushing/Seal
(Magneto Side)
3K391086S Seal--Oil
(Magneto Side)
5 793305 Head--Cylinder
7K∆697690 Gasket--Cylinder Head
11B 696750 Tube--Breather
12 K694953 Gasket--Crankcase
13 690360 Screw
(Cylinder Head)
15 691686 Plug--Oil Drain
(Square Head)
15B 695757 Plug--Oil Drain
16 794720 Crankshaft
17 695434 Bearing--Ball
18 791965 Cover--Crankcase
19 698340 Kit--Bushing/Seal
(PTO Side)
20 K391086S Seal--Oil
(PTO Side)
21 281658S Cap--Oil Fill
22 695174 Screw
(Crankcase
Cover/Sump)
23 695485 Flywheel
24 222698S Key--Flywheel
25 793794 Piston Assembly
(Standard)
(Used After Code Date
06102900).
-- -- -- -- -- -- -- N o t e -- -- -- -- --
793318 Piston
Assembly
(Standard)
(Used Before Code
Date 06103000).
793797 Piston
Assembly
(.020” Oversize)
(Used After Code Date
06102900).
697695 Piston
Assembly
(.020” Oversize)
(Used Before Code
Date 06103000).
26 793319 Ring Set
(Standard)
(Used After Code Date
06061800).
-- -- -- -- -- -- -- N o t e -- -- -- -- --
697692 Ring Set
(Standard)
(Used Before Code
Date 06061900).
793324 Ring Set
(.020” Oversize)
(Used After Code Date
06061800).
697698 Ring Set
(.020” Oversize)
(Used Before Code
Date 06061900).
27 690975 Lock--Piston Pin
28 696581 Pin--Piston
29 694691 Rod--Connecting
30 694692 Dipper--Connecting
Rod
32 690976 Screw
(Connecting Rod)
33 499596 Valve--Exhaust
34 795199 Valve--Intake
35 694865 Spring--Valve
(Intake)
36 694865 Spring--Valve
(Exhaust)
37A 699047 Guard--Flywheel
42 499586 Keeper--Valve
45 690977 Tappet--Valve
46 790958 Camshaft
51 KD∆694874 Gasket--Intake
51A KD∆694875 Gasket--Intake
53C 794542 Stud
(Carburetor)
55A 696710 Housing--Rewind
Starter
58 693389 Rope--Starter
(Cut To Required
Length)
60A 699334 Grip--Starter Rope
65 697725 Screw
(Rewind Starter)
78A 695724 Screw
(Flywheel Guard)
95A 690718 Screw
(Throttle Valve)
97A 696387 Shaft--Throttle
98A D695408 Kit--Idle Speed
104A D694918 Pin--Float Hinge
105A D696136 Valve--Float Needle
108C 696736 Valve--Choke
109E 696735 Shaft--Choke
109F 793162 Shaft--Choke
117 D696134 Jet--Main
(Standard)
118 696135 Jet--Main
(High Altitude)
121A 696146 Kit--Carburetor
Overhaul
(Nikki Carburetor)
122 694876 Spacer--Carburetor
125B 794593 Carburetor
127A D690727 Plug--Welch
130A 696139 Valve--Throttle
133A 694914 Float--Carburetor
135 696142 Tube--Fuel Transfer
137A D695426 Gasket--Float Bowl
146 690979 Key--Timing
163 KD692277 Gasket--Air Cleaner
Not for
Reproduction
REF. PART REF. PART REF. PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION
21C200
KIncluded in Engine Gasket Set--Ref. No. 358.
DIncluded in Carburetor Overhaul Kit--Ref. No. 121A.
∆Included in Valve Gasket Set--Ref. No. 1095.
Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.
3392--9 Assemblies include all parts shown in frames. 10/07/2008
9
170 695296 Stud
(Crankcase
Cover/Sump)
187 791766 Line--Fuel
(15 Inches Long)
(Cut To Required
Length)
187A 791869 Line--Fuel
187D 791879 Line--Fuel
188 690877 Screw
(Control Bracket)
190 692127 Screw
(Fuel Tank)
192 690083 Adjuster--Rocker Arm
209 694867 Spring--Governor
211 695307 Spring--Governed Idle
219 693578 Gear--Governor
220 691724 Washer
(Governor Gear)
222A 698034 Bracket--Control
Used on Type No(s).
0110, 0111, 0112,
0113, 0114, 0115,
0129, 0131, 0132,
0134, 0135, 0137,
0351, 0357, 0530,
0553, 0920.
227 694864 Lever--Governor
Control
265 691024 Clamp--Casing
267 692577 Screw
(Casing Clamp)
268 691025 Casing--Control Wire
(Cut To Required
Length)
269 691026 Wire--Control
(Cut To Required
Length)
270 691027 Nut
(Control Wire Casing)
271 698035 Lever--Control
271B 695381 Lever--Control
278 792008 Washer
(Governor Control
Lever)
281 697268 Panel--Control
281A 697400 Panel--Control
-- -- -- -- -- -- N o t e -- -- -- -- -- --
698081 Panel--Control
Used on Type No(s).
0351, 0357.
287 691693 Screw
(Dipstick Tube)
300B 794695 Muffler
Used on Type No(s).
0110, 0111, 0112,
0113, 0114, 0115,
0129, 0131, 0132,
0134, 0135, 0137,
0351, 0357, 0530,
0553, 0920.
300C 793701 Muffler
(This muffler is
intended for
replacement purposes
only and is not to be
used for retrofitting to
engines with different
exhaust systems)
304 791478 Housing--Blower
305 691108 Screw
(Blower Housing)
306 697240 Shield--Cylinder
307 691660 Screw
(Cylinder Shield)
309A 793524 Motor--Starter
Used on Type No(s).
0112, 0132, 0137,
0357, 0530, 0553.
-- -- -- -- -- -- N o t e -- -- -- -- -- --
792157 Motor--Starter
Used on Type No(s).
0113, 0115, 0129,
0131, 0134, 0135,
0351, 0920.
309C 698311 Motor--Starter
Used on Type No(s).
0110, 0111, 0114.
318 690372 Screw
(Mounting Bracket)
332 694685 Nut
(Flywheel)
333 792341 Armature--Magneto
334 691061 Screw
(Magneto Armature)
337 491055S Plug--Spark
Used on Type No(s).
0110, 0357, 0530,
0553.
-- -- -- -- -- -- N o t e -- -- -- -- -- --
691043 Plug--Spark
Used on Type No(s).
0111, 0112, 0113,
0114, 0115, 0129,
0131, 0132, 0134,
0135, 0137, 0351,
0920.
355 691075 Washer
(Muffler Bracket)
356G 696748 Wire--Stop
356J 793206 Wire--Stop
358 795201 Gasket Set--Engine
362 698041 Shield--Spark Plug
363 19203 Puller--Flywheel
369 695422 Spring--Float Bowl
383 19374S Wrench--Spark Plug
410 695382 Link--Control
436C 792374 Manifold--Exhaust
437 696705 Screw
(Exhaust Manifold)
455 697226 Cup--Flywheel
Used on Type No(s).
0110, 0111, 0112,
0113, 0114, 0115,
0129, 0131, 0132,
0134, 0135, 0137,
0351, 0357, 0530,
0553, 0920.
456 692299 Plate--Pawl Friction
459 281505S Pawl--Ratchet
472 696752 Knob--Choke Shaft
472A 791958 Knob--Choke Shaft
Not for
Reproduction
REF. PART REF. PART REF. PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION
21C200
KIncluded in Engine Gasket Set--Ref. No. 358.
DIncluded in Carburetor Overhaul Kit--Ref. No. 121A.
∆Included in Valve Gasket Set--Ref. No. 1095.
Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.
3392--10 Assemblies include all parts shown in frames. 10/07/2008
10
474A 791743 Alternator
Used on Type No(s).
0112, 0113, 0115,
0132, 0530, 0553.
474B 698314 Alternator
(Dual Circuit)
Used on Type No(s).
0110, 0111, 0114,
0129, 0131, 0134,
0135.
-- -- -- -- -- -- N o t e -- -- -- -- -- --
793118 Alternator
(Dual Circuit)
Used on Type No(s).
0920.
474H 698230 Alternator
(Dual Circuit)
Used on Type No(s).
0137, 0351, 0357.
485 695755 Knob--Control
493 691177 Bracket--Mounting
501 698315 Regulator
Used on Type No(s).
0110, 0111, 0114,
0129, 0131, 0134,
0135.
503 698318 Strap--Starter
504 695383 Washer Set--Friction
505 691251 Nut
(Governor Control
Lever)
523 695344 Dipstick
524 691876 Seal--Dipstick Tube
525 695343 Tube--Dipstick
526 690297 Screw
(Regulator)
Used on Type No(s).
0110, 0111, 0114,
0129, 0131, 0134,
0135.
528 793006 Hose--Primer
(Cut to Required
Length)
529 791822 Grommet
552 694674 Bushing--Governor
Crank
562 793216 Bolt
(Governor Control
Lever)
564 696692 Screw
(Control Cover)
578 692306 Wire Assembly
592 690800 Nut
(Rewind Starter)
597 691696 Screw
(Pawl Friction Plate)
601 791850 Clamp--Hose
604A 696758 Cover--Control
608A 699335 Starter--Rewind
Used on Type No(s).
0110, 0111, 0112,
0113, 0114, 0115,
0129, 0131, 0132,
0134, 0135, 0137,
0351, 0357, 0530,
0553, 0920.
610 794541 Arrester--Intake
613 695312 Screw
(Muffler)
613B 696705 Screw
(Muffler)
(TORX HEAD)
615 694676 Retainer--Governor
Shaft
616 694675 Crank--Governor
621 692310 Switch--Stop
632 695917 Spring/Link--
Mechanical Governor
(Use With Nikki
Carburetor)
633B D690998 Seal--Choke/Throttle
Shaft
635 691909 Boot--Spark Plug
(Control Panel)
663A 696685 Screw
(Control Panel)
663B 696704 Screw
(Control Panel)
663C 790282 Screw
(Control Panel)
668 694257 Spacer
(Control Bracket)
668B 794539 Spacer
(Snow Hood)
676C 697816 Deflector--Muffler
Used on Type No(s).
0111.
677 691660 Screw
(Muffler Deflector)
Used on Type No(s).
0111.
689 691855 Spring--Friction
695 698807 Screw
(Ring Gear)
697 698113 Screw
(Drive Cap)
718 690959 Pin--Locating
718A 695178 Pin--Locating
725 696756 Shield--Heat
727A 697465 Cover--Starter Drive
731 794591 Hood--Snow
731D 794550 Hood--Snow
731E 793174 Hood--Snow
732 691097 Screw
(Starter Drive Cover)
740 710090 Nut
(Muffler Bracket)
740A 793859 Nut
(Muffler Bracket)
741 691288 Gear--Timing
742 692564 Retainer--E Ring
746 694679 Gear--Idler
773 694258 Retainer
798 697890 Screw
(Rocker Arm)
812 696757 Screw
(Rocker Cover)
813 690635 Clamp
819 690352 Screw
(Muffler Bracket)
832 699223 Guard--Muffler
Used on Type No(s).
0110, 0113, 0115,
0129, 0131, 0134,
0135, 0137, 0351,
0357, 0530, 0553,
0920.
832C 792380 Guard--Muffler
836 691003 Screw
(Muffler Guard)
Used on Type No(s).
0110, 0113, 0115,
0129, 0131, 0134,
0135, 0137, 0351,
0357, 0530, 0553,
0920.
836C 710023 Screw
(Muffler Guard)
Not for
Reproduction
Ce manuel convient aux modèles suivants
18
Autres manuels Briggs & Stratton Tondeuse à gazon
Briggs & Stratton
Briggs & Stratton 2609762 Manuel utilisateur
Briggs & Stratton
Briggs & Stratton 1696783 Manuel utilisateur
Briggs & Stratton
Briggs & Stratton SnapperPRO S800X Series Manuel utilisateur
Briggs & Stratton
Briggs & Stratton 285Z Series Manuel utilisateur
Briggs & Stratton
Briggs & Stratton 1756276 Guide de référence
Briggs & Stratton
Briggs & Stratton SNAPPER Manuel utilisateur
Briggs & Stratton
Briggs & Stratton BRUTE BTXP226750HW Manuel utilisateur
Briggs & Stratton
Briggs & Stratton 2691184-00 Manuel utilisateur
Briggs & Stratton
Briggs & Stratton 5900660 Manuel utilisateur
Briggs & Stratton
Briggs & Stratton IS3200ZKAV3561 Manuel
Briggs & Stratton
Briggs & Stratton Legacy XL Manuel utilisateur
Briggs & Stratton
Briggs & Stratton 2691351-00 Manuel utilisateur
Briggs & Stratton
Briggs & Stratton Simplicity Champion Zero-Turn Rider Mode d’emploi
Briggs & Stratton
Briggs & Stratton 7800950-01 Manuel utilisateur
Briggs & Stratton
Briggs & Stratton Prestige 1800 Series Manuel utilisateur
Briggs & Stratton
Briggs & Stratton Zero Turn Rider Manuel utilisateur
Briggs & Stratton
Briggs & Stratton SnapperPro 590084 Manuel utilisateur
Briggs & Stratton
Briggs & Stratton 2691691-00 Manuel utilisateur
Briggs & Stratton
Briggs & Stratton Snapper RER100 Manuel utilisateur
Briggs & Stratton
Briggs & Stratton 2691184-00 Manuel utilisateur
Manuels Tondeuse à gazon populaires d'autres marques
RHINO
RHINO 1958 Manuel utilisateur
Wolf Garten
Wolf Garten Compact plus 40 B Manuel utilisateur
Cub Cadet
Cub Cadet LTX 1045 Manuel utilisateur
Craftsman
Craftsman 917.378461 Manuel utilisateur
GGP ITALY SPA
GGP ITALY SPA CR/CS 434 SERIES Manuel utilisateur
Challenge
Challenge CH18V2 Instructions de fonctionnement
TALEN TOOLS
TALEN TOOLS AVR HGM30 Manuel utilisateur
DEWEZE
DEWEZE ATM-725 Manuel d'utilisation
Weed Eater
Weed Eater 180083 Manuel utilisateur
Husqvarna
Husqvarna Poulan Pro PP185A42 Manuel utilisateur
Better Outdoor Products
Better Outdoor Products Quick Series Manuel utilisateur
Cub Cadet
Cub Cadet 23HP Z-Force 60 Manuel d'utilisation
