2-Cycle Snow Engine

2-CYCLE SNOW ENGINE

REPAIR MANUAL

MANUAL NUMBER: 276535

2-Cycle Snow Engine

SAFETY INFORMATION

The Briggs & Stratton engine is made of the finest

material in a state-of-the-art manufacturing facility.

Please understand that Briggs & Stratton sells engines

to original equipment manufacturers. It also sells to

others in the distribution chain who may sell to the

ultimate consumer, an equipment manufacturer, another

distributor or a dealer. As a result, Briggs & Stratton does

not necessarily know the application on which the engine

will be placed. For that reason, carefully read and

understand the operating instructions of the equipment

before you repair or operate.

You should also understand that there are equipment

applications for which Briggs & Stratton does not

approve the useof its engines. Briggs & Stratton engines

are not to be used on vehicles with less than 4 wheels.

This includes motor bikes, aircraft products and all

terrain vehicles. Moreover, Briggs & Stratton does not

approve of its engines being used in competitive events.

FOR THAT REASON, BRIGGS & STRATTON

ENGINES ARE NOT AUTHORIZED FOR ANY OF

THESE APPLICATIONS. Failure to follow this warning

could result in death, serious injury (including paralysis)

or property damage.

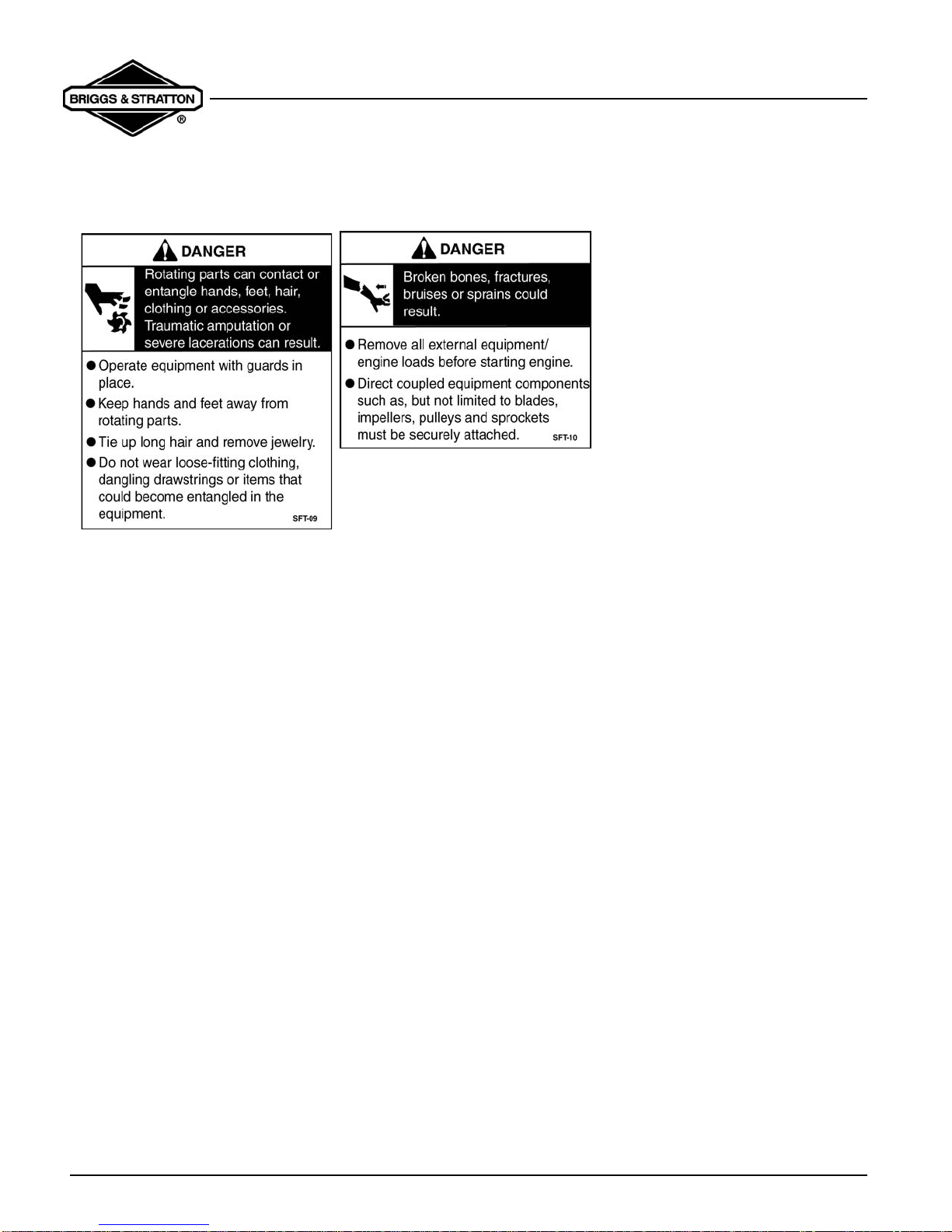

IN THE INTEREST OF SAFETY

The safety alert symbol ( ) is used to identify safety

information about hazards that can result in personal

injury.

A signal word (DANGER, WARNING, or CAUTION) is used

with the alert symbol to indicate the likelihood and the

potential severity of injury. In addition, a hazard symbol

may be used to represent the type of hazard.

DANGER indicates a hazard which, if not

avoided, will result in death or serious injury.

WARNING indicates a hazard which, if not

avoided, could result in death or serious injury.

CAUTION indicates a hazard which, if not

avoided, might result in minor or moderate injury.

CAUTION: When this signal word is used without the

alert symbol, it indicates a situation that could result in

damage to the engine.

• Prior to work, read and understand the section(s) of

this manual that pertain to the job. Follow all safety

warnings.

• Wear suitable eye protection.

• Prevent accidental starting by removing spark plug

wire from spark plug when servicing engine or

equipment. Disconnect negative battery terminal if

equipped with electric starting system.

• Periodically clean engine. Keep governor parts free

of dirt, grass and other debris which can affect

engine speed.

• Always use fresh gasoline. Stale fuel can gum

carburetor and cause leakage.

• Check fuel lines and fittings frequently for cracks or

leaks and replace if necessary.

2-Cycle Snow Engine

iii

2-Cycle Snow Engine

Table of Contents

2-CYCLE SNOW ENGINE

REPAIR MANUAL .....................................0

SAFETY INFORMATION ...........................i

In The Interest Of Safety ...............................i

SECTION 1

GENERAL INFORMATION .......................1

TWO-CYCLE ENGINE THEORY .................1

IGNITION COIL OPERATION ......................2

REWIND STARTER .....................................3

ELECTRIC START (OPTIONAL) .................3

RECOMMENDED MAINTENANCE

SCHEDULE ..................................................3

25 Hours ..........................................................3

50 Hours ..........................................................3

REPLACE SPARK PLUG .............................4

CLEANING THE EXHAUST SYSTEM .........4

SECTION 2

TROUBLESHOOTING ..............................5

GENERAL TROUBLESHOOTING

INFORMATION ............................................5

Systematic Check ............................................5

Check Ignition ..................................................5

Engine Misfires ................................................5

Check Carburetion ...........................................6

Check Compression ........................................6

EQUIPMENT AFFECTING ENGINE

OPERATION ................................................6

Hard Starting, Kickback, or Will Not Start ........7

Vibration ...........................................................7

Power Loss ......................................................7

STARTER MOTOR FAILS TO TURN .........7

Power not reaching product. ............................7

Starter switch malfunction. ...............................7

Engine has seized. ..........................................7

Starter motor has failed. ..................................7

SECTION 3

ENGINE DISASSEMBLY ..........................9

REMOVE SHROUD .....................................9

REMOVE CARBURETOR ............................9

REMOVE FLYWHEEL ................................10

REMOVE OPTIONAL 120V STARTER ......10

REMOVE MUFFLER ..................................10

REMOVE IGNITION MODULE ...................11

ENGINE DISASSEMBLY ...........................11

SECTION 4

ENGINE OVERHAUL ..............................13

ENGINE INSPECTION & REPAIR .............13

Flywheel and Key ...........................................13

Bearings .........................................................13

Crankcase ......................................................13

Check Cylinder Bore ......................................13

Piston And Rings ............................................14

Piston Pin (Wrist Pin) And Connecting Rod .....4

CARBURETOR DISASSEMBLY ................15

CARBURETOR CLEANING &

INSPECTION ..............................................17

CARBURETOR ASSEMBLY ......................17

REWIND STARTER Replacement .............20

Rope Replacement .........................................20

(OPTIONAL) ELECTRIC STARTER

REPLACEMENT .........................................20

SECTION 5

ENGINE ASSEMBLY ..............................21

ASSEMBLE PISTON AND

CONNECTING ROD ..................................21

INSTALL PISTON RINGS ..........................21

Engine Model 84130 & 84230 ........................21

Engine Model 84330 .....................................21

2-Cycle Snow Engine

Table of Contents

INSTALL PISTON AND

CONNECTING ROD ..................................22

INSTALL CONNECTING ROD BEARINGS 23

INSTALL CRANKSHAFT AND

CONNECTING ROD ..................................23

INSTALL OIL SEALS ..................................24

INSTALL CRANKCASE COVER ................25

INSTALL CYLINDER HEAD .......................25

INSTALL IGNITION COIL AND

FLYWHEEL ................................................25

INSTALL AIR VANE AND GOVERNOR .....26

INSTALL INTAKE MANIFOLD AND

CARBURETOR ..........................................27

CHECK GOVERNOR OPERATION ...........27

INSTALL MUFFLER ...................................28

INSTALL BLOWER HOUSING ...................28

SECTION 6

FINAL ADJUSTMENTS &

SPECIFICATIONS ..................................29

GOVERNOR ADJUSTMENTS ...................29

SPECIFICATIONS ......................................30

COMMON SPECIFICATIONS ....................30

STANDARD AND REJECT DIMENSIONS 31

2-Cycle Snow Engine

Section 1 - General Information

Page 1

SECTION 1

GENERAL INFORMATION

TWO-CYCLE ENGINE THEORY

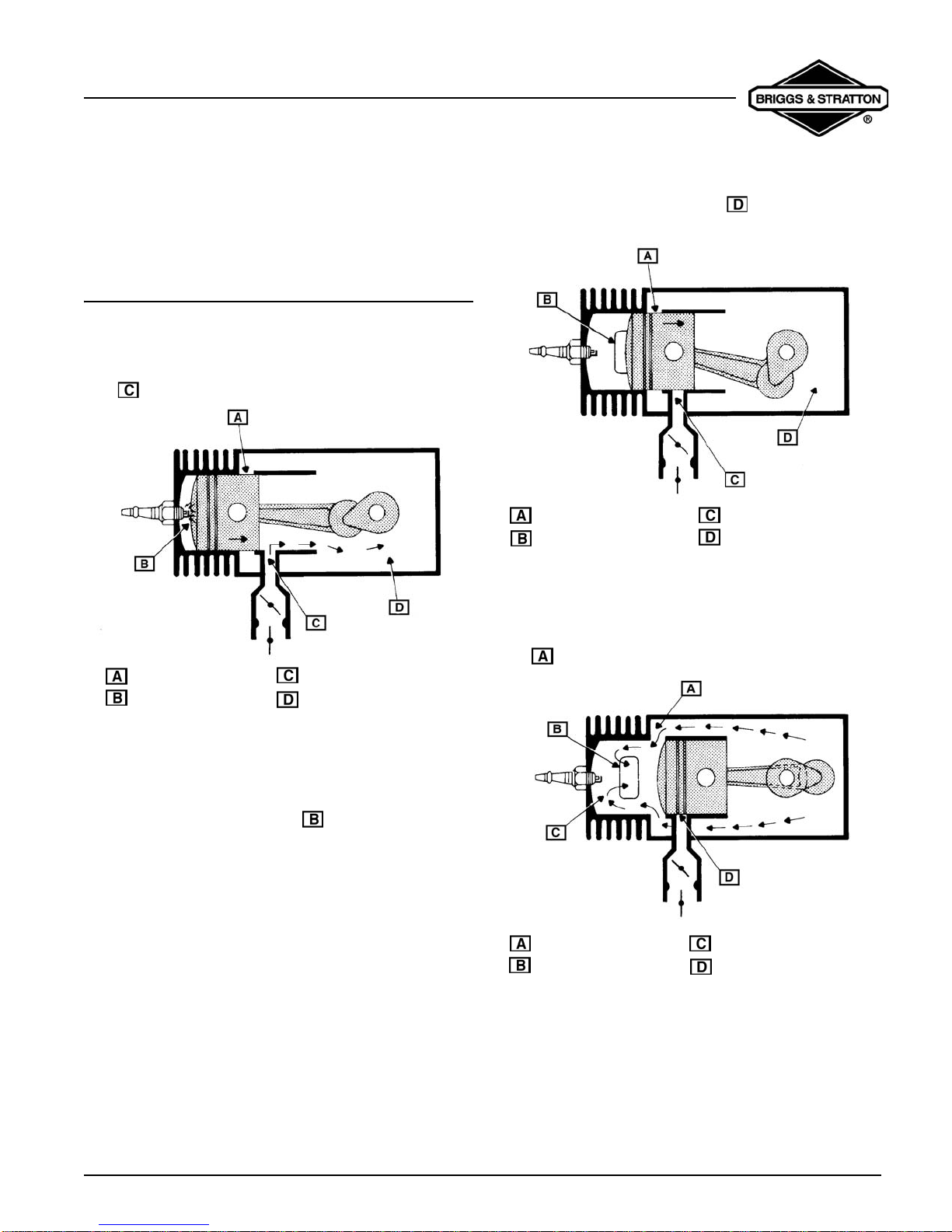

In a piston-ported engine, the fuel mixture enters the

crankcase through a port that comes directly from the

carburetor (commonly referred to as a “third port”), See

item figure 1.

Fig. 1

At about 28° before top-dead-center (BTDC), the spark

plug ignites and forces the piston away from the spark

plug. As the piston moves away from the spark plug, it

exposes the exhaust port (Item Figure 2) and the

expanding exhaust gases escape. As the piston

continues to move away from the spark plug, it

compresses the fuel mixture (Item Figure 2) that is on

the bottom side of the piston in the crankcase.

Fig. 2

Near the bottom of its travel, the piston uncovers the

pressure transfer port and allows this compressed fuel/

air mixture to expand into the combustion chamber

(Item Figure 3).

Fig. 3

Now the piston begins its travel in the opposite direction

and first closes off the transfer port and then the exhaust

Intake Ports Closed

Ignition Third Port Open

Partial Vacuum

Intake Ports Closed

Exhaust Port Opening

Third Port Closed

Pressure Building Up

Intake Ports Open

Exhaust Port Open Fresh Fuel Change

Third Port Closed

2-Cycle Snow Engine

Section 1 - General Information

Page 2

port. As it continues, it compresses the fuel mixture in

the combustion chamber (Item Figure 4).

Fig. 4

IGNITION COIL OPERATION

The ignition coil system (Item Figure 5) is

breakerless and contains electronic components that

replace mechanical points and related accessories (such

as a breaker cam, spark advance assembly, etc.).

Fig. 5

As the flywheel magnet passes the ignition coil module,

an AC voltage is induced into the charge coil. This AC

voltage is converted by a rectifier into a DC signal, which

is then stored in a capacitor (Figure 6).

Fig. 6

When the silicone-controlled rectifier (SCR) is triggered,

up to 200 volts DC, stored in the capacitor, travels to the

spark coil. Here it is stepped up to as much as 25,000

volts and is discharged across the electrodes of the

spark plug (Figure 7).

Ignition timing (when the SCR is triggered) is determined

by the flywheel magnet and the keyways in the flywheel

and crankshaft. Damage to any of these parts will affect

the ignition timing.

Fig. 7

Intake Ports Closed

Compression

Third Port Closed

Partial Vacuum

Ignition Coil Module

2-Cycle Snow Engine

Section 1 - General Information

Page 3

At slower speeds, the flywheel magnet induces a smaller

charge in the trigger coil. This action triggers the (SCR),

enabling easier starting in a “retarded firing position”

-about 5° before top dead center (BTDC). See figure 8.

Fig. 8

At faster speeds (about 800 RPM), the flywheel magnets

induce a large enough charge in the trigger coil to trigger

the SCR in the “advanced firing position,” -about 28°

BTDC (Figure 9).

Fig. 9

REWIND STARTER

The rewind starter operates through a retainer/friction

disc and two engagement dogs that extend from the

center of the rewind starter and engage the inside of the

starter hub on the flywheel. The engagement dogs

contact the starter hub when the rewind rope is pulled.

When the engine starts, the starter cup exceeds the

speed of the recoil starter causing the ramps on the

inside of the cup to contact the back side of the starter

dogs, pushing them inward. When the starter rope is

relaxed, spring tension retracts the dogs.

ELECTRIC START (OPTIONAL)

The electric start models use a 120VDC starting system.

When the starter is supplied with voltage, the helical

shaft spins to force the pinion gear out on the shaft and

engage the ring gear (Figure 10).

Fig.10

RECOMMENDED MAINTENANCE

SCHEDULE

25 Hours

• Clean/replace or re-gap spark plug

50 Hours

• Clean exhaust ports

• Check for fuel leakage

Pole Shoe

Flywheel Rotation

Crankshaft at 5° BTDC

Magnet

Starting Leg

Charging Leg

Pole Shoe

Flywheel Rotation

Crankshaft at 25° BTDC

Charging Leg

Running Leg 25°

Advanced

2-Cycle Snow Engine

Section 1 - General Information

Page 4

REPLACE SPARK PLUG

Replace spark plug every year. Replace spark plug if

electrode is burned away or if the porcelain is cracked. A

spark plug that is dirty, pitted, carbon covered or has

worn electrodes may cause hard starting and/or poor

operation. Clean plug with a wire brush. Do not sand

blast. Use NGK BPMR 4A or equivalent. Set spark plug

gap (Figure 11) at .028-.032 in. (.71-.81mm). Torque spark

plug to 150-200 lb-in. (17-23 Nm).

Fig. 11

CLEANING THE EXHAUST SYSTEM

1. Remove the muffler (Figure 12) by removing the

bolts shown. Clean as needed.

Fig. 12

2. Inspect exhaust port (Figure 13). If cleaning is

necessary, rotate piston to cover exhaust port,

and scrape carbon from exhaust port area. Use

wood only to clean this area.

Fig. 13

3. Install the muffler and torque the bolts to 80 lb-in.

(9Nm).

.28-.032 in.

(.71 - .81mm)

BST01-82

BST01-83

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Briggs & Stratton Moteur

Briggs & Stratton

Briggs & Stratton 127800 Series Guide de configuration

Briggs & Stratton

Briggs & Stratton Intek Manuel d'installation et d'exploitation

Briggs & Stratton

Briggs & Stratton 150000 HORIZONTAL SERIES Manuel utilisateur

Briggs & Stratton

Briggs & Stratton Vanguard 290000 Manuel d'installation et d'exploitation

Briggs & Stratton

Briggs & Stratton 543200 Series Guide de configuration

Briggs & Stratton

Briggs & Stratton 126600 Manuel utilisateur

Briggs & Stratton

Briggs & Stratton 124T00 Series Guide de configuration

Briggs & Stratton

Briggs & Stratton 49G500 Series Guide de configuration

Briggs & Stratton

Briggs & Stratton 194700 Series Manuel utilisateur

Briggs & Stratton

Briggs & Stratton Vanguard 540000 Series Manuel utilisateur

Briggs & Stratton

Briggs & Stratton 12J800 Series Guide de configuration

Briggs & Stratton

Briggs & Stratton 310000 VERTICAL SERIES Manuel utilisateur

Briggs & Stratton

Briggs & Stratton 190000 Series Manuel d'installation et d'exploitation

Briggs & Stratton

Briggs & Stratton Vanguard 520000 Manuel utilisateur

Briggs & Stratton

Briggs & Stratton 310000 VERTICAL SERIES Manuel utilisateur

Briggs & Stratton

Briggs & Stratton Vanguard 540000 Series Instructions d'utilisation et d'installation

Briggs & Stratton

Briggs & Stratton Vanguard 540000 Series Manuel utilisateur

Briggs & Stratton

Briggs & Stratton 133200 Series Instructions d'installation

Briggs & Stratton

Briggs & Stratton 120000 Manuel utilisateur

Briggs & Stratton

Briggs & Stratton 150000 HORIZONTAL SERIES Manuel utilisateur

Briggs & Stratton

Briggs & Stratton 42A700 Series Manuel d'installation et d'exploitation

Briggs & Stratton

Briggs & Stratton 90000 series Manuel d'installation et d'exploitation

Briggs & Stratton

Briggs & Stratton 330000 VERTICAL SERIES Manuel utilisateur

Briggs & Stratton

Briggs & Stratton 441700 Series Guide de configuration

Manuels Moteur populaires d'autres marques

Rotax

Rotax 125 senior MAX evo Manuel utilisateur

Kohler

Kohler K361 Manuel utilisateur

MTD

MTD OHV Series Manuel utilisateur

Kohler

Kohler COMMAND CH18-745 Manuel utilisateur

Mercury

Mercury D4.2L D-Tronic Manuel utilisateur

Selve

Selve SE Plus-RC Series Manuel utilisateur

Perkins

Perkins 1206E-E66TA Manuel utilisateur

Skov

Skov DA 174 Manuel

Rossi

Rossi TX11 Series Manuel utilisateur

Siemens

Siemens SIMOTICS T-1FW3 Feuille d'instructions

AL-KO

AL-KO PRO 350 Manuel utilisateur

MTU

MTU 12 V 4000 Lx4 Manuel utilisateur

Nanni

Nanni N3.30 Manuel d'instructions

Nanni

Nanni N5.160 CR2 Manuel utilisateur

KSB

KSB SuPreme Series Instructions d'installation

Hiwin

Hiwin EM1 Series Manuel utilisateur

Rotax

Rotax 912 i series Mode d'emploi

Siemens

Siemens SIMOTICS XP 1MB1 Manuel utilisateur
