in any form or by any means, electronic or mechanical, including photocopying,

recording or by any information storage and retrieval system, without permission

in writing from Briggs & Stratton Corporation.

FORM MS–6929–6/2002

REPLACES FORM MS–6929–9/92

FILE IN SECT. 2 OF SERVICE MANUAL

252700 to 252799

Illustrated Parts List

Model Series

252700 to 252799

TYPE NUMBERS

0016 through 0028,

0111 through 0247,

0515 through 0560,

0611,

0616 through 0622,

0624, 0625,

0630 through 0719.

TO FIND

THE CORRECT NUMBER OF THE PART YOU NEED:

FOLLOW THE INSTRUCTIONS BELOW

A. Refer to Engine Model, Type and Code Number that is stamped on the blower housing of engine.

Engine type numbers such as 0123 01 are listed only as 0123 in most instances. The two digits (01

or 02, etc.) to the right of the space may be required for more accurate parts identification in some

instances. Select the Illustrated Parts List covering the correct Model Series and Type Number.

B. Refer to the Illustrations and compare the original part with Illustration. The number next to the

illustration is the Reference Number. Assemblies include all parts shown in frames. All parts shown

in assembly frames having individual reference numbers can be purchased separately.

C. After the Reference Number has been identified, refer to the Numerical text, where Reference and

Primary Part Number are listed. THE PRIMARY PART IS USED ON ALL TYPE NUMBERS

EXCEPT THOSE TYPE NUMBERS UNDER “NOTE.”

D. If a “Note” appears below the Primary Part Number, it means that this part differs from the Primary

Part for certain types. If your Type number is listed under “Note,” order the part referred to at the

“Note.”

E. If your Engine Type Number does not appear after any part number listed under “Note,” use the

Primary Part Number.

F. For Engine Type Numbers not covered by this book, check other Parts Lists having the same

engine model or contact your source of supply.

PRINTED IN U.S.A.

252700 to 252799

6929–2 Assemblies include all parts shown in frames. 58

1019 LABEL KIT

383

635

337

REQUIRES SPECIAL TOOLS TO INSTALL.

SEE REPAIR INSTRUCTION MANUAL.

1058 OWNER’S MANUAL

668

307

306

871

869

870

645

308

552

1 495728 Cylinder Assembly

(Used After Code Date

82073100).

––––––– Note –––––

396448 Cylinder Assy.

(Used Before Code

Date 82080100).

2 399265 Bushing–Cylinder

3391086 Seal–Oil

5 212914 Head–Cylinder

6 22963 Washer–Flat

7∅271866 Gasket–Cylinder Head

8 495735 Breather Assembly

––––––– Note –––––

495734 Breather Assy.

Used on Type No(s).

0189, 0219, 0228,

0634, 0644, 0646,

0650, 0675.

9∅27803 Gasket–Breather

10 94621 Screw–Hex.

11 280100 Tube–Breather

13 94776 Stud–Hex. Drive

14 94622 Screw–Hex.

87 491323 Seal–Gov. Shaft

306 224882 Shield–Cylinder

––––––– Note –––––

224542 Shield–Cyl.

Used on Type No(s).

0537, 0560, 0611,

0617, 0618, 0620,

0621, 0622, 0625,

0707, 0712, 0713,

0714, 0715, 0718,

0719.

307 94930 Screw–Hex.

308 224897 Cover–Cylinder

337 298809 Plug–Spark

(1 1/2”High)

––––––– Note –––––

802592 Plug–Spark

(1 27/32”High,

Resistor Type)

383 89838 Wrench–Spark Plug

552 491986 Bushing–Governor

Crank

635 66538 Boot–Spark Plug

645 23513 Bushing–Plunger

Used on Type No(s).

0500.

668 231186 Spacer

869 261463 Seat–Valve

(Intake)

870 262924 Seat–Valve

(Exhaust)

871 231218 Bushing–Guide

1019 491195 Label Kit

1058 270862 Owner’s Manual

Included in Gasket Set–Part No. 393411.

Included in Carburetor Kit–Part No. 394698. ∅Included in Valve Overhaul Gasket Set–Part No. 498537.

REF. PART REF. PART REF. PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION

252700 to 252799

6929–3 Assemblies include all parts shown in frames. 58

357

3433

36 35

41 40

616

230

614

25 29

562

592

227

219

741

1021

1020

146

759

757

761

758

760

16 498994 Crankshaft

(Used After Code Date

82073100).

––––––– Note –––––

392299 Crankshaft

(Used Before Code

Date 82080100).

491634 Crankshaft

Used on Type No(s).

0166, 0179, 0654.

498993 Crankshaft

Used on Type No(s).

0027, 0132, 0133,

0135, 0141, 0145,

0157, 0163, 0172,

0175, 0200, 0236,

0527, 0632, 0643,

0691, 0694.

25 391285 Piston Assembly

(Standard)

391287 Piston Assy.

(.010”O.S.)

391288 Piston Assy.

(.020”O.S.)

391289 Piston Assy.

(.030”O.S.)

26 391780 Ring Set

(Standard)

392331 Ring Set

(Standard Chrome)

391781 Ring Set

(.010”O.S.)

391782 Ring Set

(.020”O.S.)

391783 Ring Set

(.030”O.S.)

27 260924 Lock–Piston Pin

28 299691 Pin–Piston

(Standard)

391286 Pin–Piston

(.005”O.S.)

29 490348 Rod–Connecting

(Standard)

490469 Rod–

Connecting

(.020”Undersize)

31 222299 Lock–Rod Screw

32 92909 Screw–Conn. Rod

33 261185 Valve–Exhaust

34 261462 Valve–Intake

35 65906 Spring–Valve

36 26828 Spring–Valve

40 221596 Retainer–Valve

41 292260 Retainer–Valve

––––––– Note –––––

68293 Retainer–Valve

Used on Type No(s).

0030, 0031, 0032.

42 494553 Keeper–Valve

45 262248 Tappet–Valve

46 212897 Gear–Cam

146 94196 Key–Timing

––––––– Note –––––

231086 Pin–Dowel

(Used Before Code

Date 82080100).

219 490815 Governor–Oil Slinger

227 490927 Lever–Governor

––––––– Note –––––

391733 Lever–Gov.

(Used Before Code

Date 87030200).

230 94742 Washer–Flat

357 91540 Key–Drive Pulley

562 94907 Bolt–Governor Lever

592 231978 Nut–Hex.

614 93306 Pin–Cotter

616 495157 Crank–Governor

741 262932 Gear–Timing

757 691714 Link–Counterweight

(Used After Code Date

78100411).

211675 Link–

Counterweight

(Used Before Code

Date 78100511).

758 692941 Counterweight Assy.

759 298909 Pin–Counterweight

760 231038 Spacer–Counterweight

761 691096 Screw–Hex

1020 261242 Eccentric

1021 94160 Pin–Eccentric

Included in Gasket Set–Part No. 393411.

Included in Carburetor Kit–Part No. 394698. ∅Included in Valve Overhaul Gasket Set–Part No. 498537.

REF. PART REF. PART REF. PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION

252700 to 252799

6929–4 Assemblies include all parts shown in frames. 58

REQUIRES SPECIAL TOOLS TO INSTALL.

SEE REPAIR INSTRUCTION MANUAL.

529

422 523

284

116

847

665

525

4 391784 Sump–Engine

––––––– Note –––––

398072 Sump–Engine

Used on Type No(s).

0687.

12 271702 Gasket–Crankcase

(.015”Thick, Standard)

––––––– Note –––––

270915 Gasket–

Crankcase

(.005”Thick)

270916 Gasket–

Crankcase

(.009”Thick)

15 94239 Plug–Oil Drain

19 399264 Bushing

20 291675 Seal–Oil

22 93585 Screw–Hex.

116 270920 Seal–O-Ring

284 94602 Screw–Hex.

422 224872 Bracket–Oil Fill

523 495229 Dipstick

525 280134 Tube–Oil Fill

529 281370 Seal–Fill Tube

665 296768 Minder–Oil

847 392067 Dipstick/Tube

Assembly

Included in Gasket Set–Part No. 393411.

Included in Carburetor Kit–Part No. 394698. ∅Included in Valve Overhaul Gasket Set–Part No. 498537.

REF. PART REF. PART REF. PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION

252700 to 252799

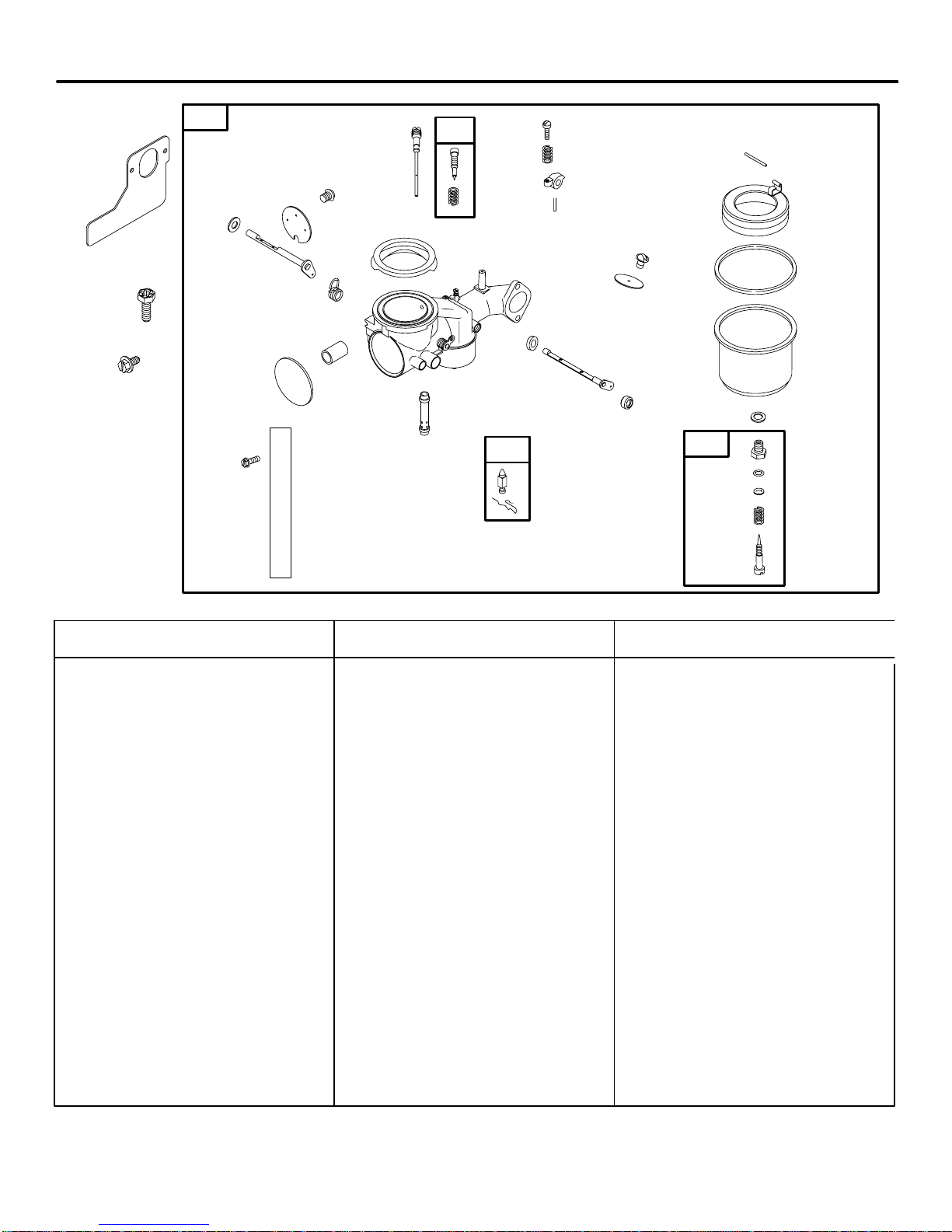

6929–5 Assemblies include all parts shown in frames. 58

131

141

127

113

108 103

104

101

138

130

618

257

634

636

132

124

118

105

987

634A

137

136

147

128

537

662

125

51∅270872 Gasket–Carb Mounting

94 292681 Kit–Idle Mixture

95 93499 Screw–Choke/Throttle

98 91920 Screw–Slotted

99 26157 Spring–Friction

101 93043 Pin–Throttle Lever

103 299707 Float–Carburetor

104 230896 Pin–Float Hinge

105 394681 Valve–Needle

(Gravity Feed)

––––––– Note –––––

394683 Valve–Needle

(Pump Feed)

108 222010 Valve–Choke

113 299740 Nozzle–Carburetor

118 396568 Valve–High Speed

124 94913 Screw–TorxHex.

125 491026 Carburetor Assembly

(Choke A Matic)

––––––– Note –––––

490149 Carburetor

Used on Type No(s).

0634.

491028 Carburetor

(Remote & Manual

Choke)

Used on Type No(s).

0025, 0111, 0112,

0118, 0119, 0144,

0149, 0151, 0156,

0159, 0165, 0167,

0190, 0198, 0203,

0206, 0209, 0212,

0214, 0219, 0226,

0227, 0237, 0239,

0247, 0525, 0611,

0618, 0619, 0622,

0639, 0673, 0683,

0693.

491029 Carburetor

(Choke A Matic)

Used on Type No(s).

0189, 0228, 0644,

0646, 0650, 0675.

126 391787 Body Assembly–Upper

––––––– Note –––––

394038 Body

Assembly–Upper

Used on Type No(s).

0189, 0219, 0228,

0634, 0644, 0646,

0650, 0675.

127 221997 Plug–Welch

128 211960 Venturi–Carburetor

130 222433 Valve–Throttle

131 491006 Throttle Shaft Kit

132 211712 Stop–Throttle

136 221995 Bowl–Float

137 270511 Gasket–Float Bowl

138 222014 Washer

141 390684 Shaft–Choke

147 231323 Nozzle–Carburetor

257 93543 Screw–Slotted

537 270853 Gasket–Air Cleaner

618 261116 Spring

634 270382 Washer

634A 271853 Seal

662 222311 Bracket–Carburetor

663 93572 Screw–Hex.

987 398970 Seal–Throttle Shaft

Included in Gasket Set–Part No. 393411.

Included in Carburetor Kit–Part No. 394698. ∅Included in Valve Overhaul Gasket Set–Part No. 498537.

REF. PART REF. PART REF. PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION

252700 to 252799

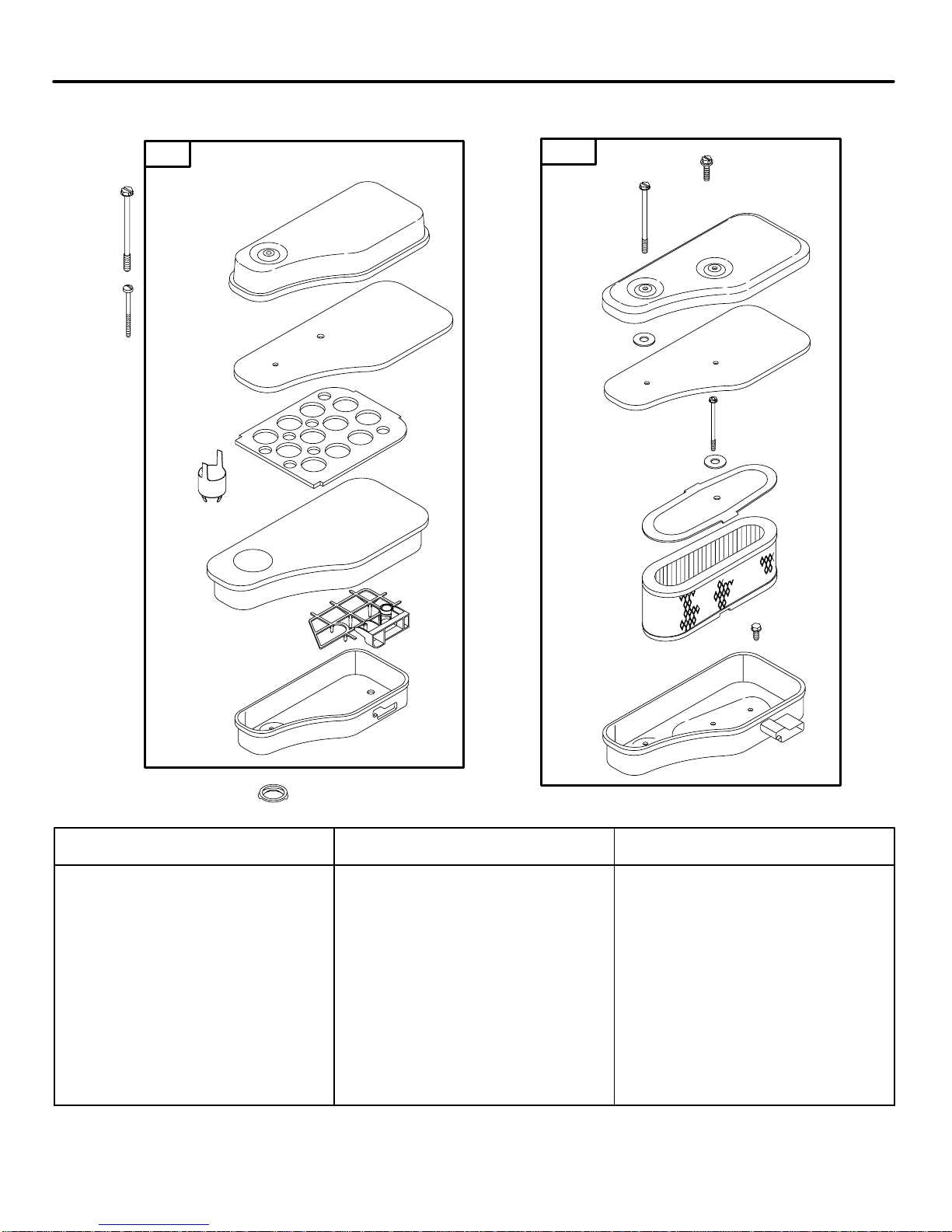

6929–6 Assemblies include all parts shown in frames. 58

952

953

535

643A

537

534A

643

536

875

224

445

874

549

534D

873

465

872

534B

534C

536A

534

224 94902 Screw–Hex.

445 393725 Filter–Air

465 271118 Washer

534 93323 Screw–Slotted

534A 93622 Screw–Slotted

534B 93911 Screw–Slotted

534C 93913 Screw–Slotted

534D 93910 Screw–Slotted

535 270843 Filter–Air

536 391786 Cleaner–Air

536A 393749 Cleaner–Air

537 270853 Gasket–Air Cleaner

549 270978 Washer

643 222380 Spacer–Air Cleaner

643A 280118 Retainer–Air Filter

872 396966 Cover–Air Cleaner

873 397971 Gasket–Cleaner

Cover

874 222898 Retainer–Air Filter

875 397321 Base–Air Cleaner

952 222495 Spacer–Air Cleaner

953 222382 Screen–Air Cleaner

Included in Gasket Set–Part No. 393411.

Included in Carburetor Kit–Part No. 394698. ∅Included in Valve Overhaul Gasket Set–Part No. 498537.

REF. PART REF. PART REF. PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION

252700 to 252799

6929–7 Assemblies include all parts shown in frames. 58

202

621

507

188

216

265

354

353

657

346

270

268

269

271

232

520

222

265A

916

202A

507A

354

353

506

188 94627 Screw–Hex.

202 262348 Link–Mechanical

Governor

202A 261609 Link–Mechanical

Governor

216 261610 Link–Choke

222 491594 Bracket–Control

(Choke A Matic)

––––––– Note –––––

491593 Bracket–

Control

(Remote & Manual

Choke)

396349 Bracket–

Control

(Used Before Code

Date 82110311).

232 260584 Spring–Link

(Used After Code Date

82110200).

––––––– Note –––––

261197 Spring–Link

(Used Before Code

Date 82110311).

265 221535 Clamp–Casing

265A 22372 Clamp–Casing

268 65616 Casing–Wire

(Cut to Required

Length)

269 26633 Wire–Control

(Cut to Required

Length)

270 63426 Locknut–Casing

271 290568 Lever–Control

346 94896 Screw–Hex.

353 92791 Washer–Lock

354 90576 Nut–Hex.

506 90200 Screw–Slotted

507 398525 Insulator

507A 66895 Insulator

520 93722 Terminal

657 94906 Screw–Slotted Hex.

621 396847 Switch–Stop

916 280324 Rack–Governor Gear

(Choke A Matic)

––––––– Note –––––

280321Rack–

Governor Gear

(Remote & Manual

Choke)

Included in Gasket Set–Part No. 393411.

Included in Carburetor Kit–Part No. 394698. ∅Included in Valve Overhaul Gasket Set–Part No. 498537.

REF. PART REF. PART REF. PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION

252700 to 252799

6929–8 Assemblies include all parts shown in frames. 58

209

209 260871 Spring–Governor

(Used After Code Date

87030100).

261129 Spring–Gov.

(Used Before Code

Date 87030200).

––––––– Note –––––

260695 Spring–Gov.

(Used After Code Date

87030100).

Used on Type No(s).

0526, 0560, 0620,

0621, 0622, 0624,

0625, 0630, 0631,

0632, 0633, 0634,

0636, 0637, 0642,

0643, 0644, 0645,

0647, 0648, 0649,

0650, 0651, 0652,

0653, 0654, 0655,

0657, 0667, 0668,

0669, 0671, 0672,

0674, 0675, 0676,

0677, 0682, 0685,

0686, 0687, 0692,

0695, 0698, 0700,

0705, 0707, 0717,

0718.

260902 Spring–Gov.

(Used After Code Date

87030100).

Used on Type No(s).

0697, 0706, 0713,

0719.

261126 Spring–Gov.

(Used After Code Date

87030100).

Used on Type No(s).

0527, 0537, 0617,

0638, 0646, 0663,

0670, 0690, 0691,

0694, 0701, 0704,

0710, 0711, 0712,

0719.

261130 Spring–Gov.

(Used After Code Date

87030100).

Used on Type No(s).

0616, 0699, 0708.

260871 Spring–Gov.

(Used Before Code

Date 87030200).

Used on Type No(s).

0616, 0617, 0691,

0697, 0699, 0704,

0706, 0708, 0710,

0711, 0712, 0713,

0719.

261306 Spring–Gov.

(Used Before Code

Date 87030200).

Used on Type No(s).

0526, 0527, 0537,

0620, 0621, 0622,

0624, 0630, 0632,

0633, 0634, 0636,

0637, 0638, 0642,

0643, 0644, 0645,

0646, 0647, 0648,

0649, 0650, 0651,

0652, 0653, 0654,

0655, 0657, 0663,

0667, 0668, 0669,

0670, 0671, 0672,

0674, 0675, 0677,

0682, 0685, 0686,

0687, 0690, 0692,

0694, 0695, 0698,

0700, 0701, 0705.

261306 Spring–Gov.

Used on Type No(s).

0026, 0027, 0130,

0131, 0132, 0133,

0135, 0137, 0139,

0140, 0141, 0145,

0146, 0150, 0151,

0154, 0158, 0162,

0164, 0166, 0170,

0171, 0172, 0175,

0177, 0179, 0182,

0185, 0186, 0188,

0189, 0196, 0199,

0200, 0201, 0205,

0206, 0207, 0209,

0213, 0216, 0221,

0222, 0223, 0225,

0228, 0230, 0231,

0233, 0234, 0235,

0236, 0238, 0239,

0240, 0242, 0243,

0244, 0246.

Included in Gasket Set–Part No. 393411.

Included in Carburetor Kit–Part No. 394698. ∅Included in Valve Overhaul Gasket Set–Part No. 498537.

REF. PART REF. PART REF. PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION

252700 to 252799

6929–9 Assemblies include all parts shown in frames. 58

601

240A

725

1054 187

527

683

242

243

247

245

244

240

246

241

917 601

918

305

346

387

187 296004 Line–Fuel

(Cut to Required

Length)

240 393169 Filter–Fuel

240A 298090 Filter–Fuel

241 296005 Cover–Filter

242 295913 Valve–Shut Off

243 22547 Screen–Filter

244 230318 Connector–Hose

245 68477 Gasket–Bowl

246 298683 Bowl–Filter

247 99665 Yoke–Bowl

305 94786 Screw–Hex.

346 94896 Screw–Hex.

387 491922 Pump–Fuel

527 221428 Cl amp–Tube

601 93053 Clamp–Hose

(Green)

––––––– Note –––––

93807 Clamp–Fuel

Line (Black)

683 94874 Screw–Hex.

725 222175 Shield–Heat

917 223271 Handle–Shut-Off

Valve

918 393815 Hose–Vacuum

(Cut to Required

Length)

1054 280275 Tie–Cable

Included in Gasket Set–Part No. 393411.

Included in Carburetor Kit–Part No. 394698. ∅Included in Valve Overhaul Gasket Set–Part No. 498537.

REF. PART REF. PART REF. PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION

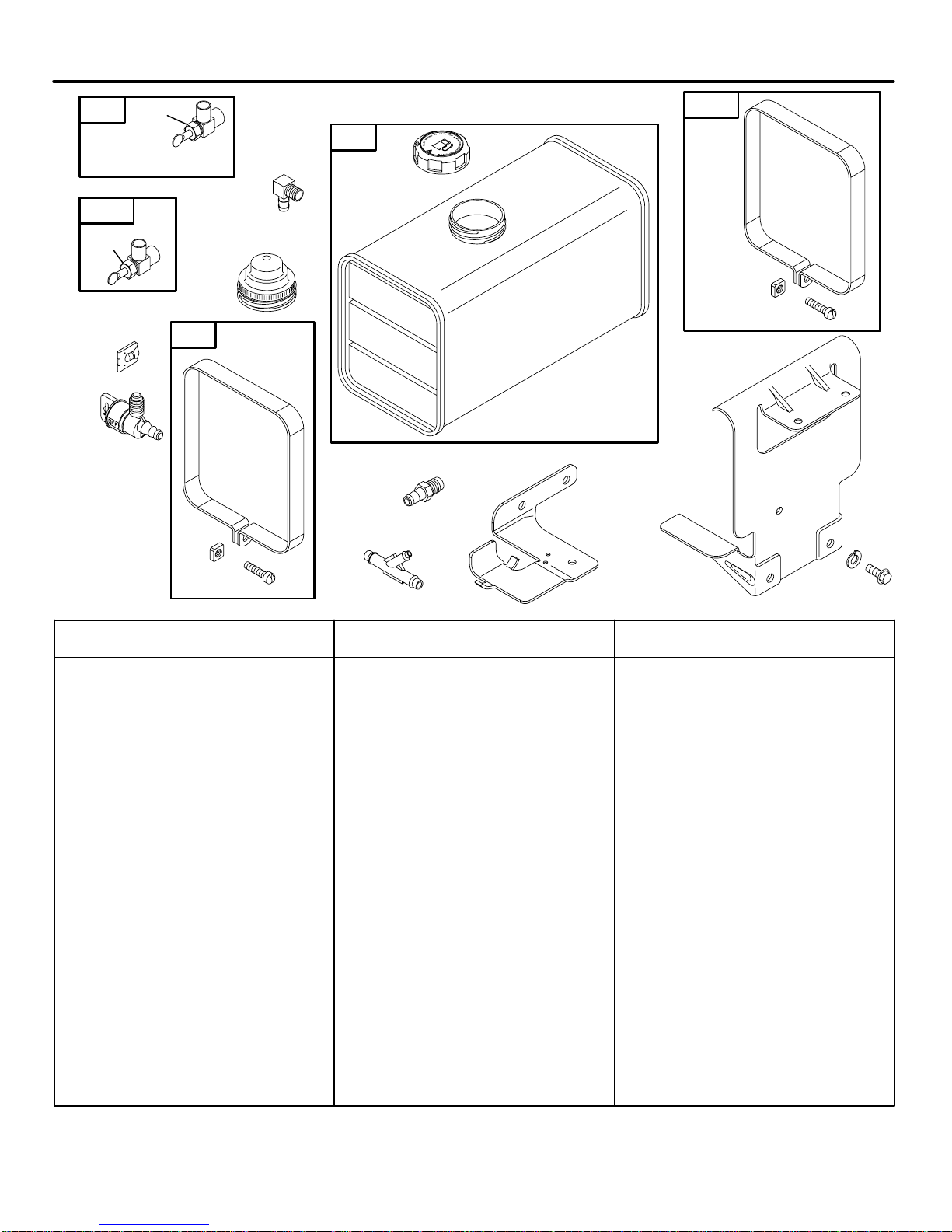

252700 to 252799

6929–10 Assemblies include all parts shown in frames. 58

182

181

184

185 188

198

958

198

186B

186A

180

183

199

199A

182A

184

185

181A

186

183A

917

189

180 390225 Tank–Fuel

(3 Quart)

––––––– Note –––––

292415 Tank–Fuel

(8 Quart)

181 493988 Cap–Fuel Tank

181A 392305 Cap–Fuel Tank

182 222980 Bracket–Fuel Tank

(R.H.)

182A 224884 Bracket–Fuel Tank

(L.H.)

––––––– Note –––––

223157 Bracket–Fuel

Tank

Used on Type No(s).

0668.

183 496853 Strap–Fuel Tank

(R.H.)

183A 496852 Strap–Fuel Tank

(L.H.)

184 94286 Screw–Hex.

185 90970 Nut

186 67218 Connector–Hose

186A 67218 Connector–Hose

186B 230318 Connector–Hose

188 94627 Screw–Hex.

––––––– Note –––––

94786 Screw–Hex.

Used on Type No(s).

0668.

189 90832 Washer–Lock

Used on Type No(s).

0668.

198 293934 Screw–Shut-Off

199 492649 Valve–Shut-Off

199A 297563 Valve–Shut–Off

Used on Type No(s).

0639.

917 223271 Handle–Shut-Off

Valve

958 399517 Valve–Shut-Off

Included in Gasket Set–Part No. 393411.

Included in Carburetor Kit–Part No. 394698. ∅Included in Valve Overhaul Gasket Set–Part No. 498537.

REF. PART REF. PART REF. PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION

Autres manuels pour 252700

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Briggs & Stratton Moteur

Briggs & Stratton

Briggs & Stratton NXT2242 Manuel utilisateur

Briggs & Stratton

Briggs & Stratton 125600 Series Guide de configuration

Briggs & Stratton

Briggs & Stratton 405700, 406700, 407700, 445700 Instructions d'installation

Briggs & Stratton

Briggs & Stratton Fource 21000 Manuel d'installation et d'exploitation

Briggs & Stratton

Briggs & Stratton Twin Cylinder L-Head Mode d'emploi

Briggs & Stratton

Briggs & Stratton 400000 Professional Series Manuel d'installation et d'exploitation

Briggs & Stratton

Briggs & Stratton Vanguard 110000 Manuel utilisateur

Briggs & Stratton

Briggs & Stratton MS3419 Manuel d'installation et d'exploitation

Briggs & Stratton

Briggs & Stratton 28N700 Series Manuel d'utilisation

Briggs & Stratton

Briggs & Stratton Vanguard 190000 Manuel utilisateur

Briggs & Stratton

Briggs & Stratton 32K400 Series Guide de configuration

Briggs & Stratton

Briggs & Stratton 280000 Series Manuel d'installation et d'exploitation

Briggs & Stratton

Briggs & Stratton Vanguard 290000 Manuel utilisateur

Briggs & Stratton

Briggs & Stratton 204400 Series Guide de configuration

Briggs & Stratton

Briggs & Stratton Vanguard 80000 Manuel utilisateur

Briggs & Stratton

Briggs & Stratton 44Q700 Series Guide de configuration

Briggs & Stratton

Briggs & Stratton 120000 Manuel utilisateur

Briggs & Stratton

Briggs & Stratton 120000 Manuel

Briggs & Stratton

Briggs & Stratton 194700 Series Manuel d'installation et d'exploitation

Briggs & Stratton

Briggs & Stratton Automobile Parts Guide de configuration

Briggs & Stratton

Briggs & Stratton 400000 Intek Manuel utilisateur

Briggs & Stratton

Briggs & Stratton Professional Series Manuel utilisateur

Briggs & Stratton

Briggs & Stratton 205400 Series Guide de configuration

Briggs & Stratton

Briggs & Stratton 120000 Manuel d'installation et d'exploitation

Manuels Moteur populaires d'autres marques

Rotax

Rotax 125 senior MAX evo Manuel utilisateur

Kohler

Kohler K361 Manuel utilisateur

MTD

MTD OHV Series Manuel utilisateur

Kohler

Kohler COMMAND CH18-745 Manuel utilisateur

Mercury

Mercury D4.2L D-Tronic Manuel utilisateur

Selve

Selve SE Plus-RC Series Manuel utilisateur

Perkins

Perkins 1206E-E66TA Manuel utilisateur

Skov

Skov DA 174 Manuel

Rossi

Rossi TX11 Series Manuel utilisateur

Siemens

Siemens SIMOTICS T-1FW3 Feuille d'instructions

AL-KO

AL-KO PRO 350 Manuel utilisateur

MTU

MTU 12 V 4000 Lx4 Manuel utilisateur

Nanni

Nanni N3.30 Manuel d'instructions

Nanni

Nanni N5.160 CR2 Manuel utilisateur

KSB

KSB SuPreme Series Instructions d'installation

Hiwin

Hiwin EM1 Series Manuel utilisateur

Rotax

Rotax 912 i series Mode d'emploi

Siemens

Siemens SIMOTICS XP 1MB1 Manuel utilisateur
