Briggs & Stratton 233400 to 233499 Guide de configuration

in any form or by any means, electronic or mechanical, including photocopying,

recording or by any information storage and retrieval system, without permission

in writing from Briggs & Stratton Corporation.

FORM MS–7584–6/98

REPLACES FORM MS–7584–8/92

FILE IN SECT. 2 OF SERVICE MANUAL

233400 to 233499

Illustrated Parts List

Model Series

233400 to 233499

TYPE NUMBERS

0533, 0611, 0616,

0631 through 0652,

1111, 1116,

1130 through 1156,

2020 through 2061,

2520 through 2531,

2540, 2541, 2561.

TO FIND

THE CORRECT NUMBER OF THE PART YOU NEED:

FOLLOW THE INSTRUCTIONS BELOW

A. Refer to Engine Model, Type and Code Number that is stamped on the blower housing of engine.

Engine type numbers such as 0123 01 are listed only as 0123 in most instances. The two digits (01

or 02, etc.) to the right of the space may be required for more accurate parts identification in some

instances. Select the Illustrated Parts List covering the correct Model Series and Type Number.

B. Refer to the Illustrations and compare the original part with Illustration. The number next to the

illustration is the Reference Number. Assemblies include all parts shown in frames. All parts shown

in assembly frames having individual reference numbers can be purchased separately.

C. After the Reference Number has been identified, refer to the Numerical text, where Reference and

Primary Part Number are listed. THE PRIMARY PART IS USED ON ALL TYPE NUMBERS

EXCEPT THOSE TYPE NUMBERS UNDER “NOTE.”

D. If a “Note” appears below the Primary Part Number, it means that this part differs from the Primary

Part for certain types. If your Type number is listed under “Note,” order the part referred to at the

“Note.”

E. If your Engine Type Number does not appear after any part number listed under “Note,” use the

Primary Part Number.

F. For Engine Type Numbers not covered by this book, check other Parts Lists having the same

engine model or contact your source of supply.

PRINTED IN U.S.A.

233400 to 233499

7584–2 Assemblies include all parts shown in frames. 68

1019 LABEL KIT

910 383

635 6

308

306

362

11 337

645

342

REQUIRES SPECIAL TOOLS TO INSTALL.

SEE REPAIR INSTRUCTION MANUAL.

347

305

1058 OWNER’S MANUAL

724 723

722

305

1 8

552

572

870

871

869

1 395668 Cylinder Assembly

5 210580 Head–Cylinder

––––––– Note –––––

211660 Head–Cylinder

Used on Type No(s).

0638, 0643, 0647,

0648, 0650, 0652,

1131, 1135, 1137,

1146, 1149, 1150,

2027, 2031, 2527.

6 22963 Washer–Flat

7K272165 Gasket–Cylinder Head

8 495738 Breather Assembly

9K27803 Gasket–Breather

10 94621 Screw–Hex.

11 68818 Tube–Breather

13 92674 Screw–Hex.

––––––– Note –––––

94926 Screw–Hex.

Used on Type No(s).

1130, 1144, 1147,

1154, 1155.

305 94786 Screw–Hex.

306 22951 Shield–Cylinder

308 291866 Cover–Cylinder

337 298809 Plug–Spark

(1 1/2”High)

––––––– Note –––––

492167 Plug–Spark

(1 7/8”High)

802592 Plug–Spark

(Resistor Type)

(1 7/8”High)

342 298125 Plunger–Breaker

347 220197 Switch–Stop

––––––– Note –––––

29372 Switch–Stop

Used on Type No(s).

0533, 0640.

231070 Switch–Stop

Used on Type No(s).

0651, 2020, 2021,

2022, 2024, 2030,

2040, 2041, 2061,

2520, 2521, 2522,

2524, 2530, 2540,

2541, 2561.

293739 Switch–Stop

(For 2”High, 51mm

Spark Plug)

––––––– Note –––––

390785 Switch–Stop

Used on Type No(s).

0652, 1131.

362 392273 Shield–Spark Plug

(With Stop Switch)

383 89838 Wrench–Spark Plug

552 393666 Bushing–Governor-

Crank

572 291871 Guide–Control Rod

635 66538 Boot–Spark Plug

645 230775 Bushing–Plunger

722 68768 Seal–Plunger

723 93516 Retainer–Seal

724 221873 Retainer–Seal

869 21880 Seat–Valve

(Intake)

870 21612 Seat–Valve

(Exhaust)

871 231218 Bushing–Guide

(Exhaust)

1019 491256 Label Kit

1058 270373 Owner’s Manual

Nonemission Engines

KIncluded in Gasket Set–See Ref. No. 291728. DIncluded in Carburetor Kit–Part No. 395670.

REF. PART REF. PART REF. PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION

233400 to 233499

7584–3 Assemblies include all parts shown in frames. 68

593

20A

123

728

571

25 571A

12 K270789 Gasket–Bearing

Support

20 K291675 Seal–Oil

20A K391086 Seal–Oil

25 294676 Piston Assembly

(Standard)

––––––– Note –––––

294677 Piston Assy.

(.010”O.S.)

294678 Piston Assy.

(.020”O.S.)

294679 Piston Assy.

(.030”O.S.)

26 292100 Ring Set

(Standard)

––––––– Note –––––

298746 Ring Set

(Chrome Standard)

292101 Ring Set

(.010”O.S.)

292102 Ring Set

(.020”O.S.)

292103 Ring Set

(.030”O.S.)

27 68546 Lock–Piston Pin

28 298401 Pin–Piston

(Standard)

––––––– Note –––––

294681 Pin–Piston

(.005”O.S.)

29 298400 Rod–Connecting

(Standard)

––––––– Note –––––

390304 Rod–Conn.

(.020”Undersize)

30 220805 Dipper–Conn. Rod

31 22946 Lock–Rod Screw

32 230557 Screw–Conn. Rod

123 93415 Screw–Hex.

571 291672 Support–Bearing

––––––– Note –––––

291662 Support–

Bearing

Used on Type No(s).

1143.

571A 291665 Support–Bearing

(Ball Bearing)

––––––– Note –––––

291283 Support–

Bearing

(Plain Bearing)

Used on Type No(s).

1143.

291710 Support–

Bearing

(Ball Bearing)

Used on Type No(s).

0631, 0634, 0638,

0651, 1136, 1144,

1145, 1146, 1153,

1155.

593 K27349 Gasket–Bearing

Support

(.020”Thick)

––––––– Note –––––

K27374 Gasket–

Bearing Support

(.005”Thick)

K27375 Gasket–

Bearing Support

(.009”Thick)

728 94627 Screw–Hex.

KIncluded in Gasket Set–See Ref. No. 291728. DIncluded in Carburetor Kit–Part No. 395670.

REF. PART REF. PART REF. PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION

233400 to 233499

7584–4 Assemblies include all parts shown in frames. 68

377

219

16 554

225

591

45 45

33 34

553

40A

16 260761 Crankshaft

––––––– Note –––––

260134 Crankshaft

Used on Type No(s).

0631.

260760 Crankshaft

Used on Type No(s).

0632, 0638, 0650,

0651, 1137, 1138,

1144, 1153, 1155,

2021, 2521.

260762 Crankshaft

Used on Type No(s).

0634, 0642, 1136,

2026, 2526.

260763 Crankshaft

Used on Type No(s).

0643, 0647, 1146,

1149, 2024, 2524.

260764 Crankshaft

Used on Type No(s).

0533, 0616, 0641,

0644, 0646, 1116,

1133, 1142, 1148,

1151, 1156, 2030,

2031, 2530, 2531.

260765 Crankshaft

Used on Type No(s).

2040, 2540.

260804 Crankshaft

Used on Type No(s).

2022, 2522.

260807 Crankshaft

Used on Type No(s).

1143.

261422 Crankshaft

Used on Type No(s).

1154, 2061, 2561.

261458 Crankshaft

Used on Type No(s).

0636, 0640, 0645,

1139, 1141, 1152,

2041, 2541.

261548 Crankshaft

Used on Type No(s).

1145.

262029 Crankshaft

Used on Type No(s).

1150.

17 291667 Bearing–Ball

24 222698 Key–Flywheel

33 394436 Valve–Exhaust

34 394434 Valve–Intake

35 65906 Spring–Valve

40 292260 Retainer–Valve

40A 68293 Retainer–Valve

41 494553 Keeper–Valve

45 26670 Tappet–Valve

46 211335 Gear–Cam

219 393720 Gear–Governor

225 393467 Shaft–Governor Gear

377 91540 Key–Drive Pulley

553 62222 Seat–Valve Spring

554 66203 Shaft–Cam Gear

591 65932 Plug–Camshaft

KIncluded in Gasket Set–See Ref. No. 291728. DIncluded in Carburetor Kit–Part No. 395670.

REF. PART REF. PART REF. PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION

233400 to 233499

7584–5 Assemblies include all parts shown in frames. 68

525

569

665

558

556 568

1054

15 94239 Plug–Oil Drain

21 66768 Cap–Oil Fill

525 230472 Pipe–Oil

––––––– Note –––––

230470 Pipe–Oil

Used on Type No(s).

1143.

556 94724 Screw–Hex.

558 92268 Washer–Lock

(Used Before Code

Date 92100500).

568 291404 Base–Engine

––––––– Note –––––

294751 Base–Engine

Used on Type No(s).

0641, 1142.

298866 Base–Engine

Used on Type No(s).

0533, 0640.

569 K27351 Gasket–Base

––––––– Note –––––

27551 Gasket–Base

Used on Type No(s).

0640, 2040.

665 298860 Minder–Oil

1054 280275 Tie–Cable

KIncluded in Gasket Set–See Ref. No. 291728. DIncluded in Carburetor Kit–Part No. 395670.

REF. PART REF. PART REF. PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION

233400 to 233499

7584–6 Assemblies include all parts shown in frames. 68

109

113

102

103

104

101

114

112

111

110

119

100

108

90 91

105

107

118

158

90 293950 Carburetor

––––––– Note –––––

292106 Carburetor

Used on Type No(s).

0638, 0643, 0647,

0648, 0650, 0652,

1131, 1135, 1137,

1146, 1149, 1150,

2027, 2031, 2527,

2531.

91 291655 Body Assembly–Upper

93 23108 Bushing–Throttle Shaft

94 D292681 Valve–Idle Adjustment

95 93499 Screw–Choke/Throttle

96 223370 Valve–Throttle

97 291300 Shaft–Throttle

98 91920 Screw–Slotted

99 26157 Spring–Friction

100 212904 Stop–Throttle

101 93043 Pin–Shaft

102 D27034 Gasket–Carb. Body

103 99333 Float–Carburetor

104 D230896 Pin–Float Hinge

105 D394681 Kit–Needle Seat

––––––– Note –––––

394682 Kit–Needle

Seat

(Includes Brass Seat)

107 89915 Body Assy.–Lower

108 62872 Valve–Choke

109 89531 Shaft–Choke

110 224026 Washer–Flat

111 26155 Spring–Friction

112 23123 Screw–Shoulder

113 D395208 Nozzle–Carburetor

114 D68667 Gasket–Nozzle

118 D99525 Valve–High Speed

––––––– Note –––––

391213 Valve–High

Speed

Used on Type No(s).

0638, 0643, 0647,

0648, 0650, 0652,

1131, 1135, 1137,

1146, 1149, 1150,

2027, 2031, 2527,

2531.

119 94152 Screw–TorxRHex.

158 27590 Filter–Carburetor

Drain

KIncluded in Gasket Set–See Ref. No. 291728. DIncluded in Carburetor Kit–Part No. 395670.

REF. PART REF. PART REF. PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION

233400 to 233499

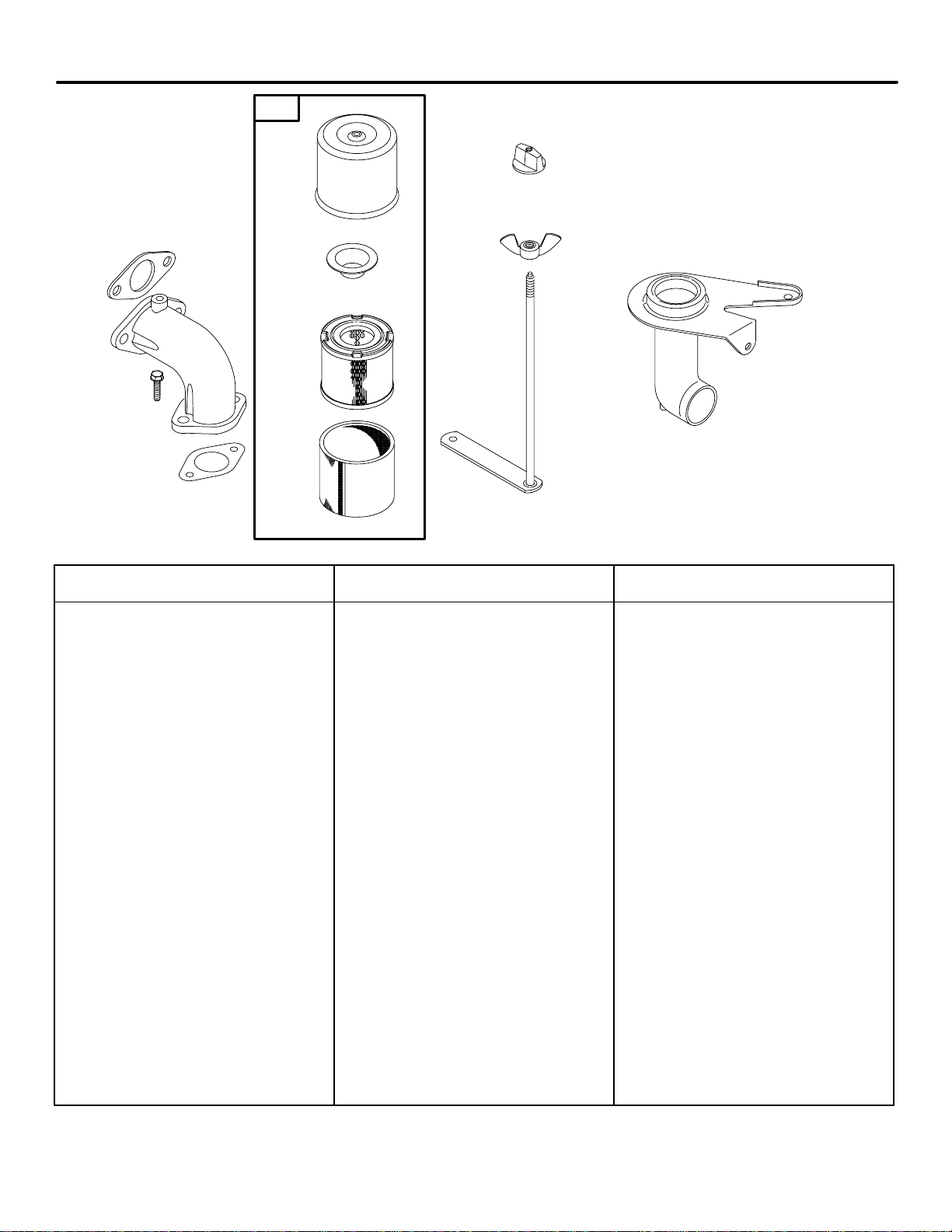

7584–7 Assemblies include all parts shown in frames. 68

642

535

445

165

643

467

166

536

51A

123

164

50 21920 Manifold–Intake

51 KD270684 Gasket–Intake

51A K27381 Gasket–Intake

123 93415 Screw–Hex.

164 299504 Pipe–Air Cleaner

––––––– Note –––––

299694 Pipe–Air

Cleaner

Used on Type No(s).

0533.

165 94289 Nut–Wing

166 394579 Stud–Air Cleaner

––––––– Note –––––

295947 Stud–Air

Cleaner

Used on Type No(s).

0533.

445 393957 Filter–Air

467 493903 Knob–Air Cleaner

535 271794 Filter–Precleaner

536 391063 Cleaner–Air

642 222271 Cover–Air Cleaner

––––––– Note –––––

497158 Cover–Air

Cleaner

Used on Type No(s).

0533.

643 222272 Retainer–Air Filter

––––––– Note –––––

280002 Retainer–Air

Filter

Used on Type No(s).

0533.

KIncluded in Gasket Set–See Ref. No. 291728. DIncluded in Carburetor Kit–Part No. 395670.

REF. PART REF. PART REF. PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION

233400 to 233499

7584–8 Assemblies include all parts shown in frames. 68

212

206A

204

209

232

223

614

230

206

594

562

592

233

616

208 227

204 23849 Collar–Bell Crank

206 93422 Nut–Hex.

206A 21772 Nut–Governor

Adjusting

208 393613 Rod–Gov. Control

209 26764 Spring–Governor

212 26725 Link–Throttle

223 22814 Crank–Bell

(Furnished by Equip.

Manufacturer.)

Used on Type No(s).

0533, 0640.

227 291365 Lever–Governor

––––––– Note –––––

298399 Lever–Gov.

Used on Type No(s).

1111, 1133, 1136,

1164, 1170, 2520,

2528, 2561, 2580.

230 22826 Washer–Flat

232 260584 Spring–Link

233 93879 Spacer

562 92613 Bolt–Governor Lever

592 231082 Nut–Hex.

594 94905 Screw–TorxRHex.

614 93306 Pin–Cotter

616 291364 Crank–Governor

KIncluded in Gasket Set–See Ref. No. 291728. DIncluded in Carburetor Kit–Part No. 395670.

REF. PART REF. PART REF. PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION

233400 to 233499

7584–9 Assemblies include all parts shown in frames. 68

601

240A

186

187A

186A

243

247

245

266

270

268

269

271

587

187

242

241

240

246

917

186 67218 Connector–Hose

(For Flexible Tubing.)

––––––– Note –––––

63377 Connector–

Hose

(For Metal Fuel Pipe.)

186A 230318 Connector–Hose

––––––– Note –––––

231238 Connector–

Hose

(For Metal Fuel Line)

187 296004 Line–Fuel

(Cut to Required

Length)

187A 291704 Line–Fuel

(Metal 18”Long)

––––––– Note –––––

89248 Line–Fuel

(Metal, 2 1/4”Long)

92655 Tee/Fuel Pipe

Used on Type No(s).

0638, 0643, 0647,

0648, 2027, 2031.

231282 Connector–

Hose

Used on Type No(s).

0650, 0652, 1131,

1135, 1137, 1146,

1149, 1150, 2527.

240 393169 Filter–Fuel

240A 298090 Filter–Fuel

241 296005 Cover–Filter

(Used With Flexible

Fuel Line)

––––––– Note –––––

99909 Cover–Filter

(Used With Metal Fuel

Line)

242 295913 Valve–Shut-Off

243 22547 Screen–Filter

245 K68477 Gasket–Bowl

246 298683 Bowl–Filter

247 99665 Yoke–Bowl

266 494554 Control–Throttle

268 65616 Casing–Wire

(Cut to Required

Length)

269 26633 Wire–Control

(Cut to Required

Length)

270 63426 Locknut–Casing

271 290568 Lever–Control

587 220162 Clamp–Cable

601 93053 Clamp–Hose

917 223271 Handle–Shutoff

KIncluded in Gasket Set–See Ref. No. 291728. DIncluded in Carburetor Kit–Part No. 395670.

REF. PART REF. PART REF. PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION

233400 to 233499

7584–10 Assemblies include all parts shown in frames. 68

181

184

185

183

917 198

199

728

196

182

186A

180

180 291488 Tank–Fuel

(6 Quart)

––––––– Note –––––

291513 Tank–Fuel

(Gasoline–Kerosene)

Used on Type No(s).

0638, 0643, 0647,

0648, 0650, 0652,

1131, 1135, 1137,

1146, 1149, 1150,

2027, 2031, 2527,

2531.

292415 Tank–Fuel

(8 Quart)

Used on Type No(s).

0533, 0639, 0640,

1134, 1141.

181 392305 Cap–Fuel Tank

(Metal)

182 22813 Bracket–Fuel Tank

183 291490 Strap–Fuel Tank

184 91257 Screw–Slotted

185 90970 Nut–Square

186A 230318 Connector–Hose

(Used With Flexible

Fuel Pipe)

––––––– Note –––––

231238 Connector–

Hose

(For Metal

Fuel Line)

196 22907 Bracket–Fuel Tank

198 293934 Screw–Shut-Off

199 297563 Valve–Shut Off

728 94627 Screw–Hex.

917 223271 Handle–Shut-Off

Valve

KIncluded in Gasket Set–See Ref. No. 291728. DIncluded in Carburetor Kit–Part No. 395670.

REF. PART REF. PART REF. PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Briggs & Stratton Moteur

Briggs & Stratton

Briggs & Stratton 120000 Manuel

Briggs & Stratton

Briggs & Stratton 400000 Professional Series Manuel de référence

Briggs & Stratton

Briggs & Stratton Sno/Gard 170400 Series Instructions d'installation

Briggs & Stratton

Briggs & Stratton Intek 110600 Instructions d'installation

Briggs & Stratton

Briggs & Stratton 83100 Manuel utilisateur

Briggs & Stratton

Briggs & Stratton 10T600 Series Guide de configuration

Briggs & Stratton

Briggs & Stratton 400000 Professional Series Manuel utilisateur

Briggs & Stratton

Briggs & Stratton 190000 Series Manuel d'installation et d'exploitation

Briggs & Stratton

Briggs & Stratton 21000 Series Manuel d'installation et d'exploitation

Briggs & Stratton

Briggs & Stratton Vanguard 80000 Manuel utilisateur

Briggs & Stratton

Briggs & Stratton Quantum Snow Manuel utilisateur

Briggs & Stratton

Briggs & Stratton MS-1055 Mode d'emploi

Briggs & Stratton

Briggs & Stratton Vanguard 290000 Manuel utilisateur

Briggs & Stratton

Briggs & Stratton 210000 Intek Manuel utilisateur

Briggs & Stratton

Briggs & Stratton 19E400 Manuel d'installation et d'exploitation

Briggs & Stratton

Briggs & Stratton PROFESSIONAL SERIES 110000 Manuel d'installation et d'exploitation

Briggs & Stratton

Briggs & Stratton 420000 Series Manuel d'installation et d'exploitation

Briggs & Stratton

Briggs & Stratton 110400 Manuel d'installation et d'exploitation

Briggs & Stratton

Briggs & Stratton Vanguard 130000 Manuel utilisateur

Briggs & Stratton

Briggs & Stratton 91200 Series Manuel d'installation et d'exploitation

Briggs & Stratton

Briggs & Stratton 120000 Manuel utilisateur

Briggs & Stratton

Briggs & Stratton 90000 series Manuel d'installation et d'exploitation

Briggs & Stratton

Briggs & Stratton Sno/Gard 170400 Series Manuel d'utilisation

Briggs & Stratton

Briggs & Stratton Power Built 825 Series Manuel

Manuels Moteur populaires d'autres marques

Rotax

Rotax 125 senior MAX evo Manuel utilisateur

Kohler

Kohler K361 Manuel utilisateur

MTD

MTD OHV Series Manuel utilisateur

Kohler

Kohler COMMAND CH18-745 Manuel utilisateur

Mercury

Mercury D4.2L D-Tronic Manuel utilisateur

Selve

Selve SE Plus-RC Series Manuel utilisateur

Perkins

Perkins 1206E-E66TA Manuel utilisateur

Skov

Skov DA 174 Manuel

Rossi

Rossi TX11 Series Manuel utilisateur

Siemens

Siemens SIMOTICS T-1FW3 Feuille d'instructions

AL-KO

AL-KO PRO 350 Manuel utilisateur

MTU

MTU 12 V 4000 Lx4 Manuel utilisateur

Nanni

Nanni N3.30 Manuel d'instructions

Nanni

Nanni N5.160 CR2 Manuel utilisateur

KSB

KSB SuPreme Series Instructions d'installation

Hiwin

Hiwin EM1 Series Manuel utilisateur

Rotax

Rotax 912 i series Mode d'emploi

Siemens

Siemens SIMOTICS XP 1MB1 Manuel utilisateur
