12L800

Illustrated Parts List

Model Series

12L800

TYPE NUMBERS

0805 through 3104.

TABLE OF CONTENTS

Alternator 7. . . . . . . . . . . . . . . . . . . . . . . . . .

Air Cleaner 4. . . . . . . . . . . . . . . . . . . . . . . . .

Blower Housing/Shrouds 6. . . . . . . . . . . .

Camshaft 2. . . . . . . . . . . . . . . . . . . . . . . . . . .

Carburetor 3. . . . . . . . . . . . . . . . . . . . . . . . .

Controls 5. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Crankshaft 2. . . . . . . . . . . . . . . . . . . . . . . . .

Cylinder 2. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Electric Starter 7. . . . . . . . . . . . . . . . . . . . . .

Electrical 7. . . . . . . . . . . . . . . . . . . . . . . . . . .

Engine Sump 2. . . . . . . . . . . . . . . . . . . . . . .

Exhaust System 4. . . . . . . . . . . . . . . . . . . .

Flywheel 7. . . . . . . . . . . . . . . . . . . . . . . . . . .

Flywheel Brake 7. . . . . . . . . . . . . . . . . . . . .

Fuel Supply 5. . . . . . . . . . . . . . . . . . . . . . . .

Governor Spring 5. . . . . . . . . . . . . . . . . . . .

Ignition 7. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Kits/Gaskets 2 & 3. . . . . . . . . . . . . . . . . . . . . . . .

Lubrication 2. . . . . . . . . . . . . . . . . . . . . . . .

Piston Group 2. . . . . . . . . . . . . . . . . . . . . . .

Rewind Starter 6. . . . . . . . . . . . . . . . . . . . . .

Valves 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

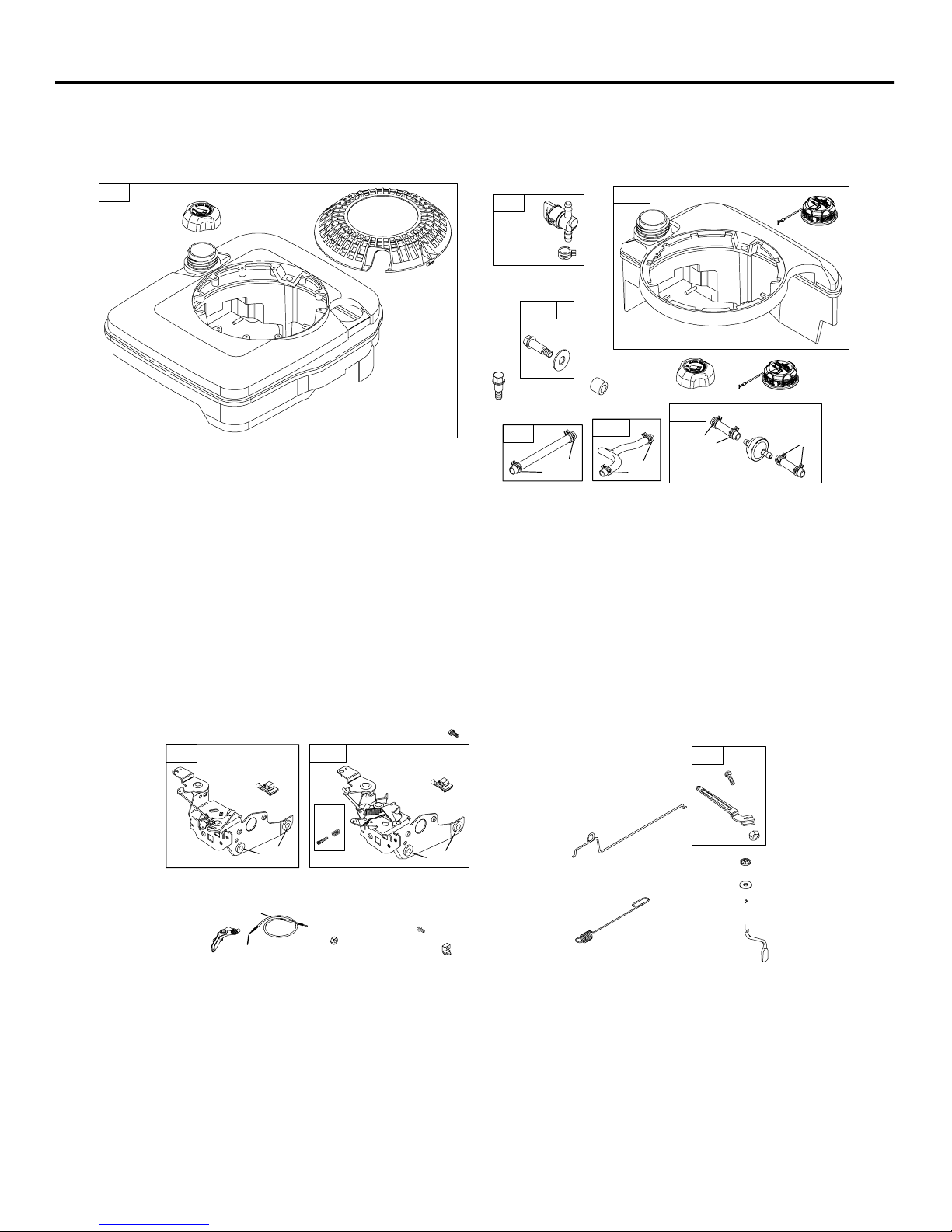

12L800

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

2271−2Assemblies include all parts shown in frames. 12/04/2007

128

718

307

306

383

635

337

13 5

15A

20A

847

523

287

524

525

842

883

1095 VALVE GASKET SET

40 45

358 ENGINE GASKET SET

883

842

617

524

163

20A

585

668

32A

743

101

721

715

146

741

374

46A

374

870

869

871

684

585

584

868

1019 LABEL KIT

1330 REPAIR MANUAL

1058 OPERATOR’S MANUAL

1319 WARNING LABEL

REQUIRED when replacing parts

with warning labels affixed.

12L800

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

2271−3Assemblies include all parts shown in frames. 12/04/2007

117

975

133

134

617

130

130A

633

163

276

137

104

365

276

118 276

94 134

975

133

134

125

CHOKE SYSTEM

PRIMER SYSTEM

108

633

217

617

130

130A

633

127

163

276

137

104

365

276 276

125A

109

127

121 CARBURETOR OVERHAUL KIT

977 CARBURETOR GASKET SET

163

137 276

104

127

137

163

633

617

633A

276

617

633

633A

117A118A

12L800

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

2271−4Assemblies include all parts shown in frames. 12/04/2007

346

836

613

883

163

529

970

159

443A

445A

967A

968B

425A

966A

976

300

676D676B

832B

300B

994

613B

836B

677677

832D

836B

836

12L800

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

2271−5Assemblies include all parts shown in frames. 12/04/2007

670

190

930

240

601A

209 616

404

615

505

562

202

188

265

267

270

271

268

621

227

98A

222 222A

668

621

668

601

269

958

187

187B

187A

601

972

1059

972B

957A

957B

12L800

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

2271−6Assemblies include all parts shown in frames. 12/04/2007

930A

930

969

604A

564A

969A

921

564

604

925

305

304

1036 EMISSIONS LABEL

921A

592

597

456

689

459

1210

1211

608

12L800

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

2271−7Assemblies include all parts shown in frames. 12/04/2007

621

922

745

923

851

334

910

474

1119

356

333

789B

363

23A

455

332

1005

1160

935

310

802

853

803

544

801

783A

651

513

785

784

783

937

742

309

545

510

853

697

783A

651

513

785

784

783

937

742

510

309A

12L800

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

2271−8Assemblies include all parts shown in frames. 12/04/2007

1 697324 Cylinder Assembly

2 399269 Kit−Bushing/Seal

(Magneto Side)

3K299819S Seal−Oil

(Magneto Side)

4 493279 Sump−Engine

4A 493365 Sump−Engine

(Auxilliary PTO)

5 691160 Head−Cylinder

7K∅692249 Gasket−Cylinder Head

8 695250 Breather Assembly

9K∅699833 Gasket−Breather

10 94650 Screw

(Breather Assembly)

11 691781 Tube−Breather

12 K692232 Gasket−Crankcase

13 690912 Screw

(Cylinder Head)

15 691680 Plug−Oil Drain

(Square Socket)

15A 691093 Plug−Oil Drain

(Hex Socket)

16 691454 Crankshaft

−−−−−−− Note −−−−−

691451 Crankshaft

Used on Type No(s).

0806, 1507, 1508,

1509, 1562.

691452 Crankshaft

Used on Type No(s).

0805, 1505, 1506,

2304, 2604, 3104.

20 K399781S Seal−Oil

(PTO Side)

20A K691952 Seal−Oil

(PTO Side)

(Auxiliary PTO)

22 691092 Screw

(Crankcase

Cover/Sump)

23A 691987 Flywheel

−−−−−−− Note −−−−−

691992 Flywheel

Used on Type No(s).

0805, 0806.

24 222698S Key−Flywheel

25 795429 Piston Assembly

(Standard)

(Used After Code Date

07090300).

−−−−−−− Note −−−−−

791096 Piston

Assembly

(Standard)

(Used Before Code

Date 07090400).

795430 Piston

Assembly

(.020” Oversize)

(Used After Code Date

07090300).

791325 Piston

Assembly

(.020” Oversize)

(Used Before Code

Date 07090400).

26 795431 Ring Set

(Standard)

(Used After Code Date

07090300).

−−−−−−− Note −−−−−

791098 Ring Set

(Standard)

(Used After Code Date

04031400 and Before

Code Date 07090400).

499425 Ring Set

(Standard)

(Used Before Code

Date 04031500).

795432 Ring Set

(.020” Oversize)

(Used After Code Date

07090300).

791324 Ring Set

(.020” Oversize)

(Used After Code Date

04102100 and Before

Code Date 07090400).

499427 Ring Set

(.020” Oversize)

(Used Before Code

Date 04102200).

27 691866 Lock−Piston Pin

28 499423 Pin−Piston

(Standard)

29 499424 Rod−Connecting

(Standard)

32 691664 Screw

(Connecting Rod)

32A 695759 Screw

(Connecting Rod)

(Used After Code Date

00042200).

33 262651S Valve−Exhaust

34 262652S Valve−Intake

35 691270 Spring−Valve

(Intake)

36 691270 Spring−Valve

(Exhaust)

37 694086 Guard−Flywheel

40 692194 Retainer−Valve

43 691997 Slinger−Governor/Oil

45 690548 Tappet−Valve

46 691449 Camshaft

46A 691459 Camshaft

45 690548 Tappet−Valve

50 497465 Manifold−Intake

51 K272199S Gasket−Intake

54 691650 Screw

(Intake Manifold)

55 691421 Housing−Rewind

Starter

58 280399S Rope−Starter

(Cut To Required

Length)

60 281434S Grip−Starter Rope

65 690837 Screw

(Rewind Starter)

78 691108 Screw

(Flywheel Guard)

81 691740 Lock−Muffler Screw

83 691778 Shaft−Auxiliary Drive

94 D493765 Kit−Idle Mixture

95 691636 Screw

(Throttle Valve)

KIncluded in Engine Gasket Set−Ref. No.358.

DIncluded in Carburetor Overhaul Kit−Ref. No. 121.

zIncluded in Carburetor Gasket Set−Ref. No. 977.

∅Included in Valve Gasket Set−Ref. No 1095.
