Breville JC6B Manuel utilisateur
Step 1: Lock juice jug into motor base
Place the juice jug over the drive shaft on
the motor base and turn until it locks into
position. Then sit the strainer dish on top of
the juice jug, ensuring that the spout on the
strainer dish is aligned with the spout of the
juice jug.
Step 2: Select cone size
Fit the small cone onto the drive shaft and
push down lightly, locking the small cone
into position. For larger fruits, place the large
cone on top of the small cone, after the
small cone has been correctly positioned on
the drive shaft. The large cone will lock into
place.
Step 3: Turn power ‘ON’
Plug the power cord into a 230/240V power
outlet and switch on.
Step 4: Prepare fruit and start juicing
Cut the citrus fruit in half and press fruit
firmly down onto the cone. The motor will
automatically start and the juicing cone will
begin to rotate. Lifting fruit off the cone then
reapplying pressure may cause the cone to
automatically change direction. This is
normal and ensures that the fruit is
completely juiced.
Step 5: Stop juicing
To stop, lift the fruit off the cone. Juicing will
automatically stop.
HOW TO OPERATE YOUR BREVILLE CITRUS FRESH
HANDY TIPS
•Move the fruit from side to side against
the cone whilst juicing to extract
maximum juice.
•More juice is also obtained from fruit
juiced at room temperature.
Small
Cone
Large
Cone
Model JC6B
Issue 1/00
PRINTED ON
RECYCLED PAPER
Breville is a registered trademark of Breville Holdings Pty. Limited
ABN 98 000 092 928
© Copyright. Breville Holdings Pty. Limited 2004
Due to ontinual improvements in design or otherwise,
the produ t you pur hase may differ slightly from the one
illustrated in this booklet.
Breville Customer Care Centre
Australian Customers
✉Breville Customer Care Centre
Locked Bag 2000
Botany NSW 2019
Australia
☎Customer Service P : 1300 139 798
Fax (02) 9384 9601
Email Customer Service [email protected]
New Zealand Customers
✉Breville Customer Service Centre
Private Bag 94411
Greenmount
Auckland, New Zealand
☎Customer Service P : 09 271 3980
Fax 0800 288 513
Email Customer Service [email protected]
INSTRUCTIONS FOR USE
MODEL JC6B
Citrus
Fresh
BREVILLE RECOMMENDS SAFETY FIRST
2
Congratulations on your purchase of a new
Breville Citrus Fresh Juicer. We at Breville
are very safety conscious. We design and
manufacture consumer products with the
safety of you, our valued customer foremost
in mind. In addition we ask that you exercise
a degree of care when using any electrical
appliance and adhere to the following
precautions:
READ ALL INSTRUCTIONS BEFORE
OPERATING AND SAVE FOR FUTURE
REFERENCE.
•Do not immerse the motor base in water
or any other liquid.
•Always use the Citrus Fresh on a dry, level
surface.
•Always ensure the juice jug is locked in
position and the unit is properly and
correctly assembled before unit is
switched on.
•Always turn the power off at the power
outlet and remove the plug before
disassembling the unit. Wait for the motor
to come to a complete standstill before
removing the juice jug.
•The appliance is not intended for use by
young children or infirm persons without
supervision.
•Do not leave the appliance unattended
when in use. Young children should be
supervised to ensure that they do not play
with the appliance.
•Do not let the cord hang over the edge of
a table or counter, touch hot surfaces or
become knotted.
•If the supply cord, plug or actual
appliance becomes damaged in any way
return the entire appliance to the nearest
authorised Breville Service Centre for
examination, replacement or repair.
•Do not place this appliance on or near a
hot gas or electric burner, or where it
could touch a heated oven.
•This appliance is for household use only.
Do not use this appliance for anything
other than its intended use. Do not use
outdoors.

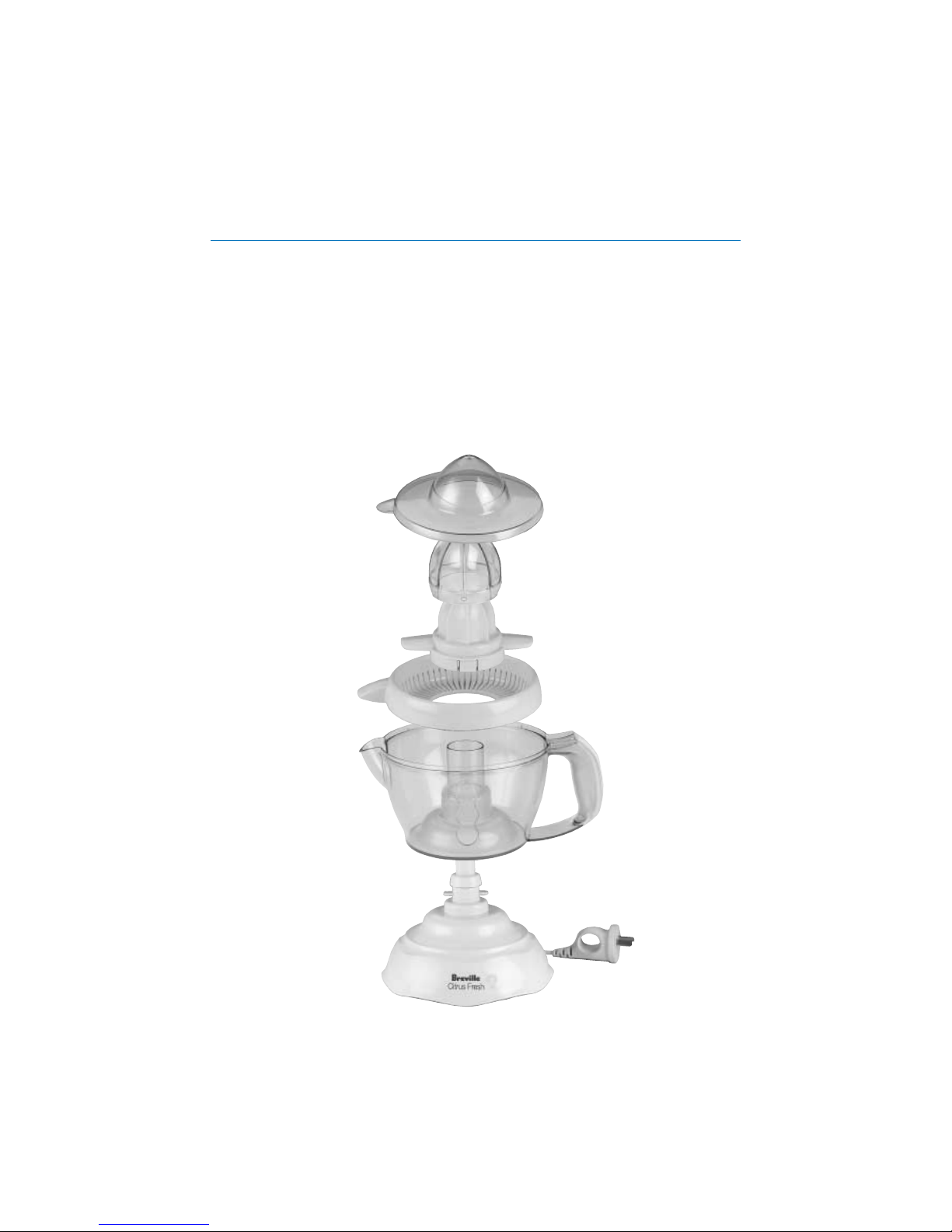

1. Lid for use when storing the juice jug in
the refrigerator, doubles as a dust cover
2. Large Cone ideal for extracting maximum
juice from large citrus fruits, such as
grapefruit and large oranges
3. Small Cone perfect for smaller citrus
fruits, such as lemons and limes
4. Scraper Blade at the base of the smaller
cone, prevents accumulation of pulp in
the strainer dish and helps to extract the
maximum juice from the pulp
5. Strainer Dish allows the juice to flow
through to the jug, whilst straining the
pulp and seeds
6. Removable Juice Jug with easy grip
handle and a large 800ml capacity
7. Reversible Drive Shaft drives the cone
when pressure is applied. Motor
automatically reverses direction each time
pressure is applied to the cone
8. Motor Base with cord storage
underneath
KNOW YOUR BREVILLE CITRUS FRESH
3
1.
3.
2.
4.
5.
6.
8.
7.
2.
3.
4.
4
BEFORE FIRST USE
Before using your Citrus Fresh juicer for the
first time, wash all the removable parts in
warm soapy water. Rinse and dry
thoroughly.
AFTER EACH USE
•Switch off the unit at the power outlet and
unplug.
•Disassemble the unit and wash all
removable parts in warm, soapy water. Do
not place these parts in the dishwasher as
the high water temperature and harsh
detergents used will ultimately warp or
scratch these parts. It is best to rinse or
wash all removable parts immediately as
dried citrus pulp is difficult to remove and
may stain. If any staining does occur, wipe
the affected part/s with undiluted
dishwashing liquid and rinse thoroughly.
•Wipe the motor base with a damp cloth.
NEVER IMMERSE THE
MOTOR BASE IN WATER OR
ANY OTHER LIQUID. DO NOT
USE HARSH ABRASIVES OR
DETERGENTS.
CARE AND CLEANING
